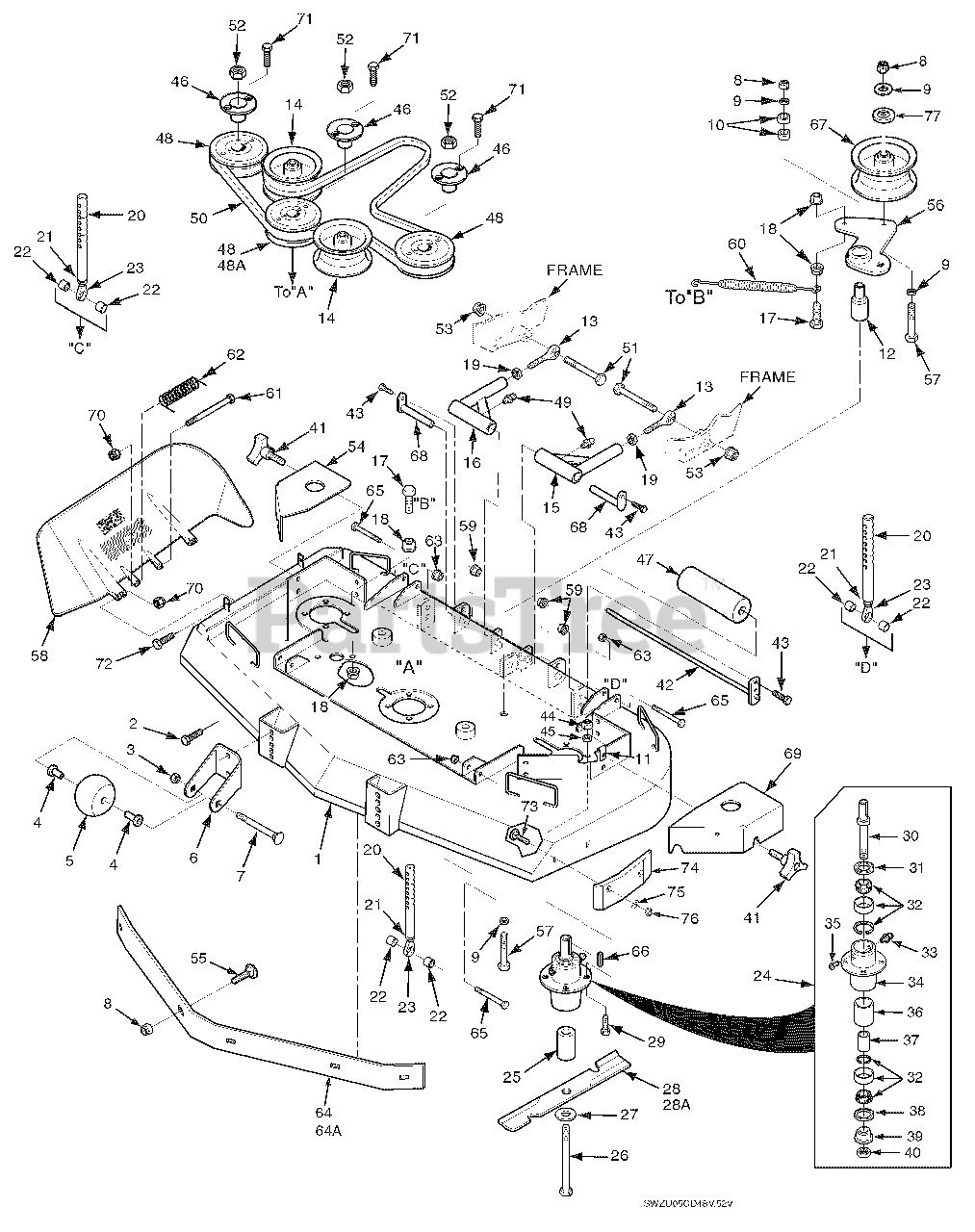

SWZU48V-17KAI - Scag Ultimate 48" Walk-Behind Mower, 17hp Kawasaki (SN: D4300001 - D4399999) 48V & 52V Cutter Decks Parts Diagram

Ultimate 48" Walk-Behind Mower, 17hp Kawasaki

48V & 52V Cutter Decks Parts Diagram

  • Title

1

Scag 461853

Cutter Deck W/ Decals

$

$

Not available

2

Scag 04017-27

Capscrew, 3/8-16 x 1" Serr. Flng.

$1.49

$

In Stock, Qty 20+

0

3

Scag 04021-05

Lock Nut, 3/8-16 Center Lock

$0.99

$

In Stock, Qty 20+

0

4

Scag 48100-15

Bushing, .376" ID Oilite

$4.99

$

In Stock, Qty 20+

0

5

Scag 481632

Wheel, Anti-Scalp

$21.99

$

In Stock, Qty 20+

0

6

Scag 422478

Bracket, Anti-Scalp Wheel

$28.99

$

In Stock, Qty 20+

0

7

Scag 04003-26

Bolt, Carriage 3/8-16 x 4"

$1.99

$

In Stock, Qty 20+

0

8

Scag 04021-09

Hex Nut, 3/8-16 Elastic Stop

$0.99

$

In Stock, Qty 20+

0

9

Scag 04043-04

Flatwasher, 3/8"

Note: (.938 x .391 x .105)

$0.99

$

In Stock, Qty 20+

0

10

Scag 48224

Ball Bearings

$12.99

$

In Stock, Qty 20+

0

11

Scag 04110-03

U-Nut, 3/8-16

$2.49

$

In Stock, Qty 20+

0

12

Scag 43660

Pivot, Idler

$37.99

$

Usually ships in 2-12 days

0

13

Scag 48542

Rod End, Male 1/2-20 RH Thread

$40.99

$

In Stock, only 2 left!

0

14

Scag 483215

Pulley, Idler

$60.99

$

In Stock, Qty 20+

0

15

Scag 461755

Push Arm - LH
(Superseded to 462712)

Note: (Incl. 13, 19 & 49)

$128.99

$

In Stock, only 1 left!

0

16

Scag 461756

Push Arm - RH
(Superseded to 462713)

Note: (Incl. 13, 19 & 49)

$140.99

$

Usually ships in 2-12 days

0

17

Scag 04001-136

Capscrew, Hex Head 3/8-16 x 1-1/2"

$0.99

$

In Stock, Qty 20+

0

18

Scag 04019-04

Nut, 3/8-16 Serrated Flange

$0.99

$

In Stock, Qty 20+

0

19

Scag 04020-08

Nut, 1/2-20 Jam

$0.99

$

Usually ships in 2-12 days

0

20

Scag 481838

Pin Assembly

Note: (Incl. 21 & 23)

$69.99

$

Usually ships in 2-12 days

0

21

Scag 04020-25

Nut, 3/8-24 Jam

$0.99

$

In Stock, only 2 left!

0

22

Scag 43512

Spacer, Deck Adjustment Pin

$4.49

$

Usually ships in 2-12 days

0

23

Scag 481539

Rod End, Male 3/8-24
(Superseded to 482586)

$20.99

$

Usually ships in 2-12 days

0

24

Scag 461663

Spindle Assembly

$257.99

$

In Stock, Qty 20+

0

25

Scag 43590

Spacer, Spindle

$17.99

$

In Stock, Qty 20+

0

26

Scag 04001-41

Bolt,Hex Head 5/8-11 x 9-1/2"

$12.99

$

In Stock, Qty 20+

0

27

Scag 04043-06

Flatwasher, 5/8 W

$1.99

$

In Stock, Qty 20+

0

28

Scag 481706

Cutter Blade 16-1/2"

$20.99

$

In Stock, Qty 20+

0

28A

Scag 481710

Cutter Blade 16-1/2" Hi Lift

$40.99

$

Usually ships in 2-12 days

0

29

Scag 04001-176

Bolt, Hex Head 5/16-18 x 1-3/4" Gr 8

$0.99

$

In Stock, Qty 20+

0

30

Scag 43589

Spindle Shaft

$58.99

$

In Stock, only 1 left!

0

31

Scag 481024

Seal, Cutter Spindle - Top

$4.99

$

In Stock, Qty 20+

0

32

Scag 481022

Tapered Bearings

Note: (Two)

$59.99

$

In Stock, Qty 15

0

33

Scag 48114-04

Grease Fitting

$0.99

$

In Stock, Qty 20+

0

34

Scag 43644

Spindle Housing

$58.99

$

In Stock, only 2 left!

0

35

Scag 48677

Relief Fitting, Cutter Spindle

$

$

Not available

36

Scag 43312

Spacer Outside

$19.99

$

In Stock, only 1 left!

0

37

Scag 43296

Spacer, Inside

$8.49

$

In Stock, only 2 left!

0

38

Scag 481025

Seal, Cutter Spindle - Bottom

$4.99

$

In Stock, Qty 20+

0

39

Scag 43297

Spindle Bushing

$9.99

$

In Stock, only 2 left!

0

40

Scag 481035

Nut, Spindle

$7.99

$

In Stock, only 3 left!

0

41

Scag 481625-01

Wing Nut, 3/8-16

$2.99

$

In Stock, Qty 20+

0

42

Scag 451118

Roller Shaft

$42.99

$

Usually ships in 2-12 days

0

43

Scag 04001-09

Bolt, Hex Head 5/16-18 x 1"

$0.99

$

In Stock, Qty 20+

0

44

Scag 04021-22

Hex Nut, 5/16-18 Elastic Stop Gr. 8

$0.99

$

In Stock, Qty 20+

0

45

Scag 04030-03

Lock Washer 5/16"

$0.99

$

In Stock, Qty 20+

0

46

Scag 48926

Tapered Hub

$30.99

$

In Stock, Qty 20+

0

47

Scag 48038

Guide, Roller

$28.99

$

In Stock, only 2 left!

0

48

Scag 482744

Pulley, 5.75 O.D.

$30.99

$

Usually ships in 2-12 days

0

49

Scag 48114-08

Grease Fitting, 90 Degree

$3.99

$

Usually ships in 2-12 days

0

50

Scag 482281

Belt, Deck Drive

$68.99

$

In Stock, only 1 left!

0

51

Scag 04001-74

Bolt, Hex Head 1/2-13 x 3"

$1.99

$

In Stock, Qty 6

0

52

Scag 04020-09

Hex Nut, 5/8-11

$0.99

$

In Stock, Qty 20+

0

53

Scag 04021-07

Hex Nut, 1/2-13 Elastic Stop

$0.99

$

In Stock, Qty 20+

0

54

Scag 424317

Belt Cover, RH

$53.99

$

Usually ships in 2-12 days

0

55

Scag 04003-23

Bolt, Carriage 3/8-16 x 1"

$1.49

$

In Stock, Qty 20+

0

56

Scag 461632

Idler Arm Weldment

Note: (Incl. Item 10)

$76.99

$

Usually ships in 2-12 days

0

57

Scag 04001-54

Capscrew, Hex Head 3/8-16 x 3"

$0.99

$

In Stock, Qty 9

0

58

Scag 461844

Discharge Chute

$66.99

$

In Stock, only 2 left!

0

59

Scag 04019-03

Nut, 5/16-18 Serrated Flange

$0.99

$

In Stock, Qty 20+

0

60

Scag 482797

Spring, Deck Idler

$67.99

$

In Stock, only 3 left!

0

61

Scag 04001-154

Bolt, Hex Head 5/16-18 x 4-1/4"

$2.99

$

In Stock, Qty 20+

0

62

Scag 483378

Spring, Chute Return

$7.49

$

In Stock, only 4 left!

0

63

Scag 04021-09

Nut, 3/8-16 Elastic Stop

$0.99

$

In Stock, Qty 20+

0

64

Scag 424173

Baffle Weldment 48V
(Superseded to 424839)

$84.99

$

In Stock, only 1 left!

0

65

Scag 04001-31

Bolt, Hex Head 3/8-16 x 2-1/2"

$0.99

$

In Stock, Qty 20+

0

66

Scag 04063-08

Key, 1/4" x 1/4" x 2"

$1.49

$

In Stock, Qty 20+

0

67

Scag 483210

Pulley, Idler

$55.99

$

In Stock, only 2 left!

0

68

Scag 451724

Push Arm Shaft

$35.99

$

In Stock, only 2 left!

0

69

Scag 424316

Belt Cover LH

$53.99

$

Usually ships in 2-12 days

0

70

Scag 04021-10

Hex Nut, 5/16-18 Elastic Stop

$0.99

$

In Stock, Qty 20+

0

71

Scag 04001-172

Bolt, Hex Head 1/4-20 x 1" Gr. 8

$0.99

$

In Stock, Qty 20+

0

72

Scag 04001-11

Bolt, Hex Head 5/16-18 x 1-1/2"

$0.99

$

In Stock, Qty 6

0

73

Scag 04003-12

Bolt, Carriage 5/6-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

74

Scag 483176

Pad, Deck Wear

$33.99

$

In Stock, Qty 20+

0

75

Scag 04040-04

Flatwasher, 5/16"

$0.99

$

In Stock, Qty 20+

0

76

Scag 04021-04

Hex Nut, 5/16-18 Center Locknut

$0.99

$

In Stock, Qty 20+

0

77

Scag 424367

Dust Shield

$2.49

$

In Stock, only 2 left!

0
