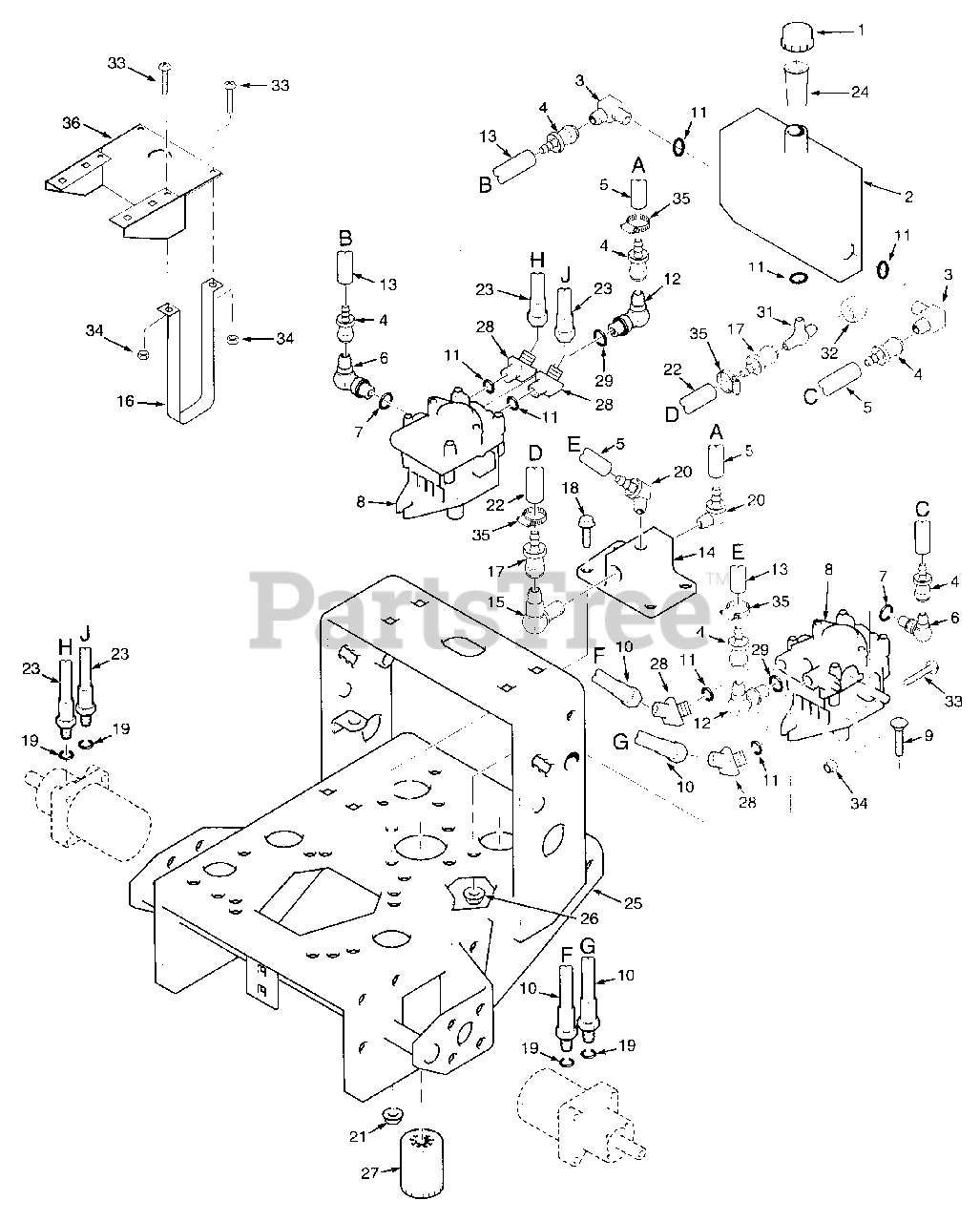

SWZU48-17KA - Scag Ultimate 48" Walk-Behind Mower, 17hp Kawasaki (SN: 5270001 - 5279999) Hydraulic Assembly Parts Diagram

Ultimate 48" Walk-Behind Mower, 17hp Kawasaki

Hydraulic Assembly Parts Diagram

  • Title

1

Scag 481164

Cap, Oil Reservoir

$18.99

$

In Stock, Qty 8

0

2

Scag 461188

Oil Reservoir (With Fittings)

$

$

Not available

3

Scag 48350-04

Elbow, 90 deg. 7/16-20 x 9/16-18

$21.99

$

Usually ships in 2-12 days

0

4

Scag 48353-02

Coupling, 7/16-20 SAE Flare Swivel to 1/4" Hose Push On

$4.49

$

Usually ships in 2-12 days

0

5

Scag 48482

Hose, 1/4" ID - 7" Long

Note: (Order By The Inch)

$0.99

$

In Stock, Qty 20+

0

6

Scag 48350-04

Elbow, 90 deg. 7/16-20 JIC to 9/16-18 "O" Ring

$21.99

$

Usually ships in 2-12 days

0

7

Scag 48603-06

O-Ring

$6.99

$

In Stock, only 2 left!

0

8

Pump, Hydro-Gear BDP-10L117

Note: (Purchase through your Hydro-Gear Distributor.)

$

$

Not available

9

Scag 04003-11

Bolt, Carriage, 3/8-16 x 1.25"

$0.99

$

In Stock, Qty 7

0

10

Scag 481265

Hose, Pump to Wheel Motor

$68.99

$

Usually ships in 2-12 days

0

11

Scag 48603-02

O-Ring

$3.49

$

In Stock, only 3 left!

0

12

Scag 48350-03

Elbow, 90 deg., 1/2 NPT

$21.99

$

Usually ships in 2-12 days

0

13

Scag 48482

Hose, 1/4" ID - 5" Long

Note: (Order By The Inch)

$0.99

$

In Stock, Qty 20+

0

14

Scag 48471-02

Oil Filter Base

$108.99

$

Usually ships in 2-12 days

0

15

Scag 48486-03

Elbow, 90 deg. 1/2" NPT

$

$

Not available

16

Scag 422794

Strap, Hydraulic Tank

$41.99

$

In Stock, only 1 left!

0

17

Scag 48936-03

Coupling, 3/4-16 SAE to 1/2" Hose Push On

$11.99

$

Usually ships in 2-12 days

0

18

Scag 04017-16

Capscrew, 5/16-18 x .75" Serr. Flange

$0.99

$

In Stock, Qty 10

0

19

Scag 48603-04

O-Ring

$8.99

$

In Stock, only 2 left!

0

20

Scag 48486-01

Elbow, 90 deg. Male 1/4 NPT to 1/4 Hose Push On

$11.99

$

Usually ships in 2-12 days

0

21

Scag 04019-03

Nut, 5/16-18 Serr. Flange

$0.99

$

In Stock, Qty 20+

0

22

Scag 481875

Hose, Formed 1/2" ID

$35.99

$

Usually ships in 2-12 days

0

23

Scag 481849

Hose, Pump to Wheel Motor

$98.99

$

In Stock, only 1 left!

0

24

Scag 481507

Tube, Filler Neck

$13.99

$

Usually ships in 2-12 days

0

25

Scag 461182

Engine Deck (16" Wide) W/Decals
(Superseded to 461746)

$643.99

$

Usually ships in 2-12 days

0

26

Scag 04019-04

Nut, 3/8-16 Serr Flange

$0.99

$

In Stock, Qty 20+

0

27

Scag 48758

Oil Filter

$27.99

$

In Stock, Qty 20+

0

28

Scag 48485-01

Elbow, 45 Deg.-3/4-16 JIC Male x Male 3/4-16 O-Ring

$23.99

$

Usually ships in 2-12 days

0

29

Scag 48603-03

O-Ring

$3.49

$

Usually ships in 2-12 days

0

?30

Scag 481537-02

Coupling, 3/8 Pipe to 1/2 Push-on

$4.99

$

Usually ships in 2-12 days

0

31

Scag 48810-01

T-Fitting, 1/2 (3/4-16)

$34.99

$

Usually ships in 2-12 days

0

32

Scag 48571-02

Cap, 3/4-16

$5.99

$

Usually ships in 2-12 days

0

33

Scag 04010-10

Screw, 1/4-20 x 2.0" Round Head Phillips

$0.99

$

In Stock, Qty 12

0

34

Scag 04021-08

Nut, 1/4-20

$0.99

$

In Stock, Qty 10

0

35

Scag 48136-05

Clamp, .87 max dia.

$3.99

$

In Stock, only 2 left!

0

36

Scag 422793

Bracket, Hydraulic Tank

$100.99

$

Usually ships in 2-12 days

0
