SWZU48-17KA - Scag Ultimate 48" Walk-Behind Mower, 17hp Kawasaki (SN: 4790001 - 4799999) Engine Deck 17KA Parts Diagram

Ultimate 48" Walk-Behind Mower, 17hp Kawasaki

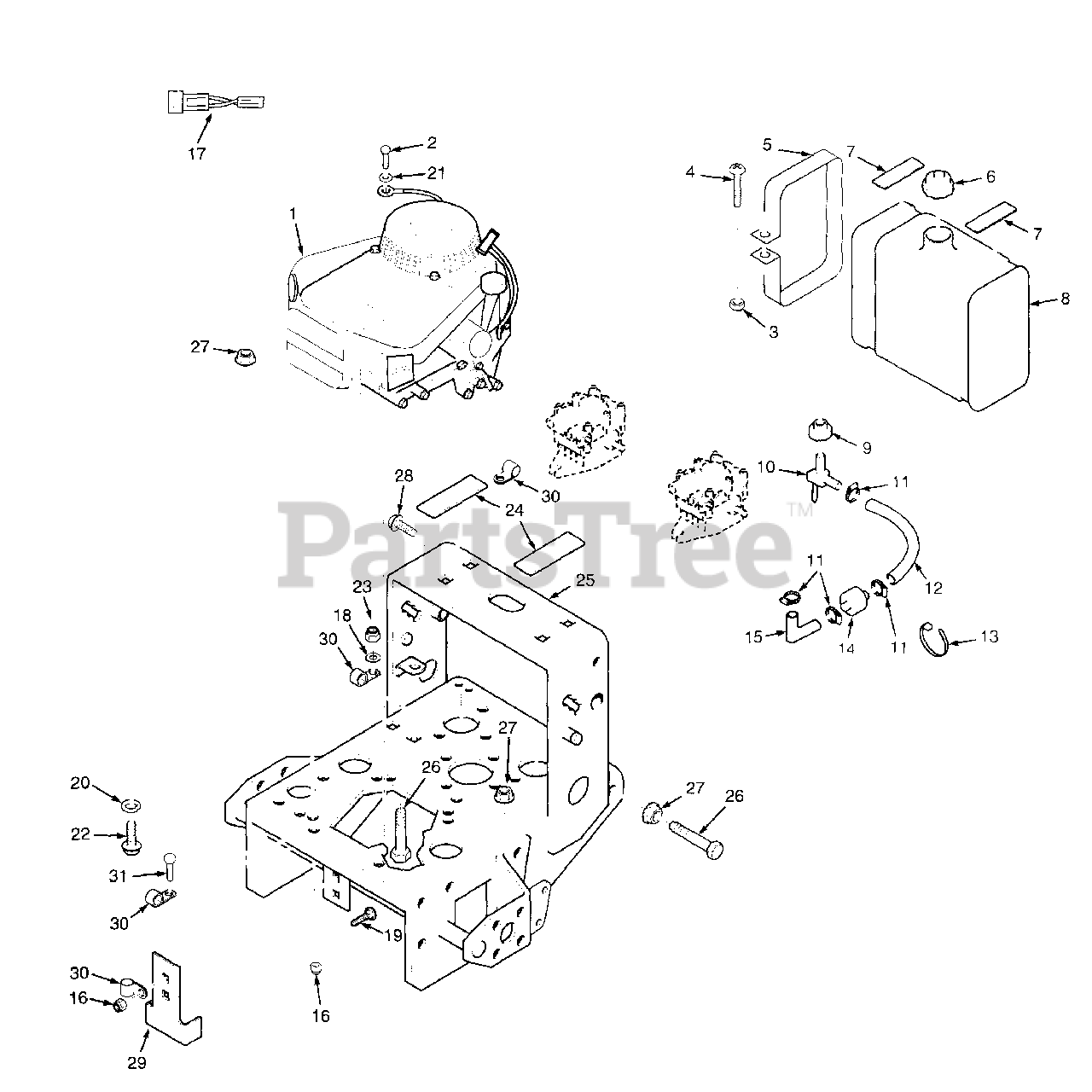

Engine Deck 17KA Parts Diagram

  • Title

1

Scag 481563

Engine, 17KA Kawasaki

$

$

Currently unavailable

2

Scag 04002-07

Bolt, Hex Head M8-1.25 x 10mm

$0.99

$

In Stock, Qty 12

0

3

Scag 04020-02

Hex Nut, 1/4-20

$0.99

$

In Stock, Qty 10

0

4

Scag 04010-10

Screw, 1/4-20 x 2" Rnd. Hd Phillips

$0.99

$

In Stock, Qty 12

0

5

Scag 421239

Strap, Fuel Tank

$24.99

$

In Stock, only 4 left!

0

6

Scag 481603

Cap, Fuel Tank
(Superseded to 483791)

$35.99

$

Usually ships in 2-12 days

0

7

Scag 48292

Pad, Rubber-Fuel Tank Upper

$3.49

$

In Stock, only 2 left!

0

8

Scag 46846

Fuel Tank Assembly

Note: (Includes Items 9, 10)

$242.99

$

In Stock, only 1 left!

0

9

Scag 48309

Bushing
(Superseded to 482571)

$12.99

$

In Stock, Qty 20+

0

10

Scag 48308

Valve, Fuel Shut-Off
(Superseded to 483747)

$29.99

$

In Stock, only 4 left!

0

11

Scag 48059-02

Clamp, Fuel Hose

Note: (KA Only)

$0.99

$

In Stock, Qty 19

0

12

Scag 48058

Fuel Hose, 1/4 I.D. x 20"
(Superseded to 483617)

Note: (KA Only)

$0.99

$

In Stock, Qty 20+

0

13

Scag 48028-05

Cable Tie

$

$

Not available

14

Scag 48057-02

Fuel Filter

$6.49

$

Usually ships in 2-12 days

0

15

Scag 48179

Fuel Hose, 7/32 I.D. x 3.5"
(Superseded to 48179-01)

$

$

Not available

16

Scag 04021-10

Nut, Hex Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 20+

0

17

Scag 481717

Wire Harness Adapter, 17KA

$12.99

$

Usually ships in 2-12 days

0

18

Scag 04040-14

Flat Washer, 14"

$0.99

$

In Stock, only 4 left!

0

19

Scag 04003-04

Bolt, Carriage 5/16-18 x 1"

$0.99

$

In Stock, Qty 9

0

20

Scag 04030-03

Lock Washer, 5/16"

$0.99

$

In Stock, Qty 20+

0

21

Scag 04031-09

Lock Washer, 5/16" Int. Tooth

$0.99

$

In Stock, Qty 8

0

22

Scag 04002-01

Bolt, Hex Head M8-1.25 x 30mm

$0.99

$

In Stock, only 4 left!

0

23

Scag 04021-08

Nut, Hex Elastic Stop 1/4-20

$0.99

$

In Stock, Qty 9

0

24

Scag 48205

Pad, Rubber-Fuel Tank Lower

$4.49

$

Usually ships in 2-12 days

0

25

Scag 461182

Engine Deck, 16" Wide W/Decals
(Superseded to 461746)

$519.99

$

Usually ships in 2-12 days

0

26

Scag 04003-09

Bolt, Hex Head 1/4-20x 1.25"

$0.99

$

In Stock, Qty 9

0

27

Scag 04019-02

Nut, Hex Serrated Flange 1/4-20

$0.99

$

In Stock, Qty 20+

0

28

Scag 04017-18

Capscrew, Hex Serrated Flange 5/16-18 x 1.25"

$1.49

$

Usually ships in 2-12 days

0

29

Scag 48030-09

Clamp

$1.49

$

In Stock, Qty 5

0

30

Scag 421370

Clutch Bracket

$22.99

$

Usually ships in 2-12 days

0

31

Scag 04001-08

Bolt, Hex Head 5/16-18 x .75"

$0.99

$

In Stock, Qty 20+

0
