SWZU36A-16KAI - Scag Ultimate 36" Walk-Behind Mower, 16hp Kawasaki (SN: C4200001 - C4299999) Engine Deck Parts Diagram

Ultimate 36" Walk-Behind Mower, 16hp Kawasaki

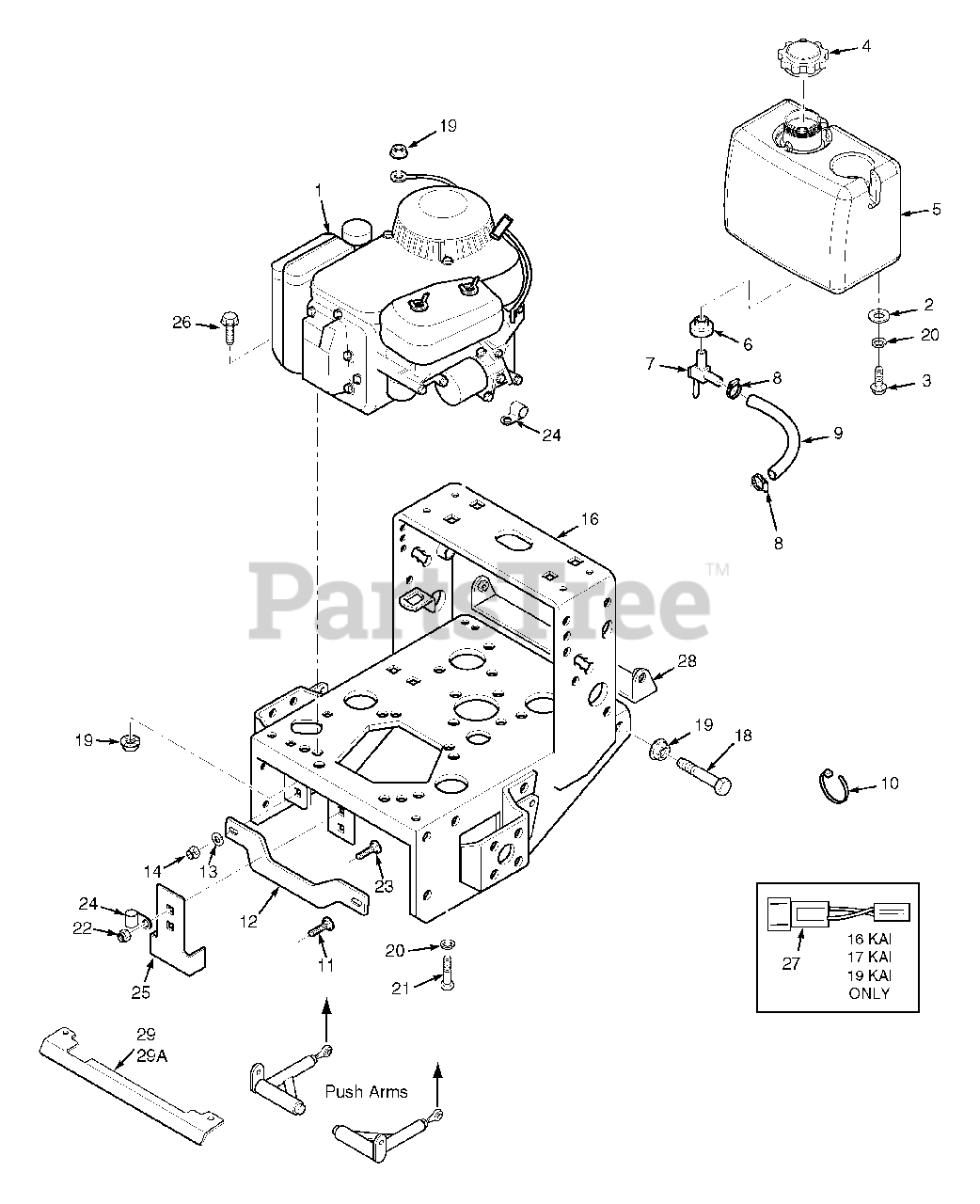

Engine Deck Parts Diagram

  • Title

1

Scag 483263

Engine, 16KAI Kawasaki

$

$

Currently unavailable

2

Scag 04040-15

Flatwasher, 5/16 (.375 x .875 x .083)

$0.99

$

In Stock, Qty 20+

0

3

Scag 04001-09

Capscrew, 5/16-18 x 1" Hex Head

$0.99

$

In Stock, Qty 20+

0

4

Scag 482547

Cap, Fuel Tank
(Superseded to 483792)

$26.99

$

In Stock, only 4 left!

0

5

Scag 461729

Fuel Tank Assy.
(Superseded to 462289)

Note: (incl. 6, 7)

$307.99

$

Usually ships in 2-12 days

0

6

Scag 48309

Bushing
(Superseded to 482571)

$12.99

$

In Stock, Qty 20+

0

7

Scag 48308

Valve, Fuel Shut-off
(Superseded to 483747)

$29.99

$

In Stock, only 4 left!

0

8

Scag 48059-01

Clamp, Fuel Hose

$0.99

$

In Stock, Qty 7

0

9

Scag 48058

Fuel Hose, 1/4 ID x 18"
(Superseded to 483617)

$0.99

$

In Stock, Qty 20+

0

10

Scag 48028-05

Cable Tie

$

$

Not available

11

Scag 04003-11

Carriage Bolt, 3/8-16 X 1-1/4"

$0.99

$

In Stock, Qty 7

0

12

Scag 424002

Brace

$14.99

$

Usually ships in 2-12 days

0

13

Scag 04043-04

Flat Washer .391 x .938 x .105

$0.99

$

In Stock, Qty 20+

0

14

Scag 04021-09

Nut, 3/8-16 Elastic Stop

$0.99

$

In Stock, Qty 20+

0

15

Scag 04021-08

Nut, 1/4-20 Elastic Stop

$0.99

$

In Stock, Qty 9

0

16

Scag 461745

Engine Deck, 16" Wide, w/decals

$519.99

$

Usually ships in 2-12 days

0

17

Scag 04003-09

Bolt, 1/4-20 x 1-1/4" Carriage

$0.99

$

In Stock, Qty 9

0

18

Scag 04001-17

Bolt, 5/16-18 x 2" Hex Head

$0.99

$

In Stock, Qty 6

0

19

Scag 04019-03

Nut, 5/16-18 Serr. Flange

$0.99

$

In Stock, Qty 20+

0

20

Scag 04030-03

Lock Washer 5/16"

$0.99

$

In Stock, Qty 20+

0

21

Scag 04017-19

Bolt, 5/16-18 x 1" Serrated Flange Hex Head

$1.49

$

Usually ships in 2-12 days

0

22

Scag 04021-10

Nut, 5/16-18 Elastic Stop

$0.99

$

In Stock, Qty 20+

0

23

Scag 04003-04

Carriage Bolt, 5/16-18 x 1"

$0.99

$

In Stock, Qty 9

0

24

Scag 48030-09

Clamp

$1.49

$

In Stock, Qty 5

0

25

Scag 421370

Clutch Bracket

$22.99

$

Usually ships in 2-12 days

0

26

Scag 04017-19

Cap Scrw, 5/16-18 x 1.50" Sr. Flg

$1.49

$

Usually ships in 2-12 days

0

27

Scag 481717

Wire Harness Adapter

$12.99

$

Usually ships in 2-12 days

0

28

Scag 45418

Pulley Guard, 16" Frame

$56.99

$

Usually ships in 2-12 days

0

29

Scag 423476

Heatshield

$74.99

$

Usually ships in 2-12 days

0

29A

Heatshield

Note: Not Used

$

$

Not available
