SWZU36A-16KAI - Scag Ultimate 36" Walk-Behind Mower, 16hp Kawasaki (SN: C1300001 - C1399999) Deck Frame 36A Parts Diagram

Ultimate 36" Walk-Behind Mower, 16hp Kawasaki

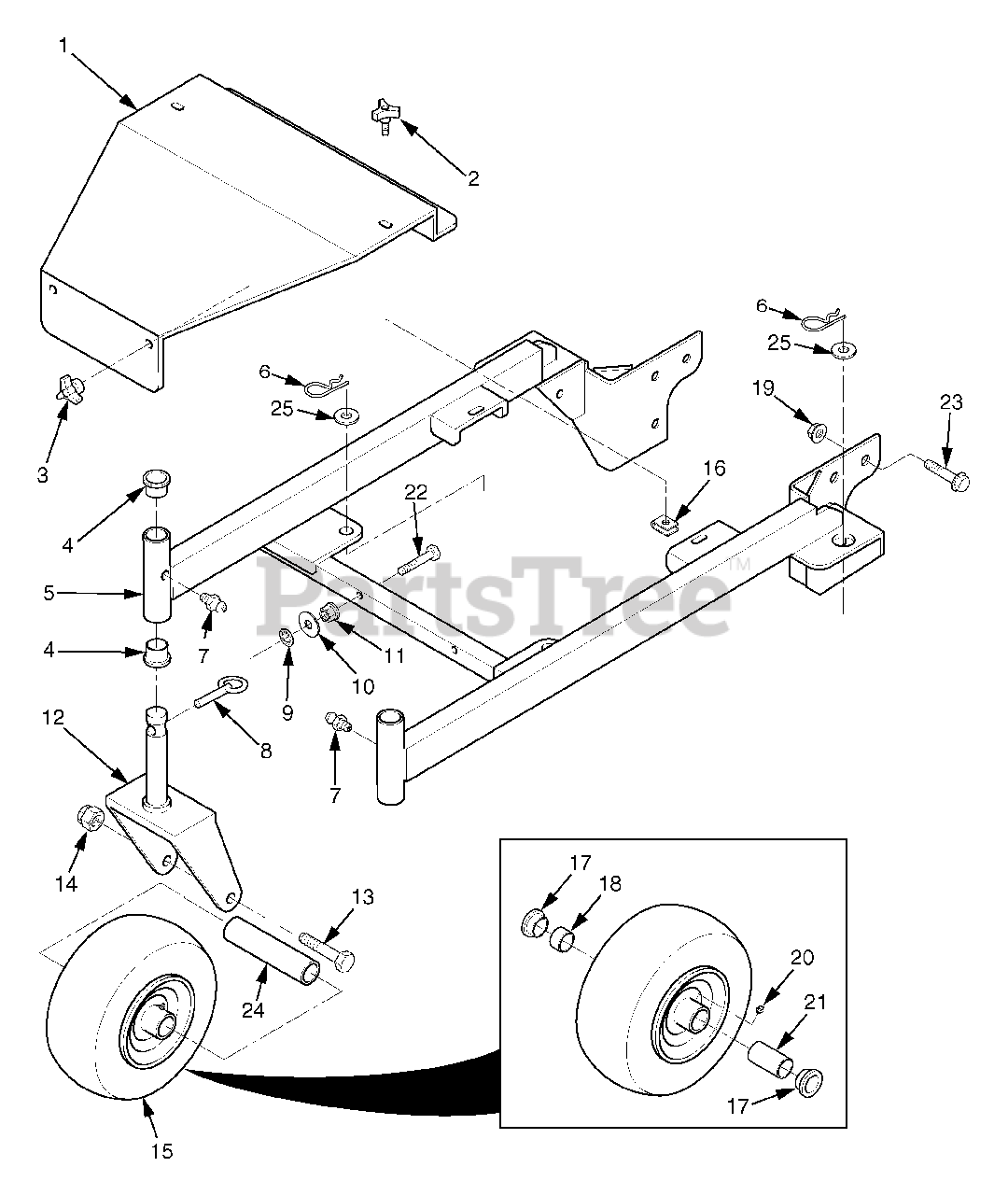

Deck Frame 36A Parts Diagram

  • Title
1

Scag 461170

Belt Cover With Decal

$367.99

$

Usually ships in 2-12 days

0

2

Scag 481625-01

Knob With Stud

$2.99

$

In Stock, Qty 20+

0

3

Scag 04029-03

Knob, Deck Cover Mounting

$2.49

$

In Stock, Qty 20+

0

4

Scag 48100-08

Bushing, Caster

$5.99

$

In Stock, only 4 left!

0

5

Scag 461790

Frame Weldment, Deck Mounting - 36"

Note: (Includes Item #16)

$

$

Not available

6

Scag 04062-04

Hair Pin Cotter, .177" x 3-1/4"

$1.49

$

In Stock, Qty 20+

0

7

Scag 48114-04

Grease Fitting Str. 1/4-28 Self Tap

$0.99

$

In Stock, Qty 20+

0

8

Scag 04066-01

Quick Pin, .438" Dia.

$8.49

$

In Stock, Qty 16

0

9

Scag 04024-02

Nut, Push-On - 3/8" Dia.

$1.49

$

In Stock, Qty 5

0

10

Scag 04041-07

Flatwasher, 3/8" (.391 x .938 x .105)

$0.99

$

In Stock, Qty 20+

0

11

Scag 04019-04

Nut, 3/8-16 Serrated Flange Hex Head

$0.99

$

In Stock, Qty 20+

0

12

Scag 45325

Yoke, Caster Wheel

$226.99

$

Usually ships in 2-12 days

0

13

Scag 04001-80

Capscrew, Hex Head 1/2-13 x 6-1/2"

$5.99

$

In Stock, Qty 20+

0

14

Scag 04021-07

Locknut, 1/2-13 Elastic Stop

$0.99

$

In Stock, Qty 20+

0

15

Scag 9276

Flat Free Tire Assy.

Note: (Includes Items #17, 18, 20 & 21)

$112.99

$

In Stock, Qty 5

0

16

Scag 04110-03

U-Nut, 3/8-16

$2.49

$

In Stock, Qty 20+

0

17

Scag 481770

Retainer

$4.99

$

In Stock, Qty 20+

0

18

Scag 481846

Roller Bearing

$18.99

$

In Stock, Qty 10

0

19

Scag 04112-05

Nut, 1/2-13 Spiralock

$2.99

$

Usually ships in 2-12 days

0

20

Scag 48114-03

Grease Fitting 1/4-28, 45 Degree

$10.99

$

In Stock, Qty 16

0

21

Scag 481769

Roller Bearing .625 x 3.25"

$27.99

$

In Stock, Qty 20+

0

22

Scag 04001-46

Capscrew, Hex Head 3/8-16 x 2-1/4"

$0.99

$

In Stock, Qty 20+

0

23

Scag 04017-36

Capscrew, 1/2-13 x 1" Serrated Flange Hex Head

$2.99

$

In Stock, only 2 left!

0

24

Scag 43511

Sleeve, Caster Wheel

$15.99

$

In Stock, Qty 17

0

25

Scag 04040-10

Flatwasher, 5/8" - (.688 x 1.75 x .134)

$0.99

$

In Stock, Qty 11

0
