SWZU36A-15KA - Scag Ultimate 36" Walk-Behind Mower, 15hp Kawasaki (SN: A2300001 - A2399999) Cutter Decks 36" A Parts Diagram

Ultimate 36" Walk-Behind Mower, 15hp Kawasaki

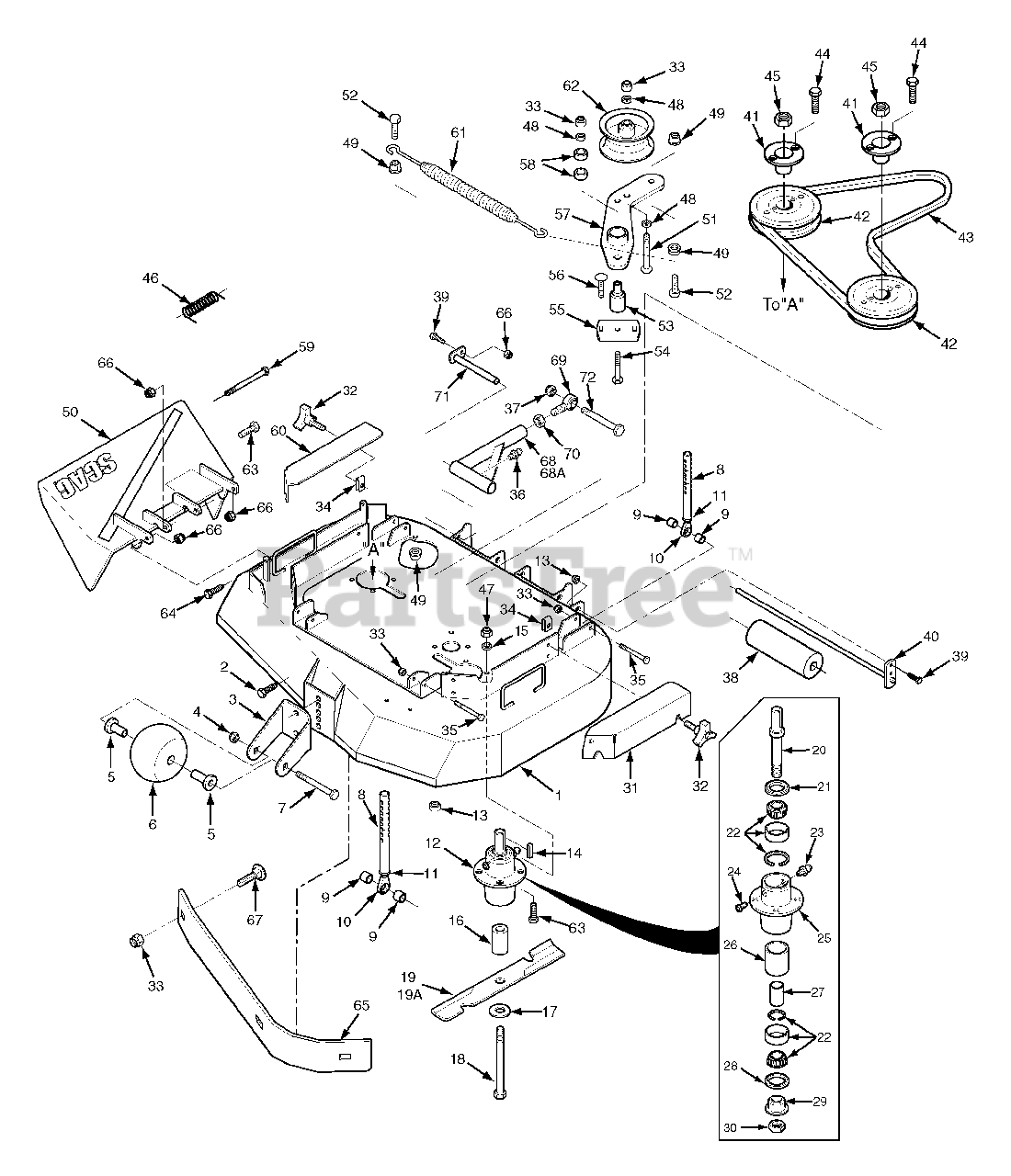

Cutter Decks 36" A Parts Diagram

  • Title

1

Scag 461784

Cutter Deck

Note: (Includes Decals)

$

$

Not available

2

Scag 04017-27

Capscrew, 3/8-16 x 1.0" Serrated Flange Hex Hd

$1.49

$

In Stock, Qty 20+

0

3

Scag 422478

Bracket, Anti-Scalp Wheel

$28.99

$

In Stock, Qty 20+

0

4

Scag 04021-05

Lock Nut, 3/8-16 Center Lock

$0.99

$

In Stock, Qty 20+

0

5

Scag 48100-15

Bushing, .376" ID Oilite

$4.99

$

In Stock, Qty 20+

0

6

Scag 481632

Wheel, Anti-Scalp

Note: (Incl. Item 5)

$21.99

$

In Stock, Qty 20+

0

7

Scag 04003-26

Bolt, Carriage 3/8-16 x 4"

$1.99

$

In Stock, Qty 20+

0

8

Scag 481838

Pin Assy., Deck Adj.

Note: (Incl. Items 10 & 11)

$69.99

$

Usually ships in 2-12 days

0

9

Scag 43512

Spacer, Deck Adjustment Pin

$4.49

$

Usually ships in 2-12 days

0

10

Scag 481539

Rod End, Male 3/8-24 RH Thread
(Superseded to 482586)

$20.99

$

Usually ships in 2-12 days

0

11

Scag 04020-25

Nut, 3/8-24 Jam

$0.99

$

In Stock, only 2 left!

0

12

Scag 461663

Spindle Assembly

$257.99

$

In Stock, Qty 20+

0

13

Scag 04019-03

Nut, 5/16-18 Serrated Flange

$0.99

$

In Stock, Qty 20+

0

14

Scag 04063-08

Key,1/4" x 1/4" x 2"

$1.49

$

In Stock, Qty 20+

0

15

Scag 04030-03

Lock Washer 5/16"

$0.99

$

In Stock, Qty 20+

0

16

Scag 43590

Spacer, Spindle

$17.99

$

In Stock, Qty 20+

0

17

Scag 04043-06

Flatwasher, 5/8 W

$1.99

$

In Stock, Qty 20+

0

18

Scag 04001-41

Bolt, Hex Head 5/8-11 x 9-1/2"

$12.99

$

In Stock, Qty 20+

0

19

Scag 481707

Cutter Blade, 18"

$23.99

$

In Stock, Qty 20+

0

19A

Scag 481711

Cutter Blade, 18" Hi Lift

$40.99

$

In Stock, only 3 left!

0

20

Scag 43589

Spindle Shaft

$58.99

$

In Stock, only 1 left!

0

21

Scag 481024

Seal, Cutter Spindle Top

$4.99

$

In Stock, Qty 20+

0

22

Scag 481022

Tapered Bearing Set (Two Bearings W/Race)

$59.99

$

In Stock, Qty 15

0

23

Scag 48114-04

Grease Fitting

$0.99

$

In Stock, Qty 20+

0

24

Scag 48677

Relief Fitting, Cutter Spindle

$

$

Not available

25

Scag 43644

Spindle Housing

$58.99

$

In Stock, only 2 left!

0

26

Scag 43312

Spacer, Outside

$19.99

$

In Stock, only 1 left!

0

27

Scag 43296

Spacer, Inside

$8.49

$

In Stock, only 2 left!

0

28

Scag 481025

Seal, Cutter Spindle Bottom

$4.99

$

In Stock, Qty 20+

0

29

Scag 43297

Spindle Bushing

$9.99

$

In Stock, only 2 left!

0

30

Scag 481035

Nut, Spindle

$7.99

$

In Stock, only 3 left!

0

31

Scag 422762

Belt Cover, LH

$

$

Not available

32

Scag 481625-01

Wing Nut, 3/8-16

$2.99

$

In Stock, Qty 20+

0

33

Scag 04021-09

Nut, 3/8-16 Elastic Stop

$0.99

$

In Stock, Qty 20+

0

34

Scag 04110-03

U-Nut, 3/8-16

$2.49

$

In Stock, Qty 20+

0

35

Scag 04001-31

Bolt, Hex Head 3/8-16 x 2-1/2"

$0.99

$

In Stock, Qty 20+

0

36

Scag 48114-08

Grease Fitting, 90 Degree

$3.99

$

Usually ships in 2-12 days

0

37

Scag 04021-07

Nut, 1/2-13 Elastic Stop

$0.99

$

In Stock, Qty 20+

0

38

Scag 48038

Guide, Roller

$28.99

$

In Stock, only 2 left!

0

39

Scag 04001-09

Bolt, Hex Head 5/16-18 x 1"

$0.99

$

In Stock, Qty 20+

0

40

Scag 451118

Roller Shaft

$42.99

$

Usually ships in 2-12 days

0

41

Scag 48926

Tapered Hub

$30.99

$

In Stock, Qty 20+

0

42

Scag 482744

Pulley

$30.99

$

Usually ships in 2-12 days

0

43

Scag 481880

Belt, Cutter Deck

$53.99

$

In Stock, only 4 left!

0

44

Scag 04001-172

Bolt, Hex Head 1/4-20 x 1" Gr. 8

$0.99

$

In Stock, Qty 20+

0

45

Scag 04020-09

Hex Nut, 5/8-11

$0.99

$

In Stock, Qty 20+

0

46

Scag 482245

Spring, Chute Return

$10.99

$

In Stock, Qty 5

0

47

Scag 04021-22

Lock Nut, 5/16-18 Elastic Stop Grade 8

$0.99

$

In Stock, Qty 20+

0

48

Scag 04043-04

Flatwasher, 3/8" (.938 x .391 x .105)

$0.99

$

In Stock, Qty 20+

0

49

Scag 04019-04

Nut, 3/8-16 Serrated Flange

$0.99

$

In Stock, Qty 20+

0

50

Scag 461295

Discharge Chute

$68.99

$

In Stock, Qty 8

0

51

Scag 04001-54

Capscrew, Hex Head 3/8-16 x 3"

$0.99

$

In Stock, Qty 9

0

52

Scag 04001-136

Capscrew, Hex Head 3/8-16 x 1-1/2"

$0.99

$

In Stock, Qty 20+

0

53

Scag 43657

Pivot, Idler

$

$

Not available

54

Scag 04001-62

Capscrew, Hex Head 38/16 x 3-1/4"

$1.49

$

In Stock, Qty 12

0

55

Scag 422713

Base, Idler Pivot

$13.99

$

In Stock, only 1 left!

0

56

Scag 04003-04

Bolt, Carriage 5/16-18 x 1"

$0.99

$

In Stock, Qty 9

0

57

Scag 461174

Idler Arm Weldment

Note: (Includes Item 58)

$94.99

$

In Stock, only 1 left!

0

58

Scag 48224

Ball Bearing

$12.99

$

In Stock, Qty 20+

0

59

Scag 04001-154

Bolt, Hex Head 5/16-18 x 4-3/4"

$2.99

$

In Stock, Qty 20+

0

60

Scag 422763

Belt Cover, RH

$

$

Not available

61

Scag 481597

Spring, Deck Idler
(Superseded to 483704)

$28.99

$

In Stock, Qty 20+

0

62

Scag 482783

Pulley, Idler
(Superseded to 483210)

$55.99

$

In Stock, only 2 left!

0

63

Scag 04001-175

Bolt, Hex Head 5/16-18 x 1-1/2" Grade 8

$0.99

$

Usually ships in 2-12 days

0

64

Scag 04001-12

Bolt, Hex Head 5/16-18 x 1-3/4"

$0.99

$

In Stock, Qty 20+

0

65

Scag 423783

Baffle Weldment

$75.99

$

Usually ships in 2-12 days

0

66

Scag 04019-03

Nut, 5/16-18 Serrated Flange

$0.99

$

In Stock, Qty 20+

0

67

Scag 04003-23

Bolt, Carriage 3/8-16 x 1"

$1.49

$

In Stock, Qty 20+

0

68

Scag 461755

Push Arm - LH
(Superseded to 462712)

Note: (Includes Items 36, 69 & 70)

$128.99

$

In Stock, only 1 left!

0

68A

Scag 461756

Push Arm - RH
(Superseded to 462713)

Note: (Includes Items 36, 69 & 70)

$140.99

$

Usually ships in 2-12 days

0

69

Scag 48542

Rod End, Male 1/2-20 RH Thread

$40.99

$

In Stock, only 2 left!

0

70

Scag 04020-08

Nut, 1/2-20 Jam

$0.99

$

Usually ships in 2-12 days

0

71

Scag 451724

Push Arm Shaft

$35.99

$

In Stock, only 2 left!

0

72

Scag 04001-74

Bolt, Hex Head 1/2-13 x 3"

$1.99

$

In Stock, Qty 6

0
