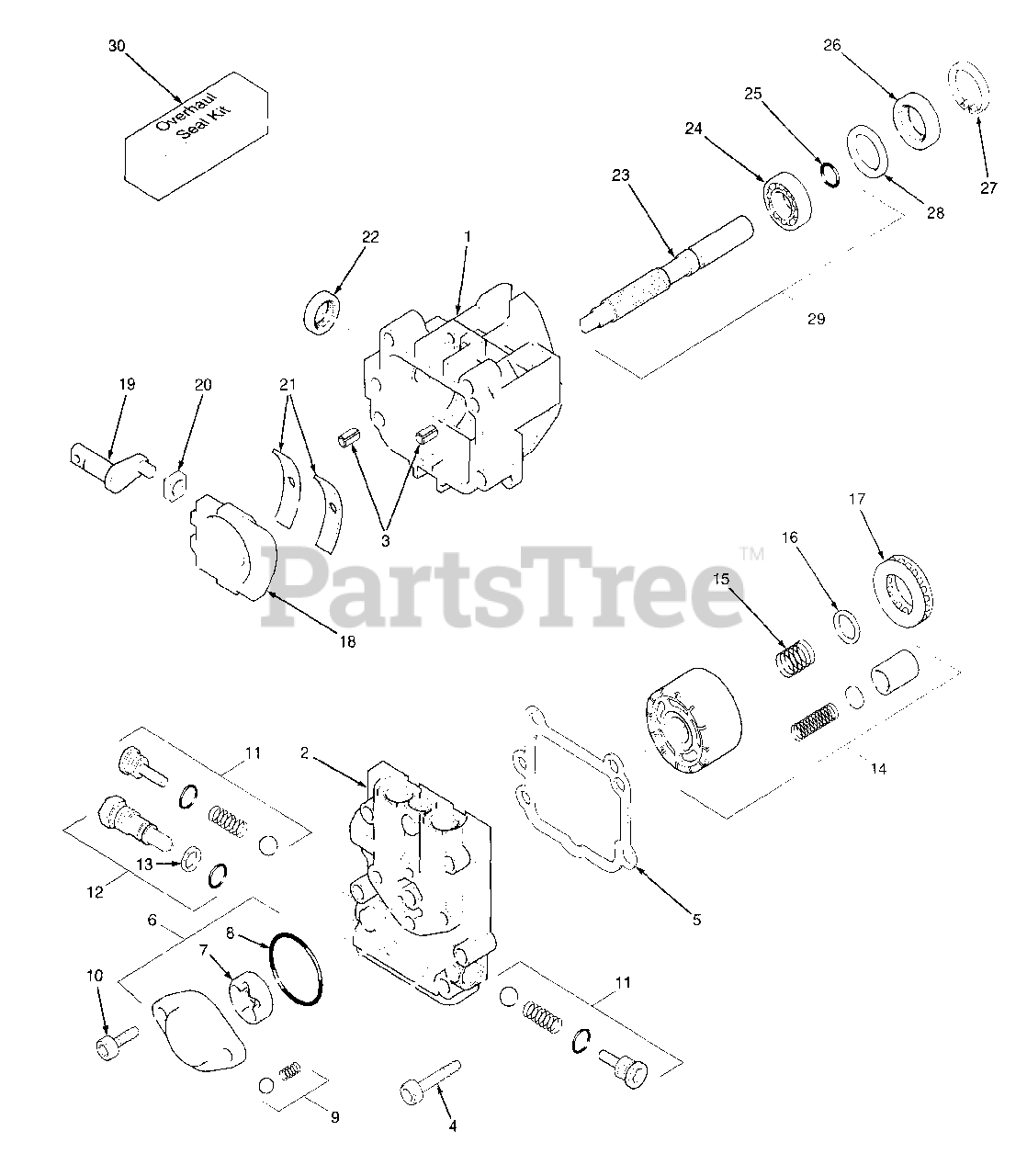

SWZU36-15KH - Scag Ultimate 36" Walk-Behind Mower, 15hp Kohler (SN: 4780001 - 4789999) Hydraulic Pump Assembly Parts Diagram

Ultimate 36" Walk-Behind Mower, 15hp Kohler

Hydraulic Pump Assembly Parts Diagram

  • Title

1

Scag 2513017

Housing Kit

Note: (Incl. Housing, Journal Bearing)

$

$

Currently unavailable

2

Scag 2513016

End Cap

$

$

Currently unavailable

3

Scag 9004800-2506

Straight Headless Pin

$

$

Not available

4

Scag 9007314-0810

Socket Head Screw

$

$

Currently unavailable

5

Scag 2003067

End Cap Gasket

$

$

Currently unavailable

6

Scag 2513027

Charge Pump Kit

Note: (Incl. Charge Cover, Gerotor Assy., O-Ring)

$

$

Currently unavailable

7

Scag 50273

Gerotor Assembly

$

$

Currently unavailable

8

Scag 9004101-1340

O-Ring

$

$

Currently unavailable

9

Scag 2510064

Charge Relief Valve Kit

$

$

Currently unavailable

10

Scag 50095

Socket Head Screw

$

$

Currently unavailable

11

Scag 2510027

Check Valve Kit

Note: (Incl. Check Plug, Spring, O-Ring, Orifice Check Valve)

$

$

Currently unavailable

12

Scag 2513030

Bypass Valve Kit

Note: (Incl. Bypass Valve, O-Ring, Back-up Ring)

$

$

Currently unavailable

13

Scag 9006110-0120

Backup Ring

$

$

Currently unavailable

14

Scag 70079

Cylinder Block Kit

$

$

Currently unavailable

15

Scag 2003014

Block Spring

$

$

Currently unavailable

16

Scag 2003017

Black Thrust Washer

$

$

Currently unavailable

17

Scag 2003044

Roller Thrust Bearing

$

$

Currently unavailable

18

Scag 2003087

Swash Plate

$

$

Currently unavailable

19

Scag 2003005

Trunnion Arm

$

$

Currently unavailable

20

Scag 2000015

Guide Slot

$

$

Currently unavailable

21

Scag 2003023

Cradle Bearing

$

$

Currently unavailable

22

Scag 9008000-0126

Lip Seal

$

$

Currently unavailable

23

Scag 2003020

Pump Shaft

$

$

Currently unavailable

24

Scag 2003043

Ball Bearing

$

$

Currently unavailable

25

Scag 2003016

Retaining Ring

$

$

Currently unavailable

26

Scag 9008000-0128

Lip Seal

$

$

Currently unavailable

27

Scag 2003052

Retaining Ring

$

$

Currently unavailable

28

Scag 2003018

Spacer

$

$

Currently unavailable

29

Scag 2513038

Shaft Kit

Note: (Incl. Pump Shaft, Ball Bearing, Retaining Ring)

$

$

Currently unavailable

30

Scag 2513018

Overhaul Seal Kit

Note: (Incl. Gasket, Trunnion Seal, Input Shaft Seal, Charge Pump 0-Ring)

$

$

Currently unavailable
