SWZU-21KAE - Scag Ultimate Walk-Behind Mower, 21hp Kawasaki (SN: A3600001 - A3699999) Engine Deck - Electric Start (SWZU-21KAE) Parts Diagram

Ultimate Walk-Behind Mower, 21hp Kawasaki

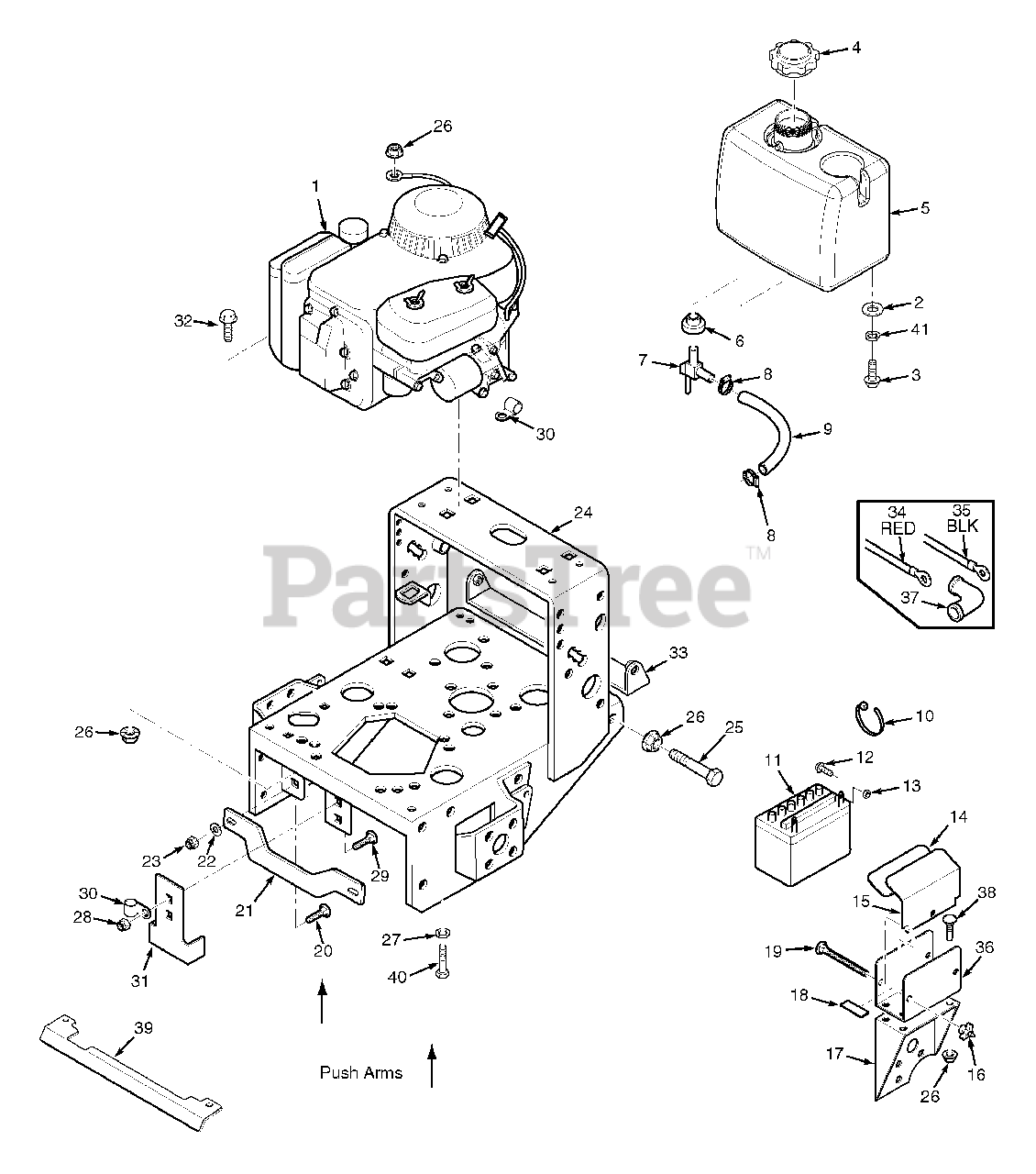

Engine Deck - Electric Start (SWZU-21KAE) Parts Diagram

  • Title

1

Scag 4800291964

Engine, 21KAE Kawasaki

$

$

Currently unavailable

2

Scag 04040-15

Flatwasher, 5/16 (.375 x 875 x .083)

$0.99

$

In Stock, Qty 20+

0

3

Scag 04001-09

Capscrew, 5/16-18 x 1" Hex Head

$0.99

$

In Stock, Qty 20+

0

4

Scag 482547

Cap, Fuel Tank
(Superseded to 483792)

$26.99

$

In Stock, only 4 left!

0

5

Scag 461729

Fuel Tank Assy. (incl. 6, 7)
(Superseded to 462289)

$307.99

$

Usually ships in 2-12 days

0

6

Scag 48309

Bushing
(Superseded to 482571)

$12.99

$

In Stock, Qty 20+

0

7

Scag 48308

Valve, Fuel Shut-off
(Superseded to 483747)

$29.99

$

In Stock, only 4 left!

0

8

Scag 48059-01

Clamp, Fuel Hose

$0.99

$

In Stock, Qty 7

0

9

Scag 48058

Fuel Hose, 1/4 ID x 20"
(Superseded to 483617)

$0.99

$

In Stock, Qty 20+

0

10

Scag 48028-05

Cable Tie

$

$

Not available

11

Battery

Note: (Not Available Through Scag)

$

$

Not available

12

Scag 04001-44

Bolt, 1/4-20 x .50"

$0.99

$

In Stock, Qty 6

0

13

Scag 04020-02

Nut, 1/4-20

$0.99

$

In Stock, Qty 10

0

14

Scag 48099

Pad

$5.99

$

Usually ships in 2-12 days

0

15

Scag 42392

Battery Cover

$45.99

$

Usually ships in 2-12 days

0

16

Scag 04029-01

Wing Nut, 1/4-20

$2.49

$

In Stock, Qty 19

0

17

Scag 423746

Battery Support

$43.99

$

Usually ships in 2-12 days

0

18

Scag 48661

Pad, Rubber

$4.99

$

Usually ships in 2-12 days

0

19

Scag 04003-01

Bolt, 1/4-20 x 6" Carriage
(Superseded to 04003-39)

$1.49

$

In Stock, Qty 10

0

20

Scag 04003-11

Carriage Bolt, 3/8-16 X 1-1/4"

$0.99

$

In Stock, Qty 7

0

21

Scag 424009

Brace

$15.99

$

Usually ships in 2-12 days

0

22

Scag 04043-04

Flat Washer .391 x .938 x .105

$0.99

$

In Stock, Qty 20+

0

23

Scag 04021-09

Nut, 3/8-16 Elastic Stop

$0.99

$

In Stock, Qty 20+

0

24

Scag 461748

Engine Deck, w/decals

$519.99

$

Usually ships in 2-12 days

0

25

Scag 04001-17

Bolt, 5/16-18 x 2" Hex Head

$0.99

$

In Stock, Qty 6

0

26

Scag 04019-03

Nut, 5/16-18 Serr. Flange

$0.99

$

In Stock, Qty 20+

0

27

Scag 04030-03

Lock Washer 5/16"

$0.99

$

In Stock, Qty 20+

0

28

Scag 04021-10

Nut, 5/16-18 Elastic Stop

$0.99

$

In Stock, Qty 20+

0

29

Scag 04003-04

Carriage Bolt, 5/16-18 x 1"

$0.99

$

In Stock, Qty 9

0

30

Scag 48030-09

Clamp

$1.49

$

In Stock, Qty 5

0

31

Scag 421370

Clutch Bracket

$22.99

$

Usually ships in 2-12 days

0

32

Scag 04017-19

Cap Scrw, 5/16-18 x 1.50" Sr. Flg.

$1.49

$

Usually ships in 2-12 days

0

33

Scag 45419

Pulley Guard

$57.99

$

Usually ships in 2-12 days

0

34

Scag 48029-02

Battery Cable, 31.5" Red

$15.99

$

Usually ships in 2-12 days

0

35

Scag 48029-14

Battery Cable, 31.5" Black

$16.99

$

Usually ships in 2-12 days

0

36

Scag 423308

Battery Box

$52.99

$

In Stock, only 1 left!

0

37

Scag 48126

Rubber Boot

$8.49

$

Usually ships in 2-12 days

0

38

Scag 04003-12

Carriage Bolt, 5/16-18 x .75"

$0.99

$

In Stock, Qty 20+

0

39

Scag 422882

Heatshield

$

$

Not available

40

Scag 04017-19

Bolt, 5/16-18 x 1" Sr. Flg. Hex Head

$1.49

$

Usually ships in 2-12 days

0
