SWZU-21KAE - Scag Ultimate Walk-Behind Mower, 21hp Kawasaki (SN: 9190001 - 9199999) Drive And Brake Components Parts Diagram

Ultimate Walk-Behind Mower, 21hp Kawasaki

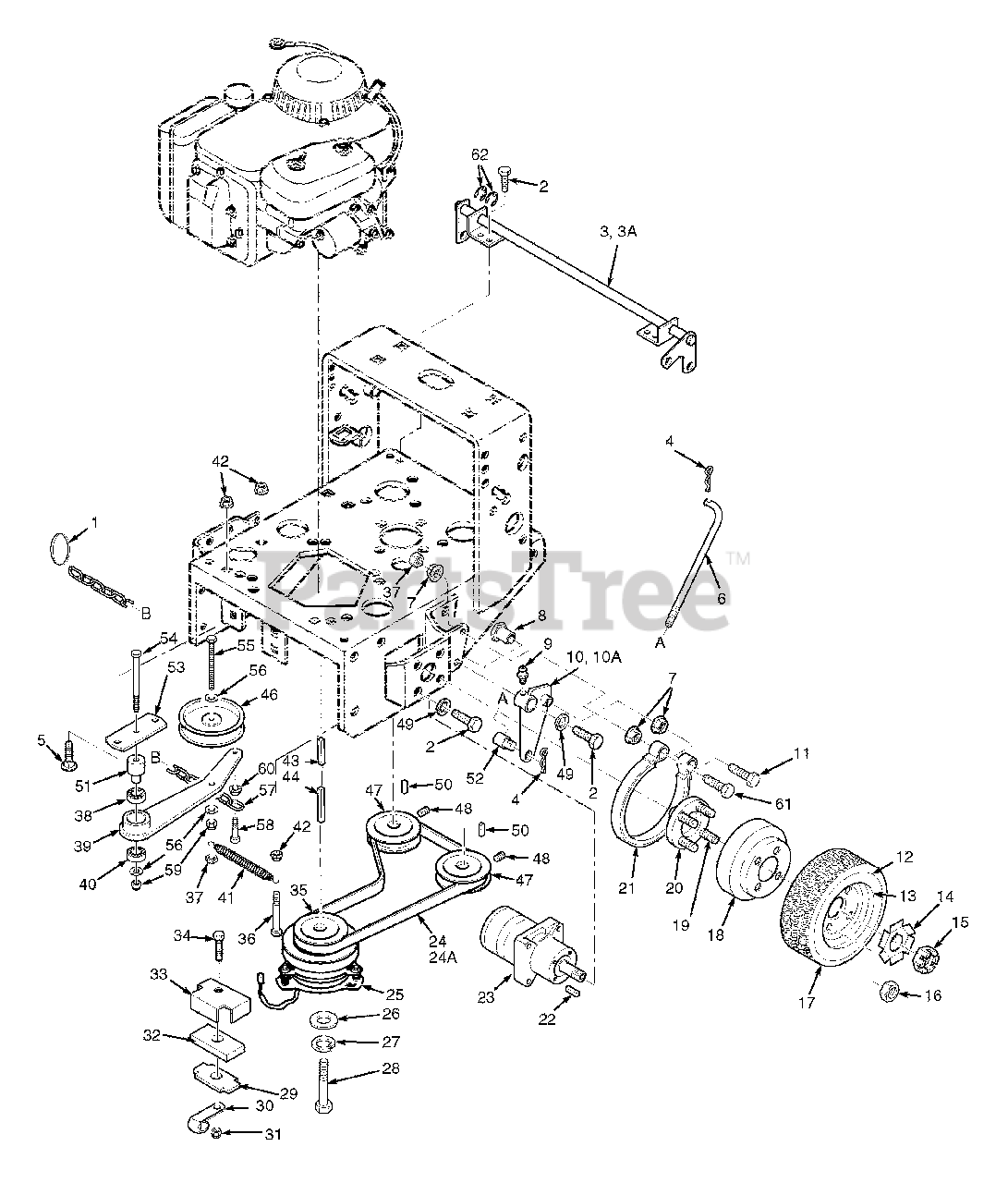

Drive And Brake Components Parts Diagram

  • Title

1

Scag 481876

Ring, Split

$5.49

$

In Stock, Qty 12

0

2

Scag 04001-19

Bolt, 3/8-16 x 1" Hex Head

$0.99

$

In Stock, Qty 20+

0

3

Brake Shaft Assembly (16" Small Frame)

Note: Not used on this model.

$

$

Not available

3A

Scag 45854

Brake Shaft Assembly (20" Large Frame)

$50.99

$

Usually ships in 2-12 days

0

4

Scag 04062-01

Hair Pin Cotter, .094 x 1.62

$0.99

$

In Stock, Qty 20+

0

5

Scag 04003-12

Carrage Bolt, 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

6

Scag 44126

Rod, Brake Lower

$6.99

$

In Stock, Qty 11

0

7

Scag 04019-04

Nut, 3/8-16 Serr. Flange

$0.99

$

In Stock, Qty 20+

0

8

Scag 43415

Bushing, Brake

$7.49

$

Usually ships in 2-12 days

0

9

Scag 48114-05

Grease Fitting

$1.49

$

In Stock, Qty 9

0

10

Scag 45860

Brake Actuator Wlmt., LH

$41.99

$

Usually ships in 2-12 days

0

10A

Scag 45861

Brake Actuator Wlmt., RH

$39.99

$

Usually ships in 2-12 days

0

11

Scag 04001-46

Bolt, 3/8-16 x 2-1/4"

$0.99

$

In Stock, Qty 20+

0

12

Scag 481869

Tire, 18 x 8.50, 4 ply

$216.99

$

Usually ships in 2-12 days

0

13

Scag 481868

Rim Assy

$185.99

$

Usually ships in 2-12 days

0

14

Scag 422214

Lock Washer, Wheel Motor

$4.49

$

In Stock, Qty 11

0

15

Scag 48679

Hex Castle Nut, 3/4-28 UNEF

$26.99

$

Usually ships in 2-12 days

0

16

Scag 04028-02

Nut, Lug

$1.49

$

In Stock, Qty 20+

0

17

Scag 481867

Wheel Assy. (Incl. #12 & 13)

$318.99

$

Usually ships in 2-12 days

0

18

Scag 422215

Brake Drum

$29.99

$

Usually ships in 2-12 days

0

19

Scag 04008-01

1/2-20 Serrated Bolt

$3.49

$

In Stock, Qty 20+

0

20

Scag 46928

Hub, Wheel

$133.99

$

Usually ships in 2-12 days

0

21

Scag 481470

Brake Band, 7.5"

$53.99

$

Usually ships in 2-12 days

0

22

Scag 04063-07

Key, 3/16" X 3/4" Woodruff

$0.99

$

In Stock, Qty 12

0

23

Scag 481416

Wheel Motor

$601.99

$

Usually ships in 2-12 days

0

24

Belt, Pump Drive (16" Frame)

Note: Not used on this model.

$

$

Not available

24A

Scag 481864

Belt, Pump Drive (20" Frame)

$44.99

$

Usually ships in 2-12 days

0

25

Scag 461397

Electric Clutch

$306.99

$

In Stock, only 1 left!

0

26

Scag 04041-28

Flat Washer .469 x 1.75 x .25

$2.99

$

In Stock, Qty 20+

0

27

Scag 04030-05

Lock Washer, 7/16"

$0.99

$

In Stock, Qty 20+

0

28

Scag 04102-05

Hex Head Bolt, 7/16-20 x 2-3/4"

$2.49

$

In Stock, only 2 left!

0

29

Scag 422534

Plate, Backing

$5.49

$

In Stock, Qty 11

0

30

Scag 48030-09

Clamp

$1.49

$

In Stock, Qty 15

0

31

Scag 04021-10

Nut, 5/16-18 Elastic Stop

$0.99

$

In Stock, Qty 20+

0

32

Scag 481716

Rubber Pad, Clutch Stop

$11.99

$

In Stock, only 2 left!

0

33

Scag 422533

Retainer, Clutch Stop

$13.99

$

In Stock, only 1 left!

0

34

Scag 04001-12

Hex Head Bolt, 5/16-18 x 1-3/4"

$0.99

$

In Stock, Qty 20+

0

35

Scag 482754

Pulley, Pump Drive Engine

$138.99

$

Usually ships in 2-12 days

0

36

Scag 04001-13

Hex Head Bolt, 5/16-18 x 2-3/4"

$0.99

$

In Stock, only 1 left!

0

37

Scag 04021-05

Nut, 3/8-16 Center Lock

$0.99

$

In Stock, Qty 20+

0

38

Scag 48224

Ball Bearings

$12.99

$

In Stock, Qty 20+

0

39

Scag 461183

Idler Arm Assembly
(Superseded to 461783)

Note: (Incl. #38 & 40)

$77.99

$

Usually ships in 2-12 days

0

40

Scag 48224

Ball Bearings

$12.99

$

In Stock, Qty 20+

0

41

Scag 481835

Spring, Pump Belt Idler
(Superseded to 483526)

$25.99

$

In Stock, only 3 left!

0

42

Scag 04019-03

Nut, 5/16-18 Serr. Flange

$0.99

$

In Stock, Qty 20+

0

43

Scag 04063-20

Key, 1/4" x 1/4" x 1" Clutch Mtg.

$1.49

$

In Stock, Qty 5

0

44

Scag 04063-24

Key, 1/4" x 1/4" x 2-3/4" Pulley Mtg.

$1.99

$

In Stock, only 3 left!

0

45

Scag 04041-07

Flat Washer, 3/8"

$0.99

$

In Stock, Qty 20+

0

46

Scag 482306

Pulley, Idler 4.5"
(Superseded to 483213)

$52.99

$

In Stock, Qty 7

0

47

Scag 482751

Pulley, Pump Shaft

$103.99

$

In Stock, only 4 left!

0

48

Scag 04012-04

Setscrew, 5/16-18 x 3/8"

$0.99

$

In Stock, Qty 20+

0

49

Scag 04030-04

Lockwasher, 3/8"

$0.99

$

In Stock, Qty 20+

0

50

Scag 04063-14

Key, 5.0 x 5.0 x 25mm

$0.99

$

In Stock, Qty 20+

0

51

Scag 43504

Pivot, Idler (Long)

$28.99

$

In Stock, only 1 left!

0

52

Scag 43032

Swivel Joint

$6.49

$

In Stock, Qty 17

0

53

Scag 422713

Base, Idler Pivot

$13.99

$

In Stock, only 4 left!

0

54

Scag 04001-54

Bolt, Hex Head 3/8-16 x 3"

$0.99

$

In Stock, Qty 20+

0

55

Scag 04001-161

Bolt, Hex Head 3/8-16 x 2-3/4"

$3.99

$

In Stock, only 2 left!

0

56

Scag 04043-04

Flatwasher 3/8"

$0.99

$

In Stock, Qty 20+

0

57

Scag 481873

Chain

$7.49

$

In Stock, Qty 11

0

58

Scag 04001-59

Bolt, Hex Head 1/4-20 x 1-1/4"

$0.99

$

In Stock, Qty 15

0

59

Scag 04021-09

Nut, Hex Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

60

Scag 04019-02

Nut, Serrated Flange 1/4-20

$0.99

$

In Stock, Qty 20+

0

61

Scag 04001-151

Bolt, Hex Head 3/8-16 x 2-1/4"

$4.49

$

Usually ships in 2-12 days

0

62

Scag 04050-02

Retaining Ring, 3/4" Ext. "E"

$0.99

$

In Stock, Qty 7

0
