SWZT61H-22FSE - Scag 61" Walk-Behind Mower, 22hp Kawasaki (SN: S3800001 - S3899999) ENGINE DECK & HYDRAULIC SYSTEM Parts Diagram

61" Walk-Behind Mower, 22hp Kawasaki

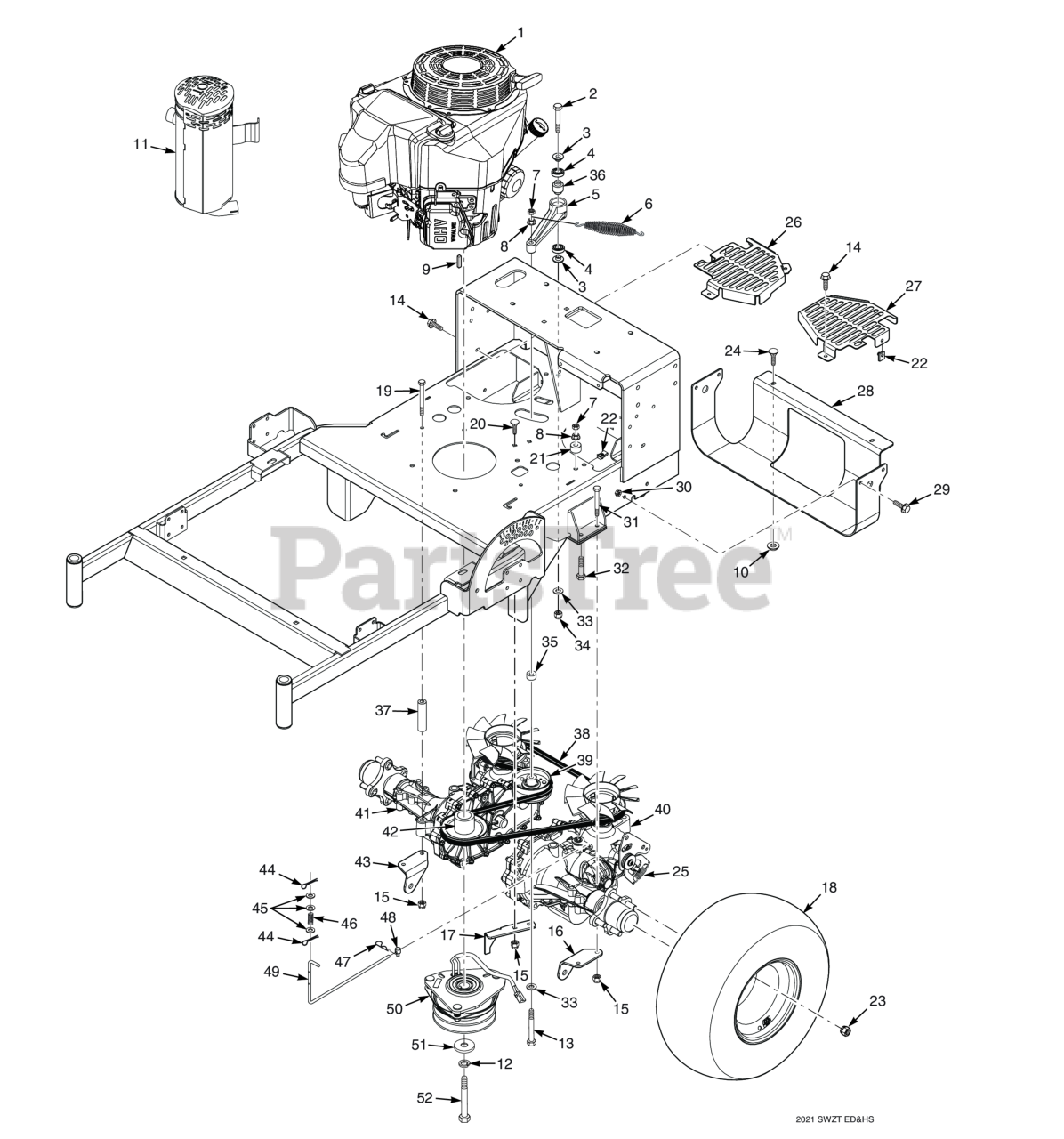

ENGINE DECK & HYDRAULIC SYSTEM Parts Diagram

  • Title

1

Scag 485014

Engine, Kawasaki 14FS (FS481V)

Note: Available through the individual engine manufacturer

$

$

Currently unavailable

Scag 486754

Engine, Kawasaki FS541V (Electric Start)

Note: Available through the individual engine manufacturer | (Electric Start)

$

$

Currently unavailable

Scag 485023

Engine, Kawasaki FS600V (Electric Start)

Note: Available through the individual engine manufacturer | (Electric Start)

$

$

Currently unavailable

Scag 485017

Engine, Kawasaki FS651V (Electric Start)

Note: Available through the individual engine manufacturer | (Electric Start)

$

$

Currently unavailable

2

Scag 04001-54

Bolt, Hex Head 3/8-16 x 3" - 52"

$1.49

$

In Stock, Qty 10

0

3

Scag 431049

Spacer, Controls

$1.99

$

Usually ships in 2-12 days

0

4

Scag 48224

BEARINGS, BALL, NEUTRAL RETURN

$13.99

$

In Stock, Qty 20+

0

5

Scag 463017

Trans. Idler Arm Assy. (Includes 24, 79)

$69.99

$

Usually ships in 2-12 days

0

6

Scag 483087

Spring, Transmission Idler

$56.99

$

In Stock, only 1 left!

0

7

Scag 04021-05

Bolt, Hex Head 3/8-16 x 1" Ser. Flg.

$0.99

$

In Stock, Qty 20+

0

8

Scag 04019-04

NUT, 3/8-16 SERRATED FLANGE HEX HEAD

$0.99

$

In Stock, Qty 20+

0

9

Scag 04063-03

KEY, 1/4 X 1/4 X 2-1/2"

$2.49

$

Usually ships in 2-12 days

0

10

Scag 04024-03

Nut, Push-On 5/16-18

$1.49

$

In Stock, Qty 16

0

11

Scag 485571

Muffler, Kawasaki (FS651) - SWZT61

$200.99

$

Usually ships in 2-12 days

0

Scag 485572

Manifold, Kawasaki (FS651) - SWZT61

$114.99

$

Usually ships in 2-12 days

0

12

Scag 04030-05

Lockwasher, 7/16� Spring

$0.99

$

In Stock, Qty 8

0

13

Scag 04001-51

Capscrew, Hex Head 3/8-16 x 3-3/4"

$1.49

$

In Stock, Qty 8

0

14

Scag 04017-05

Bolt, Serrated Flange Hex Head 1/4 x 20 x 3/4"

$0.99

$

In Stock, Qty 20+

0

15

Scag 04021-10

HEX NUT, ELASTIC STOP LOCK, 5/16-18

$0.99

$

In Stock, Qty 20+

0

16

Scag 425953

Pusharm Mount Bracket, LH

$13.99

$

Usually ships in 2-12 days

0

17

Scag 425696

Bracket, Anti-Rotation

$13.99

$

Usually ships in 2-12 days

0

18

Scag 481867

Wheel Assembly (#12 tire mounted to #13 rim)

$326.99

$

Usually ships in 2-12 days

0

Scag 481868

Rim w/Valve Stem (48, 52, 61)

$189.99

$

Usually ships in 2-12 days

0

Scag 481869

Tire 18 x 8.5-8 (48" Only)

$221.99

$

Usually ships in 2-12 days

0

19

Scag 04001-196

Bolt, Hex Head 5/16-18 x 6-1/2"

$1.99

$

In Stock, only 1 left!

0

20

Scag 04003-04

Bolt, Carriage 5/16-18x1" (large frame units only)

$0.99

$

In Stock, Qty 9

0

21

Scag 43282

SPACER, J PULL ROD

$7.99

$

In Stock, only 1 left!

0

22

Scag 04110-01

Bolt, Hex Head 3/8-16 x 1"

$1.49

$

In Stock, Qty 18

0

23

Scag 04028-02

Wheel Nut, 1/2-20 x 13/16

$1.99

$

In Stock, Qty 20+

0

24

Scag 04003-12

Bolt, 5/16-18 x .75 RHSN Carriage

$0.99

$

In Stock, Qty 20+

0

25

Scag 484600

Spring, RTN

Note: RTN Spring is Scag p/n 484600. See item #25

$6.99

$

Usually ships in 2-12 days

0

26

Scag 462962

Fan Cover, RH

Note: (incl item #22)

$82.99

$

Usually ships in 2-12 days

0

27

Scag 462961

Fan Cover, LH

Note: (incl item #22)

$92.99

$

Usually ships in 2-12 days

0

28

Scag 425778

Skid Plate

$82.99

$

Usually ships in 2-12 days

0

29

Scag 04017-16

Capscrew, 5/16-18 x .75 Serrated Flange Hex Head

$0.99

$

In Stock, Qty 10

0

30

Scag 04019-03

Nut, Serrated Flange 5/16-18 (Right Front Engine Mounting, Briggs and Kohler Only)

$0.99

$

In Stock, Qty 20+

0

31

Scag 04001-49

Bolt, Hex Head 5/16-18 x 3.00"

$0.99

$

In Stock, Qty 9

0

32

Scag 04001-170

Bolt, Hex Head 3/8-16 x 2-1/2" 1.5 Thread Grd.8

$3.99

$

In Stock, Qty 6

0

33

Scag 04043-04

Flatwasher, 3/8 (.391 x .938 x .105 HD) Grade 8

$0.99

$

In Stock, Qty 20+

0

34

Scag 04021-09

HEX NUT, ELASTIC STOP LOCK, 3/8-16

$0.99

$

In Stock, Qty 20+

0

35

Scag 43720

Spacer, Idler Pulley - SFZ61

$4.99

$

In Stock, only 1 left!

0

36

Scag 431073

Spacer, Bearing

$33.99

$

Usually ships in 2-12 days

0

37

Scag 43880

Spacer, Axle

$12.99

$

Usually ships in 2-12 days

0

38

Scag 484578

Belt, Transmission Drive

$52.99

$

In Stock, only 2 left!

0

39

Scag 486045

Pulley, 3-1/2" Dia.

$21.99

$

In Stock, Qty 20+

0

40

Scag 486785

Transaxle Assy., (ZH-GMCC-SLUB-1MTX)

Note: (ZH-GMCC-SLUB-1MTX) | RTN Spring is Scag p/n 484600. See item #25

$1795.99

$

Usually ships in 2-12 days

0

41

Scag 484786

Transaxle Assy., (ZH-KMCC-3LUC-1MTX)

Note: (ZH-KMCC-3LUC-1MTX) | RTN Spring is Scag p/n 484600. See item #25

$80.99

$

Usually ships in 2-12 days

0

42

Scag 484595

Pulley, 4-1/2" Dia. - 1" Bore

$28.99

$

Usually ships in 2-12 days

0

43

Scag 425954

Pusharm Mount Bracket, RH

$13.99

$

In Stock, only 2 left!

0

44

Scag 04061-01

COTTER PIN, 3/32 X 1"

$0.99

$

In Stock, Qty 11

0

45

Scag 04040-14

Flatwasher, 1/4" (.312 x .750 x .065")

$0.99

$

In Stock, only 4 left!

0

46

Scag 482070

Spring, Dump Valve Link

$6.99

$

Usually ships in 2-12 days

0

47

Scag 04069-01

Pin, Rue Cotter 3/8" Diameter

$1.49

$

In Stock, Qty 5

0

48

Scag 43876

Joint, Swivel

$10.99

$

Usually ships in 2-12 days

0

49

Scag 44188

Link, Dump Valve

$46.99

$

Usually ships in 2-12 days

0

50

Scag 462610

Electric Clutch Assembly

$316.99

$

In Stock, only 1 left!

0

51

Scag 04041-28

Flatwasher, 7/16-.469 x 1.75 x .25 (48, 52)

$2.99

$

In Stock, Qty 13

0

52

Scag 04102-06

Bolt, Hex Head 7/16-20 x 3" w/t Patch

$2.49

$

In Stock, Qty 8

0

12

Scag 04030-05

Lockwasher, 7/16� Spring

$0.99

$

In Stock, Qty 8

0
