SWZT61H-22FSE - Scag 61" Walk-Behind Mower, 22hp Kawasaki (SN: S3800001 - S3899999) BRAKE COMPONENTS Parts Diagram

61" Walk-Behind Mower, 22hp Kawasaki

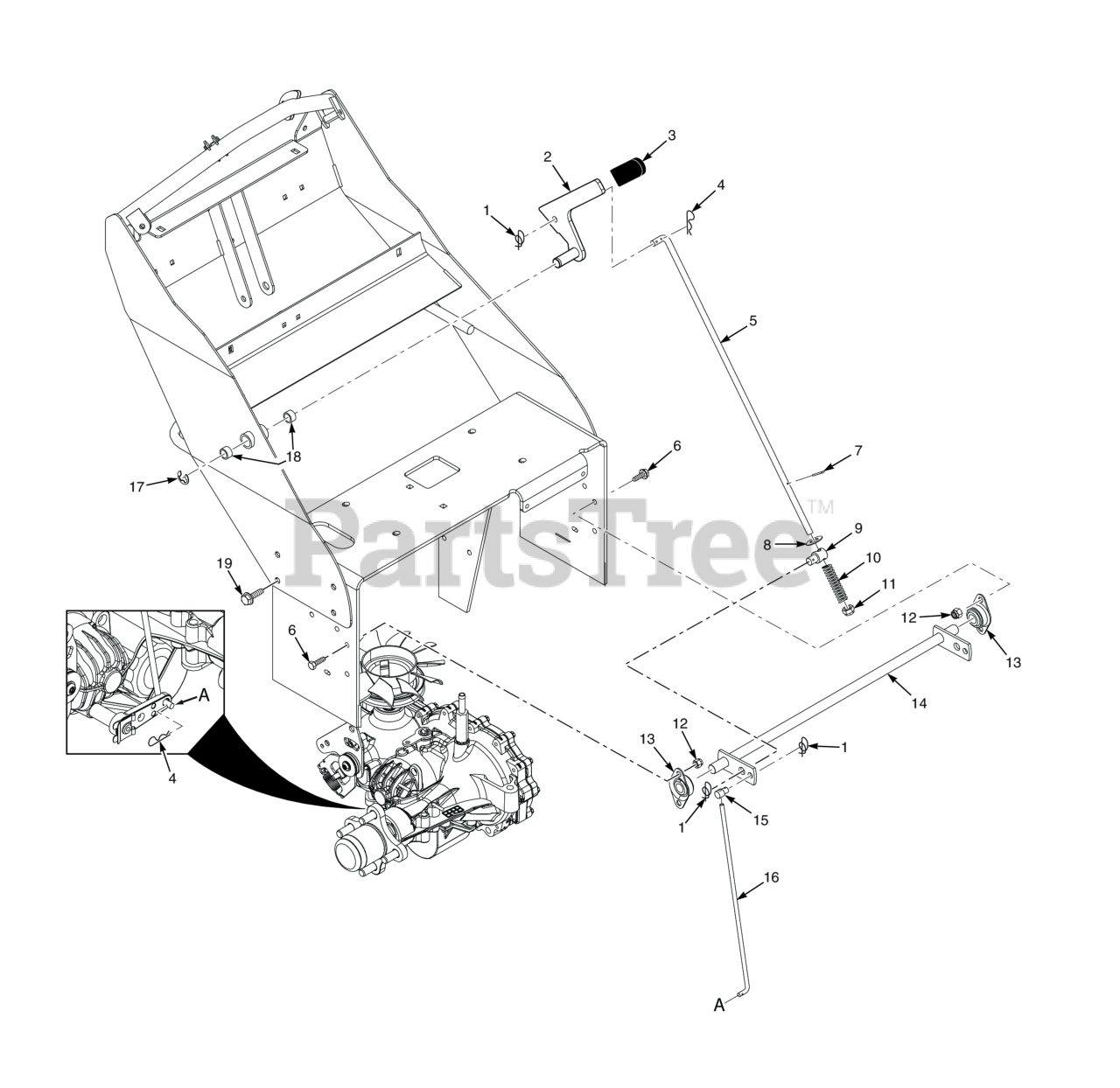

BRAKE COMPONENTS Parts Diagram

  • Title

1

Scag 04069-01

Pin, Rue Cotter 3/8" Diameter

$1.49

$

In Stock, only 4 left!

0

2

Scag 462515

Brake Lever w/Grip

$43.99

$

Usually ships in 2-12 days

0

3

Scag 481548

Grip, Parking Brake

$6.49

$

In Stock, Qty 9

0

4

Scag 04062-02

HAIR PIN, .08 DIAMETER X 1-3/16"

$0.99

$

In Stock, Qty 20+

0

5

Scag 44187

Rod, Brake Linkage

$20.99

$

Usually ships in 2-12 days

0

6

Scag 04017-16

Capscrew, 5/16-18 x .75 Serrated Flange Hex Head

$0.99

$

In Stock, Qty 10

0

7

Scag 04061-02

Pin, Cotter 3/32 x .75"

$0.99

$

In Stock, Qty 11

0

8

Scag 04040-05

Flatwasher, 3/8 (.406 x .812 x .065)

$0.99

$

In Stock, only 4 left!

0

9

Scag 485317

BUSHING, PIVOT SLIDE

$13.99

$

Usually ships in 2-12 days

0

10

Scag 484175

Spring, Brake

$31.99

$

Usually ships in 2-12 days

0

11

Scag 04021-18

Nut, Elastic Stop 3/8-16, grade 8 black

$1.49

$

In Stock, Qty 9

0

12

Scag 04021-10

HEX NUT, ELASTIC STOP LOCK, 5/16-18

$0.99

$

In Stock, Qty 20+

0

13

Scag 48796

Bearing, Self Aligning - 5/8 I.D.

$12.99

$

Usually ships in 2-12 days

0

14

Scag 452358

Weldment, Brake Bellcrank

$51.99

$

Usually ships in 2-12 days

0

15

Scag 43726

Joint, Swivel

$12.99

$

Usually ships in 2-12 days

0

16

Scag 44165

Rod, Brake Adjustment

$8.49

$

In Stock, only 2 left!

0

17

Scag 04050-01

RETAINING RING, 5/8" EXTERNAL "E"

$0.99

$

In Stock, Qty 20+

0

18

Scag 483453-18

Bearing

$7.99

$

Usually ships in 2-12 days

0

19

Scag 04017-27

Capscrew, 3/8-16 x 1.0" Serrated Flange Hex Hd

$1.49

$

In Stock, Qty 20+

0
