Scag SWZT52-18FS - Scag 52" Walk-Behind Mower, 18hp Kawasaki (SN: M9200001 - M9299999) Cutter Deck Controls Parts Lookup with Diagrams

1

Scag 481625-01

Knob W/Stud, 3/8-16 x 1-1/4"

$2.99

$

In Stock, Qty 20+

2

Scag 04029-04

Wing Nut, 3/8" Plastic Small

$2.99

$

In Stock, Qty 20+

3

Scag 462683

Belt Cover w/Decals

$

Not available 

3

Scag 462788

Belt Cover w/Decals - SWZT61

$

Not available 

4

Scag 462522

Deck Bellcrank Assy.

Note: (Incl. item #8)

$139.99

$

Usually ships in 2-12 days

4

Scag 462792

Deck Bellcrank Assy.

Note: (Incl. item #8) - SWZT61

$195.99

$

Usually ships in 2-12 days

5

Scag 04021-09

Nut, Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

6

Scag 04041-07

Flatwasher, 3/8-.391 x .938 x .105

$0.99

$

In Stock, Qty 20+

7

Scag 43086

Bushing

$5.99

$

Usually ships in 2-12 days

8

Scag 484669

Grip, Deck Lift

$2.49

$

Usually ships in 2-12 days

9

Scag 04001-20

Bolt, Hex Head 3/8-16 x 1-1/2"

$0.99

$

In Stock, Qty 20+

10

Scag 04019-04

Nut, Serrated Flange 3/8-16

$0.99

$

In Stock, Qty 20+

11

Scag 483334

Bearing, Deck Lift

$15.99

$

In Stock, Qty 6

12

Scag 425209

Reinforcement, Bearing

$8.49

$

In Stock, Qty 12

13

Scag 04017-17

Cpscrw, 5/16-18 x 1"Serrated Flange Hex Head

$0.99

$

Usually ships in 2-12 days

14

Scag 04021-04

Nut, Center Lock 5/16-18

$0.99

$

In Stock, Qty 20+

15

Scag 452018

Deck Lift Weldment, Front

$76.99

$

Usually ships in 2-12 days

15

Scag 452692

Deck Lift Weldment, Front - SWZT61

$63.99

$

Usually ships in 2-12 days

16

Scag 425968

Link, Decklift

$20.99

$

Usually ships in 2-12 days

16

Scag 426896

Link, Decklift -SWZT61

$18.99

$

Usually ships in 2-12 days

17

Scag 462677

Frame w/Decals (SWZT 36 & 48)

$

Not available 

17

Scag 462678

Frame w/Decals (SWZT 52)

$

Not available 

17

Scag 462819

Frame w/Decals (SWZT 61)

$

Not available 

18

Scag 04062-04

Hair Pin Cotter

$1.49

$

In Stock, Qty 20+

19

Scag 483345

Pin Assembly w/Lanyard

$11.99

$

In Stock, Qty 7

20

Scag 04001-31

Bolt, Hex Head 3/8-16 x 2-1/2"

$0.99

$

In Stock, Qty 20+

21

Scag 04041-07

Flatwasher, 3/8-.391 x .938 x .105

$0.99

$

In Stock, Qty 20+

22

Scag 48540

Chain

(Superseded to 482628) 

$11.99

$

In Stock, Qty 15

23

Scag 48114-04

Grease Fitting

$0.99

$

In Stock, Qty 20+

24

Scag 04003-23

Bolt, Carriage 3/8-16 x 1"

$1.49

$

In Stock, Qty 20+

25

Scag 9275

Flat-Free Tire Assy.

Note: (Incl. #26, #27, #28)

$109.99

$

In Stock, Qty 9

25

Scag 9276

Flat-Free Tire Assy.

Note: (Incl. #26, #27, #28) - SWZT61

$112.99

$

In Stock, Qty 5

26

Scag 481770

Retainer, Caster Wheel Bearing

$4.99

$

In Stock, Qty 20+

27

Scag 481769

Roller Bearing, Caster Wheel

$27.99

$

In Stock, Qty 20+

28

Scag 48114-03

Grease Fitting, 45 Degree 1/4-28

$10.99

$

In Stock, Qty 16

29

Scag 04021-07

Nut, Elastic Stop 1/2-13

$0.99

$

In Stock, Qty 20+

30

Scag 45006

Caster Yoke

$65.99

$

In Stock, Qty 11

30

Scag 452697

Caster Yoke - SWZT61

$57.99

$

In Stock, only 2 left!

31

Scag 43022

Sleeve, Caster Wheel Bearing

$6.99

$

In Stock, Qty 20+

31

Scag 43511

Sleeve, Caster Wheel Bearing - SWZT61

$15.99

$

In Stock, Qty 17

32

Scag 04001-37

Bolt, Hex Head 1/2-13 x 5-1/2"

$4.49

$

In Stock, Qty 20+

33

Scag 04066-01

Quick Pin

$8.49

$

In Stock, Qty 16

34

Scag 48100-01

Bronze Bearing

$2.99

$

In Stock, Qty 20+

35

Scag 04024-02

Nut, Push-On 3/8"

$1.49

$

In Stock, Qty 5

36

Scag 04110-03

U-Nut 3/8-16

$2.49

$

In Stock, Qty 20+

37

Scag 425970

Bracket, Deck Height

$32.99

$

Usually ships in 2-12 days

38

Scag 43805

Spacer

$10.99

$

Usually ships in 2-12 days

39

Scag 04001-19

Bolt, Hex Head 3/8-16 x 1"

$0.99

$

In Stock, Qty 20+

40

Scag 462817

Lever Assembly, Deck Latch

Note: (incl. #41)

$33.99

$

Usually ships in 2-12 days

41

Scag 427007

Grip, Deck Transport Lock

$19.99

$

Usually ships in 2-12 days

42

Scag 43736

Spacer, Caster Bearing

$6.49

$

In Stock, Qty 12

43

Scag 04001-19

Bolt, Hex Head 3/8-16 x 1"

Note: = SWZT61 Models Only

$0.99

$

In Stock, Qty 20+

44

Scag 04041-38

Flatwasher, 3/8-.406 x 2.25 x .188

Note: = SWZT61 Models Only

$3.49

$

In Stock, Qty 8

45

Scag 04040-11

Flatwasher, 7/16-.500 x 1.250 x .083

Note: = SWZT61 Models Only

$0.99

$

In Stock, Qty 13

46

Scag 424636

Spacer, Yoke

Note: = SWZT61 Models Only

$4.49

$

In Stock, only 2 left!

47

Scag 04030-04

Lockwasher, 3/8" Spring

Note: = SWZT61 Models Only

$0.99

$

In Stock, Qty 20+

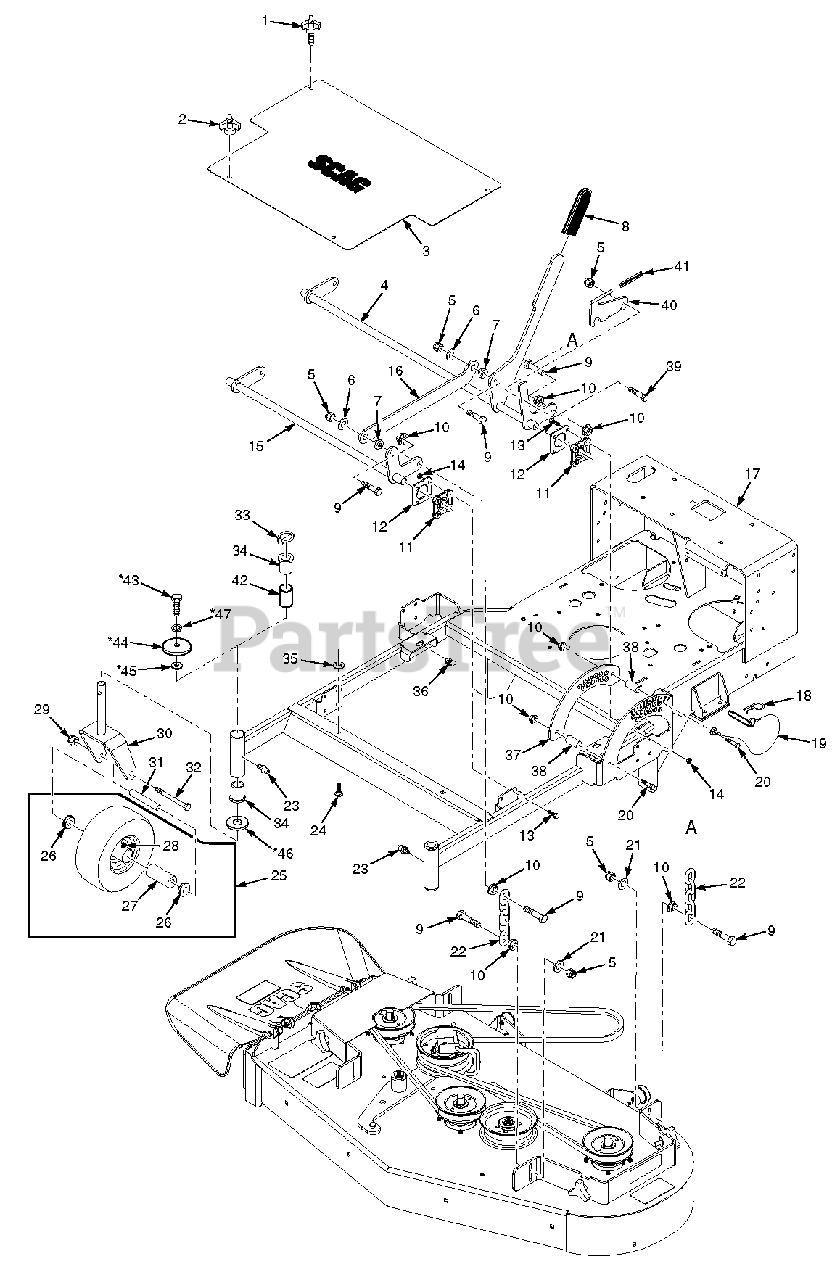

SWZT52-18FS - Scag 52" Walk-Behind Mower, 18hp Kawasaki (SN: M9200001 - M9299999) Cutter Deck Controls Parts Diagram

Cutter Deck Controls Parts Diagram
