SWZT48H-15FSE - Scag 48" Walk-Behind Mower, 15hp Kawasaki (SN: T8800001 - T8899999) ELECTRICAL SYSTEM AND THROTTLE CONTROL - ELECTRIC START Parts Diagram

48" Walk-Behind Mower, 15hp Kawasaki

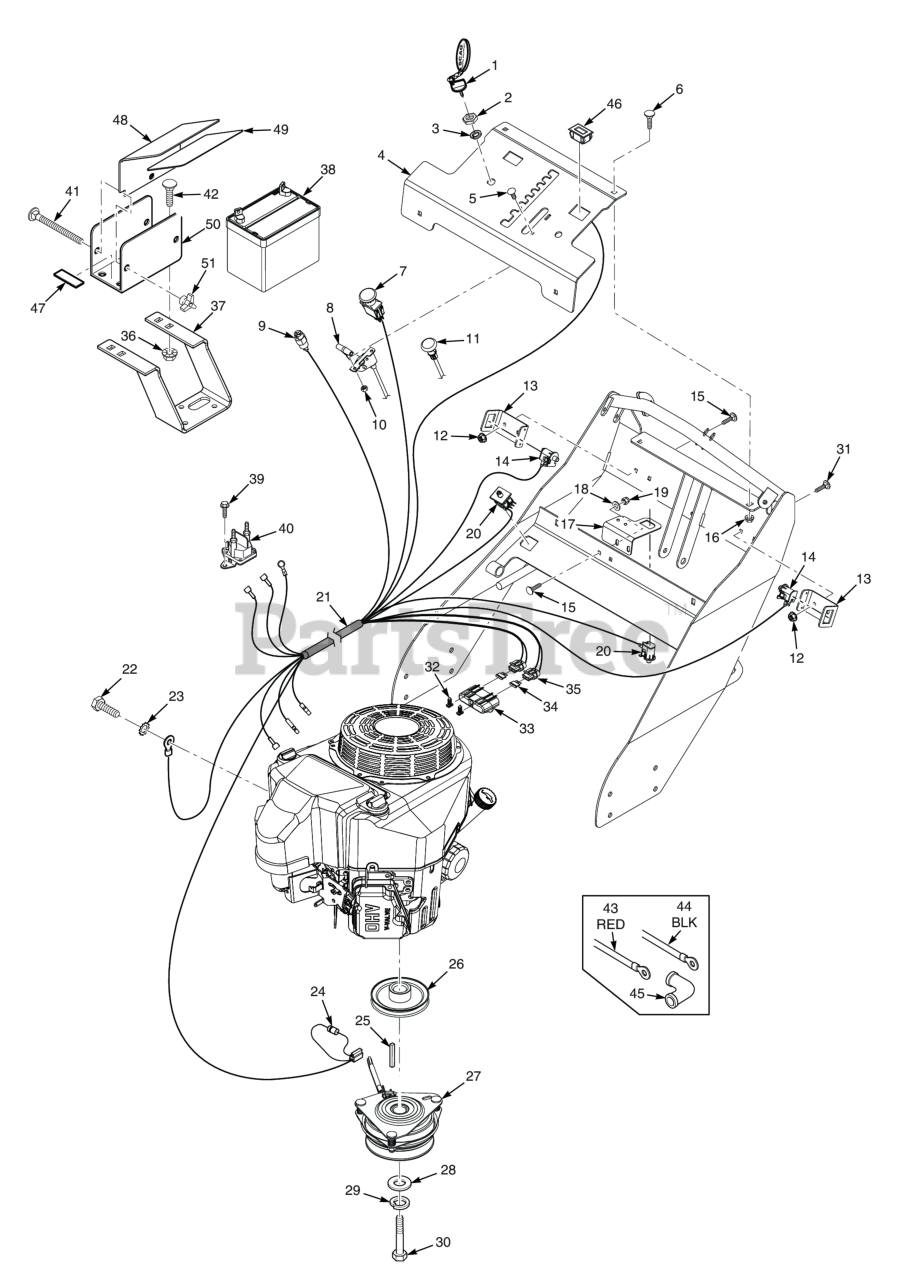

ELECTRICAL SYSTEM AND THROTTLE CONTROL - ELECTRIC START Parts Diagram

  • Title

1

Scag 462069

Key, Assembly w/Fob

$8.49

$

In Stock, Qty 20+

0

Scag 483609

Key w/Shroud Only

$2.99

$

In Stock, Qty 9

0

2

Scag 48017-04

Nut, 5/8-32 Special

$1.49

$

In Stock, Qty 5

0

3

Scag 48017-03

LOCK WASHER, 5/8" INTERNAL TOOTH

$0.99

$

In Stock, Qty 6

0

4

Scag 462684

Instrument Panel w/Decal

$113.99

$

Usually ships in 2-12 days

0

5

Scag 04003-43

Bolt, Carriage #10-24 x 1/2"

$0.99

$

In Stock, Qty 6

0

6

Scag 04003-12

Bolt, 5/16-18 x .75 RHSN Carriage

$0.99

$

In Stock, Qty 20+

0

7

Scag 485833

Switch, PTO - 10 Amp

$47.99

$

In Stock, only 1 left!

0

8

Scag 484665

Throttle Cable

$28.99

$

In Stock, only 1 left!

0

9

Scag 48798

KEY SWITCH(INCLUDES MOUNTING HARDWARE)

$27.99

$

In Stock, Qty 20+

0

10

Scag 04021-26

Nut, Elastic Stop #10-24

$0.99

$

In Stock, Qty 11

0

11

Scag 483552

Choke Control

$29.99

$

In Stock, only 1 left!

0

12

Scag 04019-02

NUT, 1/4-20 SERRATED FLANGE HEX HEAD

$0.99

$

In Stock, Qty 20+

0

13

Scag 425937

Bracket, Operator Presence Switch

$16.99

$

Usually ships in 2-12 days

0

14

Scag 48717

SWITCH, NEUTRAL INTERLOCK

$9.99

$

In Stock, only 1 left!

0

15

Scag 04003-02

Serr. Fl. Hex Head CPSCR, 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 20+

0

16

Scag 04019-03

Nut, Serrated Flange 5/16-18 (Right Front Engine Mounting, Briggs and Kohler Only)

$0.99

$

In Stock, Qty 20+

0

17

Scag 426568

Bracket, Neutral Switch (Electric Start Only)

$13.99

$

Usually ships in 2-12 days

0

18

Scag 04040-15

Flatwasher, 5/16-.375 x .875 x .083 (35BV & 37BV-EFI)

$0.99

$

In Stock, Qty 20+

0

19

Scag 04021-08

HEX, NUT, ELASTIC STOP LOCK, 1/4-20

$0.99

$

In Stock, Qty 9

0

20

Scag 483473

Switch, Double Pole - Plunger

$16.99

$

In Stock, Qty 12

0

21

Scag 486122

Wire Harness

$241.99

$

Usually ships in 2-12 days

0

22

Scag 04002-17

Bolt, Hex Hd. M8-1.25 x 14mm

$1.49

$

Usually ships in 2-12 days

0

23

Scag 04031-03

Lockwasher, 5/16" Ext. Tooth (Kohler x1)

$0.99

$

Usually ships in 2-12 days

0

24

Scag 483958

Diode, 600V 6 Amp

$2.49

$

In Stock, only 4 left!

0

25

Scag 04063-03

KEY, 1/4 X 1/4 X 2-1/2"

$2.49

$

Usually ships in 2-12 days

0

26

Scag 484595

Pulley, 4-1/2" Dia. - 1" Bore

$28.99

$

Usually ships in 2-12 days

0

27

Scag 462610

Electric Clutch Assembly

$291.99

$

In Stock, only 1 left!

0

28

Scag 04041-28

Flatwasher, 7/16-.469 x 1.75 x .25 (48, 52)

$2.99

$

In Stock, Qty 12

0

29

Scag 04030-05

Lockwasher, 7/16� Spring

$0.99

$

In Stock, Qty 5

0

30

Scag 04102-06

Bolt, Hex Head 7/16-20 x 3" w/t Patch

$2.49

$

In Stock, Qty 8

0

31

Scag 04003-09

Bolt, Carriage, 1/4-20 x 1-1/4"

$0.99

$

In Stock, Qty 9

0

32

Scag 482588

Clip, Fuse Holder

$1.99

$

Usually ships in 2-12 days

0

33

Scag 483571

Cover, Sealed Double

$1.99

$

Usually ships in 2-12 days

0

34

Scag 48298

FUSE, 20 AMP BLADE TYPE AUTOMOTIVE

$3.99

$

Usually ships in 2-12 days

0

35

Scag 483629

Fuse Holder Assembly

$7.49

$

In Stock, Qty 7

0

36

Scag 04019-03

Nut, Serrated Flange 5/16-18 (Right Front Engine Mounting, Briggs and Kohler Only)

$0.99

$

In Stock, Qty 20+

0

37

Scag 428384

Bracket, Battery Support

$43.99

$

Usually ships in 2-12 days

0

38

Scag 485212

Battery, 12v - 230CCA

$

$

Currently unavailable

39

Scag 04011-14

Screw, Self-Tapping 1/4-20 x 3/4

$0.99

$

In Stock, Qty 13

0

40

Scag 483278

Solenoid, Sealed (Briggs & Stratton)

$51.99

$

In Stock, only 1 left!

0

41

Scag 04003-39

Bolt, Carriage 1/4-20 x 6"

$1.49

$

In Stock, Qty 10

0

42

Scag 04003-12

Bolt, 5/16-18 x .75 RHSN Carriage

$0.99

$

In Stock, Qty 20+

0

43

Scag 48029-09

Battery Cable, Red 9" (Briggs & Stratton)

$10.99

$

Usually ships in 2-12 days

0

44

Scag 48029-25

Cable, Battery - Black

$7.49

$

Usually ships in 2-12 days

0

45

Scag 48126

RUBBER BOOT

$8.49

$

Usually ships in 2-12 days

0

46

Scag 484565

Hour Meter, Inductive

$51.99

$

In Stock, only 1 left!

0

47

Scag 48661

PAD, BATTERY SUPPORT

$4.99

$

Usually ships in 2-12 days

0

48

Scag 42392

Battery Box Cover

$45.99

$

Usually ships in 2-12 days

0

49

Scag 48099

INSULATION, BATTERY COVER

$5.99

$

Usually ships in 2-12 days

0

50

Scag 423308

Plate, Battery Box

$52.99

$

In Stock, only 1 left!

0

51

Scag 04029-01

ELASTIC STOP WINGNUT, 1/4-20

$2.49

$

In Stock, Qty 19

0
