SWZT48-541FS - Scag 48" Walk-Behind Mower, Kawasaki 541FS (SN: J3500001 - J3599999) 48" Cutter Deck Parts Diagram

48" Walk-Behind Mower, Kawasaki 541FS

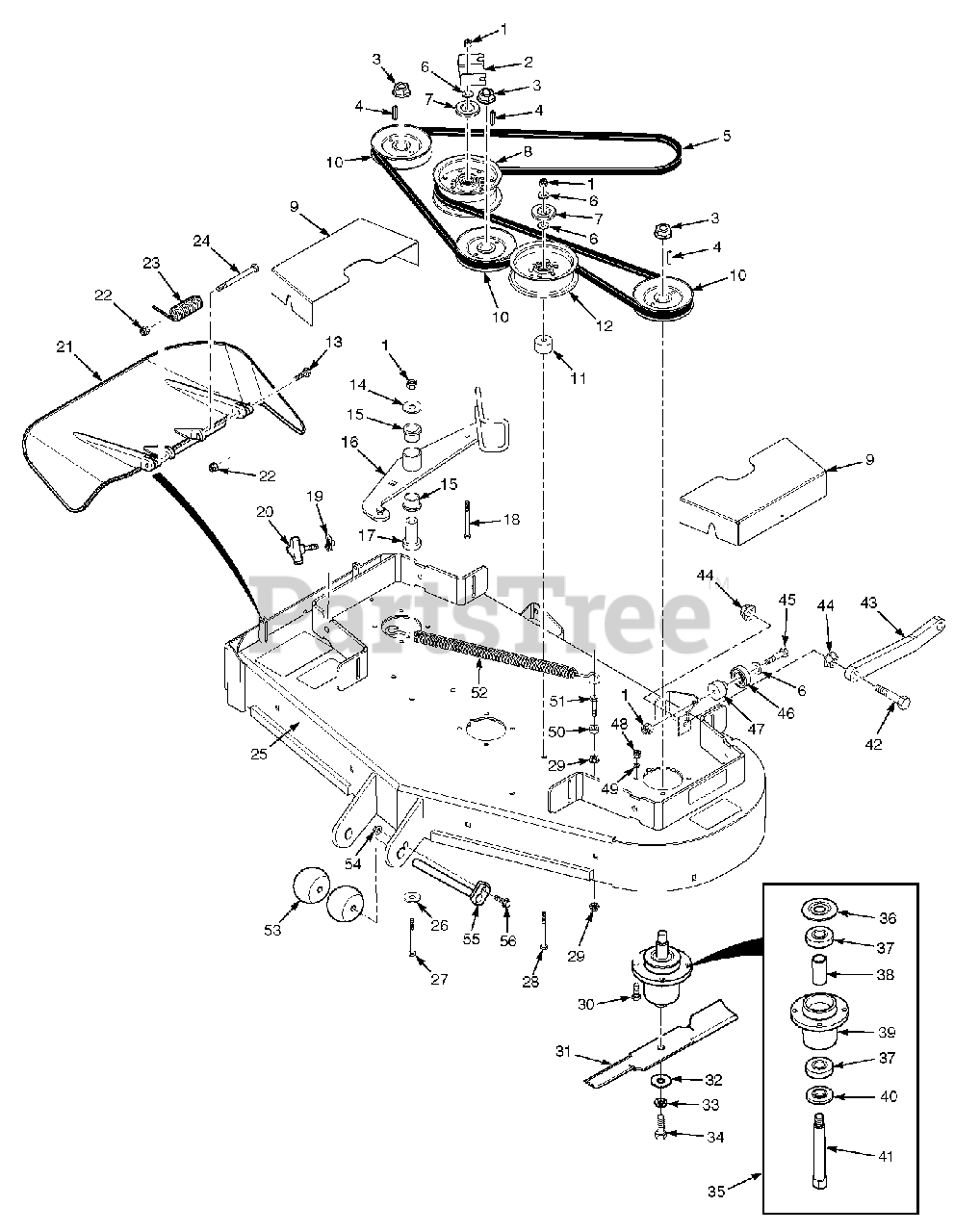

48" Cutter Deck Parts Diagram

  • Title

1

Scag 04021-09

Nut, Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

2

Scag 424615

Bracket, Belt Guide

$5.49

$

Usually ships in 2-12 days

0

3

Scag 04112-06

Nut, 3/4-16 Spiral Lock

$11.99

$

In Stock, Qty 5

0

4

Scag 04063-01

Key, 1/4 x 1/4 x 1-1/4"

$1.49

$

In Stock, only 4 left!

0

5

Scag 484618

Belt, Cutter Deck

$113.99

$

In Stock, only 1 left!

0

6

Scag 04043-04

Flatwasher, 3/8-.391 x .938 x .105

$0.99

$

In Stock, Qty 20+

0

7

Scag 424367

Dust Shield

$2.49

$

In Stock, only 2 left!

0

8

Scag 483851

Pulley, 5" Idler
(Superseded to 483210)

$55.99

$

In Stock, only 2 left!

0

9

Scag 425978

Belt Cover

$34.99

$

In Stock, only 3 left!

0

10

Scag 483323

Pulley, 5.13" OD - 25mm Bore

$32.99

$

In Stock, only 2 left!

0

11

Scag 43711

Spacer

$6.49

$

Usually ships in 2-12 days

0

12

Scag 483422

Pulley, 5" Idler

$20.99

$

In Stock, Qty 8

0

13

Scag 04001-12

Bolt, Hex Head 5/16-18 x 1-3/4"

$0.99

$

In Stock, Qty 20+

0

14

Scag 04041-11

Flatwasher, 3/8-.406 x 1-1/2"

$1.99

$

In Stock, only 3 left!

0

15

Scag 483453-03

Bearing

$7.99

$

In Stock, only 2 left!

0

16

Scag 462191

Idler Arm

Note: (incl. item #15)

$114.99

$

Usually ships in 2-12 days

0

17

Scag 43708

Pivot, Idler

$31.99

$

In Stock, only 1 left!

0

18

Scag 04001-62

Bolt, Hex Head 3/8-16 x 3-1/4"

$1.49

$

In Stock, Qty 12

0

19

Scag 04110-04

U-Nut, 3/8-16

$5.99

$

In Stock, Qty 7

0

20

Scag 481625-01

Knob w/Stud

$2.99

$

In Stock, Qty 20+

0

21

Scag 462031

Discharge Chute Assembly

$65.99

$

In Stock, only 1 left!

0

Scag 462472

CA Discharge Chute

Note: California Models Only (not shown)

$143.99

$

Usually ships in 2-12 days

0

Scag 425619

Turbo Baffle

Note: California Models Only (not shown)

$38.99

$

Usually ships in 2-12 days

0

22

Scag 04021-10

Nut, Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 20+

0

23

Scag 482245

Spring, Discharge Chute

$10.99

$

In Stock, Qty 5

0

24

Scag 04001-154

Bolt, Hex Head 5/16-18 x 4-3/4"

$2.99

$

In Stock, Qty 20+

0

25

Scag 462655

Cutter Deck w/Decals, SMWZT-48
(Superseded to 462978)

$1000.99

$

Usually ships in 2-12 days

0

26

Scag 04041-38

Flatwasher, 3/8-.406 x 2.25" x .188

$3.49

$

In Stock, Qty 8

0

27

Scag 04001-51

Bolt, Hex Head 3/8-16 x 3-3/4"

$1.49

$

In Stock, Qty 8

0

28

Scag 04001-77

Bolt, Hex Head 3/8-16 x 3-1/2"

$1.49

$

In Stock, Qty 7

0

29

Scag 04019-04

Nut, Serrated Flange 3/8-16

$0.99

$

In Stock, Qty 20+

0

30

Scag 04001-175

Bolt, Hex Head 5/16-18 x 1-1/2" Gr.8

$0.99

$

Usually ships in 2-12 days

0

31

Scag 482877

Cutter Blade, 16-1/2"

$22.99

$

In Stock, Qty 20+

0

32

Scag 04043-06

Flatwasher, 5/8-.688 x 1.75 x .134 HD

$1.99

$

In Stock, Qty 20+

0

33

Scag 04030-07

Lockwasher, 1/2 Spring

$0.99

$

In Stock, Qty 19

0

34

Scag 04001-121

Bolt, Hex Head 5/8-11 x 1-1/2"

$1.99

$

In Stock, Qty 20+

0

35

Scag 461950

Spindle Assembly

$137.99

$

Usually ships in 2-12 days

0

36

Scag 483304

Debris Shield

$6.49

$

In Stock, only 1 left!

0

37

Scag 483303

Bearing

$13.99

$

In Stock, Qty 11

0

38

Scag 43693

Spacer

$22.99

$

Usually ships in 2-12 days

0

39

Scag 462014

Spindle Housing Assembly

Note: (Incl. item #37, 38)

$129.99

$

In Stock, only 1 left!

0

40

Scag 43694

Protector, Bearing

$28.99

$

In Stock, only 1 left!

0

41

Scag 43695

Shaft, Spindle

$49.99

$

In Stock, only 1 left!

0

42

Scag 04001-72

Bolt, Hex Head 1/2-13 x 2"

$1.99

$

Usually ships in 2-12 days

0

43

Scag 425959

Pusharm

$17.99

$

Usually ships in 2-12 days

0

44

Scag 04019-06

Nut, Serrated Flange 1/2-13

$0.99

$

In Stock, Qty 10

0

45

Scag 04001-46

Bolt, Hex Head 3/8-16 x 2-1/4"

$0.99

$

In Stock, Qty 20+

0

46

Scag 483379

Bearing

$5.49

$

In Stock, Qty 7

0

47

Scag 43703

Spacer, Bearing

$11.99

$

Usually ships in 2-12 days

0

48

Scag 04021-22

Nut, Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 20+

0

49

Scag 04030-03

Lockwasher, 5/16 Spring

$0.99

$

In Stock, Qty 20+

0

50

Scag 43063

Spacer

$7.99

$

In Stock, only 2 left!

0

51

Scag 04001-136

Bolt, Hex Head 3/8-16 x 1-1/2 Gr.8

$0.99

$

In Stock, Qty 20+

0

52

Scag 483375

Spring, Idler

$85.99

$

In Stock, only 1 left!

0

53

Scag 482295

Wheel, Anti-Scalp

$9.99

$

In Stock, Qty 20+

0

54

Scag 04019-03

Nut, Serrated Flange 5/16-18

$0.99

$

In Stock, Qty 20+

0

55

Scag 461926

Shaft Weldment
(Superseded to 451926)

$25.99

$

In Stock, only 1 left!

0

56

Scag 04001-09

Bolt, Hex Head 5/16-18 x 1"

$0.99

$

In Stock, Qty 20+

0
