Scag SWZT48-15FS - Scag 48" Walk-Behind Mower, 15hp Kawasaki (SN: N5500001 - N5599999) CUTTER DECK CONTROLS Parts Lookup with Diagrams

1

Scag 481625-01

Knob, w/stud 3/8-16 x 1-1/4"

$2.99

$

In Stock, Qty 20+

2

Scag 04029-04

Wing Nut, 3/8-16 (Small) Top side

$2.99

$

In Stock, Qty 19

3

Scag 462683

Belt Cover w/Decals

$

Not available 

4

Scag 462522

Deck Bellcrank Assy.

$139.99

$

Usually ships in 2-12 days

5

Scag 04021-09

HEX NUT, ELASTIC STOP LOCK, 3/8-16

$0.99

$

In Stock, Qty 20+

6

Scag 04041-07

Flatwasher, 3/8" Special (.391 x .938 x .105)

$0.99

$

In Stock, Qty 20+

7

Scag 43086

BUSHING, SPEED ADJUSTMENT LEVER

$5.99

$

Usually ships in 2-12 days

8

Scag 484669

Grip, Deck Lift

$2.49

$

Usually ships in 2-12 days

9

Scag 04001-20

Bolt, Hex Head, 3/8-16 x 1-1/2"

$0.99

$

In Stock, Qty 20+

10

Scag 04019-04

NUT, 3/8-16 SERRATED FLANGE HEX HEAD

$0.99

$

In Stock, Qty 20+

11

Scag 483334

Bearing, Deck Lift - 48V & 52V

$15.99

$

In Stock, only 2 left!

12

Scag 425209

Reinforcement, Bearing - 48V & 52V

$8.49

$

In Stock, Qty 12

13

Scag 04017-17

Cpscrw, 5/16-18 x 1"Serrated Flange Hex Head

$0.99

$

Usually ships in 2-12 days

14

Scag 04021-04

Nut, Center Lock, 5/16-18(32)

$0.99

$

In Stock, Qty 20+

15

Scag 452018

Deck Lift Weldment, Front

$76.99

$

Usually ships in 2-12 days

16

Scag 425968

Link, Decklift

$20.99

$

Usually ships in 2-12 days

17

Scag 463030

Frame w/Decals (SWZT 36 & 48)

$

Not available 

18

Scag 04062-04

Hair Pin Cotter, .177" x 3-1/4"

$1.49

$

In Stock, Qty 20+

19

Scag 483345

Lanyard, Deck Height Pin Assembly

$11.99

$

In Stock, Qty 6

20

Scag 04001-31

Capscrew, Hex Head 3/8-16 x 2-1/2"

$0.99

$

In Stock, Qty 20+

21

Scag 04041-07

Flatwasher, 3/8" Special (.391 x .938 x .105)

$0.99

$

In Stock, Qty 20+

22

Scag 482628

Chain, Deck Lift

$11.99

$

In Stock, only 3 left!

23

Scag 48114-04

GREASE FITTING, STR. 1/4-28 SELF TAP.

$0.99

$

In Stock, Qty 20+

24

Scag 04003-23

Carriage Bolt, 3/8-16 x 1.0"

$1.49

$

In Stock, Qty 20+

25

Scag 9275

Flat Free Tire Assy.

Note: (Incl. #26, #27, #28)

$109.99

$

In Stock, only 1 left!

26

Scag 481770

Retainer, Bearing, Caster Wheel

$4.99

$

In Stock, Qty 20+

27

Scag 481769

Roller Bearing, .625 x 3-1/4"

$27.99

$

In Stock, only 2 left!

28

Scag 48114-03

GREASE FITTING, 45 DEGREE 1/4-28

$10.99

$

In Stock, Qty 6

29

Scag 04021-07

HEX LOCKNUT, ELASTIC STOP, 1/2-13

$0.99

$

In Stock, Qty 20+

30

Scag 45006

Caster Yoke Weldment

$65.99

$

In Stock, only 1 left!

31

Scag 43022

SLEEVE, CASTER WHEEL BEARING

$6.99

$

In Stock, Qty 20+

32

Scag 04001-37

Bolt, Hex Head 1/2-13 x 5-1/2" (Three Weights Installed)

$4.49

$

In Stock, Qty 13

33

Scag 04066-01

Quick Pin, .438" Dia.

$8.49

$

In Stock, Qty 7

34

Scag 48100-01

Bronze Bushing, 7/8 ID x 1.0 Flanged

$2.99

$

In Stock, Qty 13

35

Scag 04024-02

Nut, Push-On - 3/8" Dia.

$1.49

$

In Stock, Qty 5

36

Scag 04110-03

U-Nut, 3/8-16 (short)

$2.49

$

In Stock, Qty 20+

37

Scag 425970

Bracket, Deck Height

$32.99

$

Usually ships in 2-12 days

38

Scag 43805

Spacer

$10.99

$

Usually ships in 2-12 days

39

Scag 04001-19

Bolt, Hex Head, 3/8-16 x 1 Gr. 5

$0.99

$

In Stock, Qty 6

40

Scag 462817

Lever Assembly, Deck Latch

$33.99

$

Usually ships in 2-12 days

41

Scag 427007

Grip, Deck Transport Lock

$19.99

$

Usually ships in 2-12 days

42

Scag 43736

Spacer, Caster Bearing

$6.49

$

In Stock, only 2 left!

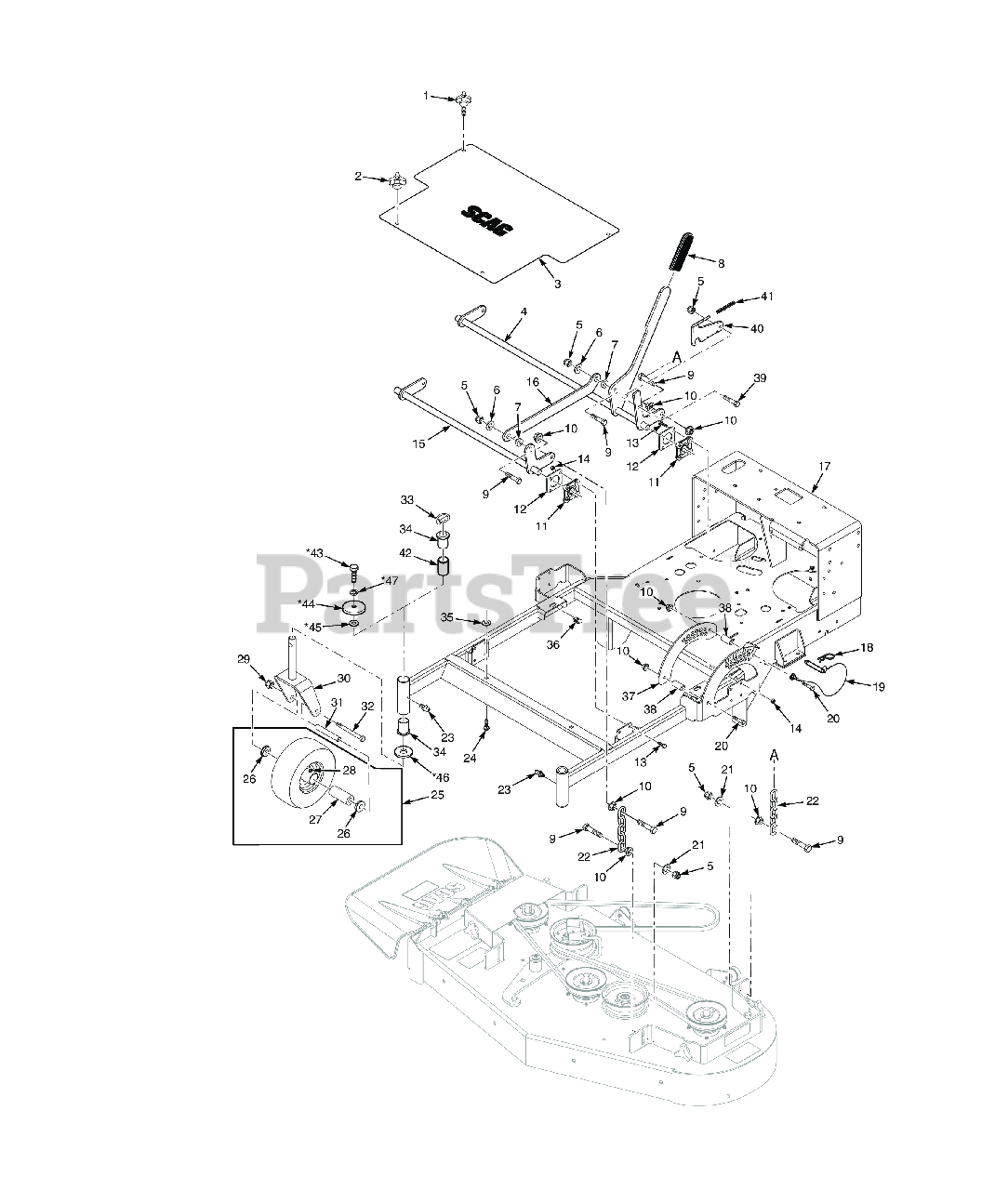

SWZT48-15FS - Scag 48" Walk-Behind Mower, 15hp Kawasaki (SN: N5500001 - N5599999) CUTTER DECK CONTROLS Parts Diagram

CUTTER DECK CONTROLS Parts Diagram
