SWZT48-15FS - Scag 48" Walk-Behind Mower, 15hp Kawasaki (SN: L3500001 - L3599999) ZT-2800 Hydraulic Axle Assembly Parts Diagram

48" Walk-Behind Mower, 15hp Kawasaki

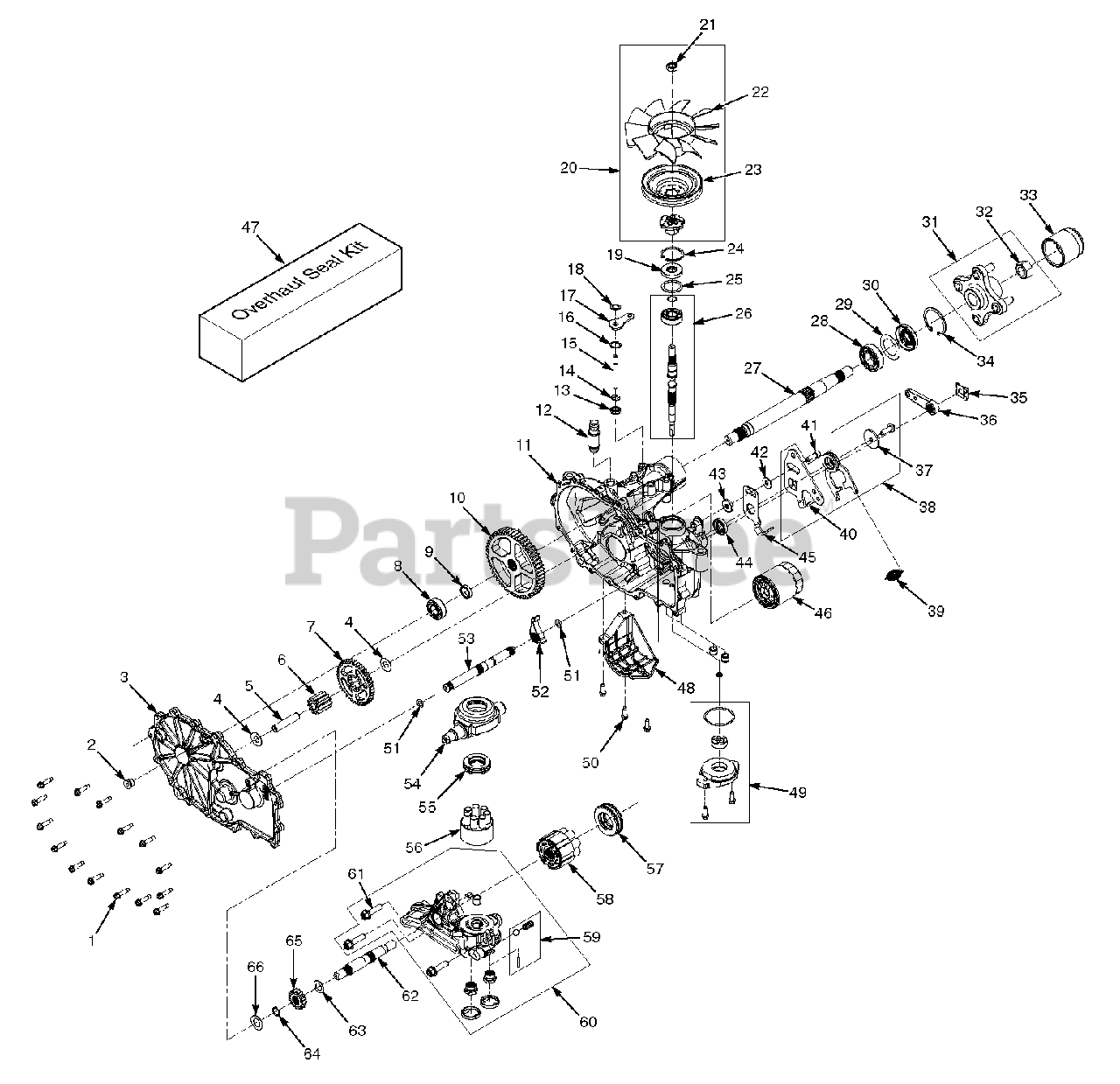

ZT-2800 Hydraulic Axle Assembly Parts Diagram

  • Title

1

Scag HG53246

Bolt, Hex Head 1/4-20 x 1-1/8"

$

$

Currently unavailable

2

Scag HG9005110-5600

Plug, 9/16-18

$

$

Currently unavailable

3

Scag HG71574

Kit, Side Cover

Note: ZH-KMCC-3LUC-1MXX

$

$

Currently unavailable

3

Scag HG71572

Kit, Side Cover

Note: ZH-GMCC-3LUB-1MXX

$

$

Currently unavailable

4

Scag HG50132

Washer, .5 x 1.0 x .03

$

$

Currently unavailable

5

Scag HG51083

Jackshaft Pin

$

$

Currently unavailable

6

Scag HG52583

Gear, 11T

$

$

Currently unavailable

7

Scag HG52148

Gear, 43T

$

$

Currently unavailable

8

Scag HG44121

Bearing, Ball .75 x 40 x 12

$

$

Currently unavailable

9

Scag HG53336

Spacer, .75 x 1.32 x .257

$

$

Currently unavailable

10

Scag HG52108

Gear, 54T

$

$

Currently unavailable

11

Scag HG71421

Kit, Housing

Note: ZH-KMCC-3LUC-1MXX

$269.99

$

In Stock, only 1 left!

0

11

Scag HG71413

Kit, Housing

Note: ZH-GMCC-3LUB-1MXX

$248.99

$

Usually ships in 2-12 days

0

12

Scag 482800-04

Fitting, Transmission

$10.99

$

Usually ships in 2-12 days

0

13

Scag HG51626

Seal, Lip .375 x .75 x .25

$

$

Currently unavailable

14

Scag HG51628

Ring, .Retaining .375 External

$

$

Currently unavailable

15

Scag HG52136

Rod, By-Pass

$

$

Currently unavailable

16

Scag HG51627

Ring, Retaining .750 Internal

$

$

Currently unavailable

17

Scag HG51629

Arm, By-Pass

$

$

Currently unavailable

18

Scag HG51630

Ring, .Retaining .375 External

$

$

Currently unavailable

19

Scag HG51161

Seal, Lip 17 x 40 x 7

$9.99

$

Usually ships in 2-12 days

0

20

Scag HG72124

Kit, Fan & Pulley

$

$

Currently unavailable

21

Scag HG51244

Nut, Hex Locking 1/2-20

$

$

Currently unavailable

22

Scag HG53821

Fan

$

$

Currently unavailable

23

Scag HG53804

Pulley

$

$

Currently unavailable

24

Scag HG50329

Ring, Retaining 2.06 Internal

$5.49

$

Usually ships in 2-12 days

0

25

Scag HG50951

Washer, 1.23 x 1.56 x .04

$3.99

$

Usually ships in 2-12 days

0

26

Scag HG71442

Kit, Shaft, Input

$

$

Currently unavailable

27

Scag HG71569

Kit, Shaft, Axle

$

$

Currently unavailable

28

Scag HG53656

Bearing, Ball 1.0 x 52 x 15 Open

$

$

Currently unavailable

29

Scag HG53514

Spacer, 1.355 x 2.035 x .021

$

$

Currently unavailable

30

Scag HG53699

Seal, Lip TC4 1.0 x 2.06 x .38

$

$

Currently unavailable

31

Scag HG71446

Hub Kit

$

$

Currently unavailable

32

Scag HG50863

Nut, Hex Locking

$

$

Currently unavailable

33

Scag HG53501

Cap, Axle

$

$

Currently unavailable

34

Scag HG50859

Ring, Retaining 2.06 Internal

$

$

Currently unavailable

35

Scag HG52027

Clip, Retaining

$

$

Currently unavailable

36

Scag HG53973

Handle, Brake

$

$

Currently unavailable

37

Scag HG51950

Washer, .343 x 1.5 x .062

$

$

Currently unavailable

38

Scag HG71594

Kit, RTN Assembly

Note: ZH-KMCC-3LUC-1MXX

$

$

Currently unavailable

38

Scag HG71589

Kit, RTN Assembly

Note: ZH-GMCC-3LUB-1MXX

$

$

Currently unavailable

39

Scag 484600

Spring, RTN

$6.99

$

Usually ships in 2-12 days

0

40

Scag HG51842

Arm, Control

Note: ZH-KMCC-3LUC-1MXX

$

$

Currently unavailable

40

Scag HG51841

Arm, Control

Note: ZH-GMCC-3LUB-1MXX

$

$

Currently unavailable

41

Scag HG51616

Bolt, 5/16-24 x 7/8" Patch

$

$

Currently unavailable

42

Scag HG44130

Washer, .34 x .88 x .06

$

$

Not available

43

Scag HG52527

Spacer, .320 x 1.005 x .150

$

$

Currently unavailable

44

Scag HG51140

Seal, Lip 12 x 32 x 7

$

$

Currently unavailable

45

Scag HG72432

Arm, Neutral

Note: ZH-KMCC-3LUC-1MXX

$

$

Currently unavailable

45

Scag HG72431

Arm, Neutral

Note: ZH-GMCC-3LUB-1MXX

$

$

Currently unavailable

46

Scag HG52114

Filter

$24.99

$

Usually ships in 2-12 days

0

47

Scag HG71410

Seal Kit
(Superseded to HG73107)

$120.99

$

Usually ships in 2-12 days

0

48

Scag HG53644

Filter Guard

Note: ZH-KMCC-3LUC-1MXX

$

$

Currently unavailable

48

Scag HG53655

Filter Guard

Note: ZH-GMCC-3LUB-1MXX

$33.99

$

Usually ships in 2-12 days

0

49

Scag HG72274

Kit, Charge Pump

$114.99

$

Usually ships in 2-12 days

0

50

Scag HG50752

Bolt, 1/4-20 x 3/4"

$

$

Currently unavailable

51

Scag HG51804

O-Ring

$

$

Currently unavailable

52

Scag HG52766

Pawl, Brake

$

$

Currently unavailable

53

Scag HG53539

Shaft, Brake

$

$

Currently unavailable

54

Scag HG51048

Trunnion Swashplate

$

$

Currently unavailable

55

Scag HG50551

Thrust Bearing

$24.99

$

Usually ships in 2-12 days

0

56

Scag HG70723

Kit, Cylinder Block

$

$

Currently unavailable

57

Scag HG51462

Thrust Bearing

$40.99

$

Usually ships in 2-12 days

0

58

Scag HG71579

Kit, Motor Cylinder Block

$

$

Currently unavailable

59

Scag HG71436

Kit, Charge Relief

$

$

Currently unavailable

60

Scag HG72412

Kit, Center Section

Note: ZH-KMCC-3LUC-1MXX

$

$

Currently unavailable

60

Scag HG72413

Kit, Center Section

Note: ZH-GMCC-3LUB-1MXX

$

$

Currently unavailable

61

Scag HG52137

Bolt, Hex Head 3/8-16 x 1-1/2" Patch

$

$

Currently unavailable

62

Scag HG52150

Shaft, Motor

$

$

Currently unavailable

63

Scag HG51069

Washer, .72 x 1.16 x .04

$

$

Currently unavailable

64

Scag HG44145

Ring, Retaining

$

$

Currently unavailable

65

Scag HG52149

Gear, 16T

$

$

Currently unavailable

66

Scag HG44371

Washer, .63 x 1.0 x .05

$1.99

$

Usually ships in 2-12 days

0
