SWZT48-15FS - Scag 48" Walk-Behind Mower, 15hp Kawasaki (SN: L3500001 - L3599999) Electrical System And Thro Ttle Control - Electric Start Parts Diagram

48" Walk-Behind Mower, 15hp Kawasaki

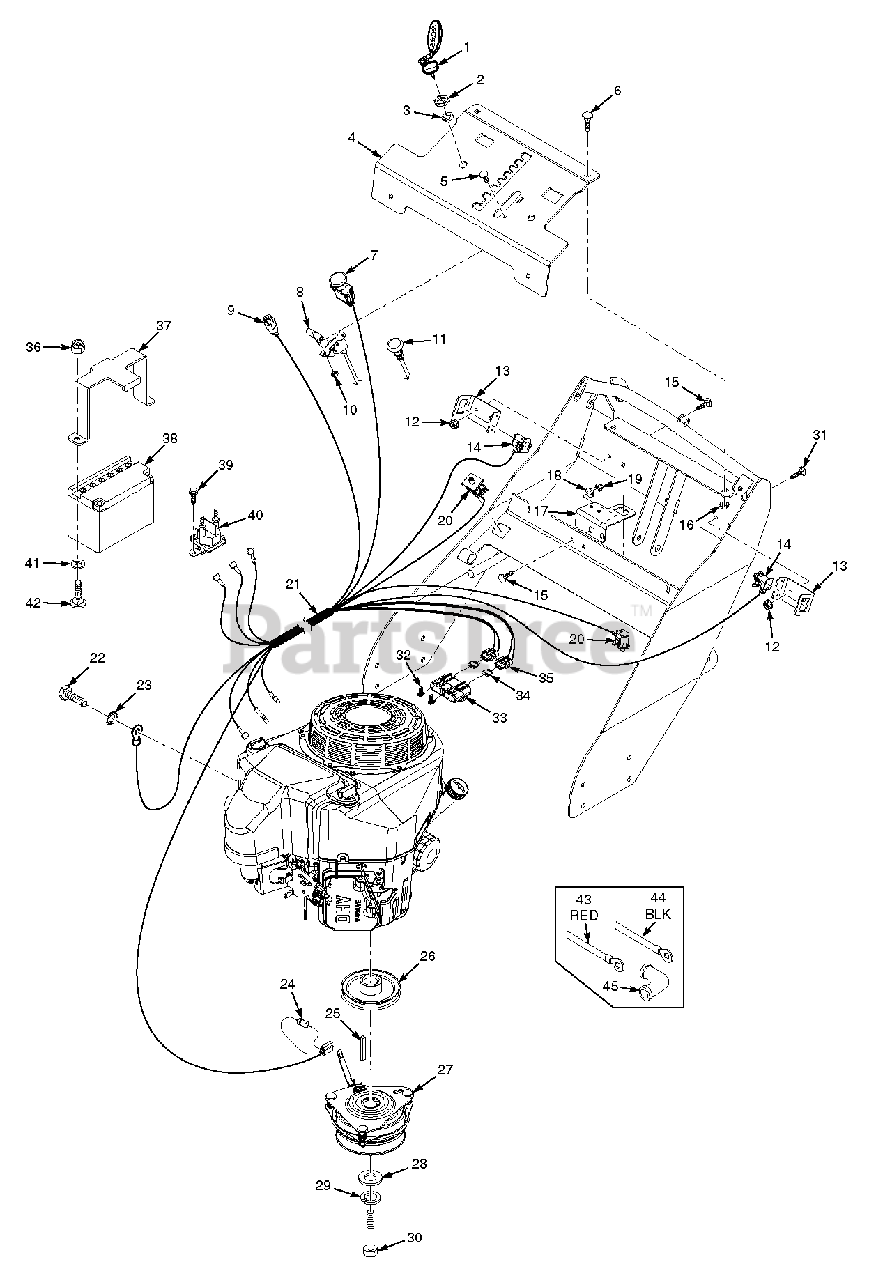

Electrical System And Thro Ttle Control - Electric Start Parts Diagram

  • Title

1

Scag 462069

Key Assembly w/Fob

$8.49

$

In Stock, Qty 20+

0

1

Scag 483609

Key w/Shroud

$2.99

$

In Stock, Qty 9

0

2

Scag 48017-04

Nut, 5/8-32 Special

$1.49

$

In Stock, Qty 5

0

3

Scag 48017-03

Lockwasher, 5/8" Internal Tooth

$0.99

$

In Stock, Qty 6

0

4

Scag 462684

Instrument Panel w/Decal

$113.99

$

Usually ships in 2-12 days

0

5

Scag 04003-43

Bolt, Carriage #10-24 x 1/2"

$0.99

$

In Stock, Qty 10

0

6

Scag 04003-12

Bolt, Carriage 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

7

Scag 483957

PTO Switch
(Superseded to 463034)

$37.99

$

In Stock, Qty 20+

0

8

Scag 484665

Throttle Cable

$28.99

$

In Stock, only 1 left!

0

9

Scag 48798

Key Switch

$27.99

$

In Stock, Qty 20+

0

10

Scag 04021-26

Nut, Elastic Stop #10-24

$0.99

$

In Stock, Qty 11

0

11

Scag 483552

Choke Control

$29.99

$

In Stock, only 1 left!

0

12

Scag 04019-02

Nut, Serrated Flange 1/4-20

$0.99

$

In Stock, Qty 20+

0

13

Scag 425937

Bracket, Operator Presence Switch

$16.99

$

Usually ships in 2-12 days

0

14

Scag 48717

Switch

$9.99

$

In Stock, only 1 left!

0

15

Scag 04003-02

Bolt, Carriage 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 20+

0

16

Scag 04019-03

Nut, Serrated Flange 5/16-18

$0.99

$

In Stock, Qty 20+

0

17

Scag 426568

Bracket, Neutral Switch

$13.99

$

Usually ships in 2-12 days

0

18

Scag 04040-15

Flatwasher, 5/16-.375 x .875 x .083

$0.99

$

In Stock, Qty 20+

0

19

Scag 04021-08

Nut, Elastic Stop 1/4-20

$0.99

$

In Stock, Qty 9

0

20

Scag 483473

Switch, Brake Interlock

$16.99

$

In Stock, Qty 12

0

21

Scag 485184

Wire Harness

$512.99

$

Usually ships in 2-12 days

0

22

Scag 04002-17

Bolt, Hex Head M8-1.25 x 14

$1.49

$

Usually ships in 2-12 days

0

23

Scag 04031-03

Lockwasher, 5/16" External Tooth

$0.99

$

Usually ships in 2-12 days

0

24

Scag 483958

Diode

$2.49

$

In Stock, only 4 left!

0

25

Scag 04063-03

Key, 1/4 x 1/4 x 2-1/2"

$2.49

$

Usually ships in 2-12 days

0

26

Scag 484595

Pulley, 4-1/2" Dia. 1" Bore

$28.99

$

Usually ships in 2-12 days

0

27

Scag 462610

Electric Clutch Assembly

$291.99

$

In Stock, only 1 left!

0

28

Scag 04041-28

Flatwasher, 7/16-.469 x 1.75 x .25

$2.99

$

In Stock, Qty 12

0

29

Scag 04030-05

Lockwasher, 7/16" spring

$0.99

$

In Stock, Qty 5

0

30

Scag 04102-06

Bolt, Hex Head 7/16-20 x 3" w/t Patch

$2.49

$

In Stock, Qty 8

0

31

Scag 04003-09

Bolt, Carriage 1/4-20 x 1-1/4"

$0.99

$

In Stock, Qty 9

0

32

Scag 482588

Clip, Wire

$1.99

$

Usually ships in 2-12 days

0

33

Scag 483571

Cover, Sealed Double

$1.99

$

Usually ships in 2-12 days

0

34

Scag 48298

Fuse, 20 Amp

$3.99

$

Usually ships in 2-12 days

0

35

Scag 483629

Fuse Holder

$7.49

$

In Stock, Qty 7

0

36

Scag 04021-10

Nut, Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 20+

0

37

Scag 426140

Bracket, Battery

$48.99

$

Usually ships in 2-12 days

0

38

Scag 484805

Battery (not available through Scag)

$

$

Currently unavailable

39

Scag 04011-13

Screw, Self Tapping 1/4-20 x 3/4"
(Superseded to 04011-14)

$0.99

$

In Stock, Qty 13

0

40

Scag 483278

Solenoid, Sealed

$51.99

$

In Stock, only 1 left!

0

41

Scag 04024-03

Nut, Push-On 5/16"

$1.49

$

In Stock, Qty 16

0

42

Scag 04003-04

Bolt, Carriage 5/16-18 x 1"

$0.99

$

In Stock, Qty 9

0

43

Scag 48029-09

Cable, Battery - Red

$10.99

$

Usually ships in 2-12 days

0

44

Scag 48029-25

Cable, Battery - Black

$7.49

$

Usually ships in 2-12 days

0

45

Scag 48126

Rubber Boot

$8.49

$

Usually ships in 2-12 days
