SWZT48-15FS - Scag 48" Walk-Behind Mower, 15hp Kawasaki (SN: K9900001 - K9999999) Cutter Deck Controls Parts Diagram

48" Walk-Behind Mower, 15hp Kawasaki

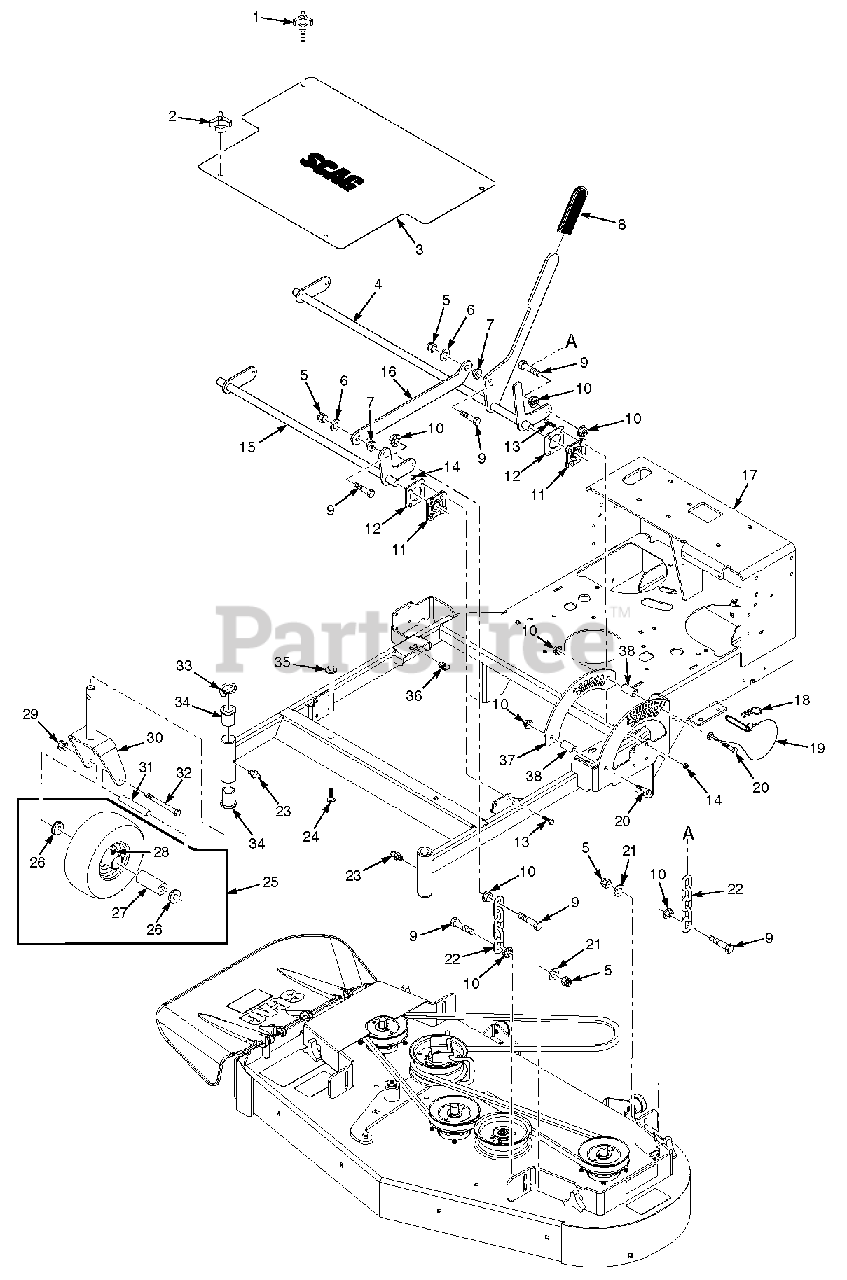

Cutter Deck Controls Parts Diagram

  • Title

1

Scag 481625-01

Knob W/Stud, 3/8-16 x 1-1/4"

$2.99

$

In Stock, Qty 20+

0

2

Scag 04029-04

Wing Nut, 3/8" Plastic Small

$2.99

$

In Stock, Qty 19

0

3

Scag 462683

Belt Cover w/Decals

$

$

Not available

4

Scag 462522

Deck Bellcrank Assy.

Note: (Incl. item #8)

$139.99

$

Usually ships in 2-12 days

0

5

Scag 04021-09

Nut, Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

6

Scag 04041-07

Flatwasher, 3/8-.391 x .938 x .105

$0.99

$

In Stock, Qty 20+

0

7

Scag 43086

Bushing

$5.99

$

Usually ships in 2-12 days

0

8

Scag 484669

Grip, Deck Lift

$2.49

$

Usually ships in 2-12 days

0

9

Scag 04001-20

Bolt, Hex Head 3/8-16 x 1-1/2"

$0.99

$

In Stock, Qty 20+

0

10

Scag 04019-04

Nut, Serrated Flange 3/8-16

$0.99

$

In Stock, Qty 20+

0

11

Scag 483334

Bearing, Deck Lift

$15.99

$

In Stock, only 2 left!

0

12

Scag 425209

Reinforcement, Bearing

$8.49

$

In Stock, Qty 12

0

13

Scag 04017-17

Cpscrw, 5/16-18 x 1"Serrated Flange Hex Head

$0.99

$

Usually ships in 2-12 days

0

14

Scag 04021-04

Nut, Center Lock 5/16-18

$0.99

$

In Stock, Qty 20+

0

15

Scag 452018

Deck Lift Weldment, Front

$76.99

$

Usually ships in 2-12 days

0

16

Scag 425968

Link, Decklift

$20.99

$

Usually ships in 2-12 days

0

17

Scag 462677

Frame w/Decals (SWZT 36 & 48)

$

$

Not available

17

Scag 462678

Frame w/Decals (SWZT 52)

$

$

Not available

18

Scag 04062-04

Hair Pin Cotter

$1.49

$

In Stock, Qty 20+

0

19

Scag 483345

Pin Assembly w/Lanyard

$11.99

$

In Stock, Qty 6

0

20

Scag 04001-31

Bolt, Hex Head 3/8-16 x 2-1/2"

$0.99

$

In Stock, Qty 20+

0

21

Scag 04041-07

Flatwasher, 3/8-.391 x .938 x .105

$0.99

$

In Stock, Qty 20+

0

22

Scag 48540

Chain
(Superseded to 482628)

$11.99

$

In Stock, only 3 left!

0

23

Scag 48114-04

Grease Fitting

$0.99

$

In Stock, Qty 20+

0

24

Scag 04003-23

Bolt, Carriage 3/8-16 x 1"

$1.49

$

In Stock, Qty 20+

0

25

Scag 9275

Flat-Free Tire Assy.

Note: (Incl. #26, #27, #28)

$109.99

$

In Stock, only 1 left!

0

26

Scag 481770

Retainer, Caster Wheel Bearing

$4.99

$

In Stock, Qty 20+

0

27

Scag 481769

Roller Bearing, Caster Wheel

$27.99

$

In Stock, only 2 left!

0

28

Scag 48114-03

Grease Fitting, 45 Degree 1/4-28

$10.99

$

In Stock, Qty 6

0

29

Scag 04021-07

Nut, Elastic Stop 1/2-13

$0.99

$

In Stock, Qty 20+

0

30

Scag 45006

Caster Yoke

$65.99

$

In Stock, only 1 left!

0

31

Scag 43022

Sleeve, Caster Wheel Bearing

$6.99

$

In Stock, Qty 20+

0

32

Scag 04001-37

Bolt, Hex Head 1/2-13 x 5-1/2"

$4.49

$

In Stock, Qty 13

0

33

Scag 04066-01

Quick Pin

$8.49

$

In Stock, Qty 7

0

34

Scag 48100-01

Bronze Bearing

$2.99

$

In Stock, Qty 13

0

35

Scag 04024-02

Nut, Push-On 3/8"

$1.49

$

In Stock, Qty 5

0

36

Scag 04110-03

U-Nut 3/8-16

$2.49

$

In Stock, Qty 20+

0

37

Scag 425970

Bracket, Deck Height

$32.99

$

Usually ships in 2-12 days

0

38

Scag 43805

Spacer

$10.99

$

Usually ships in 2-12 days

0
