Scag SWZT36H-14FS - Scag 36" Walk-Behind Mower, 14hp Kawasaki (SN: T8700001 - T8799999) STEERING CONTROLS Parts Lookup with Diagrams

1

Scag 04021-09

HEX NUT, ELASTIC STOP LOCK, 3/8-16

$0.99

$

In Stock, Qty 20+

2

Scag 484589

Linkage, Speed Control

$47.99

$

In Stock, only 1 left!

3

Scag 43674

Spacer, Idler Pulley - SFZ52

$2.49

$

In Stock, only 2 left!

4

Scag 484035

Bearing

$3.99

$

Usually ships in 2-12 days

5

Scag 452363

Neutral Plate Weldment

$32.99

$

Usually ships in 2-12 days

6

Scag 04040-05

Flatwasher, 3/8 (.406 x .812 x .065)

$0.99

$

In Stock, only 4 left!

7

Scag 04001-77

Bolt, Hex Head, 3/8-16 x 3-1/2"

$1.49

$

In Stock, Qty 7

8

Scag 04019-02

NUT, 1/4-20 SERRATED FLANGE HEX HEAD

$0.99

$

In Stock, Qty 20+

9

Scag 48717

SWITCH, NEUTRAL INTERLOCK

$9.99

$

In Stock, only 1 left!

9A

Scag 483473

Switch, Double Pole - Plunger

$16.99

$

In Stock, Qty 12

10

Scag 425937

Bracket, Operator Presence Switch

$16.99

$

Usually ships in 2-12 days

11

Scag 462835

Handle Assy, W/Decals

$556.99

$

Usually ships in 2-12 days

12

Scag 04010-34

Machine Screw, #10-32 x 1-1/4", Pan Head

$1.49

$

In Stock, only 3 left!

13

Scag 462688

Latch, Thumb

$13.99

$

Usually ships in 2-12 days

14

Scag 484749

Plate, Anti-Friction

$9.99

$

In Stock, only 2 left!

15

Scag 04032-05

Washer, 1/4" Curved Spring

$1.49

$

In Stock, Qty 5

16

Scag 04009-11

Bolt, Shoulder 3/8 x 1"

$2.99

$

In Stock, only 4 left!

17

Scag 483601

Spring, Speed Control Slide

$2.99

$

Usually ships in 2-12 days

18

Scag 462575

Neutral Handle Assy

$57.99

$

Usually ships in 2-12 days

19

Scag 484672

Knob, Soft Touch

$15.99

$

In Stock, only 1 left!

20

Scag 452118

Handle Weldment, Speed Control

$34.99

$

Usually ships in 2-12 days

21

Scag 04019-03

Nut, Serrated Flange 5/16-18 (Right Front Engine Mounting, Briggs and Kohler Only)

$0.99

$

In Stock, Qty 20+

22

Scag 483453-19

Bearing, Plastic 1/2" I.D.

$7.99

$

Usually ships in 2-12 days

23

Scag 04001-20

Bolt, Hex Head 3/8-16 x 1-1/2" B&S 32BV

$0.99

$

In Stock, Qty 20+

24

Scag 04003-09

Bolt, Carriage, 1/4-20 x 1-1/4"

$0.99

$

In Stock, Qty 9

25

Scag 04001-12

Bolt, Hex Head 5/16-18 x 1-1/2" - Front

$0.99

$

In Stock, Qty 20+

26

Scag 04021-10

HEX NUT, ELASTIC STOP LOCK, 5/16-18

$0.99

$

In Stock, Qty 20+

27

Scag 04021-01

HEX NUT, ELASTIC STOP LOCK # 10-32

$0.99

$

In Stock, Qty 10

28

Scag 04009-14

Bolt, Shoulder 3/8 x .375"

$5.99

$

In Stock, only 3 left!

29

Scag 04021-08

HEX, NUT, ELASTIC STOP LOCK, 1/4-20

$0.99

$

In Stock, Qty 9

30

Scag 04040-15

Flatwasher, 5/16-.375 x .875 x .083 (35BV & 37BV-EFI)

$0.99

$

In Stock, Qty 20+

31

Scag 425948

Bracket, Neutral Switch (Manual Start)

$8.49

$

Usually ships in 2-12 days

Scag 426568

Bracket, Neutral Switch (Electric Start Only)

$13.99

$

Usually ships in 2-12 days

32

Scag 04009-16

Bolt, Shoulder 1/2 x 2"

$5.49

$

Usually ships in 2-12 days

33

Scag 484670

Spring, Operator Presence

$6.49

$

Usually ships in 2-12 days

34

Scag 462494

Handle, Op. Presence-LH

(Superseded to 462728) 

$59.99

$

In Stock, only 1 left!

Scag 462729

HANDLE ASSY, OPC - RH

$40.99

$

Usually ships in 2-12 days

35

Scag 483453-22

Bearing

$2.99

$

Usually ships in 2-12 days

36

Scag 43866

Sleeve, Handle Pivot

$11.99

$

In Stock, only 3 left!

37

Scag 462489

Handle Assembly-LH

$36.99

$

Usually ships in 2-12 days

Scag 462490

Handle Assembly-RH

$40.99

$

Usually ships in 2-12 days

38

Scag 04001-21

Bolt, Hex Head 3/8-16 x 1-3/4" (Kohler EFI)

$0.99

$

In Stock, Qty 20+

39

Scag 484579

Linkage, Steering

$62.99

$

In Stock, only 4 left!

40

Scag 04017-16

Capscrew, 5/16-18 x .75 Serrated Flange Hex Head

$0.99

$

In Stock, Qty 10

41

Scag 425756

Bracket, Transaxle Control

$10.99

$

Usually ships in 2-12 days

42

Scag 04001-45

Capscrew, Hex Head 3/8-16 x 2.0"

$0.99

$

In Stock, Qty 8

43

Scag 04030-04

Lockwasher, 3/8" Spring, Kawasaki FX / FT & FT-EFI / B&S 32BV

$0.99

$

In Stock, Qty 7

44

Scag 04041-07

Flatwasher, 3/8" Special (.391 x .938 x .105)

$0.99

$

In Stock, Qty 20+

45

Scag 48796

Bearing, Self Aligning - 5/8 I.D.

$12.99

$

Usually ships in 2-12 days

46

Scag 483574

Linkage, Pump

$67.99

$

Usually ships in 2-12 days

47

Scag 452300

Weldment, Bellcrank-LH

$35.99

$

Usually ships in 2-12 days

Scag 452301

Weldment, Bellcrank-RH

$36.99

$

Usually ships in 2-12 days

48

Scag 43766

Spacer, Axles

$28.99

$

In Stock, only 1 left!

49

Scag 04001-09

Bolt, Heax Head 5/16-18 x 1" (48V / 52V)

$0.99

$

In Stock, Qty 20+

50

Scag 04050-01

RETAINING RING, 5/8" EXTERNAL "E"

$0.99

$

In Stock, Qty 20+

51

Scag 484671-01

Bearing

$4.49

$

Usually ships in 2-12 days

52

Scag 04003-02

Serr. Fl. Hex Head CPSCR, 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 20+

53

Scag 04043-04

Flatwasher, 3/8 (.391 x .938 x .105 HD) Grade 8

$0.99

$

In Stock, Qty 20+

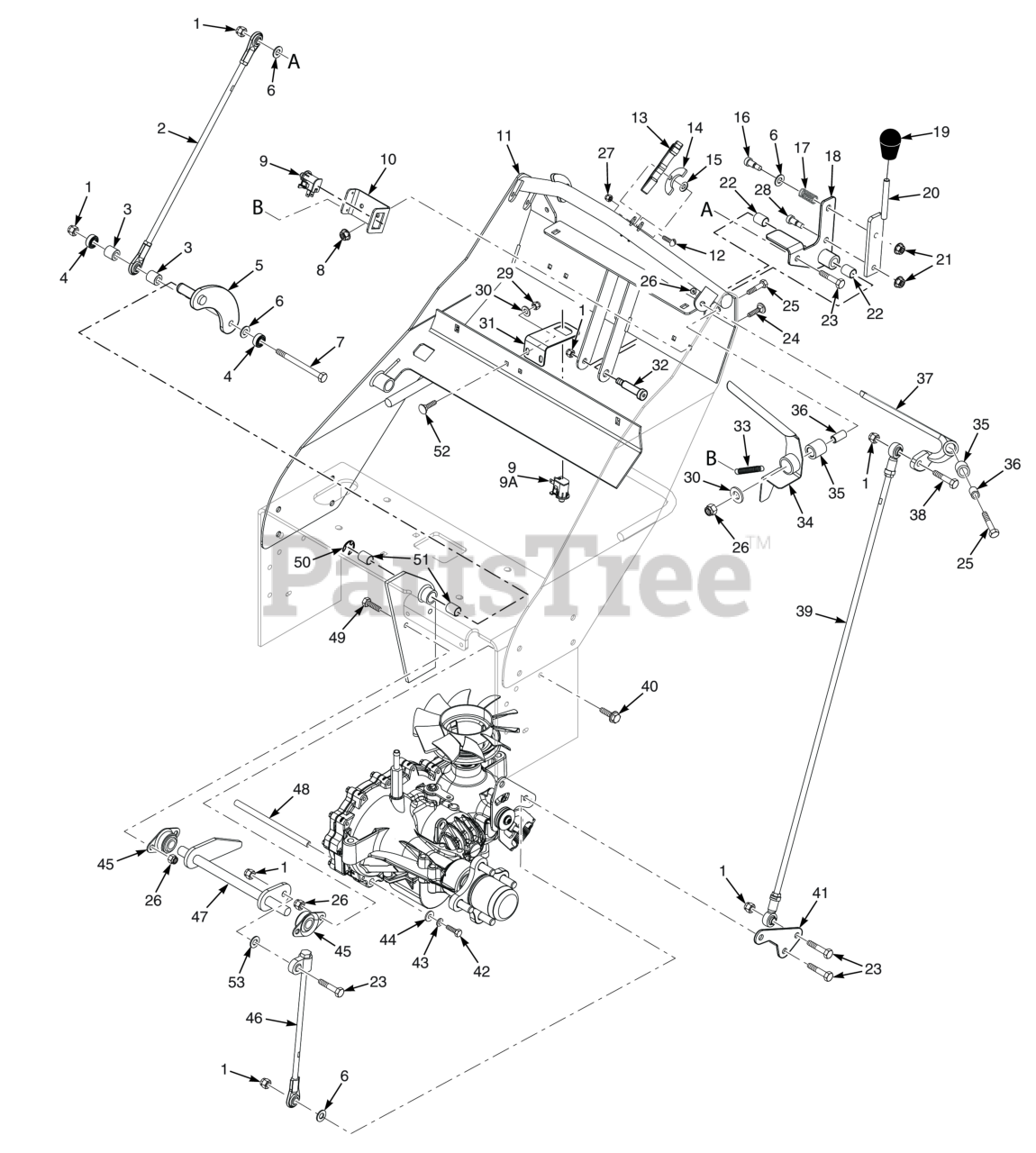

SWZT36H-14FS - Scag 36" Walk-Behind Mower, 14hp Kawasaki (SN: T8700001 - T8799999) STEERING CONTROLS Parts Diagram

STEERING CONTROLS Parts Diagram
