SWZT-18FSE - Scag Walk-Behind Mower, 18hp Kawasaki (SN: L0100001 - L0199999) Brake Components Parts Diagram

Walk-Behind Mower, 18hp Kawasaki

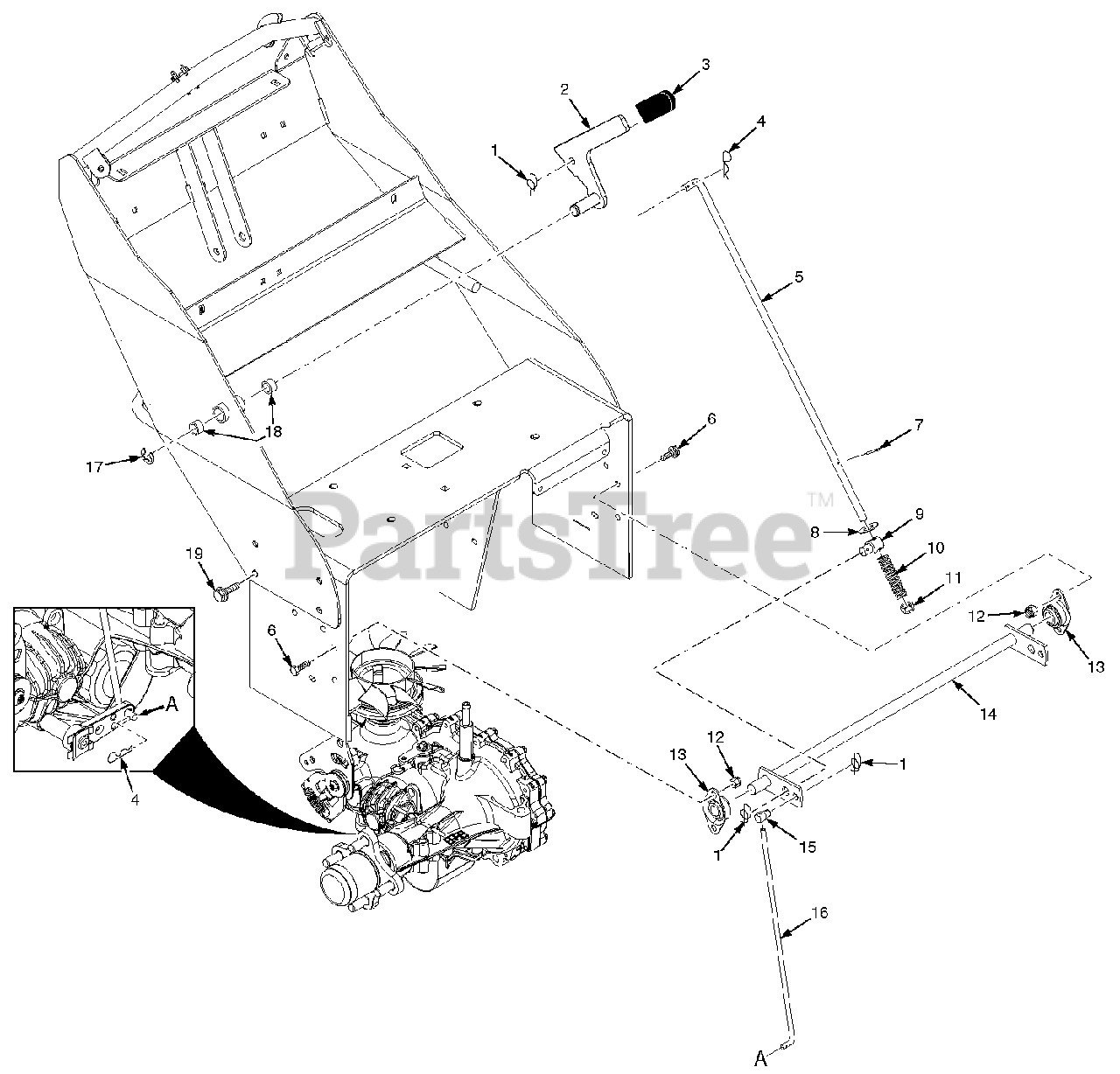

Brake Components Parts Diagram

  • Title

1

Scag 04069-01

Pin, Rue Cotter 3/8" Dia.

$1.49

$

In Stock, only 4 left!

0

2

Scag 462515

Brake Lever w/Grip

$43.99

$

Usually ships in 2-12 days

0

3

Scag 481548

Grip, Brake Lever

$6.49

$

In Stock, Qty 9

0

4

Scag 04062-02

Hair Pin, .080 x 1.19"

$0.99

$

In Stock, Qty 20+

0

5

Scag 44187

Rod, Brake Linkage

$20.99

$

Usually ships in 2-12 days

0

6

Scag 04017-16

Cpscrw, 5/16-18 x 3/4"Serrated Flange HH

$0.99

$

In Stock, Qty 10

0

7

Scag 04061-02

Cotter Pin, 3/32 x 3/4"

$0.99

$

In Stock, Qty 11

0

8

Scag 04040-05

Flatwasher, 3/8-.406 x .812 x .065

$0.99

$

In Stock, only 4 left!

0

9

Scag 43751

Bushing, Pivot Slide
(Superseded to 485317)

$13.99

$

Usually ships in 2-12 days

0

10

Scag 484175

Spring, Brake

$31.99

$

Usually ships in 2-12 days

0

11

Scag 04021-18

Nut, Elastic Stop 3/8-24

$1.49

$

In Stock, Qty 9

0

12

Scag 04021-10

Nut, Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 20+

0

13

Scag 48796

Bearing, Self Aligning 5/8" I.D.

$12.99

$

Usually ships in 2-12 days

0

14

Scag 452358

Weldment, Brake Bellcrank

$51.99

$

Usually ships in 2-12 days

0

15

Scag 43726

Joint, Swivel

$12.99

$

Usually ships in 2-12 days

0

16

Scag 44165

Rod, Brake Adjustment

$8.49

$

In Stock, only 2 left!

0

17

Scag 04050-01

Ring, Retaining 5/8" External "E"

$0.99

$

In Stock, Qty 20+

0

18

Scag 483453-18

Bearing

$7.99

$

Usually ships in 2-12 days

0

19

Scag 04017-27

Cpscrw, 3/8-16 x 1"Serrated Flange HH

$1.49

$

In Stock, Qty 20+

0
