SWZ52V-18FSE - Scag 52" Walk-Behind Mower, 18hp Kawasaki (SN: T8200001 - T8299999) SWZ ELECTRICAL SCHEMATIC - ELECTRIC START Parts Diagram

52" Walk-Behind Mower, 18hp Kawasaki

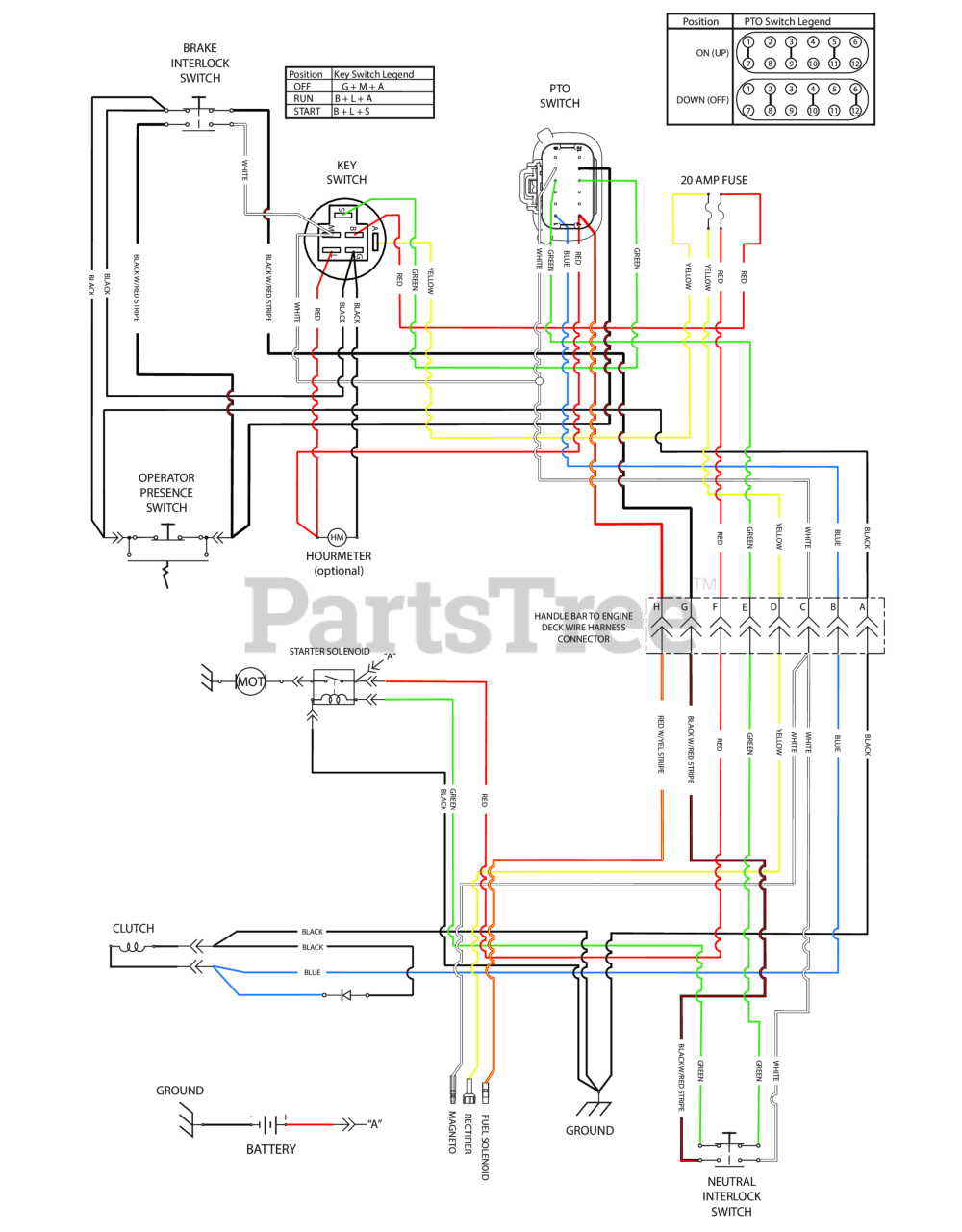

SWZ ELECTRICAL SCHEMATIC - ELECTRIC START Parts Diagram

  • Title

No Part List Information Available

$

$

Not available
