SWZ48A-17KAE - Scag 48" Walk-Behind Mower, 17hp Kawasaki (SN: 8130001 - 8139999) Engine Deck 17KAE Parts Diagram

48" Walk-Behind Mower, 17hp Kawasaki

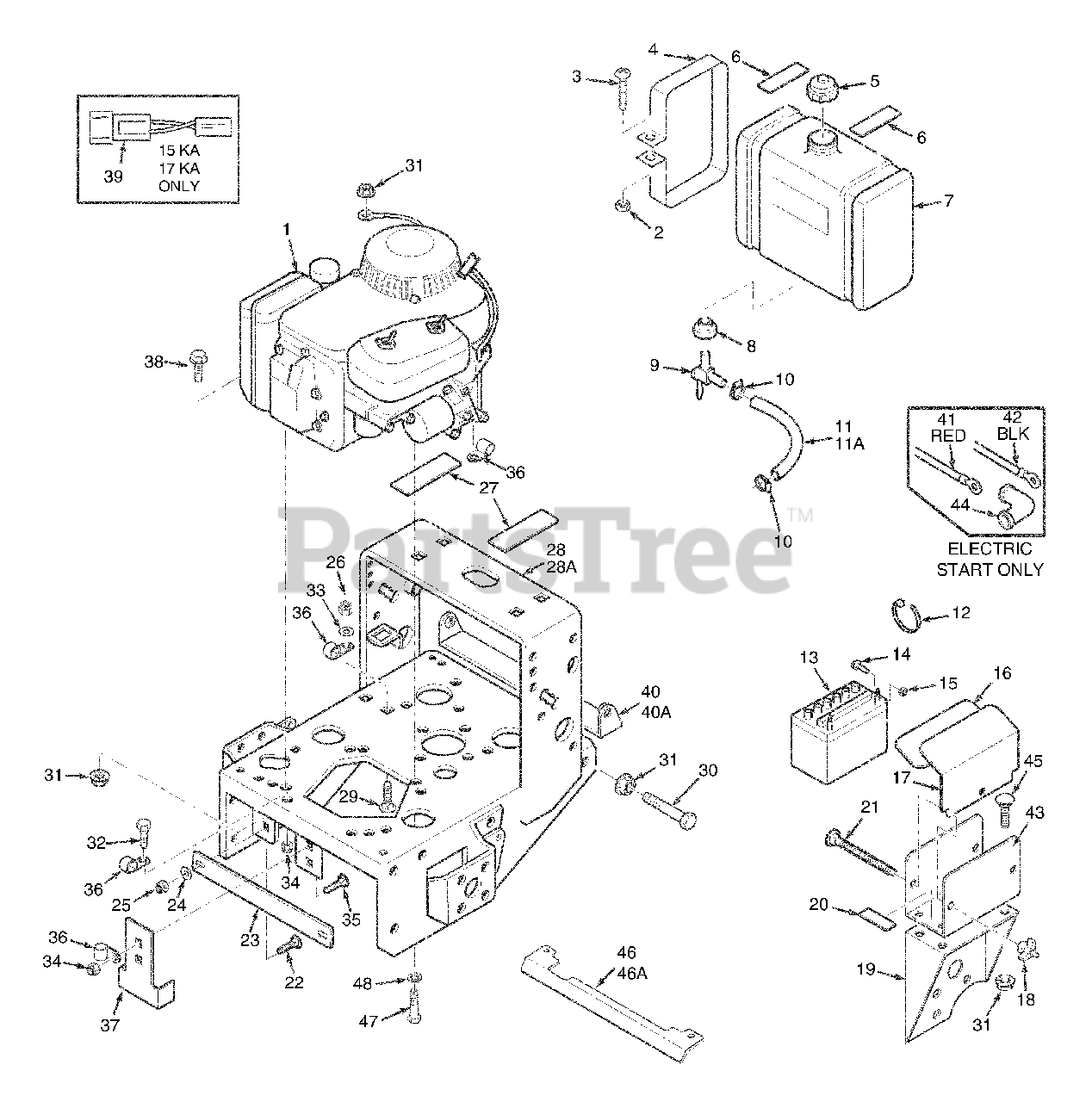

Engine Deck 17KAE Parts Diagram

  • Title

1

Scag 482145

Engine 17KAE Kawasaki

$

$

Currently unavailable

2

Scag 04020-02

Hex Nut, 1/4-20

$0.99

$

In Stock, Qty 20+

0

3

Scag 04010-10

Screw, 1/4-20 x 2" Rnd. Hd. Phil.

$0.99

$

In Stock, Qty 12

0

4

Scag 421239

Strap, Fuel Tank

$24.99

$

In Stock, only 4 left!

0

5

Scag 481603

Cap, Fuel Tank
(Superseded to 483791)

$35.99

$

Usually ships in 2-12 days

0

6

Scag 48292

Pad, Rubber-Fuel Tank - Upper

$3.49

$

In Stock, only 2 left!

0

7

Scag 46846

Fuel Tank Assy.

Note: (incl. 8, 9)

$242.99

$

In Stock, only 1 left!

0

8

Scag 48309

Bushing
(Superseded to 482571)

$12.99

$

In Stock, Qty 20+

0

9

Scag 48308

Valve, Fuel Shut-off
(Superseded to 483747)

$29.99

$

In Stock, Qty 17

0

10

Scag 48059-01

Clamp, Fuel Hose

$0.99

$

In Stock, Qty 7

0

11

Scag 48058

Fuel Hose, 1/4 ID x 20" KA
(Superseded to 483617)

$0.99

$

In Stock, Qty 20+

0

12

Scag 48028-05

Cable Tie

$

$

Not available

13

Scag 482700

Battery

$

$

Currently unavailable

14

Scag 04001-44

Bolt, 1/4-20 x .50"

$0.99

$

In Stock, Qty 6

0

15

Scag 04020-02

Nut, 1/4-20

$0.99

$

In Stock, Qty 20+

0

16

Scag 48099

Pad

$5.99

$

Usually ships in 2-12 days

0

17

Scag 42392

Battery Cover

$45.99

$

Usually ships in 2-12 days

0

18

Scag 04029-01

Wing Nut, 1/4-20

$2.49

$

In Stock, Qty 17

0

19

Scag 423746

Battery Support

$43.99

$

Usually ships in 2-12 days

0

20

Scag 48661

Pad, Rubber

$4.99

$

Usually ships in 2-12 days

0

21

Scag 04003-01

Bolt, 1/4-20 x 6" Carriage
(Superseded to 04003-39)

$1.49

$

In Stock, Qty 10

0

22

Scag 04003-11

Carriage Bolt, 3/8-16 X 1-1/4"

$0.99

$

In Stock, Qty 7

0

23

Scag 423748

Brace

$9.49

$

Usually ships in 2-12 days

0

24

Scag 04043-04

Flat Washer .391 x .938 x .105

$0.99

$

In Stock, Qty 20+

0

25

Scag 04021-09

Nut, 3/8-16 Elastic Stop

$0.99

$

In Stock, Qty 20+

0

26

Scag 04021-08

Nut, 1/4-20 Elastic Stop

$0.99

$

In Stock, Qty 9

0

27

Scag 48205

Pad, Rubber-Fuel Tank Lower

$4.49

$

Usually ships in 2-12 days

0

28

Scag 461542

Engine Deck, 16" Wide, w/decals
(Superseded to 461745)

$519.99

$

Usually ships in 2-12 days

0

29

Scag 04003-09

Bolt, 1/4-20 x 1-1/4" Carriage

$0.99

$

In Stock, Qty 9

0

30

Scag 04001-17

Bolt, 5/16-18 x 2" Hex Head

$0.99

$

In Stock, Qty 20+

0

31

Scag 04019-03

Nut, 5/16-18 Serr. Flange

$0.99

$

In Stock, Qty 20+

0

32

Scag 04001-08

Hex Head Bolt, 5/16-18 x .75"

$0.99

$

In Stock, Qty 20+

0

33

Scag 04040-14

Flat Washer 1/4"

$0.99

$

In Stock, only 4 left!

0

34

Scag 04021-10

Nut, 5/16-18 Elastic Stop

$0.99

$

In Stock, Qty 20+

0

35

Scag 04003-04

Carriage Bolt, 5/16-18 x 1"

$0.99

$

In Stock, Qty 17

0

36

Scag 48030-09

Clamp

$1.49

$

In Stock, Qty 15

0

37

Scag 421370

Clutch Bracket

$22.99

$

Usually ships in 2-12 days

0

38

Scag 04017-19

CapScrw, 5/16-18 x 1.50" Sr. Flg

$1.49

$

Usually ships in 2-12 days

0

40

Scag 45418

Pulley Guard, 16" Frame

$56.99

$

Usually ships in 2-12 days

0

41

Scag 48029-02

Battery Cable, 31.5" Red

$15.99

$

Usually ships in 2-12 days

0

42

Scag 48029-14

Battery Cable, 31.5" Black

$16.99

$

Usually ships in 2-12 days

0

43

Scag 423308

Battery Box

$52.99

$

In Stock, only 1 left!

0

44

Scag 48126

Rubber Boot

$8.49

$

Usually ships in 2-12 days

0

45

Scag 04003-12

Carriage Bolt, 5/16-18 x .75"

$0.99

$

In Stock, Qty 20+

0

46

Scag 423747

Heatshield (16" Small Frame)
(Superseded to 424661)

$16.99

$

Usually ships in 2-12 days

0
