SWZ48A-17KA - Scag 48" Walk-Behind Mower, 17hp Kawasaki (SN: 9040001 - 9049999) Engine Deck Parts Diagram

48" Walk-Behind Mower, 17hp Kawasaki

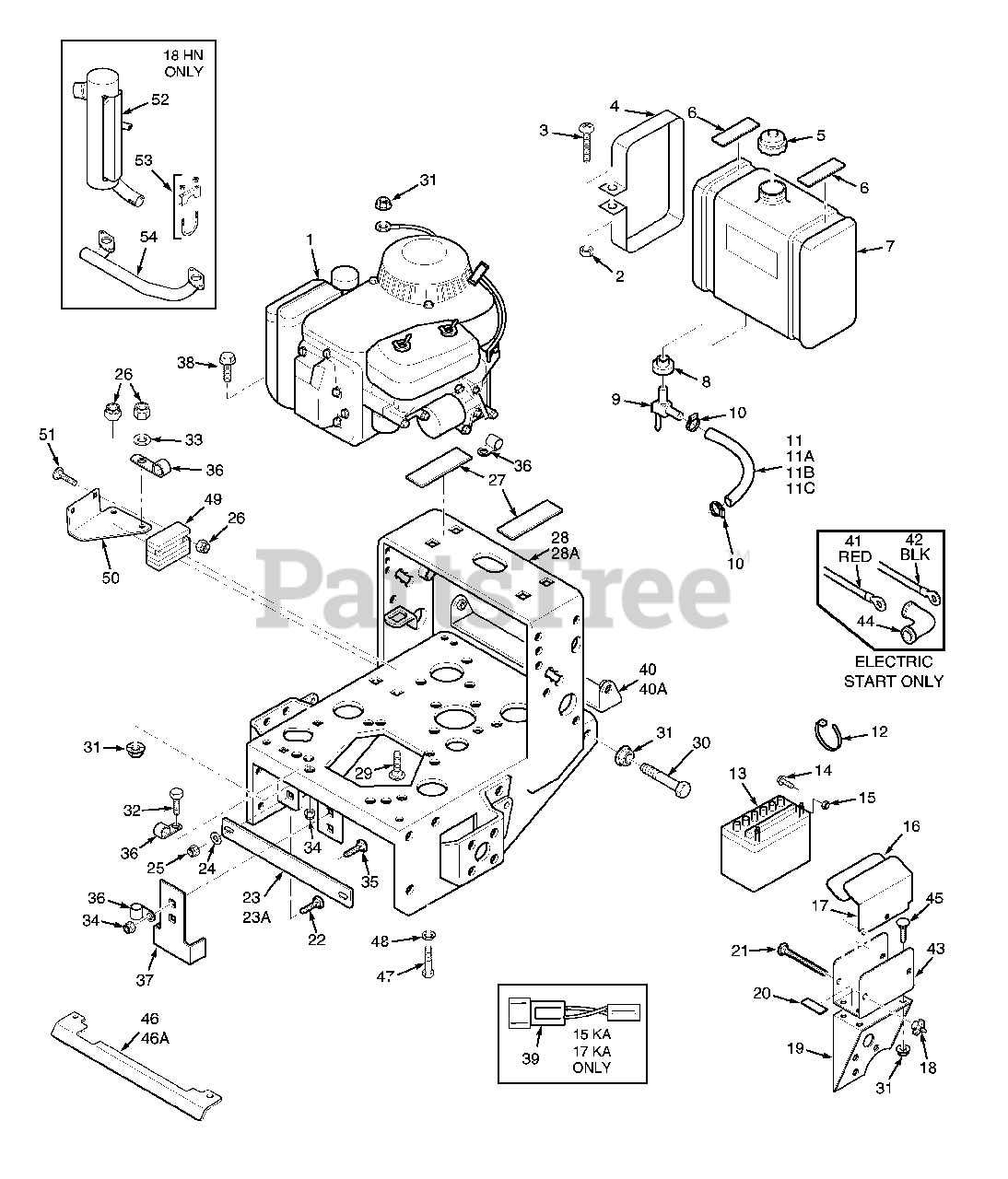

Engine Deck Parts Diagram

  • Title

1

Scag 482805

Engine, 17KA Kawasaki

$

$

Currently unavailable

2

Scag 04020-02

Hex Nut, 1/4-20

$0.99

$

In Stock, Qty 10

0

3

Scag 04010-10

Screw, 1/4-20 x 2" Rnd. Hd. Phil.

$0.99

$

In Stock, Qty 12

0

4

Scag 421239

Strap, Fuel Tank

$24.99

$

In Stock, only 4 left!

0

5

Scag 481603

Cap, Fuel Tank
(Superseded to 483791)

$35.99

$

Usually ships in 2-12 days

0

6

Scag 48292

Pad, Rubber-Fuel Tank - Upper

$3.49

$

In Stock, only 2 left!

0

7

Scag 46846

Fuel Tank Assy.

Note: (Incl. 8, 9)

$242.99

$

In Stock, only 1 left!

0

8

Scag 48309

Bushing
(Superseded to 482571)

$12.99

$

In Stock, Qty 20+

0

9

Scag 48308

Valve, Fuel Shut-off
(Superseded to 483747)

$29.99

$

In Stock, only 4 left!

0

10

Scag 48059-01

Clamp, Fuel Hose

$0.99

$

In Stock, Qty 7

0

11

Scag 48058

Fuel Hose, 1/4 ID x 23"
(Superseded to 483617)

$0.99

$

In Stock, Qty 20+

0

11A

Fuel Hose, 1/4 ID x 20"

Note: NOT USED ON THIS MODEL

$

$

Not available

11B

Fuel Hose, 1/4 ID x 11"

Note: NOT USED ON THIS MODEL

$

$

Not available

11C

Fuel Hose, 1/4 ID x 26"

Note: NOT USED ON THIS MODEL

$

$

Not available

12

Scag 48028-05

Cable Tie

$

$

Not available

13

Battery

Note: NOT USED ON THIS MODEL

$

$

Not available

14

Bolt, 1/4-20 x .50"

Note: NOT USED ON THIS MODEL

$

$

Not available

15

Nut, 1/4-20

Note: NOT USED ON THIS MODEL

$

$

Not available

16

Pad

Note: NOT USED ON THIS MODEL

$

$

Not available

17

Battery Cover

Note: NOT USED ON THIS MODEL

$

$

Not available

18

Wing Nut, 1/4-20

Note: NOT USED ON THIS MODEL

$

$

Not available

19

Battery Support

Note: NOT USED ON THIS MODEL

$

$

Not available

20

Pad, Rubber

Note: NOT USED ON THIS MODEL

$

$

Not available

21

Bolt, 1/4-20 x 6" Carriage

Note: NOT USED ON THIS MODEL

$

$

Not available

22

Scag 04003-11

Carriage Bolt, 3/8-16 X 1-1/4"

$0.99

$

In Stock, Qty 7

0

23

Scag 423748

Brace, (16" Small Frame)

$9.49

$

Usually ships in 2-12 days

0

23A

Scag 423749

Brace, (20" Large Frame)

$

$

Not available

24

Scag 04043-04

Flat Washer .391 x .938 x .105

$0.99

$

In Stock, Qty 20+

0

25

Scag 04021-09

Nut, 3/8-16 Elastic Stop

$0.99

$

In Stock, Qty 20+

0

26

Scag 04021-08

Nut, 1/4-20 Elastic Stop

$0.99

$

In Stock, Qty 9

0

27

Scag 48205

Pad, Rubber-Fuel Tank Lower

$4.49

$

Usually ships in 2-12 days

0

28

Scag 461667

Engine Deck, 16" Wide, w/decals
(Superseded to 461745)

$519.99

$

Usually ships in 2-12 days

0

28A

Scag 461546

Engine Deck, 20" Wide, w/decals
(Superseded to 461748)

$519.99

$

Usually ships in 2-12 days

0

29

Scag 04003-09

Bolt, 1/4-20 x 1-1/4" Carriage

$0.99

$

In Stock, Qty 9

0

30

Scag 04001-17

Bolt, 5/16-18 x 2" Hex Head

$0.99

$

In Stock, Qty 6

0

31

Scag 04019-03

Nut, 5/16-18 Serr. Flange

$0.99

$

In Stock, Qty 20+

0

32

Scag 04001-08

Hex Head Bolt, 5/16-18 x .75"

$0.99

$

In Stock, Qty 20+

0

33

Scag 04040-14

Flat Washer 1/4"

$0.99

$

In Stock, only 4 left!

0

34

Scag 04021-10

Nut, 5/16-18 Elastic Stop

$0.99

$

In Stock, Qty 20+

0

35

Scag 04003-04

Carriage Bolt, 5/16-18 x 1"

$0.99

$

In Stock, Qty 9

0

36

Scag 48030-09

Clamp

$1.49

$

In Stock, Qty 5

0

37

Scag 421370

Clutch Bracket

$22.99

$

Usually ships in 2-12 days

0

38

Scag 04017-19

Cap Scrw, 5/16-18 x 1.50" Sr. Flg

$1.49

$

Usually ships in 2-12 days

0

39

Scag 481717

Wire Hrns. Adapter, 15 & 17KA

$12.99

$

Usually ships in 2-12 days

0

40

Scag 45418

Pulley Guard, 16" Frame

$56.99

$

Usually ships in 2-12 days

0

40A

Scag 45419

Pulley Guard, 20" Frame

$57.99

$

Usually ships in 2-12 days

0

41

Battery Cable, 31.5" Red

Note: NOT USED ON THIS MODEL

$

$

Not available

42

Battery Cable, 31.5" Black

Note: NOT USED ON THIS MODEL

$

$

Not available

43

Battery Box

Note: NOT USED ON THIS MODEL

$

$

Not available

44

Rubber Boot

Note: NOT USED ON THIS MODEL

$

$

Not available

45

Carriage Bolt, 5/16-18 x .75"

Note: NOT USED ON THIS MODEL

$

$

Not available

46

Scag 423747

Heatshield (16" Small Frame)
(Superseded to 424661)

$16.99

$

Usually ships in 2-12 days

0

46A

Scag 422882

Heatshield (20" Large Frame)

$

$

Not available

47

Bolt, 5/16-18 x 1" Serrated Flange Hex Head

Note: NOT USED ON THIS MODEL

$

$

Not available

48

Lock Washer 5/16"

Note: NOT USED ON THIS MODEL

$

$

Not available

49

Rectifier

Note: NOT USED ON THIS MODEL

$

$

Not available

50

Mounting Bracket, Rectifier

Note: NOT USED ON THIS MODEL

$

$

Not available

51

Bolt, 1/4-20 x 1" Carriage

Note: NOT USED ON THIS MODEL

$

$

Not available

52

Muffler

Note: NOT USED ON THIS MODEL

$

$

Not available

53

Clamp, Muffler

Note: NOT USED ON THIS MODEL

$

$

Not available

54

Manifold, Exhaust

Note: NOT USED ON THIS MODEL

$

$

Not available
