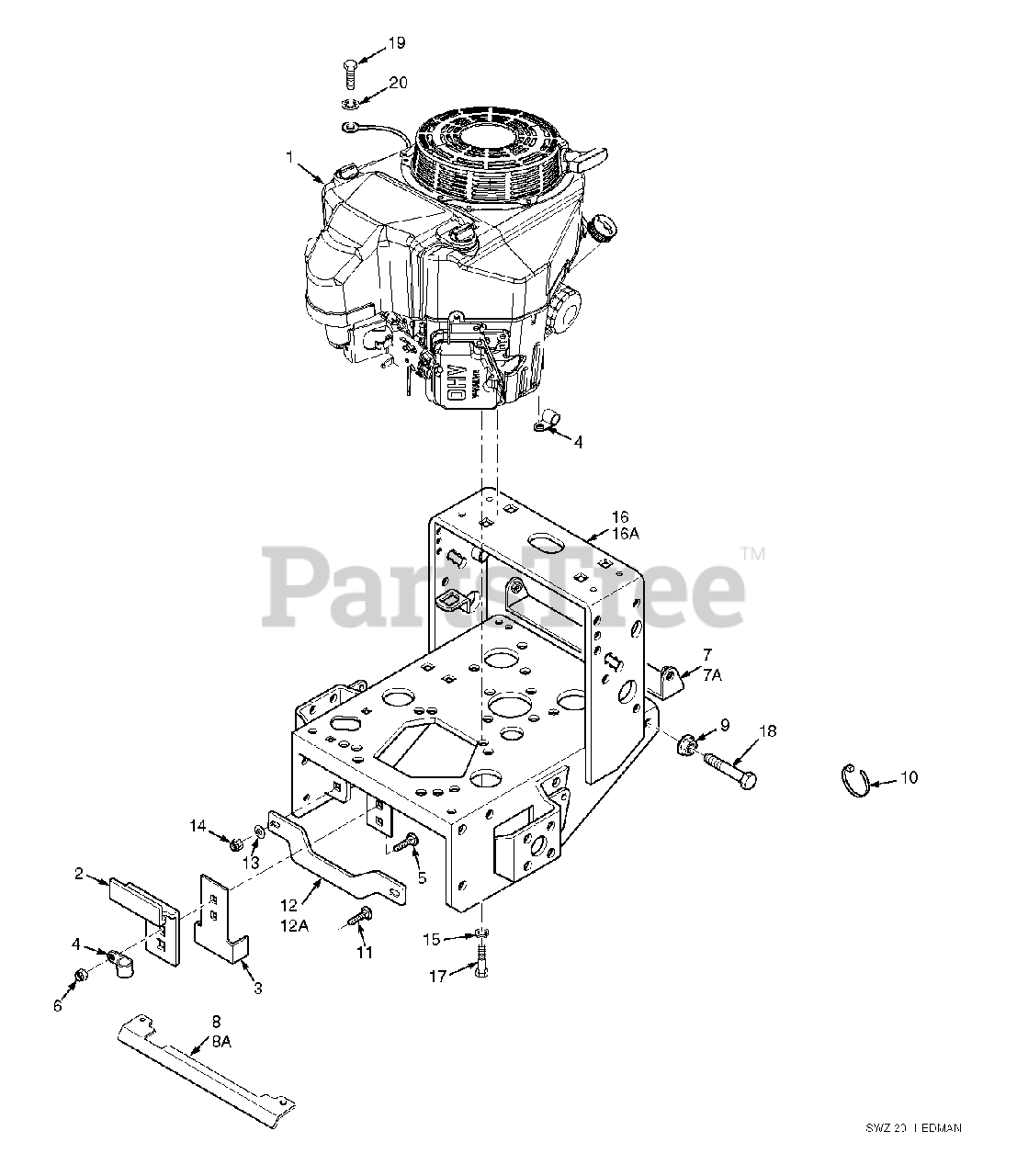

SWZ36A-16FS - Scag 36" Walk-Behind Mower, 16hp Kawasaki (SN: F1700001 - F1799999) Engine Deck - Manual Start Parts Diagram

36" Walk-Behind Mower, 16hp Kawasaki

Engine Deck - Manual Start Parts Diagram

  • Title
1

Scag 484212

Engine

Note: 16HP Kawasaki (Spec FS481V-XXXX)

$

$

Currently unavailable

1

Scag 484213

Engine

Note: 18HP Kawasaki (Spec FS541V-XXXX)

$

$

Currently unavailable

1

Scag 484214

Engine

Note: 20HP Kawasaki (Spec FS600V-XXXX)

$

$

Currently unavailable

2

Scag 424620

Plate, Clutch Bracket

$19.99

$

Usually ships in 2-12 days

0

3

Scag 421370

Clutch Bracket

$22.99

$

Usually ships in 2-12 days

0

4

$1.49

$

In Stock, Qty 5

0

5

Scag 04003-04

Bolt, Carriage 5/16-18 x 1"

$0.99

$

In Stock, Qty 9

0

6

Scag 04021-10

Nut, 5/16-18 Elastic Stop

$0.99

$

In Stock, Qty 20+

0

7

Scag 45418

Pulley Guard, 16" Small Frame

$56.99

$

Usually ships in 2-12 days

0

7A

Scag 45419

Pulley Guard, 20" Large Frame

$57.99

$

Usually ships in 2-12 days

0

8

Scag 424661

Heatshield, 16" Small Frame

$16.99

$

Usually ships in 2-12 days

0

8A

Scag 424730

Heatshield, 20" Large Frame

$24.99

$

Usually ships in 2-12 days

0

9

Scag 04019-03

Nut, 5/16-18 Serr. Flange

$0.99

$

In Stock, Qty 20+

0

10

Scag 48028-05

Cable Tie

$

$

Not available

11

Scag 04003-11

Bolt, Carriage 3/8-16 x 1-1/4"

$0.99

$

In Stock, Qty 7

0

12

Scag 424002

Brace, 16" Small Frame

$14.99

$

Usually ships in 2-12 days

0

12A

Scag 424009

Brace, 20" Large Frame

$15.99

$

Usually ships in 2-12 days

0

13

Scag 04043-04

Flatwasher, .391 x .938 x .105

$0.99

$

In Stock, Qty 20+

0

14

Scag 04021-09

Nut, 3/8-16 Elastic Stop

$0.99

$

In Stock, Qty 20+

0

15

Scag 04030-04

Lockwasher, 3/8"

$0.99

$

In Stock, Qty 8

0

16

Scag 462287

Engine Deck, 16" Wide w/Decals

$873.99

$

Usually ships in 2-12 days

0

16A

Scag 462288

Engine Deck, 20" Wide w/Decals

$642.99

$

Usually ships in 2-12 days

0

17

Scag 04001-32

Bolt, Hex Head 3/8-16 x 1-1/4"

$0.99

$

In Stock, Qty 12

0

18

Scag 0400-17

Bolt, 5/16-18 x 2" Hex Head

$

$

Currently unavailable

19

Scag 04002-06

Bolt, Hex Head M8-1.25 x 16

$0.99

$

In Stock, only 1 left!

0

20

Scag 04031-03

Lockwasher, 5/16" Ext. Tooth

$0.99

$

Usually ships in 2-12 days

0
