SWZ36A-14FS - Scag 36" Walk-Behind Mower, 14hp Kawasaki (SN: T8000001 - T8099999) HANDLE ASSEMBLY - ELECTRIC START Parts Diagram

36" Walk-Behind Mower, 14hp Kawasaki

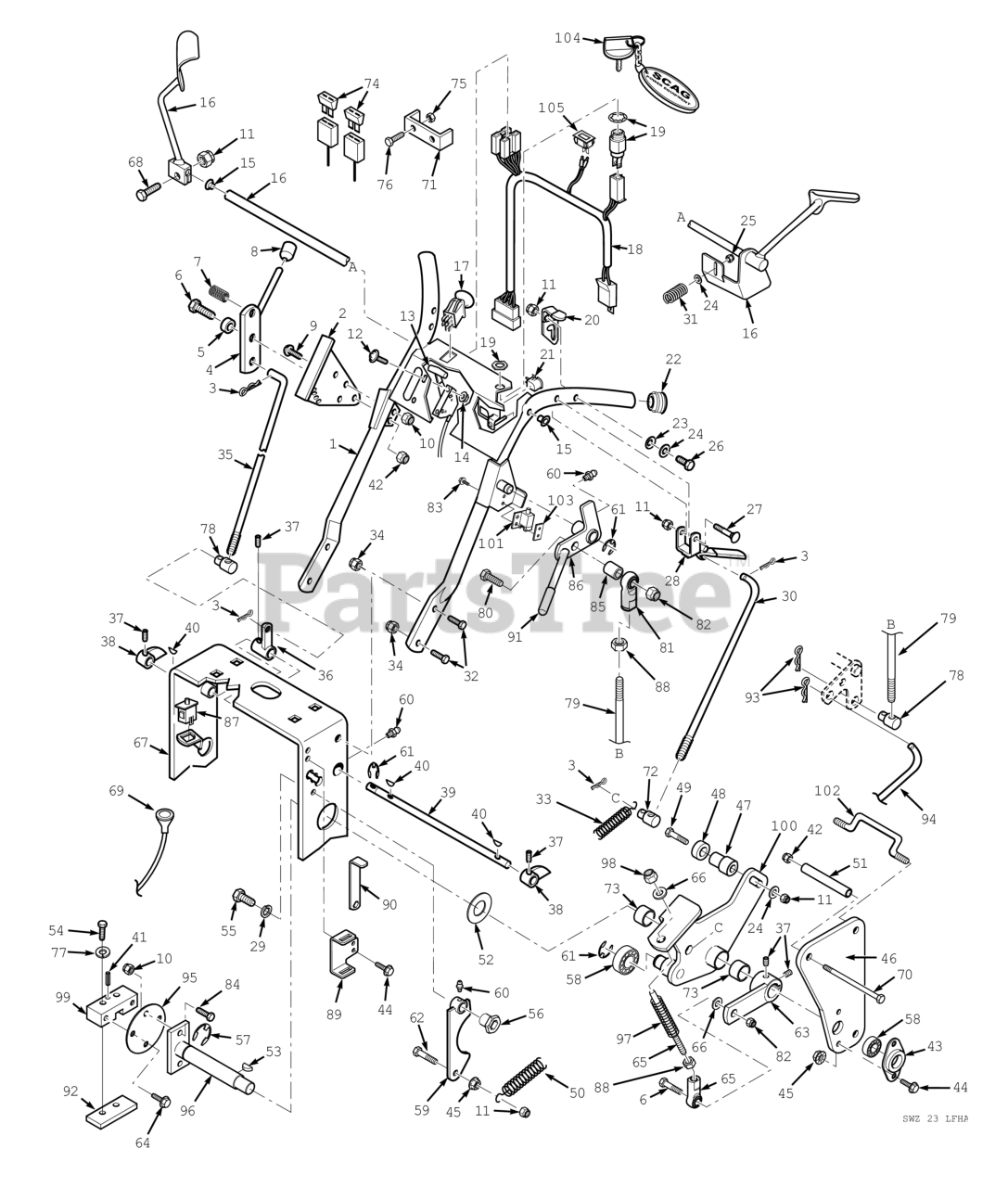

HANDLE ASSEMBLY - ELECTRIC START Parts Diagram

  • Title

1

Scag 463098

Upper Handle Wlmt. W/Decals

$327.99

$

Usually ships in 2-12 days

0

Scag 463099

Upper Handle Wlmt. W/Decals

$422.99

$

Usually ships in 2-12 days

0

2

Scag 42675

QUADRANT, SPEED CONTROL

$93.99

$

Usually ships in 2-12 days

0

3

Scag 04062-02

HAIR PIN, .08 DIAMETER X 1-3/16"

$0.99

$

In Stock, Qty 20+

0

4

Scag 45282

LEVER, SPEED ADJUSTMENT

$51.99

$

Usually ships in 2-12 days

0

5

Scag 43086

BUSHING, SPEED ADJUSTMENT LEVER

$6.49

$

In Stock, only 1 left!

0

6

Scag 04001-20

Bolt, Hex Head 3/8-16 x 1-1/2" B&S 32BV

$0.99

$

In Stock, Qty 20+

0

7

Scag 48493-01

BALL PLUNGER

$26.99

$

Usually ships in 2-12 days

0

8

Scag 48092

KNOB, SPEED ADJUSTMENT LEVER

$5.99

$

Usually ships in 2-12 days

0

9

Scag 04014-01

CAPSCREW, 1/4-20 X .75 FLAT HD. HEX SOCKET

$0.99

$

In Stock, Qty 5

0

10

Scag 04021-08

HEX, NUT, ELASTIC STOP LOCK, 1/4-20

$0.99

$

In Stock, Qty 10

0

11

Scag 04021-10

HEX NUT, ELASTIC STOP LOCK, 5/16-18

$0.99

$

In Stock, Qty 20+

0

12

Scag 04003-43

Bolt, Carriage #10-24 x 1/2"

$0.99

$

In Stock, Qty 10

0

13

Scag 48946

Throttle Control (15KA & 17KA)

$32.99

$

In Stock, Qty 10

0

14

Scag 04021-26

Nut, Elastic Stop #10-24

$0.99

$

In Stock, Qty 14

0

15

Scag 483142

Bushing

$0.99

$

In Stock, only 3 left!

0

16

Scag 451917

Operator Presence Lever, RH

$73.99

$

In Stock, only 1 left!

0

Scag 451915

Operator Presence Lever, LH

$103.99

$

Usually ships in 2-12 days

0

Scag 451916

Handle, Oper. Presence-LH

$144.99

$

Usually ships in 2-12 days

0

17

Scag 485833

Switch, PTO - 10 Amp

$48.99

$

In Stock, only 1 left!

0

18

Scag 487329

Wire Harness, Electric Start

$164.99

$

Usually ships in 2-12 days

0

19

Scag 48798

KEY SWITCH(INCLUDES MOUNTING HARDWARE)

$27.99

$

In Stock, Qty 20+

0

20

Scag 461242

Neutral Latch-RH 461241 Neutral Latch-LH

$15.99

$

Usually ships in 2-12 days

0

Scag 461241

Neutral Latch Assembly, LH

$14.99

$

Usually ships in 2-12 days

0

21

Scag 48717

SWITCH, NEUTRAL INTERLOCK

$10.99

$

In Stock, only 1 left!

0

22

Scag 483161

Plug, Handle Bar

$2.49

$

Usually ships in 2-12 days

0

23

Scag 04032-01

Socket Head Capscrew #8-32 x 1/2"

$0.99

$

In Stock, only 3 left!

0

24

Scag 04040-15

Flatwasher, 5/16-.375 x .875 x .083 (35BV & 37BV-EFI)

$0.99

$

In Stock, Qty 20+

0

25

Scag 04021-10

HEX NUT, ELASTIC STOP LOCK, 5/16-18

$0.99

$

In Stock, Qty 20+

0

26

Scag 04001-17

Bolt, Hex Head 5/16-18 x 2-1/2" (x3) (35BV & 37BV-EFI)

$0.99

$

In Stock, Qty 6

0

27

Scag 04001-53

Bolt, Hex Head 5/16-18 x 2-1/2" (35BV & 37BV-EFI)

$0.99

$

In Stock, Qty 13

0

28

Scag 483160

Lever, Steering Control

$47.99

$

In Stock, Qty 6

0

29

Scag 04030-04

Lockwasher, 3/8" Spring, Kawasaki FX / FT & FT-EFI / B&S 32BV

$0.99

$

In Stock, Qty 8

0

30

Scag 44141

Rod, Steering Control

$16.99

$

Usually ships in 2-12 days

0

31

Scag 483040

Spring, Operator Presence

$3.49

$

Usually ships in 2-12 days

0

32

Scag 04017-27

Capscrew, 3/8-16 x 1.0" Serrated Flange Hex Hd

$1.49

$

In Stock, Qty 20+

0

33

Scag 483470

Spring

$11.99

$

Usually ships in 2-12 days

0

34

Scag 04019-04

NUT, 3/8-16 SERRATED FLANGE HEX HEAD

$0.99

$

In Stock, Qty 20+

0

35

Scag 44142

Rod Speed Control

$12.99

$

Usually ships in 2-12 days

0

36

Scag 43887

SPEED CONTROL ARM

$14.99

$

Usually ships in 2-12 days

0

37

Scag 04012-0

Setscrew, 1/4-28 x .25"

$

$

Currently unavailable

38

Scag 46335

CAM, SPEED CONTROL(INCLUDES SETSCREW)

$54.99

$

Usually ships in 2-12 days

0

39

Scag 43166

JACKSHAFT, SPEED CONTROL(FOR 16" DECK)

$29.99

$

Usually ships in 2-12 days

0

Scag 43155

JACKSHAFT, SPEED CONTROL(FOR 20" DECK)

$45.99

$

Usually ships in 2-12 days

0

40

Scag 04063-13

KEY, 1/8 X 1/2, WOODRUFF # 3

$0.99

$

In Stock, Qty 6

0

41

Scag 04060-06

Roll Pin, Spring 3/16 x 3/4"

$0.99

$

In Stock, only 1 left!

0

42

Scag 04021-10

HEX NUT, ELASTIC STOP LOCK, 5/16-18

$0.99

$

In Stock, Qty 20+

0

43

Scag 48223

FLANGE, JACKSHAFT BEARING

$5.99

$

In Stock, only 2 left!

0

44

Scag 04017-17

Cpscrw, 5/16-18 x 1"Serrated Flange Hex Head

$0.99

$

Usually ships in 2-12 days

0

45

Scag 04019-03

Nut, Serrated Flange 5/16-18 (Right Front Engine Mounting, Briggs and Kohler Only)

$0.99

$

In Stock, Qty 20+

0

46

Scag 422795

Plate, Side

$22.99

$

Usually ships in 2-12 days

0

47

Scag 43536

Support, Neutral Support

$9.49

$

Usually ships in 2-12 days

0

48

Scag 48409

BEARING, SPEED CONTROL BELLCRANK

$13.99

$

Usually ships in 2-12 days

0

49

Scag 04001-69

BOLT, HEX HD., 5/16-18 X 1-3/4 FULL THREAD

$0.99

$

In Stock, only 3 left!

0

50

Scag 48494-02

SPRING, IDLER TENSION

$6.49

$

In Stock, only 1 left!

0

51

Scag 43522

Spacer, Side Plate

$13.99

$

Usually ships in 2-12 days

0

52

Scag 04041-08

Flatwasher, 3/4 (.766 x 1.250 x .060)

$0.99

$

In Stock, Qty 20+

0

53

Scag 04063-07

KEY, WOODRUFF #9, 3/16 X 3/4"

$0.99

$

In Stock, Qty 12

0

54

Scag 04001-59

SERR. FLG. HEX HEAD CAPSCREW, 5/16-18 X 3/4

$0.99

$

In Stock, Qty 6

0

55

Scag 04001-19

Bolt, Hex Head, 3/8-16 x 1 Gr. 5

$0.99

$

In Stock, Qty 7

0

56

Scag 43415

B ushing, Brake

$7.99

$

Usually ships in 2-12 days

0

57

Scag 04050-02

RETAINING RING, 3/4" EXTERNAL "E"

$0.99

$

In Stock, Qty 7

0

58

Scag 48224

BEARINGS, BALL, NEUTRAL RETURN

$13.99

$

In Stock, Qty 20+

0

59

Scag 46747

Cam, Neutral (incl. grease ftng.)

$39.99

$

Usually ships in 2-12 days

0

60

Scag 48114-05

Greese Fitting, Straight 1/4 - 28

$1.49

$

In Stock, Qty 9

0

61

Scag 04050-01

RETAINING RING, 5/8" EXTERNAL "E"

$0.99

$

In Stock, Qty 20+

0

62

Scag 04001-09

Bolt, Heax Head 5/16-18 x 1" (48V / 52V)

$0.99

$

In Stock, Qty 20+

0

63

Scag 483414

Lever, Speed Control

$45.99

$

Usually ships in 2-12 days

0

64

Scag 04017-05

Bolt, Serrated Flange Hex Head 1/4 x 20 x 3/4"

$0.99

$

In Stock, Qty 20+

0

65

Scag 482431

Linkage Assembly

$38.99

$

In Stock, only 1 left!

0

66

Scag 04041-07

Flatwasher, 3/8" Special (.391 x .938 x .105)

$0.99

$

In Stock, Qty 20+

0

67

Scag 462287

Engine Deck (16" Wide) with Decals - Small Frame

$894.99

$

Usually ships in 2-12 days

0

Scag 462288

Engine Deck (20" Wide) with Decals - Large Frame

$658.99

$

Usually ships in 2-12 days

0

68

Scag 04001-10

Bolt, 5/16 - 18 x 1 - 1/4" Hex Head

$0.99

$

In Stock, Qty 14

0

69

Scag 482314

Choke Control

$30.99

$

In Stock, only 1 left!

0

70

Scag 04001-152

Bolt, Hex Head 3/8-16 x 4-1/4"

$5.49

$

In Stock, Qty 5

0

71

Scag 42413

BRACKET, FUSE HOLDER

$41.99

$

Usually ships in 2-12 days

0

72

Scag 43520

Swivel Joint, Steering Rod

$24.99

$

Usually ships in 2-12 days

0

73

Scag 48100-06

Bushing, oil lube - 3/4 ID x 1.0

$1.49

$

In Stock, only 1 left!

0

74

Scag 48298

FUSE, 20 AMP BLADE TYPE AUTOMOTIVE

$

$

Not available

75

Scag 04021-01

HEX NUT, ELASTIC STOP LOCK # 10-32

$0.99

$

In Stock, Qty 10

0

76

Scag 04010-03

Screw, #10-32 x 1.5" Phillips - 21KAE

$

$

Currently unavailable

77

Scag 04030-02

Lockwasher, 1/4� Spring

$0.99

$

In Stock, Qty 20+

0

78

Scag 43032

SWIVEL JOINT, SPEED CONTROL ROD

$6.49

$

In Stock, Qty 8

0

79

Scag 44143

Rod, Brake Lever

$14.99

$

Usually ships in 2-12 days

0

80

Scag 04001-45

Capscrew, Hex Head 3/8-16 x 2.0"

$0.99

$

In Stock, Qty 9

0

81

Scag 48464

Rod End, 3/8-24 RH Thread Female

$23.99

$

In Stock, only 1 left!

0

82

Scag 04021-09

HEX NUT, ELASTIC STOP LOCK, 3/8-16

$0.99

$

In Stock, Qty 20+

0

83

Scag 04010-12

Screw, Hex-Slotted Washer Head #10 32 x 3/4"

$0.99

$

In Stock, only 1 left!

0

84

Scag 04001-01

BOLT, HEX HEAD, 1/4-20 X 3/4 GR.5

$0.99

$

In Stock, Qty 18

0

85

Scag 43286

Spacer, Idler

$2.49

$

In Stock, only 2 left!

0

86

Scag 462746

Parking Brake Lever w/Grip & Grease Fitting

$57.99

$

Usually ships in 2-12 days

0

87

Scag 487327

Switch, Safety

$12.99

$

Usually ships in 2-12 days

0

88

Scag 04020-14

HEX NUT, 3/8-24 R.H. THREAD

$0.99

$

In Stock, only 3 left!

0

89

Scag 423876

Mounting Bracket, Wrench

$12.99

$

Usually ships in 2-12 days

0

90

Scag 423875

Wrench

$12.99

$

Usually ships in 2-12 days

0

91

Scag 48342

GRIP, PARKING BRAKE

$2.49

$

Usually ships in 2-12 days

0

92

Scag 421203

CLAMP PLATE, PUMP CONTROL

$18.99

$

Usually ships in 2-12 days

0

93

Scag 04062-01

COTTER PIN, HAIR - 0.94 X 1.62

$0.99

$

In Stock, Qty 20+

0

94

Scag 44126

Rod, Brake Lower

$6.99

$

In Stock, only 1 left!

0

95

Scag 422273

Plate, Coupler

$8.49

$

Usually ships in 2-12 days

0

96

Scag 451113

Shaft, Pump Control

$61.99

$

Usually ships in 2-12 days

0

97

Scag 481879

Spring, Tracking Adjustment

$7.99

$

In Stock, only 1 left!

0

98

Scag 04021-09

HEX NUT, ELASTIC STOP LOCK, 3/8-16

$0.99

$

In Stock, Qty 20+

0

99

Scag 48829

BLOCK, PUMP CONTROL

$21.99

$

In Stock, only 2 left!

0

100

Scag 461964

Control, LH (inc. bush. & decal)

Note: (inc. bush. & decal)

$101.99

$

Usually ships in 2-12 days

0

Scag 461965

Control, RH (inc. bush. & decal)

Note: (inc. bush. & decal)

$117.99

$

Usually ships in 2-12 days

0

101

Scag 481545

Switch, Interlock (see below)

$17.99

$

In Stock, only 2 left!

0

102

Scag 44144

Rod, Offset

$14.99

$

In Stock, only 1 left!

0

103

Scag 422373

Plate, Threaded

$11.99

$

Usually ships in 2-12 days

0

104

Scag 462069

Key, Assembly w/Fob

$9.99

$

In Stock, Qty 20+

0

Scag 483609

Key w/Shroud Only

$2.99

$

In Stock, Qty 9

0

105

Scag 484565

Hour Meter, Inductive

$63.99

$

In Stock, only 1 left!

0
