SWZ36A-14FS - Scag 36" Walk-Behind Mower, 14hp Kawasaki (SN: T8000001 - T8099999) ENGINE DECK - ELECTRIC START Parts Diagram

36" Walk-Behind Mower, 14hp Kawasaki

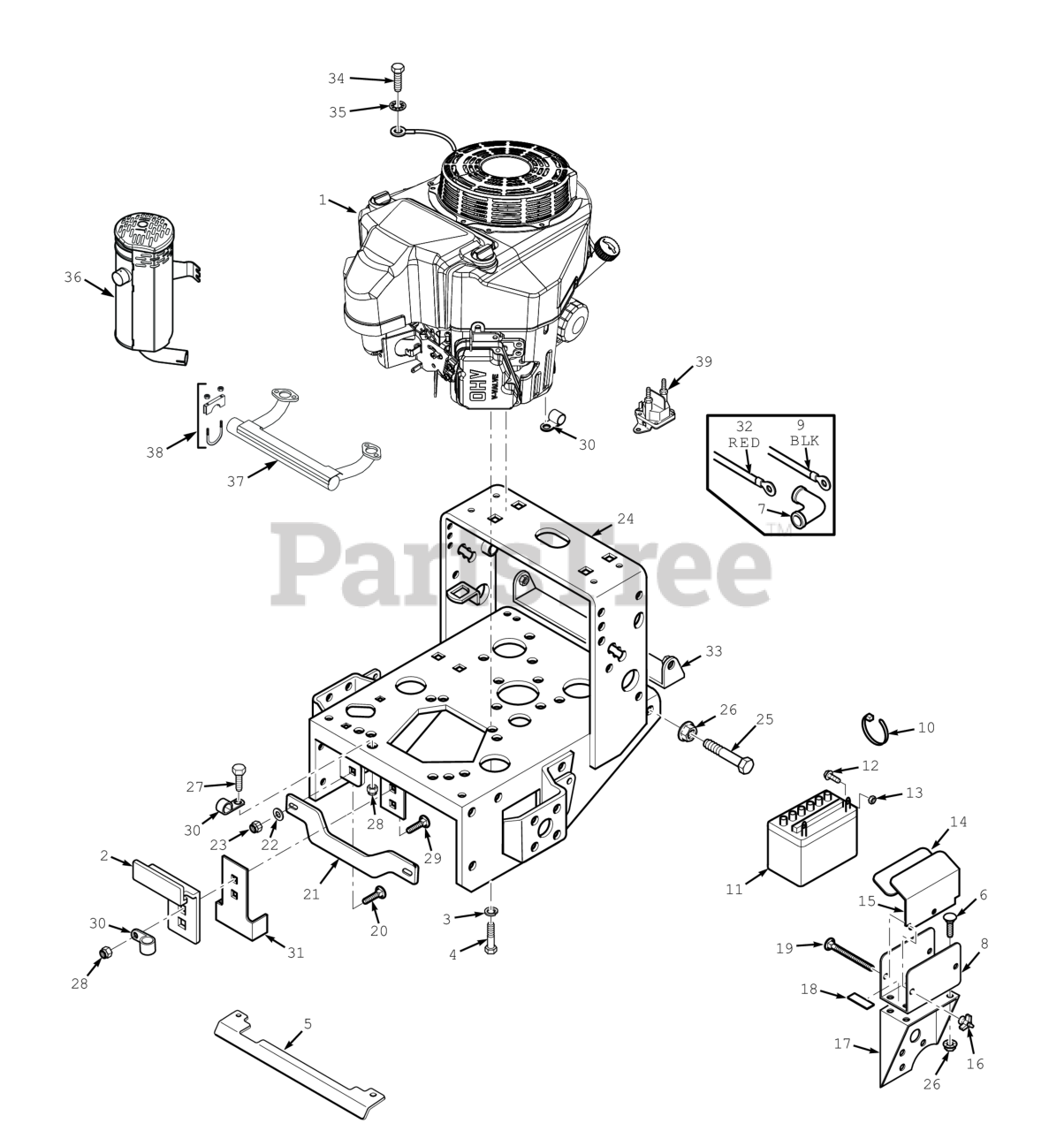

ENGINE DECK - ELECTRIC START Parts Diagram

  • Title

2

Scag 424620

Plate, Clutch Bracket

$19.99

$

Usually ships in 2-12 days

0

3

Scag 04030-04

Lockwasher, 3/8" Spring, Kawasaki FX / FT & FT-EFI / B&S 32BV

$0.99

$

In Stock, Qty 20+

0

4

Scag 04001-32

Bolt, Hex Head 3/8-16 x 1-1/4", Kawasaki FX / FT & FT-EFI

$0.99

$

In Stock, Qty 11

0

5

Scag 424661

Heatshield, 16" Small Frame

$16.99

$

Usually ships in 2-12 days

0

Scag 424730

Heatshield, 20" Large Frame

$24.99

$

Usually ships in 2-12 days

0

6

Scag 04003-12

Bolt, 5/16-18 x .75 RHSN Carriage

$0.99

$

In Stock, Qty 20+

0

7

Scag 48126

RUBBER BOOT

$8.49

$

Usually ships in 2-12 days

0

8

Scag 423308

Plate, Battery Box

$52.99

$

In Stock, only 1 left!

0

9

Scag 48029-14

Battery Cable, 31-1/2" Black (25KA, 26DFI, 31DFI) - Kawasaki

$16.99

$

Usually ships in 2-12 days

0

10

Scag 48028-05

Cable Tie, .19 x 8.0"

$

$

Not available

11

Battery (Not Available Through Scag)

$

$

Not available

12

Scag 04001-44

Bolt, Hex Head 1/4-20 x .5" Battery, (Not Available Through Scag)

$0.99

$

In Stock, Qty 6

0

13

Scag 04020-02

Nut, 1/4 - 20 Hex

$0.99

$

In Stock, Qty 20+

0

14

Scag 48099

INSULATION, BATTERY COVER

$5.99

$

Usually ships in 2-12 days

0

15

Scag 42392

Battery Box Cover

$45.99

$

Usually ships in 2-12 days

0

16

Scag 04029-01

ELASTIC STOP WINGNUT, 1/4-20

$2.49

$

In Stock, Qty 17

0

17

Scag 423746

Battery Support

$43.99

$

Usually ships in 2-12 days

0

18

Scag 48661

PAD, BATTERY SUPPORT

$4.99

$

Usually ships in 2-12 days

0

19

Scag 04003-39

Bolt, Carriage 1/4-20 x 6"

$1.49

$

In Stock, Qty 10

0

20

Scag 04003-11

SHORT SQ. NECK CARRIAGE BOLT, 3/8-16 X 1-1/4"

$0.99

$

In Stock, Qty 7

0

21

Scag 424002

Brace, (16" Small Frame)

$14.99

$

Usually ships in 2-12 days

0

Scag 424009

Brace, (20" Large Frame)

$15.99

$

Usually ships in 2-12 days

0

22

Scag 04043-04

Flatwasher, 3/8 (.391 x .938 x .105 HD) Grade 8

$0.99

$

In Stock, Qty 20+

0

23

Scag 04021-09

HEX NUT, ELASTIC STOP LOCK, 3/8-16

$0.99

$

In Stock, Qty 20+

0

24

Scag 462287

Engine Deck (16" Wide) with Decals - Small Frame

$873.99

$

Usually ships in 2-12 days

0

Scag 462288

Engine Deck (20" Wide) with Decals - Large Frame

$642.99

$

Usually ships in 2-12 days

0

25

Scag 04001-17

Bolt, Hex Head 5/16-18 x 2-1/2" (x3) (35BV & 37BV-EFI)

$0.99

$

In Stock, Qty 20+

0

26

Scag 04019-03

Nut, Serrated Flange 5/16-18 (Right Front Engine Mounting, Briggs and Kohler Only)

$0.99

$

In Stock, Qty 20+

0

27

Scag 04001-08

BOLT, SERRATED FLANGE HEX HEAD 5/16-18 X 3/4"

$0.99

$

In Stock, Qty 20+

0

28

Scag 04021-10

HEX NUT, ELASTIC STOP LOCK, 5/16-18

$0.99

$

In Stock, Qty 20+

0

29

Scag 04003-04

Bolt, Carriage 5/16-18x1" (large frame units only)

$0.99

$

In Stock, Qty 17

0

30

Scag 48030-09

Clamp, Cable 1/2" I.D.

$1.49

$

In Stock, Qty 15

0

31

Scag 421370

Plate, Clutch Anti-Rotation

$22.99

$

Usually ships in 2-12 days

0

32

Scag 48029-13

Battery Cable, 25" Red (Kawasaki)

$13.99

$

Usually ships in 2-12 days

0

Scag 48029-06

Battery Cable, 18.0" Red

$12.99

$

Usually ships in 2-12 days

0

33

Scag 45418

Pulley Guard, 16" Small Frame

$56.99

$

Usually ships in 2-12 days

0

Scag 45419

Pulley Guard, 20" Large Frame

$57.99

$

Usually ships in 2-12 days

0

34

Scag 04002-06

Bolt, Hex Head M8 - 1.25 x 16 (48V / 52V)

$0.99

$

In Stock, only 1 left!

0

35

Scag 04031-03

Lockwasher, 5/16" Ext. Tooth (Kohler x1)

$0.99

$

Usually ships in 2-12 days

0

36

Scag 484620

Muffler, Kawasaki (FS481, FS541, FS600)

$173.99

$

In Stock, Qty 10

0

Scag 485571

Muffler, Kawasaki (FS651) - SWZT61

$195.99

$

Usually ships in 2-12 days

0

37

Scag 485327

MANIFOLD, 18 FS ENGINE

$181.99

$

Usually ships in 2-12 days

0

Scag 485572

Manifold, Kawasaki (FS651) - SWZT61

$112.99

$

Usually ships in 2-12 days

0

38

Scag 484334

Muffler Clamp

$22.99

$

Usually ships in 2-12 days

0

Scag 481259

Clamp, Muffler 1.25 Dia. Kawasaki

$5.99

$

Usually ships in 2-12 days

0

39

Scag 483278

Solenoid, Sealed (Briggs & Stratton)

$51.99

$

In Stock, Qty 13

0
