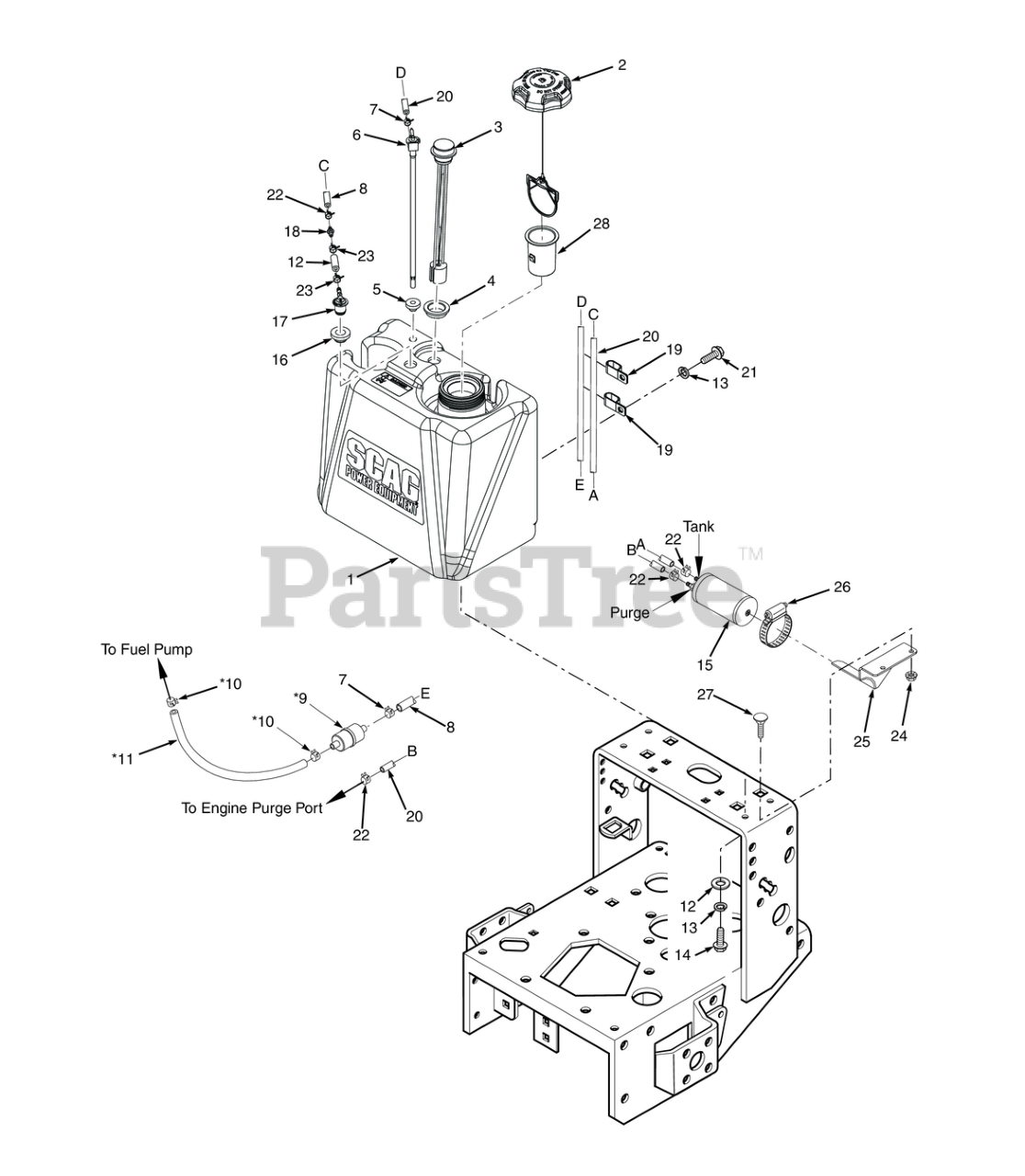

SWZ36A-14FS - Scag 36" Walk-Behind Mower, 14hp Kawasaki (SN: S2700001 - S2799999) SWZ FUEL SYSTEM Parts Diagram

36" Walk-Behind Mower, 14hp Kawasaki

SWZ FUEL SYSTEM Parts Diagram

  • Title

1

Scag 463282

Fuel Tank Assembly (incl. #2, 3, 5, 6, 17, 18)

$466.99

$

Usually ships in 2-12 days

0

2

Scag 484286

Fuel Cap w/ Tether (E.P.A.)

$53.99

$

In Stock, only 1 left!

0

2

Scag 484297

Fuel Cap w/Tethered - California Models Only

$63.99

$

Usually ships in 2-12 days

0

3

Scag 484243

Fuel Gauge Assembly

$80.99

$

Usually ships in 2-12 days

0

4

Scag 484242

Grommet, Fuel Gauge

$21.99

$

In Stock, only 2 left!

0

5

Scag 482571

Bushing, 0.56" Dia. Viton

$12.99

$

In Stock, Qty 20+

0

6

Scag 486181

Valve, Fuel Shutoff w/Screen

$68.99

$

Usually ships in 2-12 days

0

7

Scag 48059-01

Clamp, Fuel Hose 1/4" Hose I.D.

$0.99

$

In Stock, Qty 7

0

8

Scag 483617

Fuel Hose, 1/4" I.D. Non-Perm (791DFI Fuel Return) - Order by Inch

$0.99

$

In Stock, Qty 20+

0

9

Fuel Filter

Note: Available through engine manufacturer only.

$

$

Not available

10

Clamp, Fuel Hose

Note: Available through engine manufacturer only.

$

$

Not available

11

Fuel Hose

Note: Available through engine manufacturer only.

$

$

Not available

12

Scag 484347

Hose, 1/4" Vapor Recovery (order by inch)

$0.99

$

In Stock, Qty 20+

0

13

Scag 04030-03

Lockwasher, 5/16 (.317 x .586 x .078) Helical Spring

$0.99

$

In Stock, Qty 20+

0

14

Scag 04001-09

Bolt, Heax Head 5/16-18 x 1" (48V / 52V)

$0.99

$

In Stock, Qty 20+

0

15

Scag 484287

Carbon Canister - SVR-36A / SVR-48V

$93.99

$

Usually ships in 2-12 days

0

16

Scag 484285

Grommet, Viton,

$

$

Not available

17

Scag 484333

Remote Vent, No Valve

$14.99

$

In Stock, only 1 left!

0

18

Scag 484343-01

Mender, 1/4 x 3/16 w/0.02 Hole

$26.99

$

In Stock, Qty 5

0

19

Scag 48030-11

Clamp, Double Cable 5/8" ID.

$2.49

$

Usually ships in 2-12 days

0

20

Scag 484345

Hose, Vapor Recovery 3/16" (order by inch)

$0.99

$

In Stock, Qty 20+

0

21

Scag 04001-08

BOLT, SERRATED FLANGE HEX HEAD 5/16-18 X 3/4"

$0.99

$

In Stock, Qty 20+

0

22

Scag 48059-05

Clamp, Vapor Recovery Hose 3/16"

$4.49

$

In Stock, only 3 left!

0

23

Scag 48059-02

CLAMP, FUEL HOSE(KAWASAKI ONLY)

$0.99

$

In Stock, Qty 19

0

24

Scag 04019-03

Nut, Serrated Flange 5/16-18 (Right Front Engine Mounting, Briggs and Kohler Only)

$0.99

$

In Stock, Qty 20+

0

25

Scag 452176

Bracket, Canister Mounting

$35.99

$

Usually ships in 2-12 days

0

26

Scag 48136-17

Clamp, 3-1/2" Max. Dia.

$7.49

$

Usually ships in 2-12 days

0

27

Scag 04003-04

Bolt, Carriage 5/16-18x1" (large frame units only)

$0.99

$

In Stock, Qty 9

0

28

Scag 484279-01

Tube, Fuel Tank Insert - 4"

$4.49

$

In Stock, only 1 left!

0
