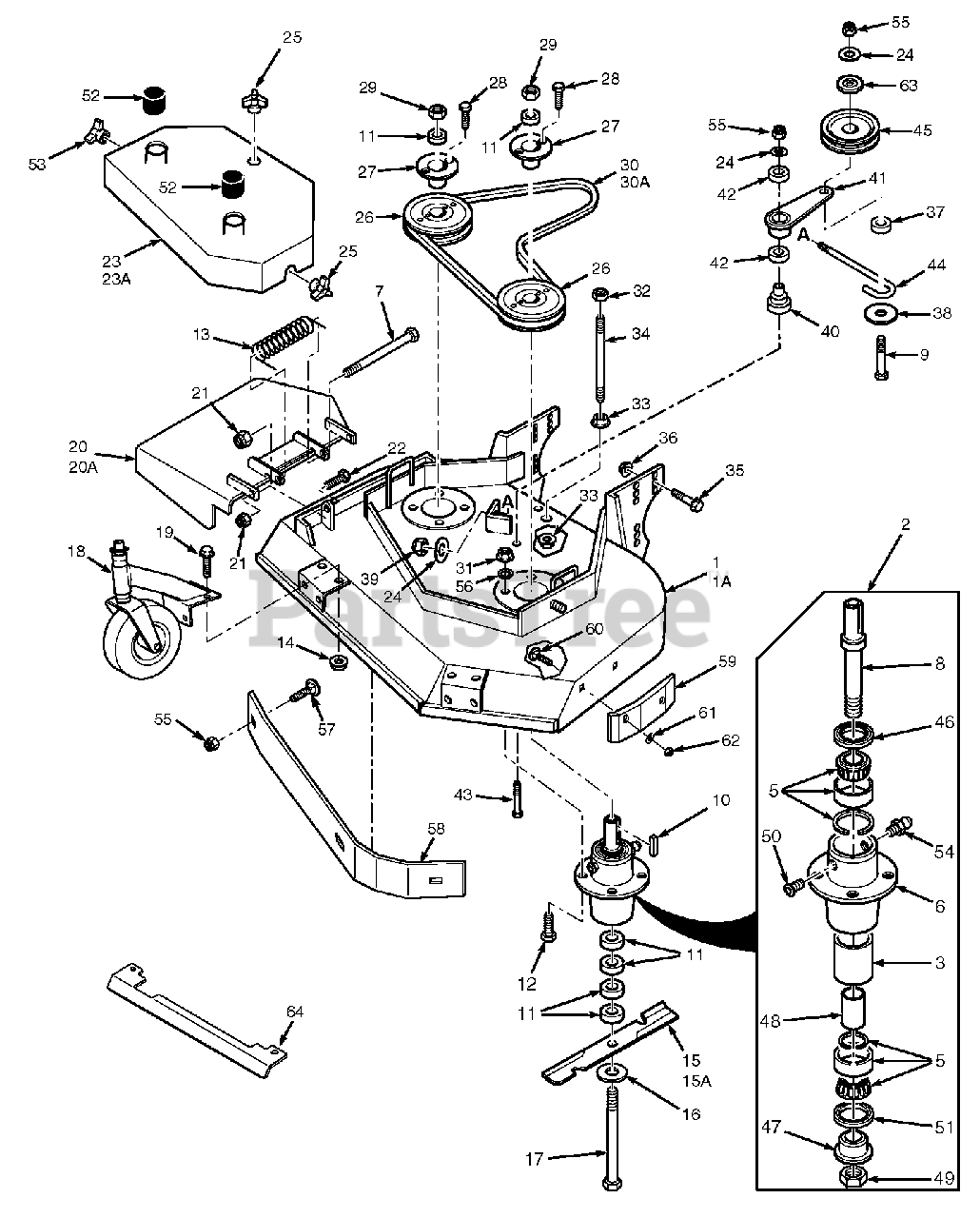

SWZ36A-14FS - Scag 36" Walk-Behind Mower, 14hp Kawasaki (SN: J6400001 - J6499999) 36A Cutter Deck Parts Diagram

36" Walk-Behind Mower, 14hp Kawasaki

36A Cutter Deck Parts Diagram

  • Title

1

Scag 461848

Cutter Deck w/Decals

$1493.99

$

Usually ships in 2-12 days

0

2

Scag 461663

Cutter Spindle Assembly

$263.99

$

In Stock, Qty 20+

0

3

Scag 43312

Spacer, Outside

$19.99

$

In Stock, only 1 left!

0

5

Scag 481022

Bearing, Tapered

$61.99

$

In Stock, Qty 15

0

6

Scag 43644

Spindle Housing

$60.99

$

In Stock, only 2 left!

0

7

Scag 04001-154

Bolt, 5/16-18 x 4-3/4'

$2.99

$

In Stock, Qty 20+

0

8

Scag 43589

Spindle Shaft

$59.99

$

In Stock, only 1 left!

0

9

Scag 04001-51

Bolt, 3/8-16 x 3-3/4' Hex Head

$1.49

$

In Stock, Qty 8

0

10

Scag 04063-08

Key, 1/4 x 1/4 x 2'

$1.49

$

In Stock, Qty 20+

0

11

Scag 43592

Spacer, Cutter Blade - Small

$4.49

$

In Stock, Qty 20+

0

12

Scag 04001-175

Bolt, 5/16-18 x 1-1/2' Hex Head

Note: Grade 8

$0.99

$

In Stock, Qty 10

0

13

Scag 482245

Spring, Chute Return

$11.99

$

In Stock, Qty 5

0

14

Scag 04019-03

Nut 5/16-18 Serrated Flange

$0.99

$

In Stock, Qty 20+

0

15

Scag 481707

Cutter Blade, 18'

$23.99

$

In Stock, Qty 20+

0

15A

Scag 481711

Cutter Blade, 18 Hi-Lift

$41.99

$

Usually ships in 2-12 days

0

16

Scag 04043-06

Flatwasher, 5/8 W

$1.99

$

In Stock, Qty 20+

0

17

Scag 04001-41

Hex Hd. Bolt, 5/8-11 x 9-1/2'

$15.99

$

In Stock, Qty 20+

0

18

Scag 461023

Caster Assembly

$427.99

$

Usually ships in 2-12 days

0

19

Scag 04017-16

Cpscrw,5/16-18 x 3/4' Ser.Flg. Hex Head

$0.99

$

In Stock, Qty 10

0

20

Scag 461356

Discharge Chute
(Superseded to 461295)

$70.99

$

In Stock, Qty 8

0

20A

Scag 462469

CA Discharge Chute

Note: California Models Only (not shown)

$152.99

$

In Stock, only 2 left!

0

20A

Scag 425872

Turbo Baffle

Note: California Models Only (not shown)

$66.99

$

In Stock, only 2 left!

0

21

Scag 04021-10

Hex Nut, 5/16-18 Elastic Stop

$0.99

$

In Stock, Qty 20+

0

22

Scag 04001-09

Hex Hd Bolt, 5/16-18 x 1'

$0.99

$

In Stock, Qty 20+

0

23

Scag 461709

Belt Cover Assy

Note: (Incl. Decal)

$233.99

$

Usually ships in 2-12 days

0

23A

Scag 461413

Belt Cover Assy
(Superseded to 462393)

Note: (Incl. Decal)

$156.99

$

Usually ships in 2-12 days

0

24

Scag 04043-04

Flat Washer, 3/8' Special

$0.99

$

In Stock, Qty 20+

0

25

Scag 04029-03

Wing Nut, 3/8-16

$2.49

$

In Stock, Qty 20+

0

26

Scag 482744

Pulley

$30.99

$

In Stock, only 1 left!

0

27

Scag 48926

Tapered Hub

$31.99

$

In Stock, Qty 20+

0

28

Scag 04001-172

Hex Hd. Bolt, 1/4-20 x 1'

$0.99

$

In Stock, Qty 20+

0

29

Scag 04020-09

Hex Nut, 5/8-11

$0.99

$

In Stock, Qty 20+

0

30

Scag 48204

Belt, Blade Drive

$41.99

$

In Stock, Qty 5

0

31

Scag 04021-22

Elastic Stop Nut, 5/16-18

Note: Grade 8

$0.99

$

In Stock, Qty 20+

0

32

Scag 04021-05

Hex Nut, 3/8-16 Center Locknut

$0.99

$

In Stock, Qty 20+

0

33

Scag 04019-04

Nut, 3/8-16 Serrated Flange

$0.99

$

In Stock, Qty 20+

0

34

Scag 04004-02

Support, Belt Cover

$1.99

$

Usually ships in 2-12 days

0

35

Scag 04017-36

Cpscrw, 1/2-13 x 1'Ser.Flg. HH

$2.99

$

In Stock, only 2 left!

0

36

Scag 04117-04

Nut, 1/2-13 Flange Elastic Stop

$1.49

$

In Stock, Qty 8

0

37

Scag 43277

Spacer, J-Hook

$6.49

$

In Stock, only 1 left!

0

38

Scag 04041-12

Flatwasher, 3/8 x 1-1/2 x 16 GA

$0.99

$

In Stock, Qty 9

0

39

Scag 04021-09

Elastic Stop Nut, 3/8-16

$0.99

$

In Stock, Qty 20+

0

40

Scag 43681

Idler Pivot

$24.99

$

In Stock, only 3 left!

0

41

Scag 461841

Idler Arm Assy.

Note: (Inc. 42)

$82.99

$

Usually ships in 2-12 days

0

42

Scag 48224

Bearing

$13.99

$

In Stock, Qty 20+

0

43

Scag 04001-62

Cpscrw, 3/8-16 x 3-1/4' Hex Head

$1.49

$

In Stock, Qty 15

0

44

Scag 44078

J-Hook

$6.99

$

In Stock, only 2 left!

0

45

Scag 483215

Idler Pulley, Belt Clutch

$62.99

$

In Stock, Qty 20+

0

46

Scag 481024

Seal, Cutter Spindle

$4.99

$

In Stock, Qty 20+

0

47

Scag 43297

Spindle Bushing

$9.99

$

In Stock, only 2 left!

0

48

Scag 43296

Spacer, Inside

$8.49

$

In Stock, only 2 left!

0

49

Scag 481035

Nut,1.06-18

$7.99

$

In Stock, only 3 left!

0

50

Scag 48677

Relief Fitting, Cutter Spindle

$9.49

$

Usually ships in 2-12 days

0

51

Scag 481025

Seal, Cutter Spindle

$4.99

$

In Stock, Qty 20+

0

52

Scag 484368

Cap, Spindle

$5.49

$

In Stock, Qty 20+

0

53

Scag 04029-04

Wing Nut, 3/8-16 (Small) RH side

$2.99

$

In Stock, Qty 19

0

54

Scag 48114-04

Grease Fitting

$1.49

$

In Stock, Qty 20+

0

55

Scag 04021-09

Nut, Hex Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

56

Scag 04030-03

Lock Washer, 5/16'

$0.99

$

In Stock, Qty 20+

0

57

Scag 04003-23

Bolt, Carriage 3/8-16 x 1'

$1.49

$

In Stock, Qty 20+

0

58

Scag 423783

Baffle Weldment

$77.99

$

Usually ships in 2-12 days

0

59

Scag 483174

Pad, Deck Wear

$34.99

$

In Stock, only 2 left!

0

60

Scag 04003-12

Bolt, Carriage 5/16-18 x 3/4'

$0.99

$

In Stock, Qty 20+

0

61

Scag 04040-04

Flatwasher, 5/16'

$0.99

$

In Stock, Qty 20+

0

62

Scag 04021-04

Hex Nut, 5/16-18 Center Locknut

$0.99

$

In Stock, Qty 20+

0

63

Scag 424367

Dust Shield

$2.49

$

Usually ships in 2-12 days

0

64

Scag 424661

Heatshield

$17.99

$

Usually ships in 2-12 days
