SWZ36-14KA - Scag 36" Walk-Behind Mower, 14hp Kawasaki (SN: 70000 - 79999) Hydraulic Pump Assembly Parts Diagram

36" Walk-Behind Mower, 14hp Kawasaki

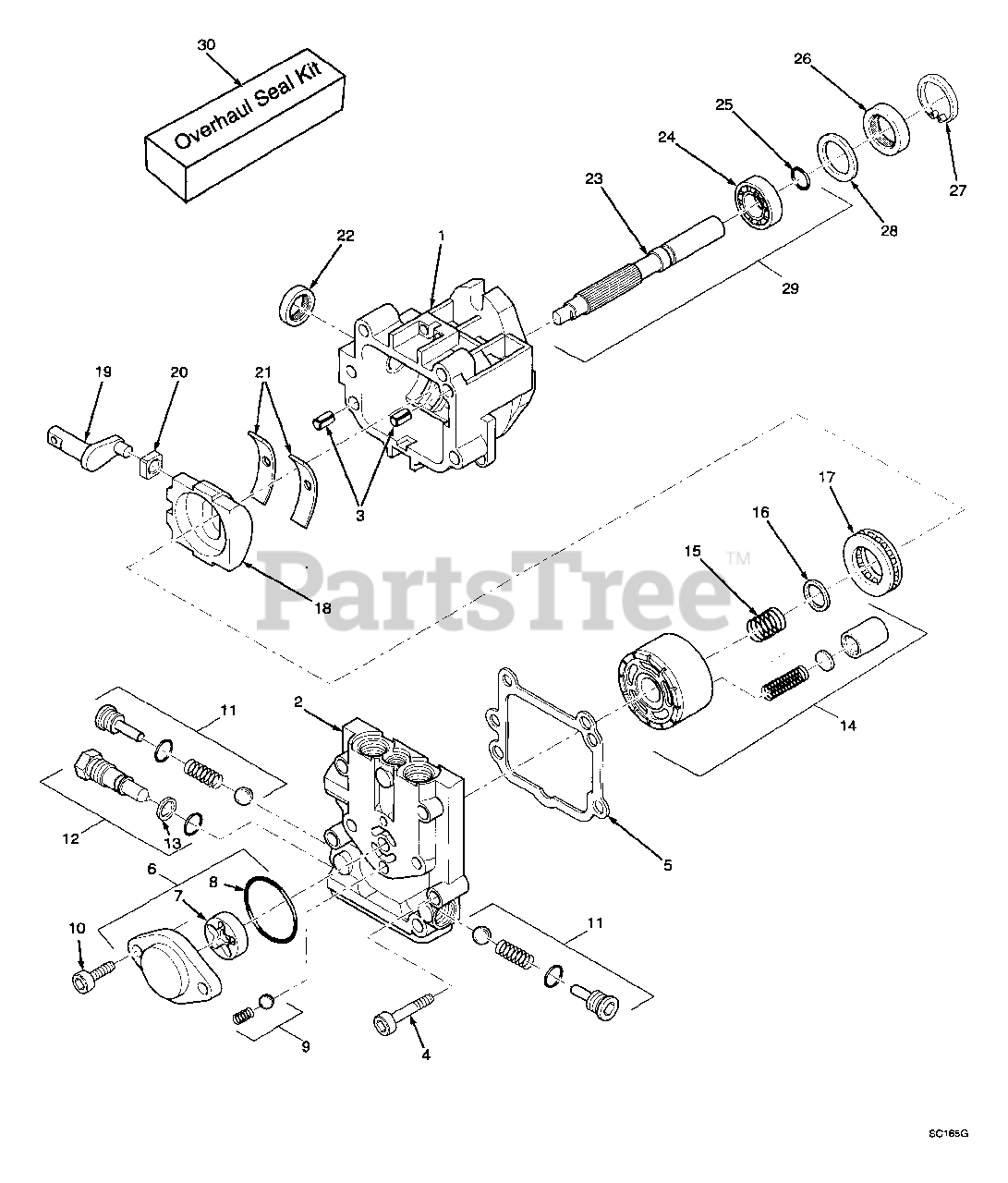

Hydraulic Pump Assembly Parts Diagram

  • Title

1

Scag HG2513017

Housing Kit

Note: Incl. Housing, Journal Bearing

$

$

Not available

2

Scag HG2513016

End Cap

$

$

Not available

3

Scag HG9004800-2506

Straight Headless Pin

$

$

Not available

4

Scag HG9007314-0810

Socket Head Screw

$

$

Not available

5

Scag HG2003067

End Cap Gasket

$3.49

$

Usually ships in 2-12 days

0

6

Scag HG2513027

Charge Pump Kit

Note: Incl. Charge Cover, Gerotor Assy., O-Ring

$159.99

$

Usually ships in 2-12 days

0

7

Scag HG50273

Gerotor Assembly

$

$

Not available

8

Scag HG9004101-1340

O-Ring

$2.49

$

Usually ships in 2-12 days

0

9

Scag HG2510011

Charge Relief Valve Kit

$4.99

$

In Stock, only 1 left!

0

10

Scag HG50095

Socket Head Screw

$

$

Not available

11

Scag HG2510027

Check Valve Kit

Note: Incl. Check Plug, Spring, O-Ring, Orfice Check Valve

$44.99

$

Usually ships in 2-12 days

0

12

Scag HG2513030

Bypass Valve Kit

Note: Incl. Bypass Valve, O-Ring, Back-up Ring

$43.99

$

Usually ships in 2-12 days

0

13

Scag HG9006110-0120

Backup Ring

$1.99

$

Usually ships in 2-12 days

0

14

HG70079

Cylinder Block Kit

$

$

Not available

15

Scag HG2003014

Block Spring

$

$

Not available

16

Scag HG2003017

Block Thrust Washer

$

$

Not available

17

Scag HG2003044

Roller Thrust Bearing
(Superseded to HG50551)

$24.99

$

Usually ships in 2-12 days

0

18

Scag HG2003087

Swash Plate

$

$

Not available

19

Scag HG2003005

Trunnion Arm

$

$

Not available

20

Scag HG2000015

Guide Slot

$7.49

$

Usually ships in 2-12 days

0

21

Scag HG2003023

Cradle Bearing
(Superseded to HG52619)

$16.99

$

In Stock, only 2 left!

0

22

Scag HG9008000-0126

Lip Seal

$2.99

$

Usually ships in 2-12 days

0

23

Scag HG2003020

Pump Shaft

$

$

Not available

24

Scag HG2003043

Ball Bearing

$28.99

$

Usually ships in 2-12 days

0

25

Scag HG2003016

Retaining Ring

$2.49

$

Usually ships in 2-12 days

0

26

Scag HG9008000-0128

Lip Seal

$5.49

$

In Stock, only 2 left!

0

27

Scag HG2003052

Retaining Ring

$2.49

$

In Stock, only 1 left!

0

28

Scag HG2003018

Spacer

$2.49

$

Usually ships in 2-12 days

0

29

Scag HG2513038

Shaft Kit

Note: Incl. Pump Shaft, Ball Bearing, Retaining Ring

$145.99

$

Usually ships in 2-12 days

0

30

Scag HG2513018

Overhaul Seal Kit

Note: Incl. Gasket, Trunnion Seal, Input Shaft Seal, Charge Pump O-Ring

$40.99

$

In Stock, only 1 left!

0
