SWZ36-14KA - Scag 36" Walk-Behind Mower, 14hp Kawasaki (SN: 5120001 - 5139999) Drive And Brake Components Parts Diagram

36" Walk-Behind Mower, 14hp Kawasaki

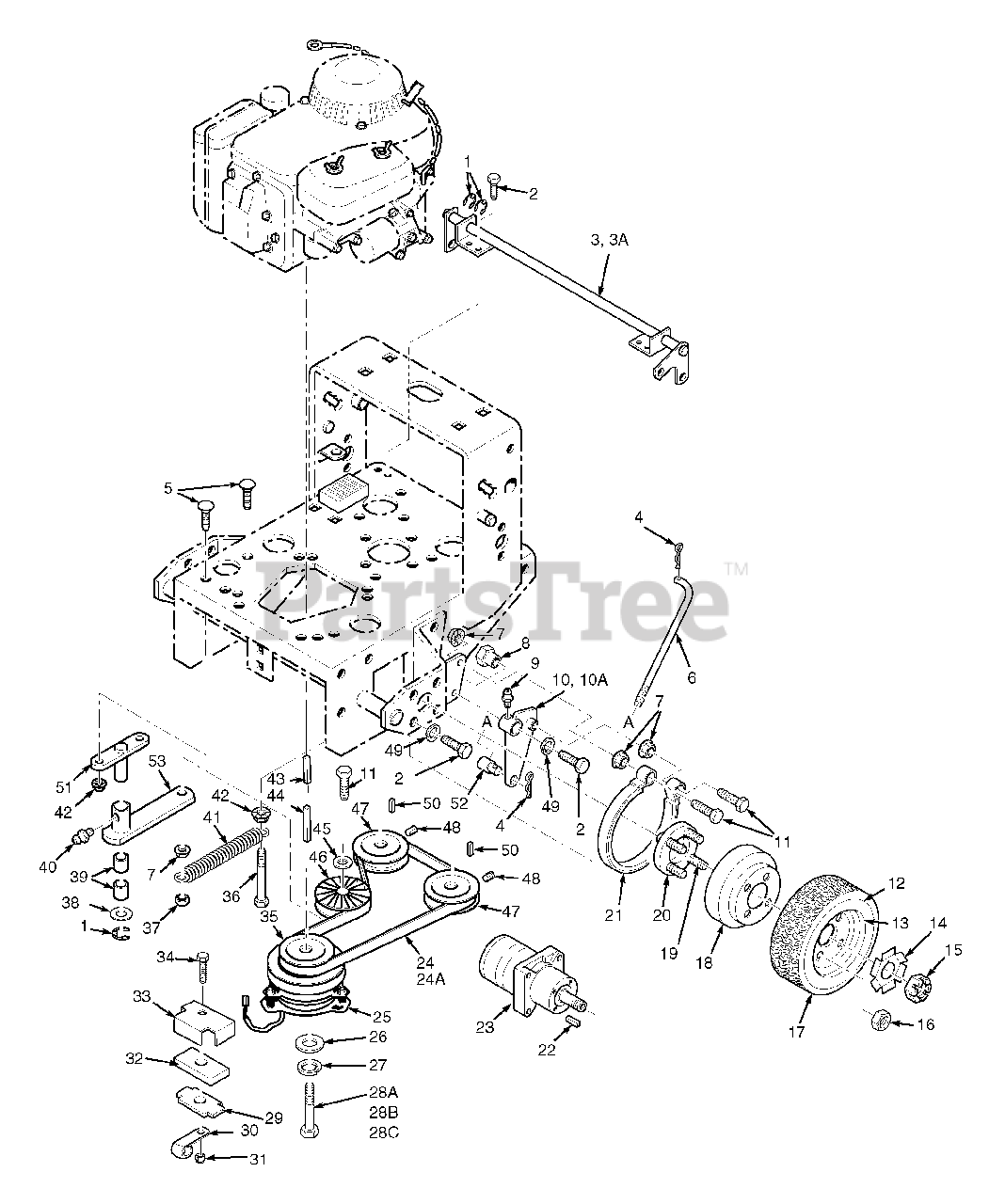

Drive And Brake Components Parts Diagram

  • Title

1

Scag 04050-02

Retaining Ring, 3/4 Ext. "E"

$0.99

$

In Stock, Qty 7

0

2

Scag 04001-19

Bolt, 3/8-16 x 1" Hex Head

$0.99

$

In Stock, Qty 6

0

3

Scag 45842

Brake Shaft Assy. Wlmt.Small

$44.99

$

In Stock, only 1 left!

0

3A

Brake Shaft Assy. Wlmt.Large

Note: Not Used

$

$

Not available

4

Scag 04062-01

Hair Pin Cotter, .094 x 1.62

$0.99

$

In Stock, Qty 20+

0

5

Scag 04003-12

Carrage Bolt, 5/16-18 x .75"

$0.99

$

In Stock, Qty 20+

0

6

Scag 44126

Rod, Brake Lower

$6.99

$

In Stock, only 1 left!

0

7

Scag 04019-04

Nut, 3/8-16 Serr. Flange

$0.99

$

In Stock, Qty 20+

0

8

Scag 43415

Bushing, Brake

$7.49

$

Usually ships in 2-12 days

0

9

Scag 48114-05

Grease Fitting

$1.49

$

In Stock, Qty 9

0

10

Scag 45860

Brake Actuator Wlmt., LH

$41.99

$

Usually ships in 2-12 days

0

10A

Scag 45861

Brake Actuator Wlmt., RH

$39.99

$

Usually ships in 2-12 days

0

11

Scag 04001-46

Bolt, 3/8-16 x 2-1/4"

$0.99

$

In Stock, Qty 20+

0

12

Scag 481618

Tire, 16 x 6.50, 4 ply

$160.99

$

Usually ships in 2-12 days

0

13

Scag 48004-04

Rim Assy
(Superseded to 481890)

$89.99

$

In Stock, only 1 left!

0

14

Scag 422214

Lock Washer, Wheel Motor

$4.49

$

In Stock, only 1 left!

0

15

Scag 48679

Hex Castle Nut, 3/4-28 UNEF

$26.99

$

Usually ships in 2-12 days

0

16

Scag 04028-01

Nut, Lug

$1.49

$

In Stock, Qty 14

0

17

Scag 481502

Wheel Assy.,

Note: (incl. 31,32)

$261.99

$

Usually ships in 2-12 days

0

18

Scag 422215

Brake Drum

$29.99

$

Usually ships in 2-12 days

0

19

Scag 04008-01

1/2-20 Serrated Bolt

$3.49

$

In Stock, Qty 20+

0

20

Scag 46928

Hub, Wheel

$133.99

$

Usually ships in 2-12 days

0

21

Scag 481470

Brake Band, 7.5"

$53.99

$

Usually ships in 2-12 days

0

22

Scag 04063-07

Key, 3/16 X .75 Woodruff

$0.99

$

In Stock, Qty 12

0

23

Scag 481416

Wheel Motor

$601.99

$

Usually ships in 2-12 days

0

24

Scag 48553

Belt, Pump Drive (Sm Frame)

$50.99

$

In Stock, only 1 left!

0

24A

Belt, Pump Drive (Lg Frame)

Note: Not Used

$

$

Not available

25

Scag 461073

Electric Clutch
(Superseded to 461397)

$306.99

$

In Stock, only 1 left!

0

26

Scag 04041-28

Flat Washer .469 x 1.75 x .25

$2.99

$

In Stock, Qty 12

0

27

Scag 04030-05

Lock Washer, 7/16

$0.99

$

In Stock, Qty 5

0

28A

Scag 04002-05

Hex Head Bolt, M10-1.5 x 65

$2.49

$

Usually ships in 2-12 days

0

28B

Hex Head Bolt, 7/16-20 x 2.00"

Note: Not Used

$

$

Not available

29

Scag 422534

Plate, Backing

$5.49

$

In Stock, only 1 left!

0

30

Scag 48030-09

Clamp

$1.49

$

In Stock, Qty 5

0

31

Scag 04021-10

Nut, 5/16-18 Elastic Stop

$0.99

$

In Stock, Qty 20+

0

32

Scag 481716

Rubber Pad, Clutch Stop

$11.99

$

Usually ships in 2-12 days

0

33

Scag 422533

Retainer, Clutch Stop

$13.99

$

In Stock, only 1 left!

0

34

Scag 04001-12

Hex Head Bolt, 5/16-18 x 1.75"

$0.99

$

In Stock, Qty 20+

0

35

Scag 481665

Pulley, Pump Drive Engine
(Superseded to 482755)

$51.99

$

Usually ships in 2-12 days

0

36

Scag 04001-13

Hex Head Bolt, 5/16-18 x 2.75"

$0.99

$

In Stock, only 1 left!

0

37

Scag 04021-05

Nut, 3/8-16 Center Lock

$0.99

$

In Stock, Qty 20+

0

38

Scag 04041-08

Washer, 3/4-.766 x 1.2 x .06

$0.99

$

In Stock, Qty 20+

0

38

Scag 04041-08S

Washer, 3/4-.766 x 1.2 x .035

$0.99

$

In Stock, Qty 20+

0

39

Scag 48100-05

Bushing, 3/4 Sintered

$0.99

$

In Stock, only 3 left!

0

40

Scag 48114-04

Grease Fitting, Str. 1/4-28

$0.99

$

In Stock, Qty 20+

0

41

Scag 481835

Spring, Pump Belt Idlerx
(Superseded to 483526)

$25.99

$

In Stock, only 3 left!

0

42

Scag 04019-03

Nut, 5/16-18 Serr. Flange

$0.99

$

In Stock, Qty 20+

0

43

Scag 04063-24

Key, 1/4x1/4x2.75" Clutch Mtg.

$1.99

$

In Stock, only 3 left!

0

44

Scag 04063-01

Key, 1/4x1/4x1.25" Pulley Mtg.

$1.49

$

In Stock, only 4 left!

0

45

Scag 04041-07

Flat Washer, 3/8

$0.99

$

In Stock, Qty 20+

0

46

Scag 48473

Pulley, Idler Pump Drive
(Superseded to 483213)

$52.99

$

Usually ships in 2-12 days

0

47

Scag 48586

Pulley, Pump Shaft
(Superseded to 482751)

$103.99

$

In Stock, only 1 left!

0

48

Scag 04012-04

Setscrew, 5/16-18 x 3/8"

$0.99

$

In Stock, Qty 14

0

49

Scag 04030-04

Lockwasher, 3/8

$0.99

$

In Stock, Qty 7

0

50

Scag 04063-14

Key, 5.0 x 5.0 x 25mm

$0.99

$

In Stock, Qty 5

0

51

Scag 45212

Pivot, Idler Arm

$29.99

$

In Stock, only 1 left!

0

52

Scag 43032

Swivel Joint

$6.49

$

In Stock, Qty 7

0

53

Scag 46940

Arm, Idler

$63.99

$

In Stock, only 1 left!

0
