SWZ36-14KA - Scag 36" Walk-Behind Mower, 14hp Kawasaki (SN: 3230001 - 3239999) 36" Cutter Deck Parts Diagram

36" Walk-Behind Mower, 14hp Kawasaki

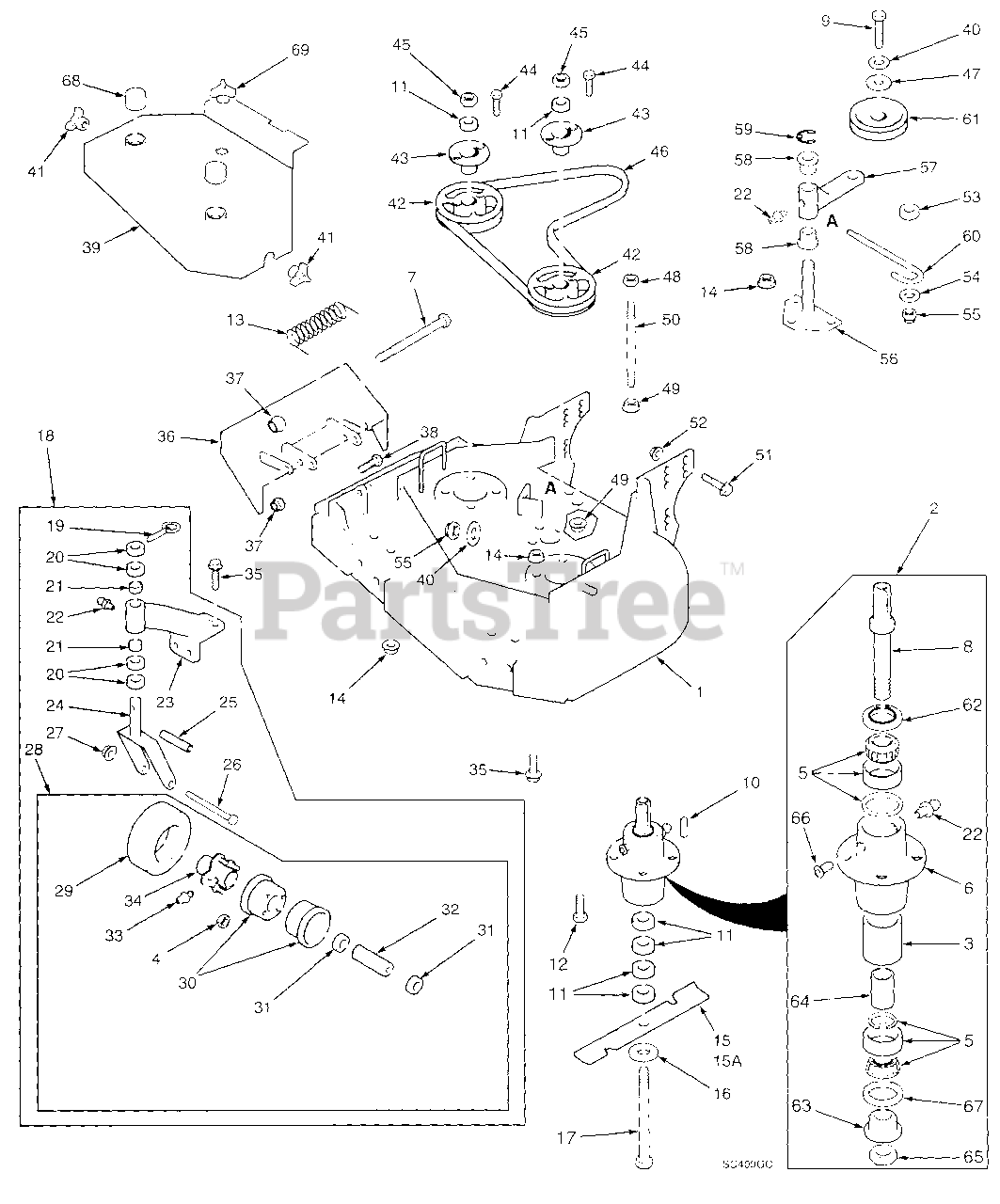

36" Cutter Deck Parts Diagram

  • Title

1

Scag 46850

Cutter Deck
(Superseded to 461553)

Note: (Includes decals)

$

$

Not available

2

Scag 46631

Cutter Spindle Assembly
(Superseded to 461663)

$257.99

$

In Stock, Qty 20+

0

3

Scag 43312

Spacer, Outside

$19.99

$

In Stock, only 1 left!

0

4

Scag 48307-08

Tapered Nut, 5/16-24
(Superseded to 481771)

$1.49

$

Usually ships in 2-12 days

0

5

Scag 481022

Tapered Bearing

Note: (Two)

$59.99

$

In Stock, Qty 15

0

6

Scag 43294

Spindle Housing, Tapered Bearing
(Superseded to 43644)

$58.99

$

In Stock, only 2 left!

0

7

Scag 04001-108

Bolt, 5/16-18 x 4-1/4" Hex Head

$2.49

$

In Stock, Qty 9

0

8

Scag 43298

Spindle Shaft
(Superseded to 43589)

$58.99

$

In Stock, only 1 left!

0

9

Scag 04001-77

Hex Head Bolt, 3/8-16 x 3-1/2"

$1.49

$

In Stock, Qty 7

0

10

Scag 04063-08

Key, 1/4 x 2"

$1.49

$

In Stock, Qty 20+

0

11

Scag 43278

Spacer, Cutter Blade
(Superseded to 43592)

$4.49

$

In Stock, Qty 20+

0

12

Scag 04001-10

Hex Head Bolt, 5/16-18 x 1-1/4"

$0.99

$

In Stock, Qty 14

0

13

Scag 481050

Spring, Chute Return
(Superseded to 482245)

$10.99

$

In Stock, Qty 5

0

14

Scag 04019-03

Nut, 5/16-18 Serrated Flange

$0.99

$

In Stock, Qty 20+

0

15

Scag 48108

Cutter Blade, 18"
(Superseded to 481707)

$23.99

$

In Stock, Qty 20+

0

15A

Scag 48185

Cutter Blade, 18" High Lift
(Superseded to 481711)

$40.99

$

In Stock, only 3 left!

0

16

Scag 04040-10

Flat Washer, 5/8" W

$0.99

$

In Stock, Qty 11

0

17

Scag 04001-41

Hex Hd. Bolt, 5/8-11 x 9-1/2"

$12.99

$

In Stock, Qty 20+

0

18

Scag 46079

Caster Assembly

Note: (Includes 19 - 28)

$395.99

$

Usually ships in 2-12 days

0

19

Scag 04066-01

Quick Pin

$8.49

$

In Stock, Qty 7

0

20

Scag 43037-01

Spacer, Caster Yoke, 1/2" thick

$2.49

$

In Stock, Qty 20+

0

21

Scag 48100-01

Bronze Bearing

$2.99

$

In Stock, Qty 13

0

22

Scag 48114-04

Grease Fitting

$0.99

$

In Stock, Qty 20+

0

23

Scag 46082

Support Assy.

Note: (Incl. 21 - 23)

$148.99

$

In Stock, only 1 left!

0

24

Scag 45006

Caster Yoke

$65.99

$

In Stock, only 1 left!

0

25

Scag 43022

Sleeve, Caster Wheel Bearing

$6.99

$

In Stock, Qty 20+

0

26

Scag 04001-37

Hex Hd. Bolt, 1/2-13 x 5-1/2"

$4.49

$

In Stock, Qty 13

0

27

Scag 04021-07

Hex Locknut, 1/2-13

$0.99

$

In Stock, Qty 20+

0

28

Scag 48307

Wheel Assy.

Note: (Incl. 4, 29 - 34)

$151.99

$

Usually ships in 2-12 days

0

29

Scag 48307-02

Tire only, Caster Wheel
(Superseded to 481774)

$87.99

$

Usually ships in 2-12 days

0

Scag 48006-03

Inner Tube Only
(Superseded to 481773)

Note: (Not shown)

$20.99

$

In Stock, only 2 left!

0

30

Scag 48307-04

Rim Pair, Caster Wheel
(Superseded to 481772)

$70.99

$

In Stock, only 1 left!

0

31

Scag 48006-07

Retainer, Bearing, Caster Wheel
(Superseded to 481770)

$4.99

$

In Stock, Qty 20+

0

32

Scag 48006-06

Roller Bearing, Caster Wheel
(Superseded to 481769)

$27.99

$

In Stock, only 2 left!

0

33

Scag 48114-03

Grease Fitting 45 deg., 1/4-28

$10.99

$

In Stock, Qty 6

0

34

Scag 48006-05

Hub Assy.
(Superseded to 481768)

Note: (Incl. bolts)

$64.99

$

Usually ships in 2-12 days

0

35

Scag 04017-16

Capscrew, 5/16-18 x 3/4" Serr. Flange Hex Head

$0.99

$

In Stock, Qty 10

0

36

Scag 461054

Discharge Chute
(Superseded to 461291)

$94.99

$

Usually ships in 2-12 days

0

37

Scag 04021-10

Hex Nut, 5/16-18 Elastic Stop

$0.99

$

In Stock, Qty 20+

0

38

Scag 04001-09

Hex Head Bolt, 5/16-18 x 1"

$0.99

$

In Stock, Qty 20+

0

39

Scag 46797

Belt Cover Assembly

$340.99

$

Usually ships in 2-12 days

0

40

Scag 04041-07

Flat Washer, 3/8" (.391 x .938 x .105)

$0.99

$

In Stock, Qty 20+

0

41

Scag 04029-03

Wing Nut, 3/8-16

$2.49

$

In Stock, Qty 20+

0

42

Scag 48924

Pulley
(Superseded to 482744)

$30.99

$

Usually ships in 2-12 days

0

43

Scag 48926

Tapered Hub, 1.125 Bore

$30.99

$

In Stock, Qty 20+

0

44

Scag 04001-01

Hex Head Bolt, 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 18

0

45

Scag 04020-09

Hex Nut, 5/8-11

$0.99

$

In Stock, Qty 20+

0

46

Scag 48204

Belt, Blade Drive

$40.99

$

In Stock, Qty 5

0

47

Scag 43077

Spacer

$4.99

$

In Stock, only 1 left!

0

48

Scag 04021-05

Nut, Center Locknut - 3/8-16

$0.99

$

In Stock, Qty 20+

0

49

Scag 04019-04

Nut, 3/8-16 Serrated Flange

$0.99

$

In Stock, Qty 20+

0

50

Scag 04004-02

Support, Belt Cover

$1.99

$

In Stock, only 4 left!

0

51

Scag 04017-42

Capscrew, 7/16-14 x 1" Serr. Flange

$4.99

$

In Stock, Qty 10

0

52

Scag 04019-05

Hex Nut, 7/16-14 Serrated Flange

$0.99

$

In Stock, Qty 12

0

53

Scag 43277

Spacer, J-Hook

$6.49

$

In Stock, only 1 left!

0

54

Scag 04041-07

Flat Washer

$0.99

$

In Stock, Qty 20+

0

55

Scag 04021-09

Nut, 3/8-16 Elastic Stop

$0.99

$

In Stock, Qty 20+

0

56

Scag 45423

Idler Pivot

$

$

Not available

57

Scag 46748

Idler Arm Assy.

Note: (Incl. 22 & 58)

$

$

Not available

58

Scag 48100-02

Bushing, 1-1/8 x 1.0 Flanged

$3.49

$

In Stock, only 2 left!

0

59

Scag 04050-05

Retaining Ring, 1-1/8" Ext "E"

$0.99

$

In Stock, Qty 20+

0

60

Scag 44078

J-Hook

$6.99

$

In Stock, only 2 left!

0

61

Scag 48269

Idler Pulley, Belt Clutch
(Superseded to 483215)

$60.99

$

In Stock, Qty 20+

0

62

Scag 481024

Seal, Cutter Spindle

$4.99

$

In Stock, Qty 20+

0

63

Scag 43297

Spindle Bushing

$9.99

$

In Stock, only 2 left!

0

64

Scag 43296

Spacer, Inside

$8.49

$

In Stock, only 2 left!

0

65

Scag 481035

Nut

$7.99

$

In Stock, only 3 left!

0

66

Scag 48677

Relief Fitting, Cutter Spindle

$

$

Not available

67

Scag 481025

Seal, Cutter Spindle

$4.99

$

In Stock, Qty 20+

0

68

Scag 48098

Shield, Spindle

$2.49

$

In Stock, only 3 left!

0

69

Scag 04029-04

Wing Nut 3/8-16 (SM)

$2.99

$

In Stock, Qty 19
