SWZ-20CVE - Scag Walk-Behind Mower, 20hp Kohler (SN: 70000 - 79999) Engine Deck Parts Diagram

Walk-Behind Mower, 20hp Kohler

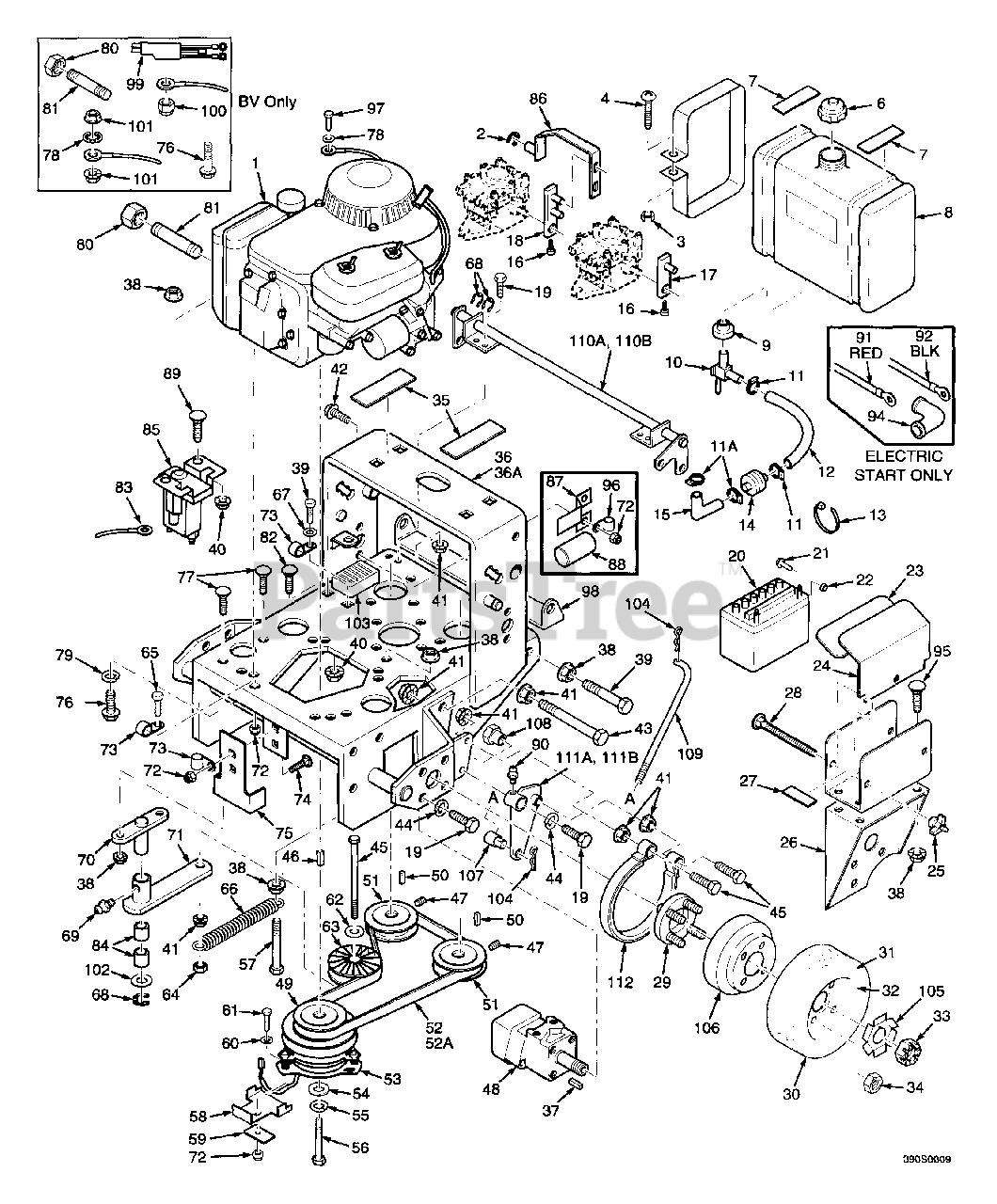

Engine Deck Parts Diagram

  • Title

1

Scag 48971

Engine 20CVE Kohler Command

$

$

Not available

2

Scag 04050-10

Retaining Ring, 1/2" Ext. "E"

$0.99

$

In Stock, only 4 left!

0

3

Scag 04020-02

Hex Nut, 1/4-20

$0.99

$

In Stock, Qty 10

0

4

Scag 04010-10

Screw, 1/4-20 x 2" Rnd. Hd. Phil.

$0.99

$

In Stock, Qty 12

0

5

Scag 421239

Strap, Fuel Tank

$25.99

$

In Stock, only 4 left!

0

6

Scag 48311

Cap, Fuel Tank
(Superseded to 483791)

$36.99

$

Usually ships in 2-12 days

0

7

Scag 48292

Pad, Rubber-Fuel Tank - Upper

$3.99

$

In Stock, only 2 left!

0

8

Scag 46846

Fuel Tank Assy.

Note: Includes 9, 10

$248.99

$

In Stock, only 1 left!

0

9

Scag 48309

Bushing
(Superseded to 482571)

$12.99

$

In Stock, Qty 20+

0

10

Scag 48308

Valve, Fuel Shut-off
(Superseded to 483747)

$30.99

$

In Stock, only 4 left!

0

11

Scag 48059-01

Clamp, Fuel Hose

Note: Not used on this model.

$0.99

$

In Stock, Qty 7

0

11A

Scag 48059-02

Clamp, Fuel Hose,

Note: KA Only, Not used on this model.

$0.99

$

In Stock, Qty 19

0

12

Scag 48058

Fuel Hose, 1/4 ID x 23"
(Superseded to 483617)

$0.99

$

In Stock, Qty 20+

0

13

Scag 48028-05

Cable Tie

$

$

Not available

14

Scag 48057-02

Fuel Filter

Note: Not used on this model.

$6.99

$

Usually ships in 2-12 days

0

15

Scag 48179

Fuel Hose, 7/32 ID x 3-1/2"
(Superseded to 48179-01)

Note: Not used on this model.

$2.99

$

Usually ships in 2-12 days

0

16

Scag 04015-06

Capscrew, #10-32 x 1 Soc. Hd.

Note: Not used on this model.

$0.99

$

In Stock, Qty 6

0

17

Scag 46323

Lever Assy., Pump Control -LH

$54.99

$

Usually ships in 2-12 days

0

18

Scag 46324

Lever Assy., Pump Control -RH

$54.99

$

Usually ships in 2-12 days

0

19

Scag 04001-19

Bolt, 3/8-16 x 1" Hex Head

$0.99

$

In Stock, Qty 7

0

20

Scag 48015

Battery

$

$

Not available

21

Scag 04001-44

Bolt, 1/4-20 x .50"

$0.99

$

In Stock, Qty 6

0

22

Scag 04020-02

Nut, 1/4-20

$0.99

$

In Stock, Qty 10

0

23

Scag 48099

Pad

$5.99

$

Usually ships in 2-12 days

0

24

Scag 42392

Battery Cover

$47.99

$

Usually ships in 2-12 days

0

25

Scag 04029-01

Wing Nut, 1/4-20

$2.49

$

In Stock, Qty 19

0

26

Scag 45685

Battery Support
(Superseded to 423356)

$131.99

$

In Stock, only 1 left!

0

27

Scag 48661

Pad, Rubber

$4.99

$

Usually ships in 2-12 days

0

28

Scag 04003-01

Bolt, 1/4-20 x 6" Carriage
(Superseded to 04003-39)

$1.49

$

In Stock, Qty 10

0

29

Scag 46928

Hub, Wheel

$136.99

$

Usually ships in 2-12 days

0

30

Scag 481418

Wheel Assy.,
(Superseded to 481502)

Note: Includes 29,31,32,34

$268.99

$

Usually ships in 2-12 days

0

31

Scag 481081-02

Tire, 16 x 6.50, 4 ply
(Superseded to 481618)

$186.99

$

Usually ships in 2-12 days

0

32

Scag 48004-04

Rim Assy
(Superseded to 481890)

$91.99

$

In Stock, only 1 left!

0

33

Scag 04027-01

Hex Castle Nut, 3/4-28 UNEF

$10.99

$

In Stock, only 1 left!

0

34

Scag 04028-01

Nut, Lug

$1.49

$

In Stock, Qty 14

0

35

Scag 48205

Pad, Rubber-Fuel Tank, Lower

$4.49

$

Usually ships in 2-12 days

0

36

Scag 46947

Engine Deck, 20" Wide, W/Decals.
(Superseded to 461750)

$643.99

$

Usually ships in 2-12 days

0

37

Scag 04063-07

Key, 3/16 X .75 Woodruff

$0.99

$

In Stock, Qty 12

0

38

Scag 04019-03

Nut, 5/16-18 Serr. Flange

$0.99

$

In Stock, Qty 20+

0

39

Scag 04001-11

Bolt, 5/16-18 x 1-1/2" Hex Head

$0.99

$

In Stock, Qty 6

0

40

Scag 04019-02

Nut, 1/4-20 Serrated Flange

$0.99

$

In Stock, Qty 20+

0

41

Scag 04019-04

Nut, 3/8-16 Serr. Flange

$0.99

$

In Stock, Qty 20+

0

42

Scag 04017-18

Capscr., 5/16-18 x 1.25 Sr. Flg.

$1.49

$

Usually ships in 2-12 days

0

43

Scag 04001-22

Bolt, 3/8-16 x 2-3/4" Hex Head

$1.49

$

In Stock, Qty 10

0

44

Scag 04030-04

Lockwasher, 3/8

$0.99

$

In Stock, Qty 8

0

45

Scag 04001-46

Bolt, 3/8-16 x 2-1/4"

$0.99

$

In Stock, Qty 20+

0

46

Scag 04063-01

Key, 1/4 x 1/4 x 1.25"

$1.49

$

In Stock, only 4 left!

0

47

Scag 04012-04

Setscrew, 5/16-18 x 3/8"

$0.99

$

In Stock, Qty 14

0

48

Scag 481416

Wheel Motor

$746.99

$

Usually ships in 2-12 days

0

49

Scag 48988

Pulley, Pump Drive Engine
(Superseded to 482755)

$52.99

$

Usually ships in 2-12 days

0

50

Scag 04063-14

Key, 5.0 x 5.0 x 25mm

$0.99

$

In Stock, Qty 5

0

51

Scag 48586

Pulley, Pump Shaft
(Superseded to 482751)

$105.99

$

In Stock, only 1 left!

0

52

Scag 48587

Belt, Pump Drive

$57.99

$

In Stock, only 3 left!

0

53

Scag 48786

Electric Clutch
(Superseded to 461074)

$519.99

$

Usually ships in 2-12 days

0

54

Scag 04041-18

Flat Washer 7/16"

$3.49

$

Usually ships in 2-12 days

0

55

Scag 04030-05

Lock Washer, 7/16

$0.99

$

In Stock, Qty 8

0

56

Scag 04001-93

Hex Head Bolt, 7/16-20 x 3"

Note: Not used on this model.

$1.49

$

In Stock, only 3 left!

0

57

Scag 04001-13

Hex Head Bolt, 5/16-18 x 2.75"

$0.99

$

In Stock, only 1 left!

0

58

Scag 421564

Backing Plate, Clutch Stop

$88.99

$

Usually ships in 2-12 days

0

59

Scag 48814

Rubber Pad, Clutch Stop

$2.49

$

Usually ships in 2-12 days

0

60

Scag 04040-15

Flat Washer, 5/16

$0.99

$

In Stock, Qty 20+

0

61

Scag 04001-10

Hex Head Bolt, 5/16-18 x 1-1/4"

$0.99

$

In Stock, Qty 14

0

62

Scag 04041-07

Flat Washer, 3/8

$0.99

$

In Stock, Qty 20+

0

63

Scag 48473

Pulley, Idler Pump Drive
(Superseded to 483213)

$53.99

$

In Stock, only 1 left!

0

64

Scag 04021-05

Nut, 3/8-16 Center Lock

$0.99

$

In Stock, Qty 20+

0

65

Scag 04001-08

Hex Head Bolt, 5/16-18 x .75"

$0.99

$

In Stock, Qty 20+

0

66

Scag 48051

Spring, Pump Belt Idler

$5.99

$

In Stock, only 2 left!

0

67

Scag 04040-14

Flat Washer 1/4"

$0.99

$

In Stock, only 4 left!

0

68

Scag 04050-02

Retaining Ring, 3/4 Ext. "E"

$0.99

$

In Stock, Qty 7

0

69

Scag 48114-04

Grease Fitting, Str. 1/4-28

$1.49

$

In Stock, Qty 20+

0

70

Scag 45212

Pivot, Idler Arm

$36.99

$

Usually ships in 2-12 days

0

71

Scag 46940

Idler Arm,

Note: Includes 69 & 84

$63.99

$

In Stock, only 1 left!

0

72

Scag 04021-10

Nut, 5/16-18 Elastic Stop

$0.99

$

In Stock, Qty 20+

0

73

Scag 48030-09

Clamp

$1.49

$

In Stock, Qty 6

0

74

Scag 04003-04

Carriage Bolt, 5/16-18 x 1"

$0.99

$

In Stock, Qty 9

0

75

Scag 421370

Clutch Bracket

$22.99

$

Usually ships in 2-12 days

0

76

Scag 04017-19

Capscr, 5/16-18 x 1.50" Sr. Flg.

$1.49

$

Usually ships in 2-12 days

0

77

Scag 04003-12

Carriage Bolt, 5/16-18 x .75"

$0.99

$

In Stock, Qty 20+

0

78

Scag 04031-09

Lock Washer, 5/16 Int. Tooth

$0.99

$

In Stock, Qty 8

0

79

Scag 04030-03

Lock Washer, 5/16

Note: Not used on this model.

$0.99

$

In Stock, Qty 20+

0

80

Scag 48257

Pipe Cap

$2.49

$

In Stock, only 1 left!

0

81

Scag 48402-04

Pipe, 4.75" Nipple

$10.99

$

Usually ships in 2-12 days

0

82

Scag 04003-09

Carriage Bolt, 1/4-20 x 1-1/4"

Note: Not used on this model.

$0.99

$

In Stock, Qty 9

0

83

Scag 48029-06

Starter Cable, 18" Red

Note: Not used on this model.

$12.99

$

Usually ships in 2-12 days

0

84

Scag 48100-05

Bushing, 3/4 Sintered

$0.99

$

In Stock, only 3 left!

0

85

Scag 48016

Solenoid

Note: Not used on this model.

$88.99

$

Usually ships in 2-12 days

0

86

Scag 45283

Shaft Weldment, RH Pump Cntl.

$48.99

$

Usually ships in 2-12 days

0

87

Scag 421390

Bracket, Capacitor
(Superseded to 422930)

Note: Not used on this model.

$6.99

$

Usually ships in 2-12 days

0

88

Scag 21013-2064

Condenser

Note: Order from Kawasaki, Not used on this model.

$

$

Not available

89

Scag 04003-02

Carriage Bolt, 1/4-20 x 3/4"

Note: Not used on this model.

$0.99

$

In Stock, Qty 20+

0

90

Scag 48114-05

Grease Fitting

$1.49

$

In Stock, Qty 9

0

91

Scag 48029-02

Battery Cable, 31.5" Red

$16.99

$

Usually ships in 2-12 days

0

92A

Scag 48029-14

Battery Cable, 31.5" Black

$16.99

$

Usually ships in 2-12 days

0

93

Scag 421703

Battery Box
(Superseded to 423308)

$54.99

$

In Stock, only 1 left!

0

94

Scag 48126

Rubber Boot

$8.99

$

Usually ships in 2-12 days

0

95

Scag 04003-12

Carriage Bolt, 5/16-18 x .75

$0.99

$

In Stock, Qty 20+

0

96

Scag 48030-10

Cable Clamp, .75 ID

$0.99

$

Usually ships in 2-12 days

0

97

Scag 04002-07

Metric H H Bolt, 8-1.25 x 10

Note: Not used on this model.

$0.99

$

In Stock, Qty 12

0

98

Scag 45419

Pulley Guard, 20" Frame

$59.99

$

Usually ships in 2-12 days

0

99

Scag 481077

Wire Hrns. Adapter, Man. Start

Note: Not used on this model.

$72.99

$

In Stock, only 1 left!

0

99

Scag 481054

Wire Hrns. Adapter, Elec. Start

Note: Not used on this model.

$21.99

$

Usually ships in 2-12 days

0

100

Scag 04021-08

Nut, 1/4-20 Elastic Stop

$0.99

$

In Stock, Qty 10

0

101

Scag 04019-03

Nut, 5/16-18 Serrated Flange

$0.99

$

In Stock, Qty 20+

0

102

Scag 04041-08

Washer, 3/4-.766 x 1.2 x .06

$0.99

$

In Stock, Qty 20+

0

102

Scag 04041-08S

Washer, 3/4-.766 x 1.2 x .035

$0.99

$

In Stock, Qty 20+

0

103

Scag 21066-2071

Regulator

Note: Order from Kawasaki, Not used on this model.

$

$

Not available

104

Scag 04062-01

Hair Pin Cotter, .094 x 1.62

$0.99

$

In Stock, Qty 20+

0

105

Scag 422214

Lock Washer, Wheel Motor

$4.49

$

In Stock, only 1 left!

0

106

Scag 422215

Brake Drum

$30.99

$

Usually ships in 2-12 days

0

107

Scag 43032

Swivel Joint

$6.49

$

In Stock, Qty 8

0

108

Scag 43415

Bushing, Brake

$7.99

$

Usually ships in 2-12 days

0

109

Scag 44126

Rod, Brake Lower

$6.99

$

In Stock, only 1 left!

0

110A

Scag 45842

Brake Shaft Assy. Wlmt.Small

Note: Not used on this model.

$45.99

$

In Stock, only 1 left!

0

110B

Scag 45854

Brake Shaft Assy. Wlmt.Large

$51.99

$

Usually ships in 2-12 days

0

111A

Scag 45860

Brake Actuator Wlmt., LH

$42.99

$

Usually ships in 2-12 days

0

111B

Scag 45861

Brake Actuator Wlmt., RH

$40.99

$

Usually ships in 2-12 days

0

112

Scag 481470

Brake Band, 7.5"

$55.99

$

Usually ships in 2-12 days

0
