SWZ-19KAI - Scag Walk-Behind Mower, 19hp Kawasaki (SN: D5100001 - D5199999) Engine Deck - Manual Start Parts Diagram

Walk-Behind Mower, 19hp Kawasaki

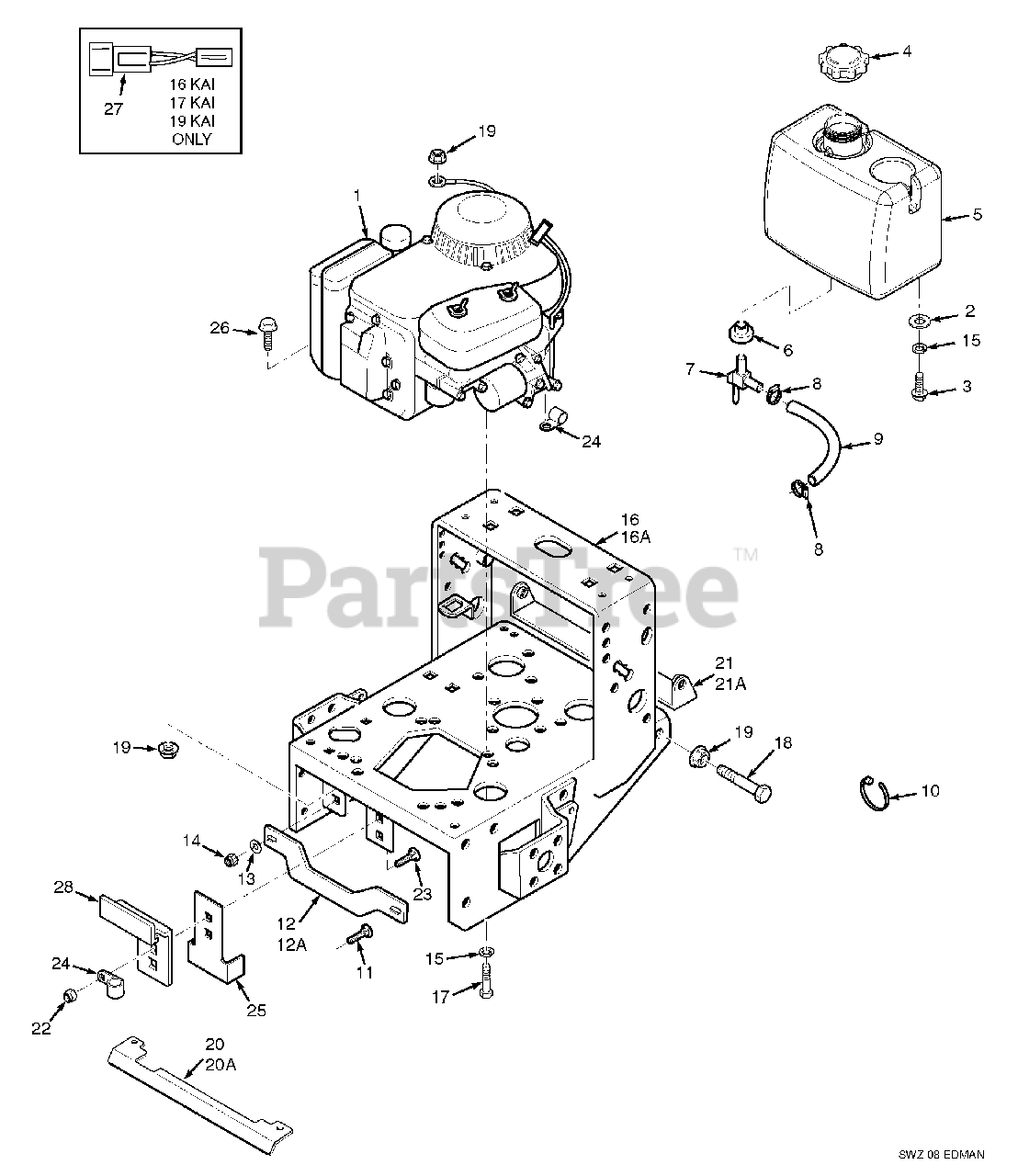

Engine Deck - Manual Start Parts Diagram

  • Title

1

Scag 483263

Engine, 16HP Kawasaki (Spec FH480V-BS24-R)

$

$

Currently unavailable

1

Scag 482927

Engine, 17HP Kawasaki (Spec FH541V-BS38-R)

$

$

Currently unavailable

1

Scag 482928

Engine, 19HP Kawasaki (Spec FH580V-BS34-R)

$

$

Currently unavailable

2

Scag 04040-15

Flatwasher, 5/16 - .375 x .875 x .083

$0.99

$

In Stock, Qty 20+

0

3

Scag 04001-09

Capscrew, 5/16-18 x 1" Hex Head

$0.99

$

In Stock, Qty 20+

0

4

Scag 482547

Cap, Fuel Tank
(Superseded to 483792)

$26.99

$

In Stock, only 4 left!

0

5

Scag 461729

Fuel Tanks Assembly
(Superseded to 462289)

Note: (incl. #6 & #7)

$307.99

$

Usually ships in 2-12 days

0

6

Scag 48309

Bushing
(Superseded to 482571)

$12.99

$

In Stock, Qty 20+

0

7

Scag 483747

Valve, Fuel Shut Off w/Screen

$29.99

$

In Stock, only 4 left!

0

8

Scag 48059-01

Clamp, Fuel Hose

$0.99

$

In Stock, Qty 7

0

9

Scag 483617

Fuel Hose, 1/4" ID x 18"

Note: (order by inch)

$0.99

$

In Stock, Qty 20+

0

10

Scag 48028-05

Cable Tie

$

$

Not available

11

Scag 04003-11

Bolt, Carriage 3/8-16 x 1-1/4"

$0.99

$

In Stock, Qty 7

0

12

Scag 424002

Brace, 16" Small Frame

$14.99

$

Usually ships in 2-12 days

0

12A

Scag 424009

Brace, 20" Large Frame

$15.99

$

Usually ships in 2-12 days

0

13

Scag 04043-04

Flatwasher, .391 x .938 x .105

$0.99

$

In Stock, Qty 20+

0

14

Scag 04021-09

Nut, 3/8-16 Elastic Stop

$0.99

$

In Stock, Qty 20+

0

15

Scag 04030-03

Lockwasher, 5/16"

$0.99

$

In Stock, Qty 20+

0

16

Scag 461745

Engine Deck, 16" Wide w/Decals

$519.99

$

Usually ships in 2-12 days

0

16A

Scag 461748

Engine Deck, 20" Wide w/Decals

$519.99

$

Usually ships in 2-12 days

0

17

Scag 04017-19

Bolt, 5/16-18 x 1"Serrated Flange

$1.49

$

Usually ships in 2-12 days

0

18

Scag 0400-17

Bolt, 5/16-18 x 2" Hex Head

$

$

Currently unavailable

19

Scag 04019-03

Nut, 5/16-18 Serr. Flange

$0.99

$

In Stock, Qty 20+

0

20

Scag 424661

Heatshield, 16" Small Frame

$16.99

$

Usually ships in 2-12 days

0

20A

Scag 424730

Heatshield, 20" Large Frame

$24.99

$

Usually ships in 2-12 days

0

21

Scag 45418

Pulley Guard, 16" Small Frame

$56.99

$

Usually ships in 2-12 days

0

21A

Scag 45419

Pulley Guard, 20" Large Frame

$57.99

$

Usually ships in 2-12 days

0

22

Scag 04021-10

Nut, 5/16-18 Elastic Stop

$0.99

$

In Stock, Qty 20+

0

23

Scag 04003-04

Bolt, Carriage 5/16-18 x 1"

$0.99

$

In Stock, Qty 9

0

24

Scag 48030-09

Clamp

$1.49

$

In Stock, Qty 5

0

25

Scag 421370

Clutch Bracket

$22.99

$

Usually ships in 2-12 days

0

26

Scag 04017-19

Capscrew, 5/16-18 x 1-1/2" Serr. Flange

$1.49

$

Usually ships in 2-12 days

0

27

Scag 481717

Wire Harness Adapter

$12.99

$

Usually ships in 2-12 days

0

28

Scag 424620

Plate, Clutch Bracket

$19.99

$

Usually ships in 2-12 days

0
