SWZ-18FS - Scag Walk-Behind Mower, 18hp Kawasaki (SN: K9600001 - K9699999) Engine Deck - Electric Start Parts Diagram

Walk-Behind Mower, 18hp Kawasaki

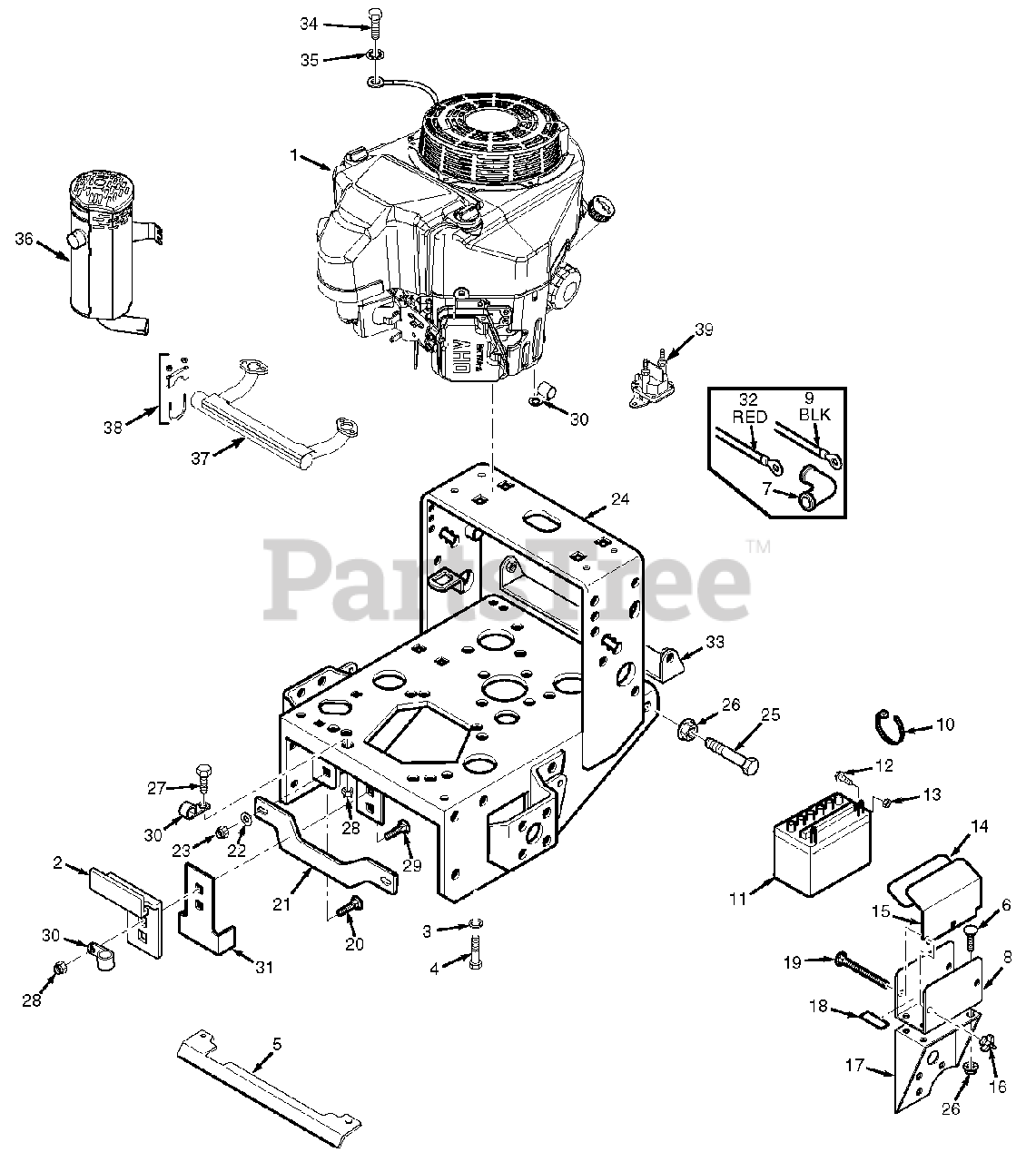

Engine Deck - Electric Start Parts Diagram

  • Title

1

Scag 485017

Engine, Kawasaki FS22 (FS651V)

$

$

Currently unavailable

2

Scag 424620

Plate, Clutch Bracket

$19.99

$

Usually ships in 2-12 days

0

3

Scag 04030-04

Lock Washer 3/8"

$0.99

$

In Stock, Qty 8

0

4

Scag 04001-32

Bolt, Hex Head 3/8-16 x 1-1/4"

$0.99

$

In Stock, Qty 12

0

5

Scag 424730

Heatshield, 20" Large Frame

$24.99

$

Usually ships in 2-12 days

0

6

Scag 04003-12

Carriage Bolt, 5/16-18 x .75"

$0.99

$

In Stock, Qty 20+

0

7

Scag 48126

Rubber Boot

$8.49

$

Usually ships in 2-12 days

0

8

Scag 423308

Battery Box

$52.99

$

In Stock, only 1 left!

0

9

Scag 48029-14

Battery Cable, 31.5" Black

$16.99

$

Usually ships in 2-12 days

0

10

Scag 48028-05

Cable Tie

$

$

Not available

11

Battery

Note: (Not Available Through Scag)

$

$

Not available

12

Scag 04001-44

Bolt, 1/4-20 x 1/2"

$0.99

$

In Stock, Qty 6

0

13

Scag 04020-02

Nut, 1/4-20

$0.99

$

In Stock, Qty 10

0

14

Scag 48099

Pad

$5.99

$

Usually ships in 2-12 days

0

15

Scag 42392

Battery Cover

$45.99

$

Usually ships in 2-12 days

0

16

Scag 04029-01

Wing Nut, 1/4-20

$2.49

$

In Stock, Qty 19

0

17

Scag 423746

Battery Support

$43.99

$

Usually ships in 2-12 days

0

18

Scag 48661

Pad, Rubber

$4.99

$

Usually ships in 2-12 days

0

19

Scag 04003-01

Bolt, 1/4-20 x 6" Carriage
(Superseded to 04003-39)

$1.49

$

In Stock, Qty 10

0

20

Scag 04003-11

Carriage Bolt, 3/8-16 X 1-1/4"

$0.99

$

In Stock, Qty 7

0

21

Scag 424009

Brace, 20" Large Frame

$15.99

$

Usually ships in 2-12 days

0

22

Scag 04043-04

Flat Washer .391 x .938 x .105

$0.99

$

In Stock, Qty 20+

0

23

Scag 04021-09

Nut, 3/8-16 Elastic Stop

$0.99

$

In Stock, Qty 20+

0

24

Scag 462288

Engine Deck, 20" Wide, w/decals

$642.99

$

Usually ships in 2-12 days

0

25

Scag 04001-17

Bolt, 5/16-18 x 2" Hex Head

$0.99

$

In Stock, Qty 6

0

26

Scag 04019-03

Nut, 5/16-18 Serr. Flange

$0.99

$

In Stock, Qty 20+

0

27

Scag 04001-08

Hex Head Bolt, 5/16-18 x .75"

$0.99

$

In Stock, Qty 20+

0

28

Scag 04021-10

Nut, 5/16-18 Elastic Stop

$0.99

$

In Stock, Qty 20+

0

29

Scag 04003-04

Carriage Bolt, 5/16-18 x 1"

$0.99

$

In Stock, Qty 9

0

30

Scag 48030-09

Clamp

$1.49

$

In Stock, Qty 5

0

31

Scag 421370

Clutch Bracket

$22.99

$

Usually ships in 2-12 days

0

32

Scag 48029-13

Battery Cable, 25" Red

$13.99

$

In Stock, only 1 left!

0

32

Scag 48029-06

Battery Cable, 18" Red

$12.99

$

Usually ships in 2-12 days

0

33

Scag 45419

Pulley Guard, 20" Frame

$57.99

$

Usually ships in 2-12 days

0

34

Scag 04002-06

Bolt, Hex Head M8-1.25 x 16

$0.99

$

In Stock, only 1 left!

0

35

Scag 04031-03

Lockwasher, 5/16" Ext. Tooth

$0.99

$

Usually ships in 2-12 days

0

36

Scag 484326

Muffler

$173.99

$

Usually ships in 2-12 days

0

37

Scag 484327

Exhaust Manifold

$105.99

$

Usually ships in 2-12 days

0

38

Scag 481259

Clamp, Muffler 1-1/4" Dia.

$5.99

$

Usually ships in 2-12 days

0

39

Scag 483278

Solenoid

$51.99

$

In Stock, only 1 left!

0
