SWZ-17KA - Scag Walk-Behind Mower, 17hp Kawasaki (SN: 8200001 - 8209999) Handle Assembly Small Frame (16") Parts Diagram

Walk-Behind Mower, 17hp Kawasaki

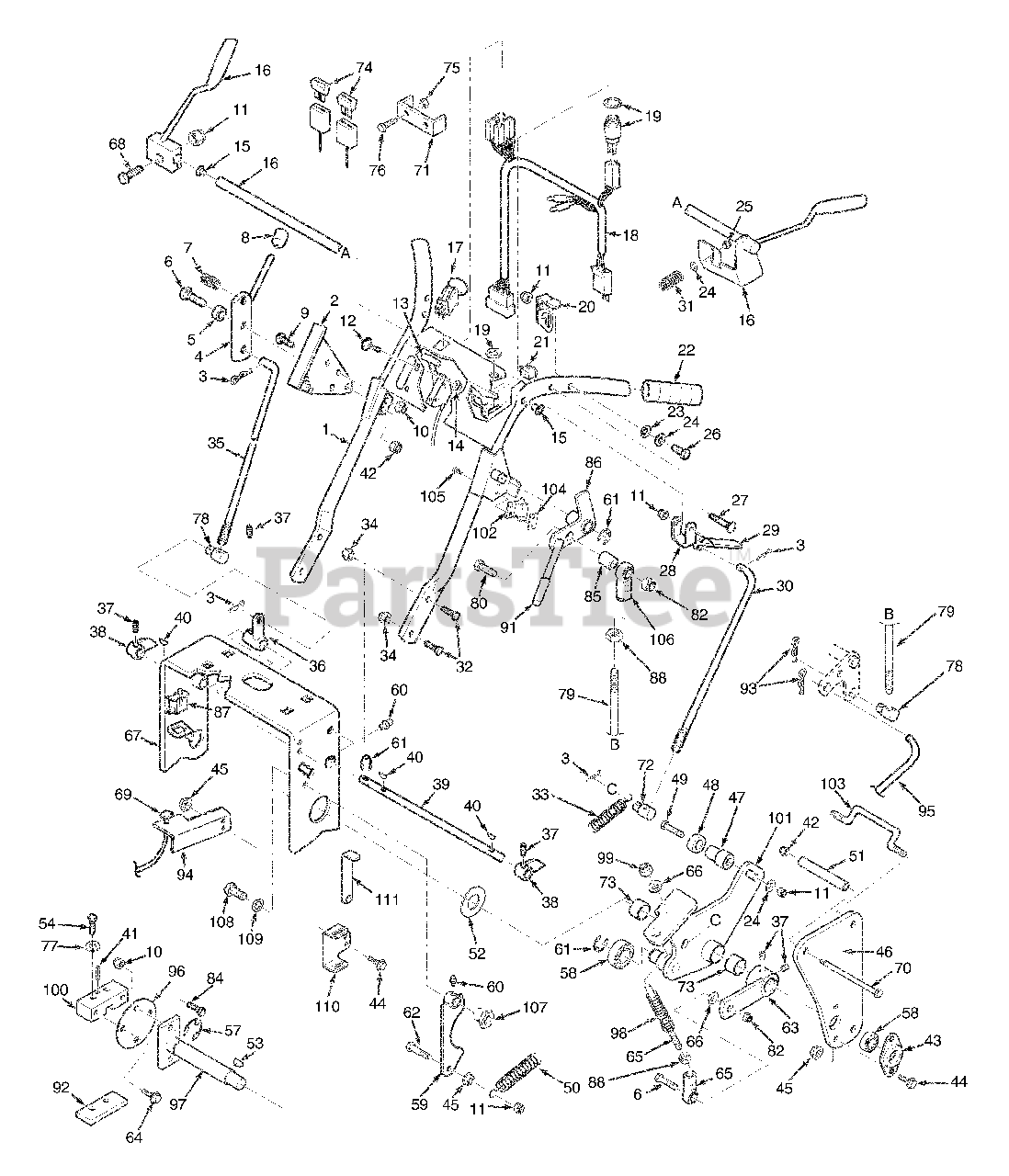

Handle Assembly Small Frame (16") Parts Diagram

  • Title

1

Scag 461598

Upper Handle Wlmt. W/Decals
(Superseded to 461973)

$752.99

$

Usually ships in 2-12 days

0

2

Scag 42675

Quadrant, Speed Control

$93.99

$

Usually ships in 2-12 days

0

3

Scag 04062-02

Hairpin, .094 x 1.19

$0.99

$

In Stock, Qty 20+

0

4

Scag 45282

Lever, Speed Adjustment

$51.99

$

Usually ships in 2-12 days

0

5

Scag 43086

Bushing, Speed Adjustment Lever

$6.49

$

Usually ships in 2-12 days

0

6

Scag 04001-20

Hex Head Bolt, 3/8-16 x 1.5"

$0.99

$

In Stock, Qty 20+

0

7

Scag 48493-01

Ball Plunger

$26.99

$

Usually ships in 2-12 days

0

8

Scag 48092

Knob, Speed Adjustment

$5.99

$

Usually ships in 2-12 days

0

9

Scag 04014-01

Capscrew, 1/4-20 x 3/4" FHHS

$0.99

$

In Stock, Qty 5

0

10

Scag 04021-08

Nut, 1/4-20 Elastic Stop

$0.99

$

In Stock, Qty 10

0

11

Scag 04021-10

Nut, 5/16-18 Elastic Stop

$0.99

$

In Stock, Qty 20+

0

12

Scag 04010-01

Screw, #10-32 x 1/2" PW HD

$0.99

$

In Stock, Qty 20+

0

13

Scag 48946

Throttle Control

$32.99

$

In Stock, Qty 10

0

14

Scag 04019-01

Nut, #10-32 Serr. Flange

$0.99

$

Usually ships in 2-12 days

0

15

Scag 48312

Bushing

$0.99

$

In Stock, Qty 10

0

16

Scag 45572

Handle, Oper. Presence-RH

$54.99

$

Usually ships in 2-12 days

0

Scag 45573

Handle, Oper. Presence-LH

$60.99

$

Usually ships in 2-12 days

0

17

Scag 481687

Switch,Elec.Clutch Eng.
(Superseded to 483957)

Note: (incl.Nut)

$46.99

$

In Stock, Qty 20+

0

18

Scag 482686

Wire Harness, Manual Start

$139.99

$

Usually ships in 2-12 days

0

19

Scag 48609

Key Switch, Manual Srt.

Note: (inc. Hdw)

$13.99

$

In Stock, only 1 left!

0

20

Scag 461242

Neutral Latch-RH

$15.99

$

Usually ships in 2-12 days

0

Scag 461241

Neutral Latch-LH

$14.99

$

Usually ships in 2-12 days

0

21

Scag 48717

Switch, Neutral Interlock

$10.99

$

In Stock, only 1 left!

0

22

Scag 48159

Grip

$3.49

$

In Stock, Qty 8

0

23

Scag 04032-01

Washer, Curved Spring

$0.99

$

In Stock, only 3 left!

0

24

Scag 04040-15

Flat Washer

$0.99

$

In Stock, Qty 20+

0

25

Scag 04021-10

Nut, 5/16-18 Elastic Stop

$0.99

$

In Stock, Qty 20+

0

26

Scag 04001-17

Hex Head Bolt, 5/16-18 x 2"

$0.99

$

In Stock, Qty 6

0

27

Scag 04001-53

Hex Hd. Bolt, 5/16-18 x 2.5"

$0.99

$

In Stock, Qty 13

0

28

Scag 46089

Lever, Steering Control
(Superseded to 483042)

Note: (incl. 29)

$44.99

$

In Stock, only 1 left!

0

29

Scag 48144

Grip, Steering Control

$1.49

$

Usually ships in 2-12 days

0

30

Scag 44141

Rod, Steering Control

$16.99

$

Usually ships in 2-12 days

0

31

Scag 48951

Spring, Handle Return

$0.99

$

In Stock, only 1 left!

0

32

Scag 04017-27

Capscr., 3/8-16 x 1" Ser. Flange

$1.49

$

In Stock, Qty 20+

0

33

Scag 481866

Spring

$14.99

$

Usually ships in 2-12 days

0

34

Scag 04019-04

Nut, 3/8-16 Serr. Flange

$0.99

$

In Stock, Qty 20+

0

35

Scag 44142

Rod Speed Control

$12.99

$

Usually ships in 2-12 days

0

36

Scag 451562

Bellcrank, Speed Control
(Superseded to 43887)

$14.99

$

Usually ships in 2-12 days

0

37

Scag 04012-02

Setscrew, 1/4-28 x .25"

$0.99

$

In Stock, only 2 left!

0

38

Scag 46335

Cam, Speed Control

Note: (incl. SS)

$54.99

$

Usually ships in 2-12 days

0

39

Scag 43166

Jackshaft, Speed Control

$29.99

$

Usually ships in 2-12 days

0

40

Scag 04063-13

Key, 1/8 x 1/2" Woodruff

$0.99

$

In Stock, Qty 6

0

41

Scag 04060-06

Roll Pin, 3/16-.75

$0.99

$

In Stock, only 1 left!

0

42

Scag 04021-10

Nut, Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

43

Scag 48223

Flange, Bearing

$5.99

$

In Stock, only 2 left!

0

44

Scag 04017-17

Capscrew, 5/16-18 x 1" Serr. Flg.

$0.99

$

Usually ships in 2-12 days

0

45

Scag 04019-03

Nut, 5/16-18 Serrated Flange

$0.99

$

In Stock, Qty 20+

0

46

Scag 422795

Plate, Side

$22.99

$

Usually ships in 2-12 days

0

47

Scag 43536

Spacer, Neutral Bearing

$9.49

$

Usually ships in 2-12 days

0

48

Scag 48409

Bearing, Speed Ctrl. Bellcrank

$13.99

$

Usually ships in 2-12 days

0

49

Scag 04001-69

Hex Head Bolt, 5/16-18 x 1-3/4"

$0.99

$

In Stock, only 3 left!

0

50

Scag 48494-02

Spring, Return

$6.49

$

In Stock, only 1 left!

0

51

Scag 43522

Spacer, Side Plate

$13.99

$

Usually ships in 2-12 days

0

52

Scag 04041-08S

Flat Wshr., .766 x 1.25 x .035

$0.99

$

In Stock, Qty 20+

0

53

Scag 04063-07

Key, Woodruff, 3/16 x .75"

$0.99

$

In Stock, Qty 12

0

54

Scag 04001-59

Bolt, Hex Head, 1/4-20 x 1.25

$0.99

$

In Stock, Qty 6

0

?55

Scag 04001-08

HH Bolt,5/16-18 x .75"

$0.99

$

In Stock, Qty 20+

0

?56

Scag 04030-03

Lock Washer, 5/16

$0.99

$

In Stock, Qty 20+

0

57

Scag 04050-02

Clip, Retaining .750 diameter

$0.99

$

In Stock, Qty 7

0

58

Scag 48224

Bearing, Ball Neutral Return

$13.99

$

In Stock, Qty 20+

0

59

Scag 46747

Cam, Neutral

Note: (incl. grease ftng.)

$39.99

$

Usually ships in 2-12 days

0

60

Scag 48114-05

Grease Fitting, 1/4-28 UNF

$1.49

$

In Stock, Qty 9

0

61

Scag 04050-01

Retaining Ring, 5/8"

$0.99

$

In Stock, Qty 20+

0

62

Scag 04001-09

Hex Head Bolt, 5/16-18 x 1"

$0.99

$

In Stock, Qty 20+

0

63

Scag 482146

Lever, Speed Control

$224.99

$

Usually ships in 2-12 days

0

64

Scag 04001-01

Bolt, Hex Head 1/4-20 x.75"

$0.99

$

In Stock, Qty 18

0

65

Scag 482431

Linkage Assembly

$38.99

$

In Stock, only 1 left!

0

66

Scag 04041-07

Flat Wshr., 15/16 x .3906 x 12 ga

$0.99

$

In Stock, Qty 20+

0

67

Scag 461542

Deck, Engine 16" Wide
(Superseded to 461745)

$643.99

$

Usually ships in 2-12 days

0

68

Scag 04001-10

Hex Head Bolt, 5/16-18 x 1.25"

$0.99

$

In Stock, Qty 14

0

69

Scag 482314

Choke Control

$30.99

$

In Stock, only 1 left!

0

70

Scag 04001-152

Bolt, Hex Head 3/8-16 x 4.25"

$5.49

$

In Stock, Qty 5

0

72

Scag 43520

Swivel Joint, Steering Rod

$24.99

$

Usually ships in 2-12 days

0

73

Scag 48100-06

Bushing

$1.49

$

In Stock, only 1 left!

0

77

Scag 04030-02

Lockwasher, 1/4"

$0.99

$

In Stock, Qty 20+

0

78

Scag 43032

Swivel Joint

$6.49

$

In Stock, Qty 8

0

79

Scag 44143

Rod, Brake Lever

$14.99

$

Usually ships in 2-12 days

0

80

Scag 04001-45

Hex Hd. Bolt, 3/8-16 x 2.00"

$0.99

$

In Stock, Qty 9

0

?81

Scag 04015-13

Soc. Hd. Capscrew, #8-32 x .5"

$0.99

$

In Stock, Qty 9

0

82

Scag 04021-09

Nut, 3/8-16 Elastic Stop

$0.99

$

In Stock, Qty 20+

0

?83

Scag 04041-23

Washer #8-.170 x .375 x .032

$

$

Currently unavailable

84

Scag 04001-01

Bolt, 1/4-20 x .75"

$0.99

$

In Stock, Qty 18

0

85

Scag 43286

Spacer

$2.49

$

In Stock, only 2 left!

0

86

Scag 461605

Parking Brake Lever with Grip
(Superseded to 462746)

$57.99

$

Usually ships in 2-12 days

0

87

Scag 48717

Switch, Safety

$10.99

$

In Stock, only 1 left!

0

88

Scag 04020-14

Nut, 3/8-24

$0.99

$

In Stock, only 3 left!

0

?89

Scag 481411

Bushing, Bearing Retainer
(Superseded to 461242)

$15.99

$

Usually ships in 2-12 days

0

?90

Scag 481420

Bearing, Neutral Lock

$9.99

$

Usually ships in 2-12 days

0

91

Scag 48342

Grip, Parking Brake

$2.49

$

Usually ships in 2-12 days

0

92

Scag 421203

Plate, Threaded

$18.99

$

Usually ships in 2-12 days

0

93

Scag 04062-01

Hairpin, .094 x 1.62"

$0.99

$

In Stock, Qty 20+

0

94

Scag 421622

Bracket, Choke Mtg.
(Superseded to 424113)

$15.99

$

Usually ships in 2-12 days

0

95

Scag 44126

Rod, Lower Brake

$6.99

$

In Stock, only 1 left!

0

96

Scag 422273

Plate, Coupler

$8.49

$

Usually ships in 2-12 days

0

97

Scag 451113

Shaft, Pump Control

$61.99

$

Usually ships in 2-12 days

0

98

Scag 481879

Spring

$7.99

$

In Stock, only 1 left!

0

99

Scag 04021-09

Nut, 3/8-16 Elastic Stop

$0.99

$

In Stock, Qty 20+

0

100

Scag 48829

Block, Pump Control

$21.99

$

In Stock, only 2 left!

0

101

Scag 461481

Control, LH

Note: (inc. bush. & decal)

$114.99

$

Usually ships in 2-12 days

0

Scag 461482

Control, RH

Note: (inc. bush. & decal)

$114.99

$

In Stock, only 1 left!

0

102

Scag 481545

Switch, Parking Brake

$17.99

$

In Stock, only 2 left!

0

103

Scag 44144

Rod, Offset

$14.99

$

In Stock, only 1 left!

0

104

Scag 422373

Plate, Threaded

$11.99

$

Usually ships in 2-12 days

0

105

Scag 04010-12

Screw #10-32 Sltd Hex Wshr Hd

$0.99

$

In Stock, only 1 left!

0

106

Scag 48464

Ball Joint, RH Thread

$23.99

$

In Stock, only 1 left!

0

107

Scag 43415

Bushing, Brake

$7.99

$

Usually ships in 2-12 days

0

108

Scag 04001-19

Bolt, Hex Head 3/8-16 x 1"

$0.99

$

In Stock, Qty 7

0

109

Scag 04030-04

Lockwasher, 3/8 Spring

$0.99

$

In Stock, Qty 8

0

110

Scag 423876

Mounting Bracket, Wrench

$12.99

$

Usually ships in 2-12 days

0

111

Scag 423875

Wrench

$12.99

$

Usually ships in 2-12 days
