SWZ-16BVE - Scag Walk-Behind Mower, 16hp Vanguard (SN: 70000 - 79999) Handle Assembly Parts Diagram

Walk-Behind Mower, 16hp Vanguard

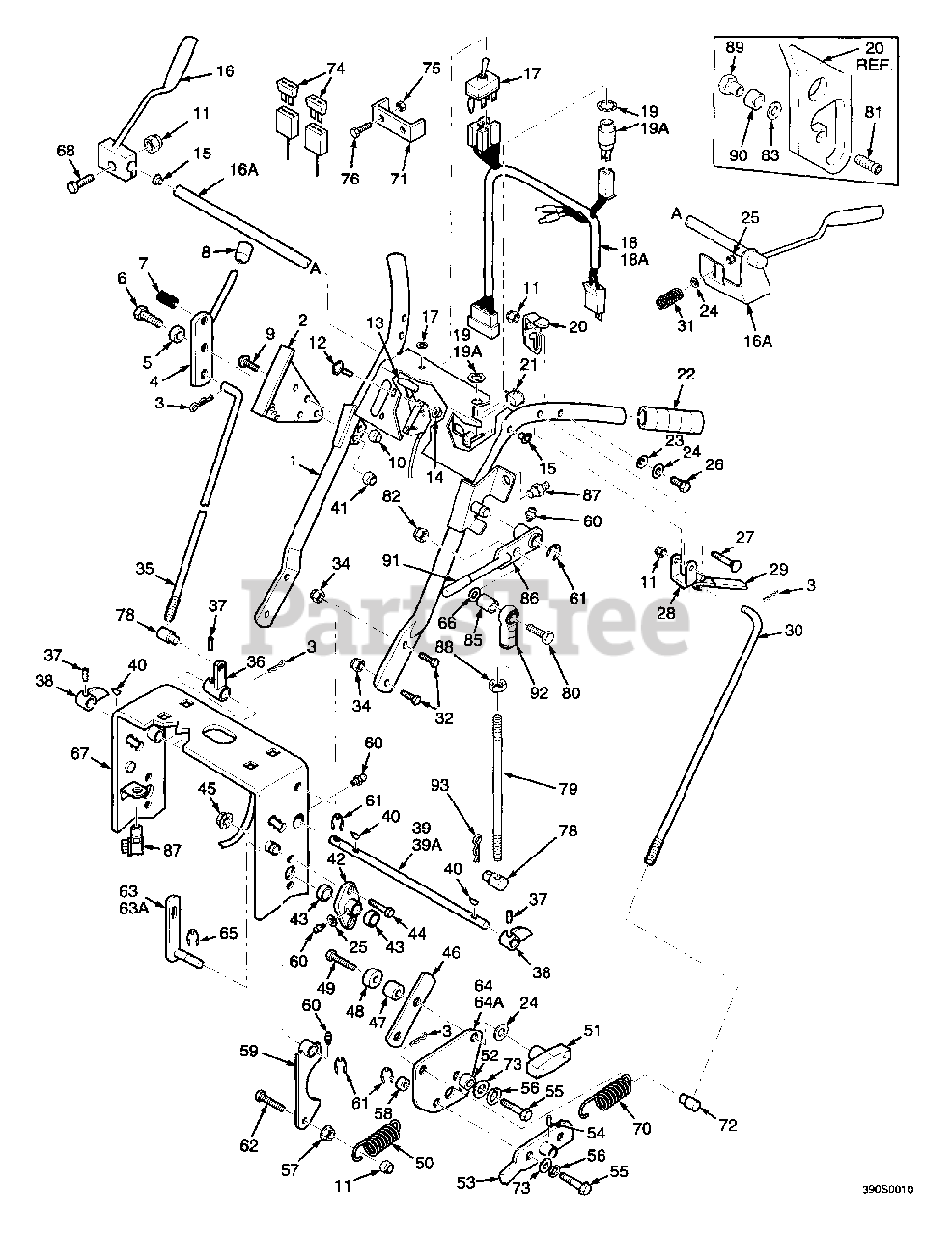

Handle Assembly Parts Diagram

  • Title

1

Scag 46939

Upper Handle Wlmt. W/Decals

$

$

Not available

2

Scag 42675

Quadrant, Speed Control

$91.99

$

Usually ships in 2-12 days

0

3

Scag 04062-02

Hairpin, .094 x 1.19

$0.99

$

In Stock, Qty 20+

0

4

Scag 45282

Lever, Speed Adjustment

$50.99

$

Usually ships in 2-12 days

0

5

Scag 43086

Bushing, Speed Adjustment Lever

$5.99

$

Usually ships in 2-12 days

0

6

Scag 04001-20

Hex Head Bolt, 3/8-16 x 1-1/2"

$0.99

$

In Stock, Qty 20+

0

7

Scag 48493-01

Ball Plunger

$26.99

$

Usually ships in 2-12 days

0

8

Scag 48092

Knob, Speed Adjustment

$5.99

$

Usually ships in 2-12 days

0

9

Scag 04014-01

Capscrew, 1/4-20 x 3/4" FHHS

$0.99

$

In Stock, Qty 5

0

10

Scag 04021-08

Nut, 1/4-20 Elastic Stop

$0.99

$

In Stock, Qty 9

0

11

Scag 04021-10

Nut, 5/16-18 Elastic Stop

$0.99

$

In Stock, Qty 20+

0

12

Scag 04010-01

Screw, #10-32 x 1/2" PW HD

$0.99

$

In Stock, Qty 20+

0

13

Scag 48946

Throttle Control

$31.99

$

In Stock, Qty 10

0

14

Scag 04019-01

Nut, #10-32 Serr. Flange

$0.99

$

Usually ships in 2-12 days

0

15

Scag 48312

Bushing

$0.99

$

In Stock, Qty 10

0

16

Scag 45572

Handle, Operator Presence-RH

$53.99

$

Usually ships in 2-12 days

0

16A

Scag 45571

Handle, Operator Presence-LH (20")

$58.99

$

Usually ships in 2-12 days

0

17

Scag 48787

Switch, Elec. Clutch Eng.

Note: Incl. Nut

$37.99

$

In Stock, only 1 left!

0

18

Scag 481076

Wire Harness, Manual Start
(Superseded to 481406)

$155.99

$

Usually ships in 2-12 days

0

18A

Scag 481055

Wire Harness, Electric Start
(Superseded to 481267)

$183.99

$

Usually ships in 2-12 days

0

19

Scag 48609

Key Switch, Manual Srt.

Note: Incl. Hwd.

$13.99

$

In Stock, only 1 left!

0

19A

Scag 48798

Key Switch, Elec. Start

Note: Incl. Hwd.

$27.99

$

In Stock, Qty 20+

0

20

Scag 46942

Neutral Latch-RH
(Superseded to 461242)

$15.99

$

In Stock, only 3 left!

0

20A

Scag 46941

Neutral Latch-LH
(Superseded to 461241)

$13.99

$

In Stock, only 3 left!

0

21

Scag 48717

Switch, Neutral Interlock

$9.99

$

In Stock, only 3 left!

0

22

Scag 48159

Grip

$3.49

$

In Stock, Qty 8

0

23

Scag 04032-01

Washer, Curved Spring

$0.99

$

In Stock, only 3 left!

0

24

Scag 04040-15

Flat Washer

$0.99

$

In Stock, Qty 20+

0

25

Scag 04031-08

Lock Washer, 1/4" Int. Tooth

$0.99

$

In Stock, Qty 10

0

26

Scag 04001-17

Hex Head Bolt, 5/16-18 x 2"

$0.99

$

In Stock, Qty 20+

0

27

Scag 04001-53

Hex Hd. Bolt, 5/16-18 x 2-1/2"

$0.99

$

In Stock, Qty 13

0

28

Scag 46744

Lever, Steering Control

Note: Incl. 29

$

$

Not available

29

Scag 48492

Grip, Steering Control

$

$

Not available

30

Scag 44050

Rod, Steering Control

$28.99

$

Usually ships in 2-12 days

0

31

Scag 48951

Spring, Handle Return

$0.99

$

In Stock, only 1 left!

0

32

Scag 04017-27

Capscr., 3/8-16 x 1" Ser. Flange

$1.49

$

In Stock, Qty 20+

0

33

Scag 04030-02

Lock Washer, 1/4"

$0.99

$

In Stock, Qty 20+

0

34

Scag 04019-04

Nut, 3/8-16 Serr. Flange

$0.99

$

In Stock, Qty 20+

0

35

Scag 44051

Rod Steering Control

$42.99

$

In Stock, only 2 left!

0

36

Scag 45279

Bellcrank, Speed Control

$36.99

$

Usually ships in 2-12 days

0

37

Scag 04012-02

Setscrew, 1/4-28 x 1/4"

$0.99

$

In Stock, only 2 left!

0

38

Scag 46335

Cam, Speed Control

Note: Incl. SS

$53.99

$

Usually ships in 2-12 days

0

39

Scag 43155

Jackshaft, Speed Control

$44.99

$

Usually ships in 2-12 days

0

40

Scag 04063-13

Key, 1/8 x 1/2" Woodruff

$0.99

$

In Stock, Qty 6

0

41

Scag 04021-10

Nut, 3/8-16 Elastic Stop

$0.99

$

In Stock, Qty 20+

0

42

Scag 46336

Pivot, Pump Ctrl

Note: Incl. Bshg & Zrk

$51.99

$

Usually ships in 2-12 days

0

43

Scag 48100-04

Bushing, 1/2" ID

$0.99

$

In Stock, only 4 left!

0

44

Scag 04017-17

Capscrew, 5/16-18 x 1" Serr. Flg.

$0.99

$

Usually ships in 2-12 days

0

45

Scag 04019-03

Nut, 5/16-18 Serrated Flange

$0.99

$

In Stock, Qty 20+

0

46

Scag 42730

Bar, Speed Control

$98.99

$

Usually ships in 2-12 days

0

47

Scag 43161

Spacer, Speed Ctrl. Bearing

$

$

Not available

46

Scag 48409

Bearing, Speed Ctrl. Bellcrank

$13.99

$

Usually ships in 2-12 days

0

49

Scag 04001-69

Hex Head Bolt, 5/16-18 x 1-3/4"

$0.99

$

In Stock, only 3 left!

0

50

Scag 48494-02

Spring, Return

$6.49

$

In Stock, only 1 left!

0

51

Scag 481092-01

Knob, Plastic

$5.49

$

In Stock, only 2 left!

0

52

Scag 43308

Bushing

$

$

Not available

53

Scag 45292

Handle, Neutral Adj

$

$

Not available

54

Scag 04065-05

Drive Pin, 5/32 x 7/8 Type U

$17.99

$

In Stock, only 3 left!

0

55

Scag 04001-08

HH Bolt, 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

56

Scag 04030-03

Lock Washer, 5/16

$0.99

$

In Stock, Qty 20+

0

57

Scag 04019-03

Nut, 5/16-18 Serr. Flange

$0.99

$

In Stock, Qty 20+

0

58

Scag 48224

Bearing, Ball Neutral Return

$12.99

$

In Stock, Qty 20+

0

59

Scag 46747

Cam, Neutral

Note: Incl. grease ftng.

$38.99

$

Usually ships in 2-12 days

0

60

Scag 48114-05

Grease Fitting, 1/4-28 UNF

$1.49

$

In Stock, Qty 9

0

61

Scag 04050-01

Retaining Ring, 5/8 Ext. "E"

$0.99

$

In Stock, Qty 20+

0

62

Scag 04001-09

Hex Head Bolt, 5/16-18 x 1"

$0.99

$

In Stock, Qty 20+

0

63

Scag 45295

Shaft, Pump Control-LH

$47.99

$

In Stock, only 1 left!

0

63A

Scag 45283

Shaft, Pump Control-RH

$47.99

$

Usually ships in 2-12 days

0

64

Scag 45642

Bellcrank, Pump Control-LH

$58.99

$

Usually ships in 2-12 days

0

64A

Scag 45643

Bellcrank, Pump Control-RH

$

$

Not available

65

Scag 04050-10

Retaining Ring, 1/2 Ext. "E"

$0.99

$

In Stock, only 4 left!

0

66

Scag 04041-07

Flat Washer, 15/16 x 25/64 x 12 ga

$0.99

$

In Stock, Qty 20+

0

67

Deck, Engine

Note: By Ref.

$

$

Not available

68

Scag 04001-10

Hex Head Bolt, 5/16-18 x 1-1/4"

$0.99

$

In Stock, Qty 20+

0

69

Scag 481072

Choke Control
(Superseded to 482314)

$29.99

$

In Stock, only 1 left!

0

70

Scag 481057

Spring, Return

$16.99

$

In Stock, only 2 left!

0

71

Scag 42413

Fuse Holder

$40.99

$

Usually ships in 2-12 days

0

72

Scag 43306

Swivel Joint, Steering Rod

$31.99

$

Usually ships in 2-12 days

0

73

Scag 04040-04

Flat Washer (.344 x .688 x .065)

$0.99

$

In Stock, Qty 20+

0

74

Scag 48298

Blade Fuse, 20A

$3.99

$

Usually ships in 2-12 days

0

75

Scag 04021-01

Nut, #10-32 Elastic Stop

$0.99

$

In Stock, Qty 10

0

76

Scag 04010-03

Screw, #10-32 x 1-1/2" Phillips

$1.49

$

Usually ships in 0 days

0

77

Scag 43305

Pin, Neutral Lock

$5.49

$

Usually ships in 2-12 days

0

78

Scag 43032

Swivel Joint

$6.49

$

In Stock, Qty 17

0

79

Scag 44125

Rod, Brake Lever

$8.49

$

In Stock, only 2 left!

0

80

Scag 04001-21

Hex Hd. Bolt, 3/8-16 x 1-3/4

$0.99

$

In Stock, Qty 20+

0

81

Scag 04015-13

Soc. Hd. Capscrew, #8-32 x 1/2

$0.99

$

In Stock, Qty 9

0

82

Scag 04021-09

Nut, 3/8-16 Elastic Stop

$0.99

$

In Stock, Qty 20+

0

83

Scag 04041-23

Washer #8-.170 x .375 x .032

$

$

Currently unavailable

84

Scag 04050-01

Retaining Ring, 5/8 Ext, "E"

$0.99

$

In Stock, Qty 20+

0

85

Scag 43212

Spacer

$4.49

$

In Stock, Qty 5

0

86

Scag 46954

Parking Brake Lever with Grip

$37.99

$

Usually ships in 2-12 days

0

87

Scag 481476

Switch, Parking Brake

$56.99

$

Usually ships in 2-12 days

0

88

Scag 04020-14

Nut, 3/8-24

$0.99

$

In Stock, only 3 left!

0

89

Scag 481411

Bushing, Bearing Retainer
(Superseded to 461242)

$15.99

$

In Stock, only 3 left!

0

90

Scag 481420

Bearing, Neutral Lock

$9.99

$

Usually ships in 2-12 days

0

91

Scag 48342

Grip, Parking Brake

$2.49

$

Usually ships in 2-12 days

0

92

Scag 48464

Ball Joint, RH Thread

$23.99

$

In Stock, only 1 left!

0

93

Scag 04062-01

Hairpin, .094 x 1.62

$0.99

$

In Stock, Qty 20+

0
