SWZ-16BVE - Scag Walk-Behind Mower, 16hp Vanguard (SN: 3320001 - 3329999) 16BV, 16BVE, 18BV Engine Deck Parts Diagram

Walk-Behind Mower, 16hp Vanguard

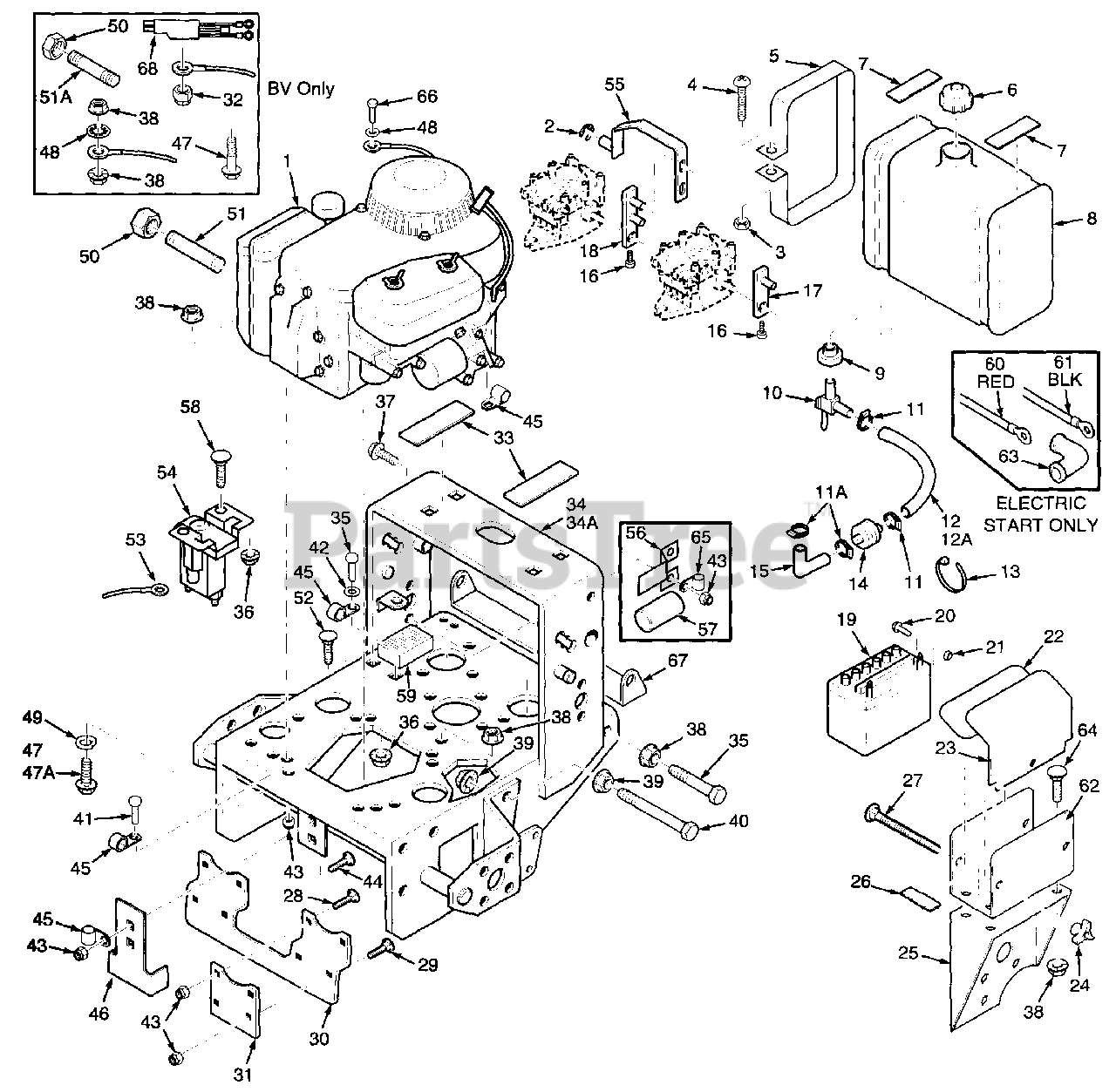

16BV, 16BVE, 18BV Engine Deck Parts Diagram

  • Title

1

Scag 481065

Engine 16BV Briggs Vanguard

$

$

Not available

Scag 48766

Engine 16BVE Briggs Vanguard

$

$

Not available

Scag 481066

Engine 18BV Briggs Vanguard

$

$

Not available

Scag 481067

Exhaust System, BV Engine

Note: Not shown

$

$

Not available

Scag 481068

Debris Guard, 18HP BV

Note: Not shown

$

$

Not available

2

Scag 04050-10

Retaining Ring, 1/2" Ext. "E"

$0.99

$

In Stock, only 4 left!

0

3

Scag 04020-02

Hex Nut, 1/4-20

$0.99

$

In Stock, Qty 20+

0

4

Scag 04010-10

Screw, 1/4-20 x 2" Rnd. Hd. Phil.

$0.99

$

In Stock, Qty 12

0

5

Scag 421239

Strap, Fuel Tank

$24.99

$

In Stock, only 4 left!

0

6

Scag 481603

Cap, Fuel Tank
(Superseded to 483791)

$35.99

$

Usually ships in 2-12 days

0

7

Scag 48292

Pad, Rubber - Fuel Tank - Upper

$3.49

$

In Stock, only 2 left!

0

8

Scag 46846

Fuel Tank Assy.

Note: (Incl. 9, 10)

$242.99

$

In Stock, only 1 left!

0

9

Scag 48309

Bushing
(Superseded to 482571)

$12.99

$

In Stock, Qty 20+

0

10

Scag 48308

Valve, Fuel Shut-off
(Superseded to 483747)

$29.99

$

In Stock, Qty 17

0

11

Scag 48059-01

Clamp, Fuel Hose

$0.99

$

In Stock, Qty 7

0

11A

Note: Not used on this model

$

$

Not available

12

Scag 48058

Fuel Hose, 1/4 ID x 20"
(Superseded to 483617)

Note: KA, BV

$0.99

$

In Stock, Qty 20+

0

12A

Note: Not used on this model

$

$

Not available

13

Scag 48028-05

Cable Tie

$

$

Not available

14

Note: Not used on this model

$

$

Not available

15

Note: Not used on this model

$

$

Not available

16

Scag 04015-06

Capscrew, #10-32 x 1 Soc. Hd.

$0.99

$

In Stock, Qty 6

0

17

Scag 46323

Lever Assy., Pump Control - LH

$53.99

$

Usually ships in 2-12 days

0

18

Scag 46324

Lever Assy., Pump Control - RH

$53.99

$

Usually ships in 2-12 days

0

19

Scag 48015

Battery

$

$

Not available

20

Scag 04001-44

Bolt, 1/4-20 x .50"

$0.99

$

In Stock, Qty 6

0

21

Scag 04020-02

Nut, 1/4-20

$0.99

$

In Stock, Qty 20+

0

22

Scag 48099

Pad

$5.99

$

Usually ships in 2-12 days

0

23

Scag 42392

Battery Cover

$45.99

$

Usually ships in 2-12 days

0

24

Scag 04029-01

Wing Nut, 1/4-20

$2.49

$

In Stock, Qty 17

0

25

Scag 45685

Battery Support
(Superseded to 423356)

$128.99

$

In Stock, only 1 left!

0

26

Scag 48661

Pad, Rubber

$4.99

$

Usually ships in 2-12 days

0

27

Scag 04003-01

Bolt, 1/4-20 x 6" Carriage
(Superseded to 04003-39)

$1.49

$

In Stock, Qty 10

0

28

Scag 04003-28

Carriage Bolt, 5/16-18 x 2"

$0.99

$

Usually ships in 2-12 days

0

29

Scag 04003-04

Carriage Bolt, 5/16-18 x 1"

$0.99

$

In Stock, Qty 17

0

30

Scag 422553

Stiffener

$58.99

$

Usually ships in 2-12 days

0

31

Scag 422552

Plate, Backing

$17.99

$

Usually ships in 2-12 days

0

32

Scag 04021-08

Nut, 1/4-20 Elastic Stop

$0.99

$

In Stock, Qty 9

0

33

Scag 48205

Pad, Rubber-Fuel Tank, Lower

$4.49

$

Usually ships in 2-12 days

0

34

Scag 46946

Engine Deck, 16" Wide, W/Decals
(Superseded to 461545)

$

$

Not available

34A

Scag 46947

Engine Deck, 20" Wide, W/Decals
(Superseded to 461750)

$

$

Not available

35

Scag 04001-11

Bolt, 5/16-18 x 1-1/2" Hex Head

$0.99

$

In Stock, Qty 20+

0

36

Scag 04019-02

Nut, 1/4-20 Serrated Flange

$0.99

$

In Stock, Qty 20+

0

37

Scag 04017-18

Capscr., 5/16-18 x 1.25 Sr. Flg.

$1.49

$

Usually ships in 2-12 days

0

38

Scag 04019-03

Nut, 5/16-18 Serr. Flange

$0.99

$

In Stock, Qty 20+

0

39

Scag 04019-04

Nut, 3/8-16 Serr. Flange

$0.99

$

In Stock, Qty 20+

0

40

Scag 04001-22

Bolt, 3/8-16 x 2-3/4" Hex Head

$1.49

$

In Stock, Qty 19

0

41

Scag 04001-08

Hex Head Bolt, 5/16-18 x .75"

$0.99

$

In Stock, Qty 20+

0

42

Scag 04040-14

Flat Washer 1/4"

$0.99

$

In Stock, only 4 left!

0

43

Scag 04021-10

Nut, 5/16-18 Elastic Stop

$0.99

$

In Stock, Qty 20+

0

44

Scag 04003-04

Carriage Bolt, 5/16-18 x 1"

$0.99

$

In Stock, Qty 17

0

45

Scag 48030-09

Clamp

$1.49

$

In Stock, Qty 15

0

46

Scag 421370

Clutch Bracket

$22.99

$

Usually ships in 2-12 days

0

47

Scag 04017-19

Capscr, 5/16-18 x 1.50" Sr. Flg.

$1.49

$

Usually ships in 2-12 days

0

47A

Note: Not used on this model

$

$

Not available

48

Scag 04031-09

Lock Washer, 5/16 Int. Tooth

$0.99

$

In Stock, Qty 8

0

49

Note: Not used on this model

$

$

Not available

50

Scag 48257

Pipe Cap

$2.49

$

In Stock, only 1 left!

0

51

Note: Not used on this model

$

$

Not available

51A

Scag 48402-03

Pipe, 5.25 Nipple

$10.99

$

Usually ships in 2-12 days

0

52

Note: Not used on this model

$

$

Not available

53

Scag 48029-06

Starter Cable, 18" Red

$12.99

$

Usually ships in 2-12 days

0

54

Scag 48016

Solenoid

$86.99

$

Usually ships in 2-12 days

0

55

Scag 45283

Shaft Weldment, RH Pump Cntl.

$47.99

$

Usually ships in 2-12 days

0

56

Note: Not used on this model

$

$

Not available

57

Note: Not used on this model

$

$

Not available

58

Scag 04003-02

Carriage Bolt, 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 20+

0

59

Note: Not used on this model

$

$

Not available

60

Scag 48029-02

Battery Cable, 31.5" Red

$15.99

$

Usually ships in 2-12 days

0

61

Scag 48029-15

Battery Cable, 36" Black

$17.99

$

In Stock, only 1 left!

0

61A

Note: Not used on this model

$

$

Not available

61B

Note: Not used on this model

$

$

Not available

62

Scag 421703

Battery Box
(Superseded to 423308)

$52.99

$

In Stock, only 1 left!

0

63

Scag 48126

Rubber Boot

$8.49

$

Usually ships in 2-12 days

0

64

Scag 04003-12

Carriage Bolt, 5/16-18 x .75

$0.99

$

In Stock, Qty 20+

0

65

Scag 48030-10

Cable Clamp, .75 ID

$0.99

$

Usually ships in 2-12 days

0

66

Note: Not used on this model

$

$

Not available

67

Scag 45419

Pulley Guard, 20" Frame

$57.99

$

Usually ships in 2-12 days

0

68

Scag 481077

Wire Hrns. Adapter, Man. Start

$70.99

$

In Stock, only 1 left!

0

Scag 481054

Wire Hrns. Adapter, Elec. Start

$20.99

$

Usually ships in 2-12 days

0
