SWU36A-15KA - Scag Ultimate 36" Walk-Behind Mower, 15hp Kawasaki (SN: 6190001 - 6199999) 36" Deck Frame Parts Diagram

Ultimate 36" Walk-Behind Mower, 15hp Kawasaki

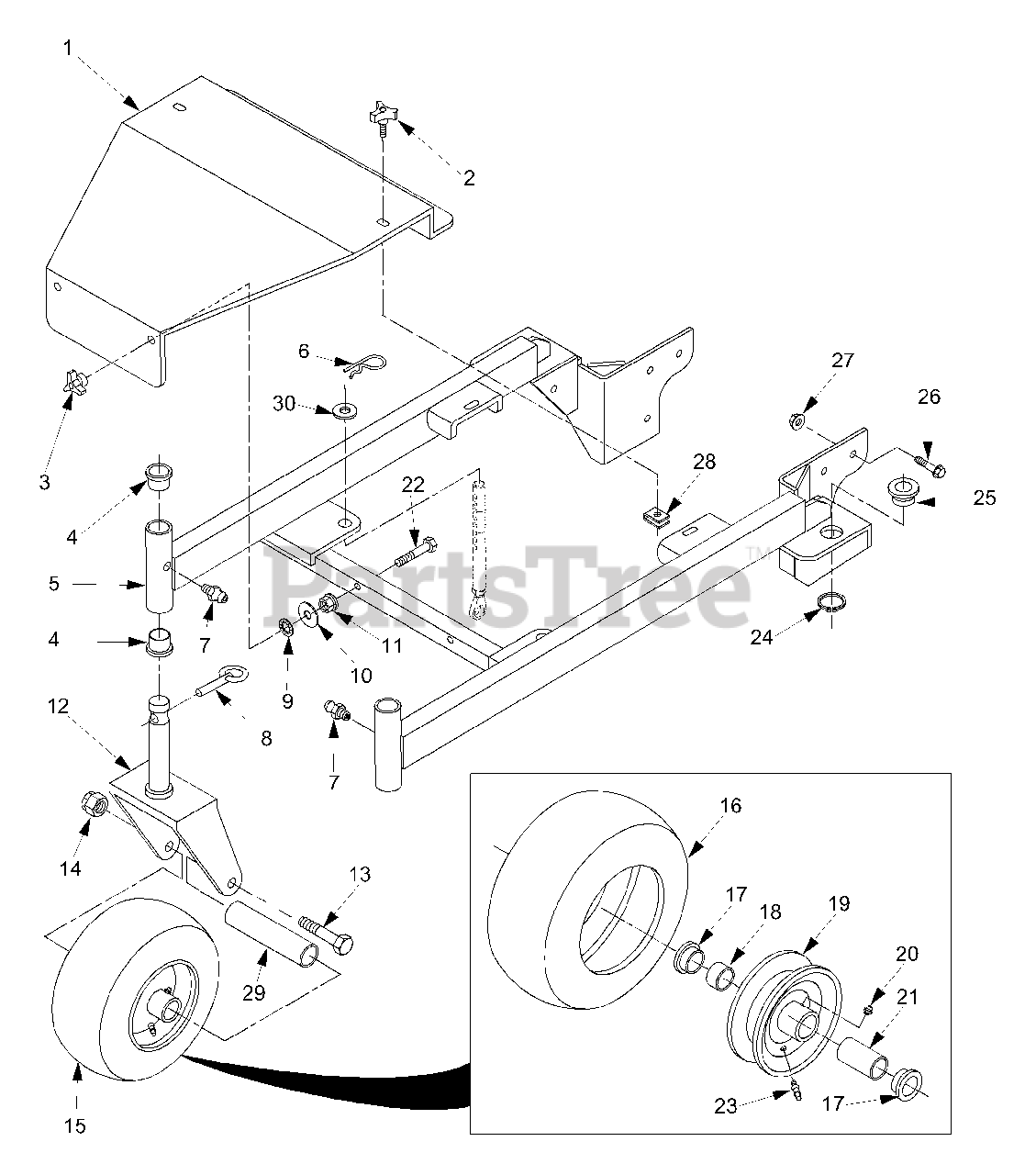

36" Deck Frame Parts Diagram

  • Title

1

Scag 461170

Belt Cover With Decal

$367.99

$

Usually ships in 2-12 days

0

2

Scag 481625-01

Knob With Stud

$2.99

$

In Stock, Qty 20+

0

3

Scag 04029-03

Knob, Deck Cover Mounting

$2.49

$

In Stock, Qty 20+

0

4

Scag 48100-08

Bushing, Caster

$5.99

$

In Stock, only 4 left!

0

5

Scag 451097

Frame Weldment, Deck Mounting - 36"
(Superseded to 461568)

$

$

Not available

6

Scag 04062-04

Hair Pin Cotter, .177 x 3.25"

$1.49

$

In Stock, Qty 20+

0

7

Scag 48114-04

Grease Fitting Str. 1/4-28 Self Tap

$0.99

$

In Stock, Qty 20+

0

8

Scag 04066-01

Quick Pin .438 Dia

$8.49

$

In Stock, Qty 16

0

9

Scag 04024-02

Nut, Push-On - 3/8 Thd.

$1.49

$

In Stock, Qty 5

0

10

Scag 04041-07

Flatwasher, 3/8 - (.391 x .938 x .105)

$0.99

$

In Stock, Qty 20+

0

11

Scag 04019-04

Nut, 3/8-16 Serrated Flange Hex Head

$0.99

$

In Stock, Qty 20+

0

12

Scag 45325

Yoke, Caster Wheel

$226.99

$

Usually ships in 2-12 days

0

13

Scag 04001-80

Capscrew, Hex Head 1/2-13 x 6.50"

$5.99

$

In Stock, Qty 20+

0

14

Scag 04021-07

Locknut, 1/2-13 Elastic Stop

$0.99

$

In Stock, Qty 20+

0

15

Scag 481843

Wheel Assembly, Caster

$128.99

$

Usually ships in 2-12 days

0

16

Scag 481845

Tire, 11 x 4.00-5

$68.99

$

Usually ships in 2-12 days

0

17

Scag 481770

Retainer

$4.99

$

In Stock, Qty 20+

0

18

Scag 481846

Roller Bearing

$18.99

$

In Stock, Qty 10

0

19

Scag 481844

Rim, 5.0 x 2.75 With Zerk & Valve

$144.99

$

Usually ships in 2-12 days

0

20

Scag 48114-05

Grease Fitting Str.1/4-28

$1.49

$

In Stock, Qty 9

0

21

Scag 481769

Roller Bearing .625 x 3.25"

$27.99

$

In Stock, Qty 20+

0

22

Scag 04001-46

Capscrew, Hex Head 3/8-16 x 2.25"

$0.99

$

In Stock, Qty 20+

0

23

Tire Valve

Note: Purchase Locally

$

$

Not available

24

Scag 04050-16

Retaining Ring 1.50 Ext.

$2.49

$

In Stock, only 2 left!

0

25

Scag 43530

Bushing, Deck Adjustment Pin

$33.99

$

Usually ships in 2-12 days

0

26

Scag 04017-42

Capscrew, Hex Head 7/16-14 x 1.0"

$4.99

$

In Stock, Qty 10

0

27

Scag 04019-05

Nut, 7/16-14 Serrated Flange Hex

$0.99

$

In Stock, Qty 12

0

28

Scag 04110-03

U-Nut, 3/8-16

$2.49

$

In Stock, Qty 20+

0

29

Scag 43511

Sleeve, Caster Wheel

$15.99

$

In Stock, Qty 17

0

30

Scag 04040-10

Flatwasher, 5/8 - (.688 x 1.75 x .134)

$0.99

$

In Stock, Qty 11
