SWMU-61A - Scag Ultimate Walk-Behind 61" Mower Deck (SN: 9210001 - 9219999) Cutter Decks 61" Parts Diagram

Ultimate Walk-Behind 61" Mower Deck

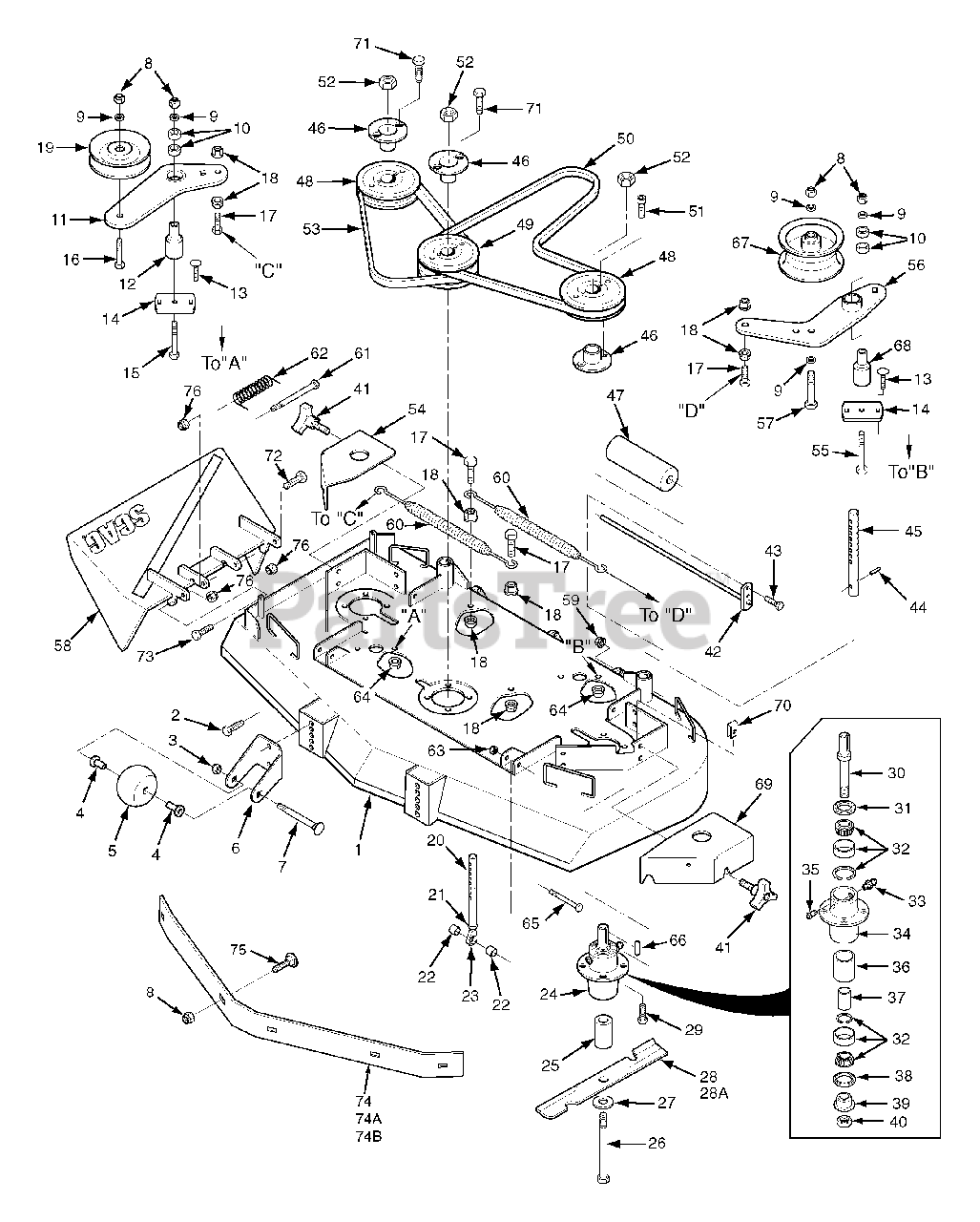

Cutter Decks 61" Parts Diagram

  • Title

1

Scag 461654

Cutter Deck W/ Decals

$

$

Not available

2

Scag 04017-27

Capscrew, 3/8-16 x 1" Serr. Flng.

$1.49

$

In Stock, Qty 20+

0

3

Scag 04021-05

Lock Nut, 3/8-16 Center Lock

$0.99

$

In Stock, Qty 20+

0

4

Scag 48100-15

Bushing, .376" ID Oilite

$4.99

$

In Stock, Qty 20+

0

5

Scag 481632

Wheel, Anti-Scalp

$21.99

$

In Stock, Qty 20+

0

6

Scag 422478

Bracket, Anti-Scalp Wheel

$28.99

$

In Stock, Qty 20+

0

7

Scag 04003-26

Bolt, Carriage 3/8-16 x 4"

$1.99

$

In Stock, Qty 20+

0

8

Scag 04021-09

Hex Nut, 3/8-16 Elastic Stop

$0.99

$

In Stock, Qty 20+

0

9

Scag 04043-04

Flatwasher, 3/8" (.938 x .391 x .105)

$0.99

$

In Stock, Qty 20+

0

10

Scag 48224

Ball Bearings

$12.99

$

In Stock, Qty 20+

0

11

Scag 461175

Idler Arm RH

Note: (Includes Item 10)

$101.99

$

In Stock, only 1 left!

0

12

Scag 43503

Pivot, Idle - Short

$26.99

$

In Stock, Qty 20+

0

13

Scag 04003-04

Bolt, Carriage 5/16-18 x 1"

$0.99

$

In Stock, Qty 17

0

14

Scag 422713

Base, Idler Pivot

$13.99

$

In Stock, only 4 left!

0

15

Scag 04001-31

Capscrew, Hex Head 3/8-16 x 2-1/2"

$0.99

$

In Stock, Qty 20+

0

16

Scag 04001-45

Capscrew, Hex Head 3/8-16 x 2"

$0.99

$

In Stock, Qty 20+

0

17

Scag 04001-136

Capscrew, Hex Head 3/8-16 x 1-1/2"

$0.99

$

In Stock, Qty 20+

0

18

Scag 04019-04

Nut, 3/8-16 Serrated Flange

$0.99

$

In Stock, Qty 20+

0

19

Scag 48181

Pulley, Idler

$26.99

$

In Stock, Qty 20+

0

20

Scag 481838

Pin Assembly

Note: (Incl. 21 & 23)

$69.99

$

Usually ships in 2-12 days

0

21

Scag 04020-25

Nut, 3/8-24 Jam

$0.99

$

In Stock, only 2 left!

0

22

Scag 43512

Spacer, Deck Adjustment Pin

$4.49

$

Usually ships in 2-12 days

0

23

Scag 481539

Rod End, Male 3/8-24
(Superseded to 482586)

$20.99

$

Usually ships in 2-12 days

0

24

Scag 461663

Spindle Assembly

$257.99

$

In Stock, Qty 20+

0

25

Scag 43590

Spacer, Spindle

$17.99

$

In Stock, Qty 20+

0

26

Scag 04001-41

Bolt,Hex Head 5/8-11 x 9-1/2"

$12.99

$

In Stock, Qty 20+

0

27

Scag 04043-06

Flatwasher, 5/8 W

$1.99

$

In Stock, Qty 20+

0

28

Scag 481708

Cutter Blade 21"

$26.99

$

In Stock, Qty 20+

0

28A

Scag 481712

Cutter Blade 21" Hi Lift

$51.99

$

Usually ships in 2-12 days

0

29

Scag 04001-11

Bolt, Hex Head 5/16-18 x 1-1/2"

$0.99

$

In Stock, Qty 20+

0

30

Scag 43589

Spindle Shaft

$58.99

$

In Stock, Qty 14

0

31

Scag 481024

Seal, Cutter Spindle - Top

$4.99

$

In Stock, Qty 20+

0

32

Scag 481022

Tapered Bearings (Two)

$59.99

$

In Stock, Qty 20+

0

33

Scag 48114-04

Grease Fitting

$0.99

$

In Stock, Qty 20+

0

34

Scag 43644

Spindle Housing

$58.99

$

In Stock, Qty 5

0

35

Scag 48677

Relief Fitting, Cutter Spindle

$

$

Not available

36

Scag 43312

Spacer Outside

$19.99

$

In Stock, only 1 left!

0

37

Scag 43296

Spacer, Inside

$8.49

$

In Stock, Qty 12

0

38

Scag 481025

Seal, Cutter Spindle - Bottom

$4.99

$

In Stock, Qty 20+

0

39

Scag 43297

Spindle Bushing

$9.99

$

In Stock, only 4 left!

0

40

Scag 481035

Nut, Spindle

$7.99

$

In Stock, Qty 20+

0

41

Scag 481625-01

Wing Nut, 3/8-16

$2.99

$

In Stock, Qty 20+

0

42

Scag 45944

Roller Shaft (large frame)

$21.99

$

In Stock, Qty 20+

0

43

Scag 04001-09

Bolt, Hex Head 5/16-18 x 1"

$0.99

$

In Stock, Qty 20+

0

44

Scag 04060-08

Pin, Slotted Spring 3/16 x 1-1/2"

$0.99

$

In Stock, only 2 left!

0

45

Scag 43515

Pin, Deck Adjustment Rear

$50.99

$

Usually ships in 2-12 days

0

46

Scag 48926

Tapered Hub

$30.99

$

In Stock, Qty 20+

0

47

Scag 48038

Guide, Roller

$28.99

$

In Stock, Qty 17

0

48

Scag 482744

Pulley

$30.99

$

In Stock, Qty 19

0

49

Scag 48940

Pulley, 6.35 Double Groove

$184.99

$

Usually ships in 2-12 days

0

50

Scag 481923

Belt, Deck Drive

$110.99

$

Usually ships in 2-12 days

0

51

Scag 04015-14

Capscrew, Sckt. Hd. 1/4-20 x 1-3/8"

$2.99

$

Usually ships in 2-12 days

0

52

Scag 04020-09

Hex Nut, 5/8-11

$0.99

$

In Stock, Qty 20+

0

53

Scag 48265

Belt, Cutter Deck RH

$40.99

$

In Stock, only 4 left!

0

54

Scag 422911

Belt Cover, RH

$60.99

$

Usually ships in 2-12 days

0

55

Scag 04001-62

Capscrew, HH 3/8-16 x 3-1/4"

$1.49

$

In Stock, Qty 11

0

56

Scag 461174

Idler Arm Weldment

Note: (Incl. Item 10)

$94.99

$

In Stock, only 3 left!

0

57

Scag 04001-51

Capscrew, Hex Head 3/8-16 x 3-3/4"

$1.49

$

In Stock, Qty 18

0

58

Scag 461296

Discharge Chute

$68.99

$

In Stock, Qty 5

0

59

Scag 04019-03

Nut, 5/16-18 Serrated Flange

$0.99

$

In Stock, Qty 20+

0

60

Scag 481597

Spring, Deck Idler
(Superseded to 483704)

$28.99

$

In Stock, Qty 20+

0

61

Scag 04001-154

Bolt, Hex Head 5/16-18 x 4-1/4"

$2.99

$

In Stock, Qty 20+

0

62

Scag 482245

Spring, Chute Return

$10.99

$

In Stock, Qty 11

0

63

Scag 04021-09

Nut, 3/8-16 Elastic Stop

$0.99

$

In Stock, Qty 20+

0

64

Scag 04019-03

Nut, 5/16-18 Serrated Flange

$0.99

$

In Stock, Qty 20+

0

65

Scag 04001-31

Bolt, Hex Head 3/8-16 x 2-1/2"

$0.99

$

In Stock, Qty 20+

0

66

Scag 04063-08

Key, 1/4" x 1/4" x 2"

$1.49

$

In Stock, Qty 20+

0

67

Scag 481962

Pulley, Idler
(Superseded to 483210)

$55.99

$

In Stock, Qty 20+

0

68

Scag 43510

Pivot, Idler - Long

$23.99

$

Usually ships in 2-12 days

0

69

Scag 422910

Belt Cover LH

$60.99

$

Usually ships in 2-12 days

0

70

Scag 04110-03

U-Nut, 3/8-16

$2.49

$

In Stock, Qty 20+

0

71

Scag 04001-14

Bolt, Hex Head 1/4-20 x 1"

$0.99

$

In Stock, Qty 15

0

72

Scag 04001-11

Bolt, Hex Head 5/16-18 x 1-1/2"

$0.99

$

In Stock, Qty 20+

0

73

Scag 04001-12

Bolt, Hex Head 5/16-18 x 1-3/4"

$0.99

$

In Stock, Qty 20+

0

74

Baffle Weldment 48A

Note: Not used on this model.

$

$

Not available

74A

Baffle Weldment 52A

Note: Not used on this model.

$

$

Not available

74B

Scag 423792

Baffle Weldment 61A

$110.99

$

Usually ships in 2-12 days

0

75

Scag 04003-23

Bolt, Carriage 3/8-16 x 1"

$1.49

$

In Stock, Qty 20+

0

76

Scag 04021-10

Hex Nut, 5/16-16 Elastic Stop

$0.99

$

In Stock, Qty 20+
