SWMU-52A - Scag Ultimate Walk-Behind 52" Mower Deck (SN: 8250001 - 8259999) Hydraulic Assembly Parts Diagram

Ultimate Walk-Behind 52" Mower Deck

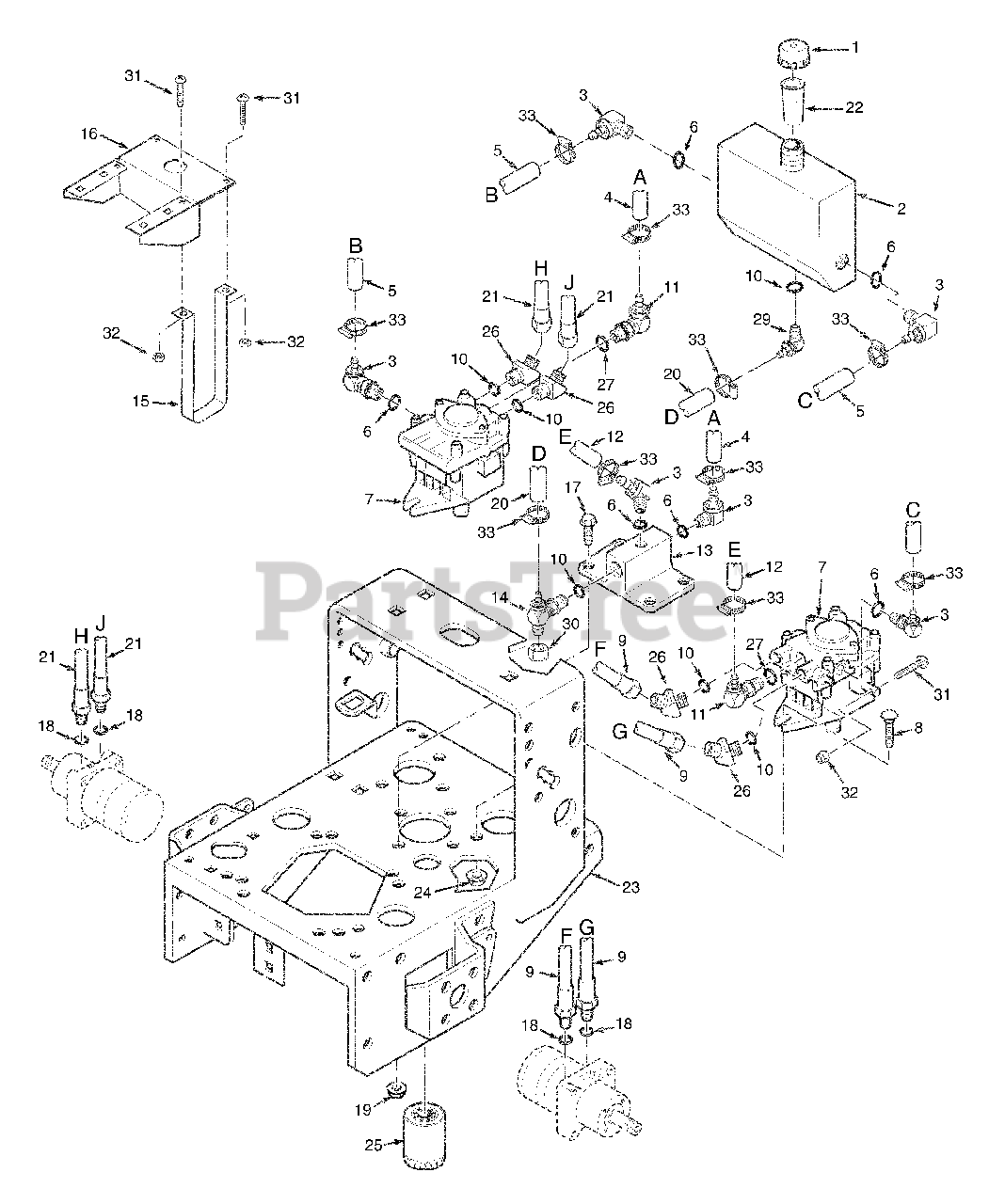

Hydraulic Assembly Parts Diagram

  • Title

1

Scag 481164

Cap, Oil Reservoir

$17.99

$

In Stock, Qty 8

0

2

Scag 461428

Oil Reservoir (With Fittings)
(Superseded to 462773)

$240.99

$

In Stock, only 1 left!

0

3

Scag 482266-01

Elbow, 9/16" O-Ring x 3/8" Hose

$31.99

$

Usually ships in 2-12 days

0

4

Scag 48811

Hose, 3/8" ID - 16" Long

Note: (Order By The Inch)

$0.99

$

In Stock, Qty 20+

0

5

Scag 48811

Hose, 3/8" ID - 7" Long

Note: (Order By The Inch)

$0.99

$

In Stock, Qty 20+

0

6

Scag 48603-06

O-Ring

$6.99

$

In Stock, only 2 left!

0

7

Scag 48551

Pump, Hydro-Gear BDP-10L117

$982.99

$

Usually ships in 2-12 days

0

8

Scag 04003-11

Bolt, Carriage, 3/8-16 x 1-1/4"

$0.99

$

In Stock, Qty 7

0

9

Scag 481265

Hose, Pump to Wheel Motor

$66.99

$

Usually ships in 2-12 days

0

10

Scag 48603-02

O-Ring

$3.49

$

In Stock, only 3 left!

0

11

Scag 482266-03

Elbow, 7/16" O-Ring x 3/8" Hose

$24.99

$

In Stock, only 2 left!

0

12

Scag 48811

Hose, 3/8" ID - 10-1/4" Long

Note: (Order By The Inch)

$0.99

$

In Stock, Qty 20+

0

13

Scag 482417

Oil Filter Base

$125.99

$

Usually ships in 2-12 days

0

14

Scag 482477

Tee, 3/8" O-Ring x JIC x 1/2" Hose

$28.99

$

Usually ships in 2-12 days

0

15

Scag 422794

Strap, Hydraulic Tank

$40.99

$

In Stock, only 1 left!

0

16

Scag 422793

Bracket, Hydraulic Tank

$97.99

$

Usually ships in 2-12 days

0

17

Scag 04017-16

Capscrew, 5/16-18 x 3/4" Serr. Flange

$0.99

$

In Stock, Qty 10

0

18

Scag 48603-04

O-Ring

$8.99

$

In Stock, only 2 left!

0

19

Scag 04019-03

Nut, 5/16-18 Serr. Flange

$0.99

$

In Stock, Qty 20+

0

20

Scag 482305

Hose, Formed 1/2" ID

$74.99

$

Usually ships in 2-12 days

0

21

Scag 481849

Hose, Pump to Wheel Motor

$95.99

$

In Stock, only 1 left!

0

22

Scag 481507

Tube, Filler Neck

$12.99

$

Usually ships in 2-12 days

0

23

Scag 461542

Engine Deck (16" Wide) W/Decals - Small Frame
(Superseded to 461745)

$519.99

$

Usually ships in 2-12 days

0

Scag 461546

Engine Deck (20" Wide) W/Decals - Large Frame
(Superseded to 461748)

$519.99

$

Usually ships in 2-12 days

0

24

Scag 04019-04

Nut, 3/8-16 Serr. Flange

$0.99

$

In Stock, Qty 20+

0

25

Scag 48462-01

Oil Filter

$25.99

$

In Stock, Qty 20+

0

26

Scag 48485-01

Elbow, 45 Deg.-3/4-16 JIC Male x Male 3/4-16 O-Ring

$23.99

$

Usually ships in 2-12 days

0

27

Scag 48603-03

O-Ring

$3.49

$

Usually ships in 2-12 days

0

?28

Scag 481537-02

Coupling, 3/8" Pipe to 1/2" Push-on

$4.99

$

Usually ships in 2-12 days

0

29

Scag 482202

Elbow, 3/4-16 O-Ring x 1/2" Hose

$50.99

$

In Stock, only 1 left!

0

30

Scag 48571-02

Cap, 3/4-16

$5.99

$

Usually ships in 2-12 days

0

31

Scag 04010-10

Screw, 1/4-20 x 2" Round Head Phillips

$0.99

$

In Stock, Qty 12

0

32

Scag 04021-08

Nut, 1/4-20

$0.99

$

In Stock, Qty 9

0

33

Scag 48136-05

Clamp, .87" max dia.

$3.99

$

In Stock, only 2 left!

0
