SWMU-52A - Scag Ultimate Walk-Behind 52" Mower Deck (SN: 8250001 - 8259999) Deck Frame (Small Frame) 48A & 52A Parts Diagram

Ultimate Walk-Behind 52" Mower Deck

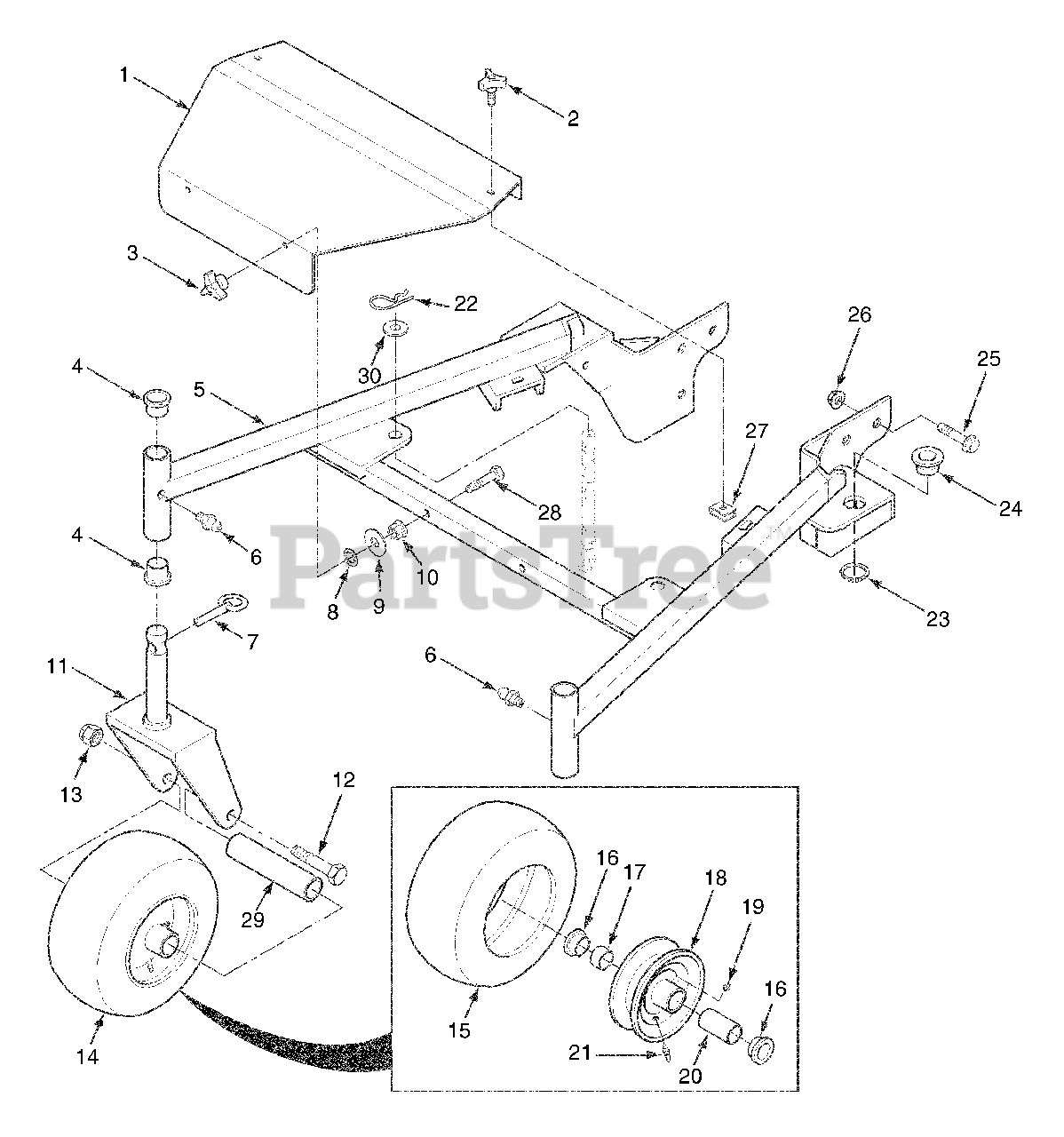

Deck Frame (Small Frame) 48A & 52A Parts Diagram

  • Title

1

Scag 461171

48" Belt Cover With Decal

$

$

Not available

Scag 461279

52" Belt Cover With Decal

$187.99

$

Usually ships in 2-12 days

0

2

Scag 481625-01

Knob With Stud

$2.99

$

In Stock, Qty 20+

0

3

Scag 04029-03

Knob, Deck Cover Mounting

$2.49

$

In Stock, Qty 20+

0

4

Scag 48100-08

Bushing, Caster

$5.99

$

In Stock, only 2 left!

0

5

Scag 461571

Frame Weldment,

$

$

Not available

Scag 461573

Frame Weldment,

$

$

Not available

6

Scag 48114-04

Grease Fitting Str. 1/4-28 Self Tap

$0.99

$

In Stock, Qty 20+

0

7

Scag 04066-01

Quick Pin, .438" Dia.

$8.49

$

In Stock, Qty 7

0

8

Scag 04024-02

Nut, Push-On - 3/8" Dia.

$1.49

$

In Stock, Qty 5

0

9

Scag 04041-07

Flatwasher, 3/8" (.391 x .938 x .105)

$0.99

$

In Stock, Qty 20+

0

10

Scag 04019-04

Nut, 3/8-16 Serrated Flange Hex Head

$0.99

$

In Stock, Qty 20+

0

11

Scag 45325

Yoke, Caster Wheel

$226.99

$

Usually ships in 2-12 days

0

12

Scag 04001-80

Capscrew, Hex Head 1/2-13 x 6-1/2"

$5.99

$

In Stock, Qty 20+

0

13

Scag 04021-07

Locknut, 1/2-13 Elastic Stop

$0.99

$

In Stock, Qty 20+

0

14

Scag 481843

Wheel Assembly, Caster

$128.99

$

Usually ships in 2-12 days

0

15

Scag 481845

Tire, 11 x 4.00-5

$68.99

$

Usually ships in 2-12 days

0

16

Scag 481770

Retainer

$4.99

$

In Stock, Qty 20+

0

17

Scag 481846

Roller Bearing

$18.99

$

In Stock, only 2 left!

0

18

Scag 481844

Rim, 5" x 2-3/4"

Note: (Includes #19 & 21)

$144.99

$

Usually ships in 2-12 days

0

19

Scag 48114-05

Grease Fitting Str.1/4-28

$1.49

$

In Stock, Qty 9

0

20

Scag 481769

Roller Bearing .625 x 3.25"

$27.99

$

In Stock, only 2 left!

0

21

Tire Valve, Purchase Locally

Note: Common hardware which should be purchased locally.

$

$

Not available

22

Scag 04062-04

Hair Pin Cotter, .177 x 3-1/4"

$1.49

$

In Stock, Qty 20+

0

23

Scag 04050-16

Retaining Ring 1.50 Ext.

$2.49

$

In Stock, only 2 left!

0

24

Scag 43530

Bushing, Deck Adjustment Pin

$33.99

$

Usually ships in 2-12 days

0

25

Scag 04017-36

Capscrew,

$2.99

$

In Stock, only 2 left!

0

26

Scag 04112-05

Nut, 1/2-13 Spiralock

$2.99

$

Usually ships in 2-12 days

0

27

Scag 04110-03

U-Nut, 3/8-16

$2.49

$

In Stock, Qty 20+

0

28

Scag 04001-46

Capscrew, Hex Head 3/8-16 x 2-1/4"

$0.99

$

In Stock, Qty 20+

0

29

Scag 43511

Sleeve, Caster Wheel

$15.99

$

In Stock, only 1 left!

0

30

Scag 04040-10

Flatwasher, 5/8" - (.688 x 1.75 x .134)

$0.99

$

In Stock, Qty 11

0
