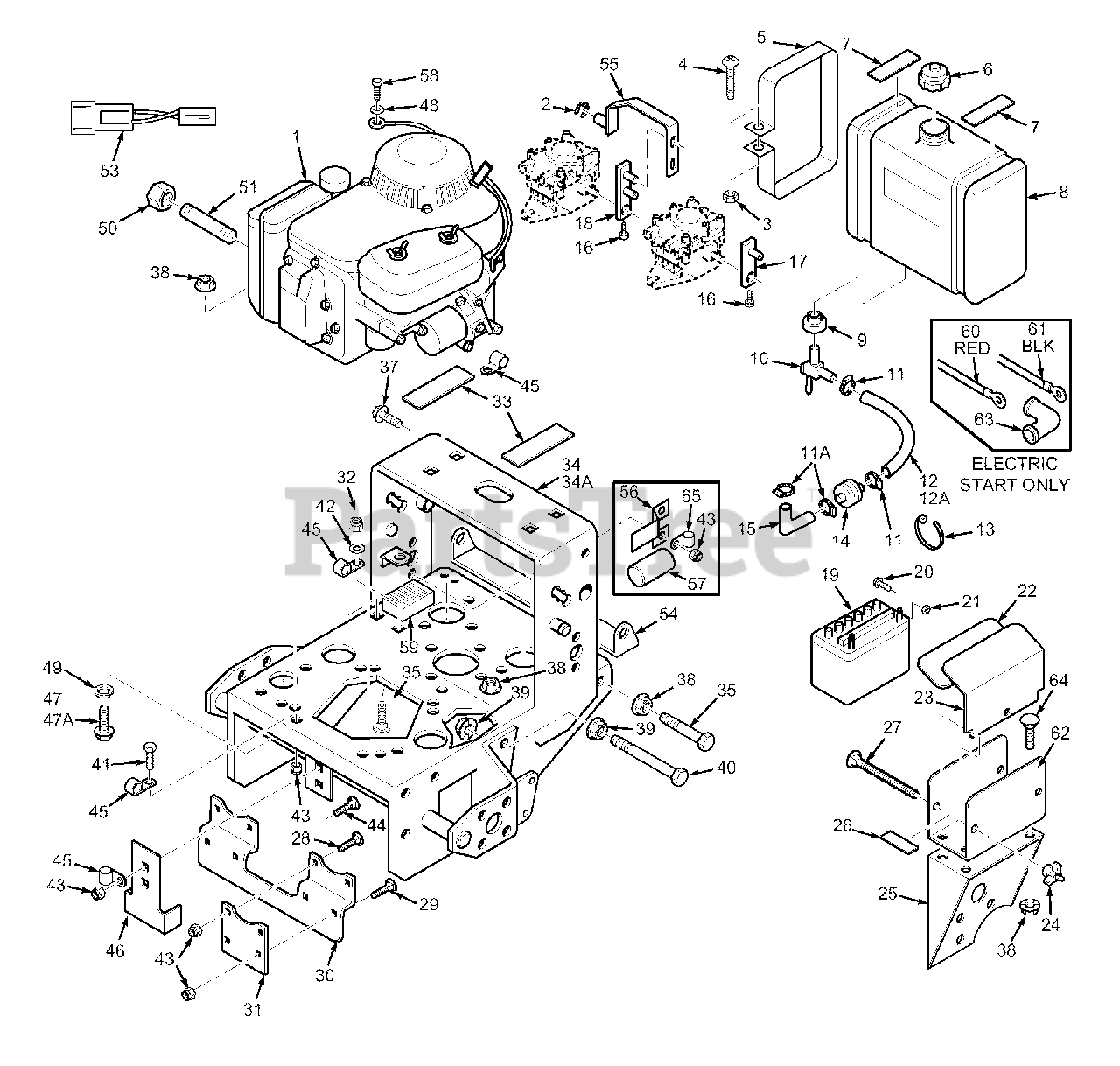

SWM-61A - Scag Walk-Behind 61" Mower Deck (SN: 7460001 - 7469999) Engine Deck Parts Diagram

Walk-Behind 61" Mower Deck

Engine Deck Parts Diagram

  • Title

1

Scag 48842

Engine 14KA Kawasaki

$

$

Not available

2

Scag 04050-10

Retaining Ring, 1/2" Ext. "E"

$0.99

$

In Stock, only 4 left!

0

3

Scag 04020-02

Hex Nut, 1/4-20

$0.99

$

In Stock, Qty 10

0

4

Scag 04010-10

Screw, 1/4-20 x 2" Rnd. Hd. Phil.

$0.99

$

In Stock, Qty 12

0

5

Scag 421239

Strap, Fuel Tank

$25.99

$

In Stock, only 4 left!

0

6

Scag 481603

Cap, Fuel Tank
(Superseded to 483791)

$36.99

$

Usually ships in 2-12 days

0

7

Scag 48292

Pad, Rubber-Fuel Tank - Upper

$3.99

$

In Stock, only 2 left!

0

8

Scag 46846

Fuel Tank Assy.

Note: (incl. 9, 10)

$248.99

$

In Stock, only 1 left!

0

9

Scag 48309

Bushing
(Superseded to 482571)

$12.99

$

In Stock, Qty 20+

0

10

Scag 48308

Valve, Fuel Shut-off
(Superseded to 483747)

$30.99

$

In Stock, only 4 left!

0

11

Clamp, Fuel Hose

Note: Not used on this model.

$

$

Not available

11A

Scag 48059-02

Clamp, Fuel Hose,

Note: (KA Only)

$0.99

$

In Stock, Qty 19

0

12

Scag 48058

Fuel Hose, 1/4 ID x 20" KA
(Superseded to 483617)

$0.99

$

In Stock, Qty 20+

0

12A

Fuel Hose, 1/4 ID x 23"

Note: Not used on this model.

$

$

Not available

13

Scag 48028-05

Cable Tie

$

$

Not available

14

Scag 48057-02

Fuel Filter

$6.99

$

Usually ships in 2-12 days

0

15

Scag 48179

Fuel Hose, 7/32 ID x 3-1/2"
(Superseded to 48179-01)

$2.99

$

Usually ships in 2-12 days

0

16

Scag 04015-06

Capscrew, #10-32 x 1 Soc. Hd.

$0.99

$

In Stock, Qty 6

0

17

Scag 46323

Lever Assy., Pump Control -LH

$54.99

$

Usually ships in 2-12 days

0

18

Scag 46324

Lever Assy., Pump Control -RH

$54.99

$

Usually ships in 2-12 days

0

19

Battery

Note: Not used on this model.

$

$

Not available

20

Bolt, 1/4-20 x .50"

Note: Not used on this model.

$

$

Not available

21

Nut, 1/4-20

Note: Not used on this model.

$

$

Not available

22

Pad

Note: Not used on this model.

$

$

Not available

23

Battery Cover

Note: Not used on this model.

$

$

Not available

24

Wing Nut, 1/4-20

Note: Not used on this model.

$

$

Not available

25

Battery Support

Note: Not used on this model.

$

$

Not available

26

Pad, Rubber

Note: Not used on this model.

$

$

Not available

27

Bolt, 1/4-20 x 6" Carriage

Note: Not used on this model.

$

$

Not available

28

Carriage Bolt, 5/16-18 x 2"

Note: Not used on this model.

$

$

Not available

29

Carriage Bolt, 5/16-18 x 1"

Note: Not used on this model.

$

$

Not available

30

Stiffener

Note: Not used on this model.

$

$

Not available

31

Plate, Backing

Note: Not used on this model.

$

$

Not available

32

Scag 04021-08

Nut, 1/4-20 Elastic Stop

$0.99

$

In Stock, Qty 10

0

33

Scag 48205

Pad, Rubber-Fuel Tank, Lower

$4.49

$

Usually ships in 2-12 days

0

34

Scag 461358

Engine Deck, 16" Wide, w/decals
(Superseded to 461746)

$643.99

$

Usually ships in 2-12 days

0

34A

Engine Deck, 20" Wide, w/decals

Note: Not used on this model.

$

$

Not available

35

Scag 04003-09

Bolt,1/4-20 x 1-1/4" Hex Head

$0.99

$

In Stock, Qty 9

0

?36

Nut, 1/4-20 Serrated Flange

Note: Not used on this model.

$

$

Not available

37

Scag 04017-18

Capscr., 5/16-18 x 1.25 Sr. Flg.

$1.49

$

Usually ships in 2-12 days

0

38

Scag 04019-03

Nut, 5/16-18 Serr. Flange

$0.99

$

In Stock, Qty 20+

0

39

Scag 04019-04

Nut, 3/8-16 Serr. Flange

$0.99

$

In Stock, Qty 20+

0

40

Scag 04001-22

Bolt, 3/8-16 x 2-3/4" Hex Head

$1.49

$

In Stock, Qty 10

0

41

Scag 04001-08

Hex Head Bolt, 5/16-18 x .75"

$0.99

$

In Stock, Qty 20+

0

42

Scag 04040-14

Flat Washer 1/4"

$0.99

$

In Stock, only 4 left!

0

43

Scag 04021-10

Nut, 5/16-18 Elastic Stop

$0.99

$

In Stock, Qty 20+

0

44

Scag 04003-04

Carrage Bolt, 5/16-18 x 1"

$0.99

$

In Stock, Qty 9

0

45

Scag 48030-09

Clamp

$1.49

$

In Stock, Qty 6

0

46

Scag 421370

Clutch Bracket

$22.99

$

Usually ships in 2-12 days

0

47

Capscr, 5/16-18 x 1.50" Sr. Flg.

Note: Not used on this model.

$

$

Not available

47A

Scag 04002-01

Metric HH Bolt, M8-1.25 x M30

$0.99

$

In Stock, only 4 left!

0

48

Scag 04031-09

Lock Washer, 5/16 Int. Tooth

$0.99

$

In Stock, Qty 8

0

49

Scag 04030-03

Lock Washer, 5/16

$0.99

$

In Stock, Qty 20+

0

50

Pipe Cap

Note: Not used on this model.

$

$

Not available

51

Pipe, 4.75" Nipple

Note: Not used on this model.

$

$

Not available

?52

Scag 04003-09

Carrage Bolt, 1/4-20 x 1-1/4"

$0.99

$

In Stock, Qty 9

0

53

Wire Hrns. Adapter, 17KA

Note: Not used on this model.

$

$

Not available

54

Scag 45418

Pulley Guard, 16" Frame

$57.99

$

Usually ships in 2-12 days

0

55

Scag 45283

Shaft Weldment, RH Pump Cntl.

$48.99

$

Usually ships in 2-12 days

0

56

Scag 422930

Bracket, Capacitor

$6.99

$

Usually ships in 2-12 days

0

57

Condenser

Note: (order from Kaw.); Not used on this model

$

$

Not available

58

Scag 04002-07

Metric H H Bolt, 8-1.25 x 10

$0.99

$

In Stock, Qty 12

0

59

Regulator,

Note: (order from Kaw.); Not used on this model.

$

$

Not available

60

Battery Cable, 31.5" Red

Note: Not used on this model.

$

$

Not available

61

Battery Cable, 31.5 Black

Note: Not used on this model.

$

$

Not available

62

Battery Box

Note: Not used on this model.

$

$

Not available

63

Rubber Boot

Note: Not used on this model.

$

$

Not available

64

Carrage Bolt, 5/16-18 x .75

Note: Not used on this model.

$

$

Not available

65

Scag 48030-10

Cable Clamp, .75 ID

$0.99

$

Usually ships in 2-12 days

0
