Sweeper - BCS America Sweeper Attachment (2005 & After) Main Frame for 30" (SN: 127176 & Above) Parts Diagram

Sweeper Attachment

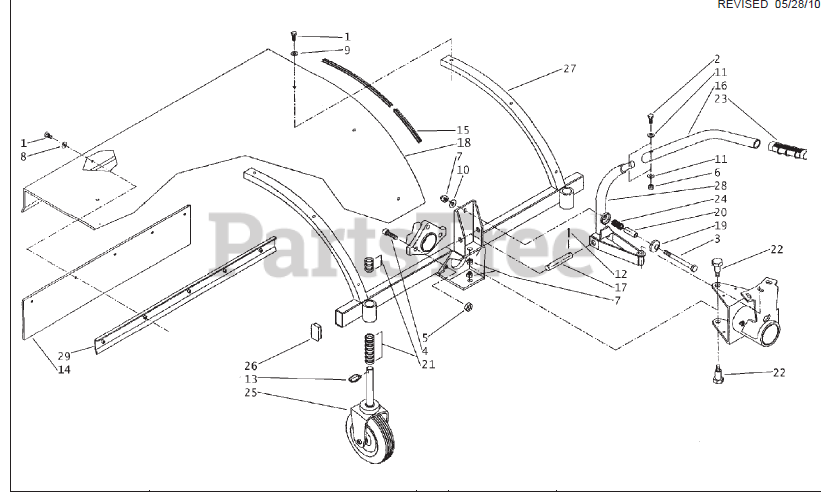

Main Frame for 30" (SN: 127176 & Above) Parts Diagram

  • Title

1

BCS America 31112090

CAPSCREW M6X16

$0.99

$

In Stock, only 4 left!

0

2

BCS America 311.12154

CAPSCREW M8X40

$1.99

$

In Stock, only 4 left!

0

3

BCS America 311.12228

CAPSCREW M10X120

$1.99

$

Usually ships in 5-8 days

0

4

BCS America 311.52121

CAPSCREW

$1.99

$

In Stock, Qty 5

0

5

BCS America 31211120

NUT M12

$1.49

$

In Stock, Qty 5

0

6

BCS America 31241080

LOCKNUT M8 STANDARD

$0.99

$

In Stock, Qty 11

0

7

BCS America 31241100

LOCKNUT M10 STANDARD

$1.49

$

In Stock, only 2 left!

0

8

BCS America 314.11064

WASHER FLAT M6 4X12 5

$0.99

$

In Stock, Qty 10

0

9

BCS America 314.11066

WASHER FLAT M6 6X18

$0.99

$

Usually ships in 5-8 days

0

10

BCS America 314.11104

WASHER FLAT M10.5X18

$0.99

$

In Stock, Qty 5

0

11

BCS America 314.23084

WASHER LOCK B 8.4

$0.99

$

In Stock, Qty 10

0

12

BCS America 341.10041

PIN COTTER A 4X25 UNI 1336

$1.49

$

Usually ships in 5-8 days

0

13

BCS America 34240080

RELEASE PIN

$4.99

$

In Stock, only 2 left!

0

14

BCS America 552.59786

RUBBER SKIRT. PROTECTION

$119.99

$

Usually ships in 5-8 days

0

15

BCS America 552.59759

PROFILE, U 15MM

$

$

Currently unavailable

16

BCS America 561.59716

POSITIONING TUBE

$94.99

$

Usually ships in 5-8 days

0

17

BCS America 561.59738

PIN LEVER ADJUSTING

$27.99

$

Usually ships in 5-8 days

0

18

BCS America 561.59795

SHIELD

$500.99

$

Usually ships in 5-8 days

0

19

BCS America 561.59743

CAP SPRING

$9.99

$

Usually ships in 5-8 days

0

20

BCS America 561.59748

SPACER SPRING

$6.49

$

Usually ships in 5-8 days

0

21

BCS America 561.59753

SPACER

$14.99

$

In Stock, Qty 20+

0

22

BCS America 563.59744

SCREW, M10, SPECIAL

$32.99

$

Usually ships in 5-8 days

0

23

BCS America 58048000

GRIP

$7.49

$

Usually ships in 5-8 days

0

24

BCS America 580.59737

SPRING LEVER ORIENTATION

$41.99

$

Usually ships in 5-8 days

0

25

BCS America 581.59756

WHEEL, NYLON

$147.99

$

Usually ships in 5-8 days

0

26

BCS America 581.59757

PLUG, FINNED M50X30

$5.49

$

In Stock, Qty 6

0

27

BCS America 590.59787

FRAME

$

$

Currently unavailable

28

BCS America 590.59709

LEVER, ORIENTATION

$209.99

$

Usually ships in 5-8 days

0

29

BCS America 590.59784

RETAINER

$116.99

$

Usually ships in 5-8 days

0
