SW52V-15FS - Scag 52" Walk-Behind Mower, 15hp Kawasaki (SN: N4400001 - N4499999) (Rev 01) INSTRUMENT PANEL Parts Diagram
52" Walk-Behind Mower, 15hp Kawasaki

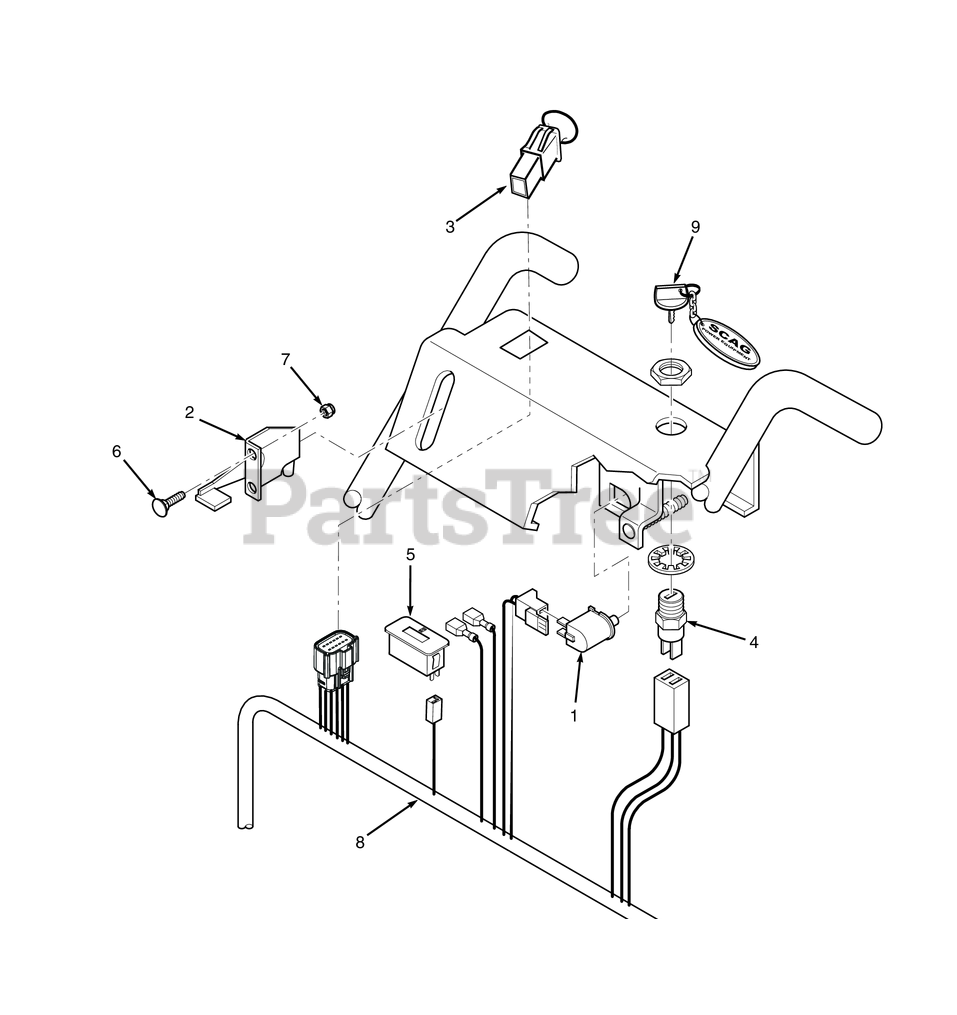

INSTRUMENT PANEL Parts Diagram
Scag 48717
SWITCH, NEUTRAL INTERLOCK
$9.99
$
In Stock, only 1 left!
Scag 48946
Throttle Control (15KA & 17KA)
$31.99
$
In Stock, Qty 10
Scag 485833
Switch, PTO - 10 Amp
$47.99
$
In Stock, only 1 left!
Scag 48609
KEY SWITCH, MANUAL SRT.(INCL. HWD)
$13.99
$
In Stock, only 1 left!
Scag 484565
Hour Meter, Inductive
$51.99
$
In Stock, only 1 left!
Scag 04003-43
Bolt, Carriage #10-24 x 1/2"
$0.99
$
In Stock, Qty 6
Scag 04021-26
Nut, Elastic Stop #10-24
$0.99
$
In Stock, Qty 11
Scag 486118
Handle Wire Harness, Manual Start
$126.99
$
Usually ships in 2-12 days
Scag 462069
Key, Assembly w/Fob
$8.49
$
In Stock, Qty 20+
Scag 483609
Key w/Shroud Only
$2.99
$
In Stock, Qty 9
Scag 48030-09
Clamp, Cable 1/2" I.D.
$1.49
$
In Stock, Qty 5
