SW52A-18KH - Scag 52" Walk-Behind Mower, 18hp Kohler (SN: 8100001 - 8109999) Engine Deck SW52 - 18K Parts Diagram

52" Walk-Behind Mower, 18hp Kohler

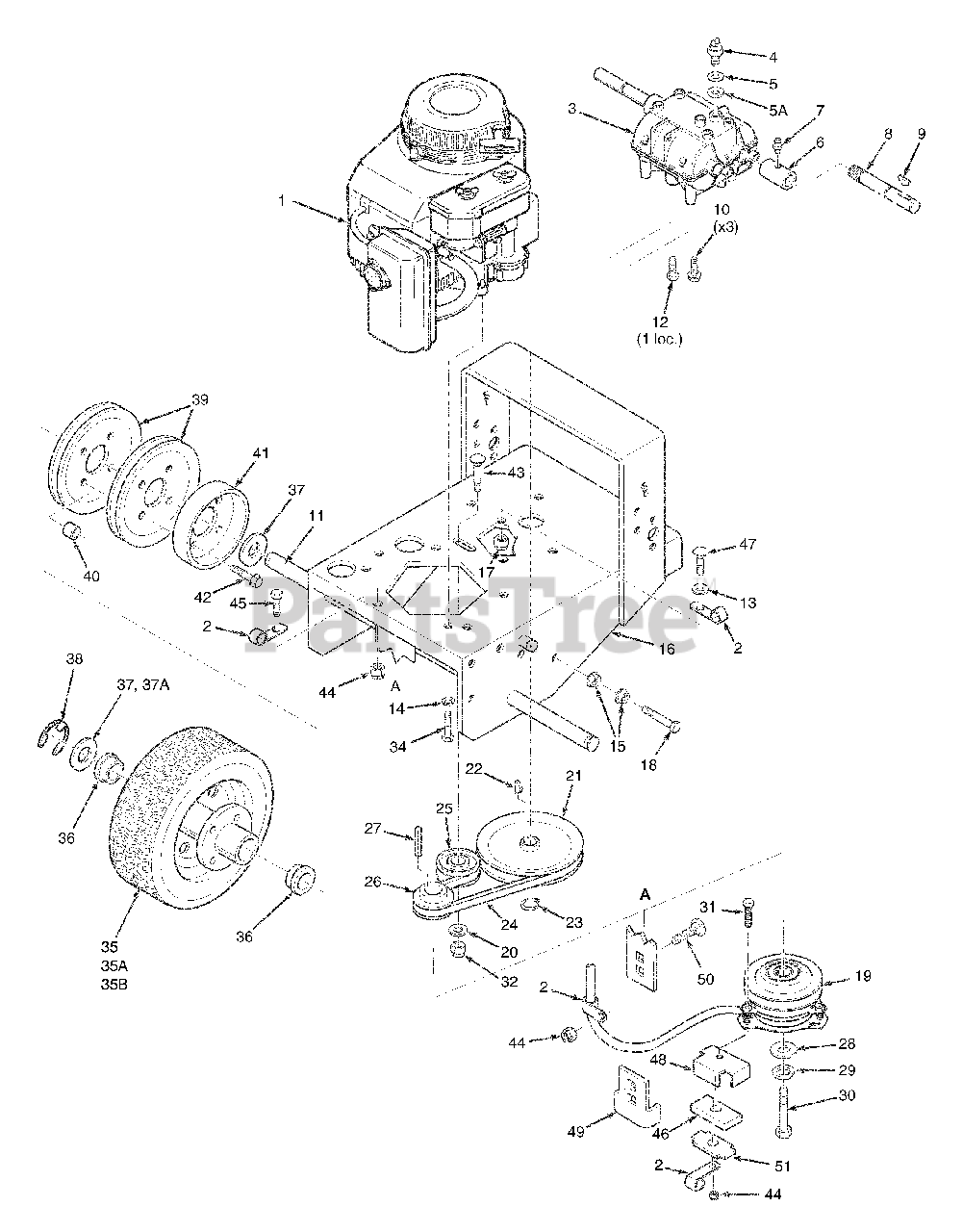

Engine Deck SW52 - 18K Parts Diagram

  • Title

1

Scag 482677

Engine,18HP Kohler CV493T, SpecPS-27513)

$

$

Currently unavailable

2

Scag 48030-09

Cable Clamp

$1.49

$

In Stock, Qty 5

0

3

Scag 481580

Transmission, (Peerless 700-070, 9 tooth spline)

$781.99

$

Usually ships in 2-12 days

0

4

Scag 48231

Neutral Safety Switch

$38.99

$

Usually ships in 2-12 days

0

5

Scag 48122-01

Fibre Washer, thin

$0.99

$

Usually ships in 2-12 days

0

5A

Scag 48122-02

Fibre Washer, thick

$0.99

$

Usually ships in 2-12 days

0

6

Scag 481581

Coupler, Jackshaft

$40.99

$

In Stock, only 2 left!

0

7

Scag 48114-05

Grease Fitting, straight

$1.49

$

In Stock, Qty 9

0

8

Scag 481582

Jackshaft

$41.99

$

In Stock, only 2 left!

0

9

Scag 04063-09

Key, Hi-Pro #9

$1.49

$

In Stock, Qty 9

0

10

Scag 04003-12

Bolt, 5/16-18 X 3/4"

$0.99

$

In Stock, Qty 20+

0

11

Scag 43085

Wheel Axle

$52.99

$

Usually ships in 2-12 days

0

12

Scag 04001-08

Bolt, 5/16-18 X 3/4"

$0.99

$

In Stock, Qty 20+

0

13

Scag 04040-14

Flat Washer 1/4" (.312

$0.99

$

In Stock, only 4 left!

0

14

Scag 04030-03

Lock Wshr. 5/16"

$0.99

$

In Stock, Qty 20+

0

15

Scag 04019-04

Nut, 3/8-16 Serrated

$0.99

$

In Stock, Qty 20+

0

16

Scag 461536

Engine Deck
(Superseded to 461743)

$438.99

$

Usually ships in 2-12 days

0

17

Scag 04021-08

Nut, 1/4-20 Elastic

$0.99

$

In Stock, Qty 9

0

18

Scag 04001-51

Bolt, 3/8-16 x 3-3/4"

$1.49

$

In Stock, Qty 8

0

19

Scag 461397

Electric Clutch

$306.99

$

In Stock, only 1 left!

0

20

Scag 04041-07

Washer, 3/8" (.391 x

$0.99

$

In Stock, Qty 20+

0

21

Scag 48197

Pulley, Transmission

$35.99

$

In Stock, only 1 left!

0

22

Scag 04063-07

Key, Woodruff #9

$0.99

$

In Stock, Qty 12

0

23

Scag 04050-09

Retaining Ring, 5/8"

$0.99

$

In Stock, Qty 20+

0

24

Scag 48203

Belt, Transmission

$27.99

$

In Stock, only 1 left!

0

25

Scag 481048

Idler Pulley,
(Superseded to 483208)

$33.99

$

In Stock, Qty 20+

0

26

Scag 481666

Pulley, Traction Drive

$51.99

$

Usually ships in 2-12 days

0

27

Scag 04063-24

Key, 1/4 x 1/4 x 2-3/4"

$1.99

$

In Stock, only 3 left!

0

28

Scag 04041-28

Flat Washer, 7/16"

$2.99

$

In Stock, Qty 12

0

29

Scag 04030-05

Lock Washer, 7/16"

$0.99

$

In Stock, Qty 5

0

30

Scag 04102-04

Bolt, 7/16-20 x2-1/2" Hex Head

$2.49

$

In Stock, Qty 5

0

31

Scag 04001-12

Bolt, 5/16-18 x 1-3/4" Hex Head

$0.99

$

In Stock, Qty 20+

0

32

Scag 04021-09

Nut, 3/8-16 Elastic Stop

$0.99

$

In Stock, Qty 20+

0

?33

Scag 04040-15

Flat Washer, 5/16"

$0.99

$

In Stock, Qty 20+

0

34

Scag 04017-19

Bolt, 5/16-18 x 1" Serrated Flange Hex Head

$1.49

$

Usually ships in 2-12 days

0

35

Scag 48192

Wheel Assembly

Note: (incl. 38A-38B)

$342.99

$

Usually ships in 2-12 days

0

35A

Scag 481860

Tire, 13 x 6.50-6, 2-ply

$175.99

$

Usually ships in 2-12 days

0

35B

Scag 481859

Rim & Bearing Assembly

Note: (incl. 39)

$336.99

$

Usually ships in 2-12 days

0

36

Scag 481858

Wheel Bearing (OD 2.000 - 2.005)

$26.99

$

Usually ships in 2-12 days

0

37

Scag 04042-05

Washer, 1-1/16 x 1-3/4 x 12 ga

$0.99

$

In Stock, Qty 18

0

37A

Scag 04041-14

Washer, 1-1/16 x 1-1/2 x 18 ga

$0.99

$

In Stock, Qty 15

0

38

Scag 04050-08

Retaining Ring, 1" Ext.- "E"

$0.99

$

In Stock, Qty 12

0

39

Scag 48200

Pulley, Wheel Drive

$33.99

$

In Stock, only 1 left!

0

40

Scag 43088

Spacer, Wheel Pulley

$12.99

$

Usually ships in 2-12 days

0

41

Scag 48209

Brake Drum

$19.99

$

Usually ships in 2-12 days

0

42

Scag 04017-19

Bolt, 5/16-18 x 1-1/2" Serrated flange

$1.49

$

Usually ships in 2-12 days

0

43

Scag 04003-03

Bolt, 3/8-16 x 2" Carriage

$1.49

$

In Stock, Qty 5

0

44

Scag 04021-10

Nut, 5/16-18 Elastic Stop

$0.99

$

In Stock, Qty 20+

0

45

Scag 04001-09

Bolt, 5/16-18 x 1" Hex Head

$0.99

$

In Stock, Qty 20+

0

46

Scag 481716

Rubber Pad, Clutch Stop

$11.99

$

Usually ships in 2-12 days

0

47

Scag 04003-02

Bolt, 1/4-20 x 3/4" Carriage

$0.99

$

In Stock, Qty 20+

0

48

Scag 422533

Backing Plate

$13.99

$

In Stock, only 1 left!

0

49

Scag 421370

Anti Rotation Bracket

$22.99

$

Usually ships in 2-12 days

0

50

Scag 04003-04

Bolt, 5/16-18 x 1" Carriage

$0.99

$

In Stock, Qty 9

0

51

Scag 422534

Plate, Backing

$5.49

$

In Stock, only 1 left!

0
