SW48V-16FS - Scag 48" Walk-Behind Mower, 16hp Kawasaki (SN: F1500001 - F1599999) SW Fuel System - EPA Phase 2 Parts Diagram

48" Walk-Behind Mower, 16hp Kawasaki

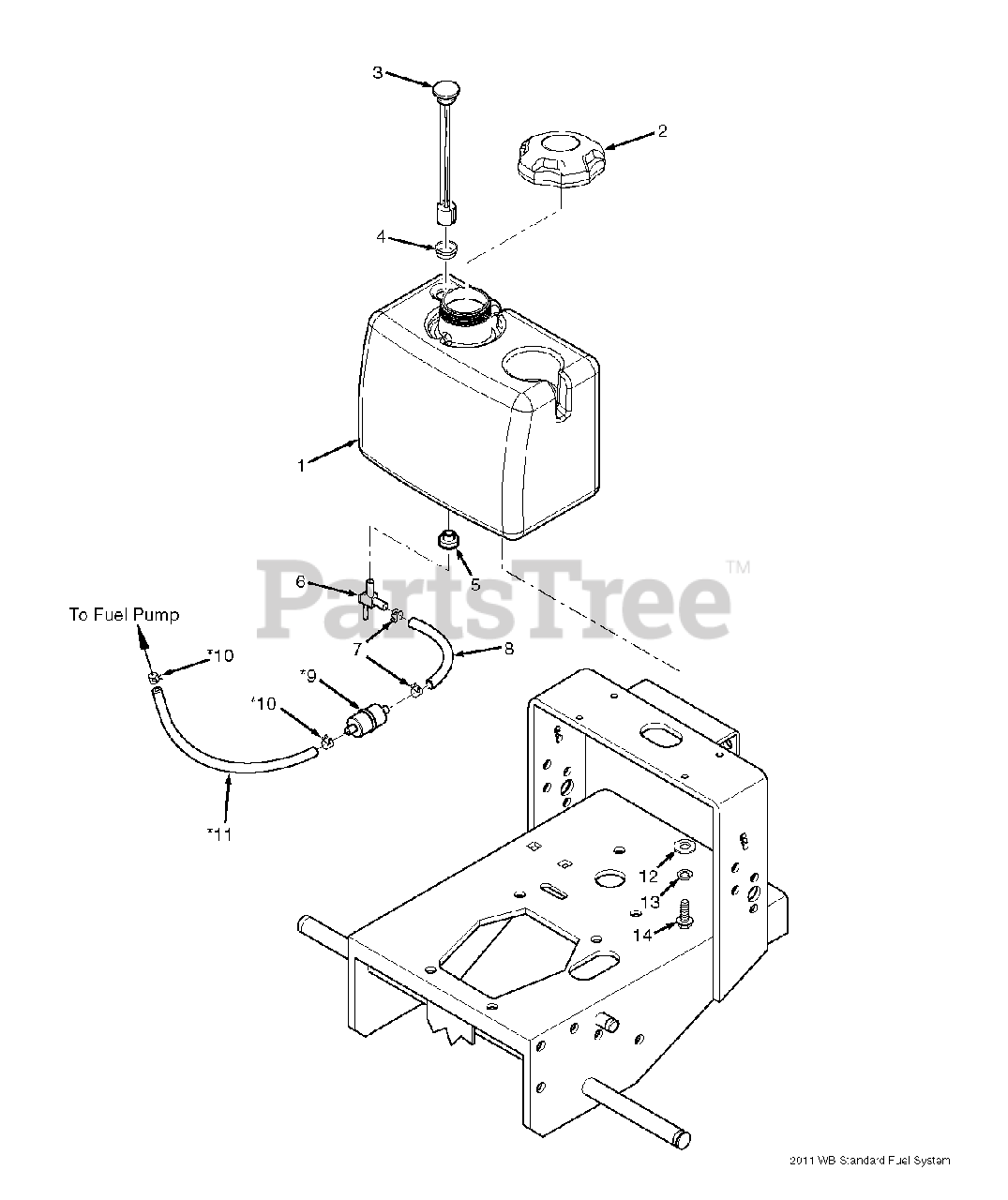

SW Fuel System - EPA Phase 2 Parts Diagram

  • Title

1

Scag 462289

Fuel Tank Assembly

Note: (Incl. #3, 4, 5, 6)

$307.99

$

Usually ships in 2-12 days

0

2

Scag 483792

Fuel Cap

$26.99

$

In Stock, only 4 left!

0

3

Scag 484259

Fuel Gauge Assembly

Note: (Incl. #4)

$77.99

$

In Stock, only 1 left!

0

4

Scag 484242

Seal, Fuel Gauge

$21.99

$

In Stock, only 2 left!

0

5

Scag 482571

Bushing, .56 Dia. Viton

$12.99

$

In Stock, Qty 20+

0

6

Scag 483747

Ball Valve w/Screen

$29.99

$

In Stock, only 4 left!

0

7

Scag 48059-01

Clamp, Fuel Hose

$0.99

$

In Stock, Qty 7

0

8

Scag 483617

Fuel Hose, 1/4" ID

Note: (Order by inch)

$0.99

$

In Stock, Qty 20+

0

9

Fuel Filter

Note: Available through engine manufacturer only.

$

$

Not available

10

Clamp, Fuel Hose

Note: Available through engine manufacturer only.

$

$

Not available

11

Fuel Hose

Note: Available through engine manufacturer only.

$

$

Not available

12

Scag 04040-15

Flatwasher, 5/16-.375 x .875 x .083

$0.99

$

In Stock, Qty 20+

0

13

Scag 04030-03

Lockwasher, 5/16" Spring

$0.99

$

In Stock, Qty 20+

0

14

Scag 04001-09

Bolt, Hex Head 5/16-18 x 1"

$0.99

$

In Stock, Qty 20+

0
