SW48V-15KH - Scag 48" Walk-Behind Mower, 15hp Kohler (SN: D6000001 - D6099999) Instrument Panel Parts Diagram
48" Walk-Behind Mower, 15hp Kohler

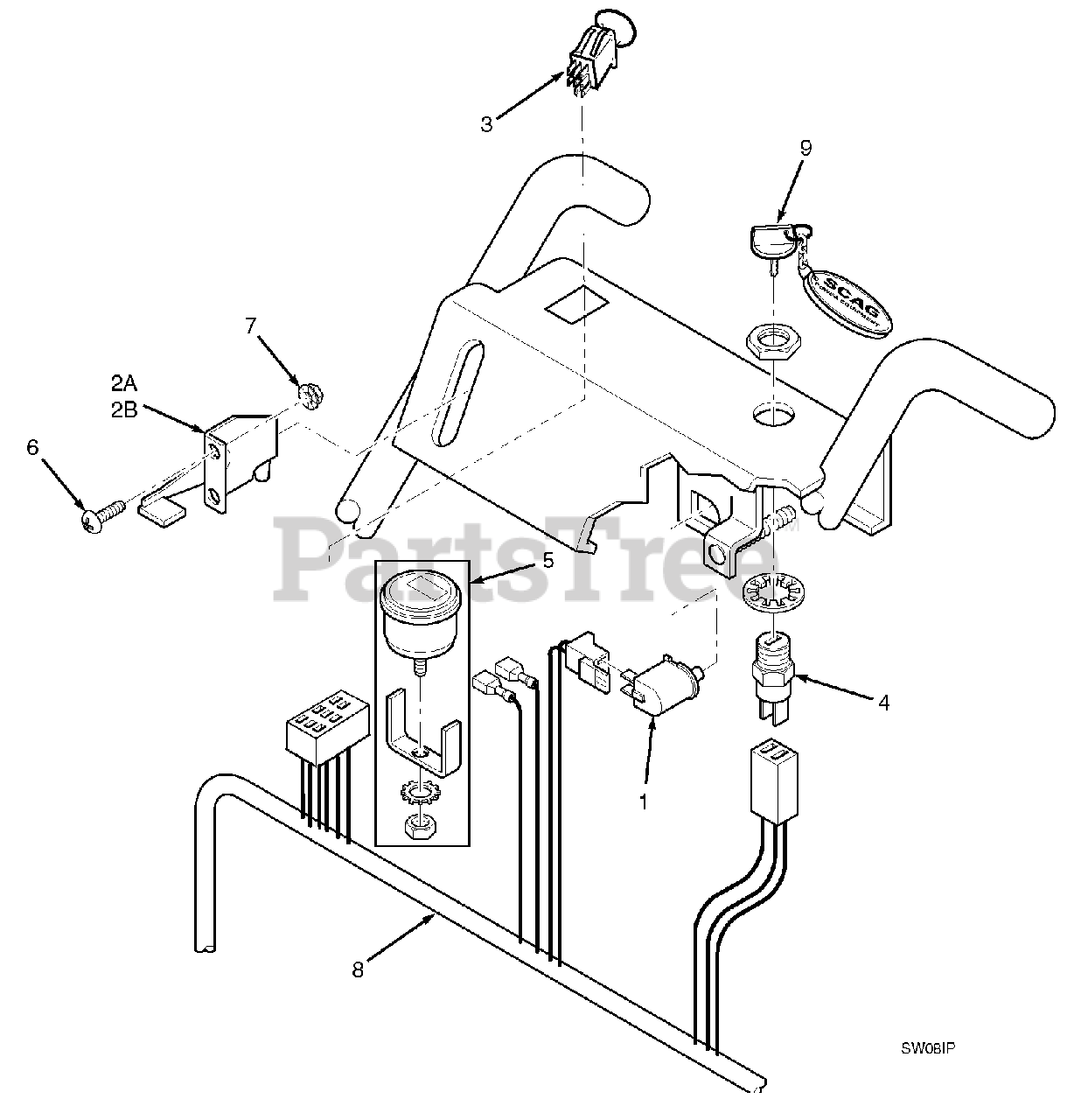

Instrument Panel Parts Diagram
Scag 48717
Switch, Neutral Lock
$9.99
$
In Stock, only 3 left!
Scag 482814
Throttle Contro - Kohler
$
$
Not available
Scag 48946
Throttle Control - Kawasaki
$31.99
$
In Stock, Qty 10
$37.99
$
In Stock, Qty 20+
Scag 48609
Key Switch
$13.99
$
In Stock, only 1 left!
Scag 48023
Hour Meter (dealer installed)
$157.99
$
Usually ships in 2-12 days
Scag 04010-26
Screw, #10-32 x 1/2"
$
$
Currently unavailable
Scag 04019-01
Nut, #10-32 Serrated Flange Hex Head
$0.99
$
Usually ships in 2-12 days
Scag 482711
Handle Wire Harness, Manual Start
$102.99
$
In Stock, Qty 5
Scag 462069
Key Chain w/Keys
$8.49
$
In Stock, Qty 20+
Scag 483609
Key w/Shroud
$2.99
$
In Stock, Qty 9
Scag 48030-09
Clamp, Wire Harness
$1.49
$
In Stock, Qty 15
