SW48V-15KH - Scag 48" Walk-Behind Mower, 15hp Kohler (SN: D6000001 - D6099999) 48V & 52V Cutter Decks Parts Diagram

48" Walk-Behind Mower, 15hp Kohler

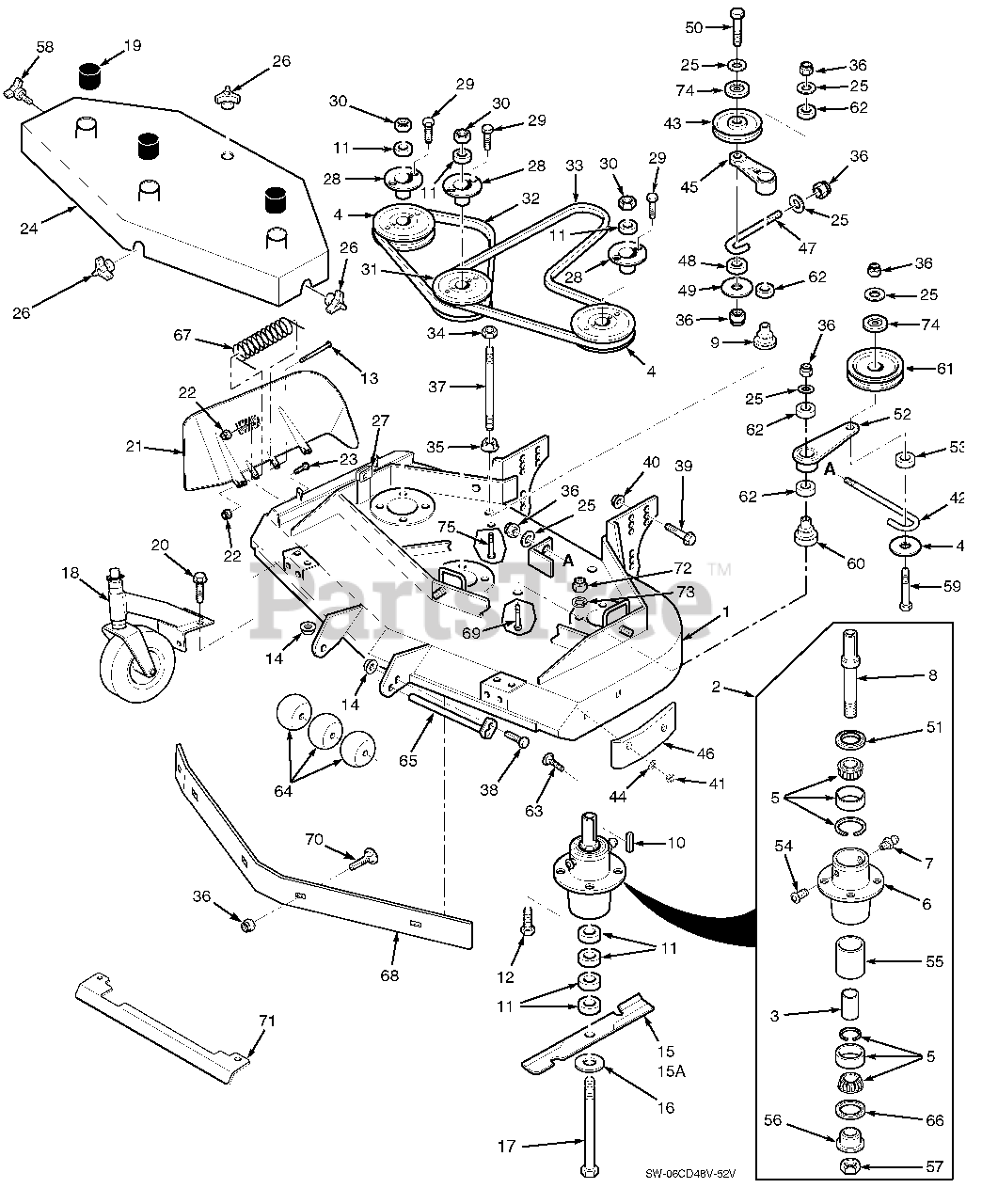

48V & 52V Cutter Decks Parts Diagram

  • Title

1

Scag 461852

Cutter Deck w/Decals

$1545.99

$

Usually ships in 2-12 days

0

Scag 461855

Cutter Deck w/Decals

$1586.99

$

Usually ships in 2-12 days

0

2

Scag 461663

Spindle Assembly

$257.99

$

In Stock, Qty 20+

0

3

Scag 43296

Spacer, Inside

$8.49

$

In Stock, only 2 left!

0

4

Scag 482744

Pulley

$30.99

$

Usually ships in 2-12 days

0

5

Scag 481022

Tapered Bearing

$59.99

$

In Stock, Qty 15

0

6

Scag 43644

Spindle Housing

$58.99

$

In Stock, only 2 left!

0

7

Scag 48114-04

Grease Fitting Str. 5/16"

$0.99

$

In Stock, Qty 20+

0

8

Scag 43589

Spindle Shaft

$58.99

$

In Stock, only 1 left!

0

9

Scag 43682

Idler Pivot

$23.99

$

Usually ships in 2-12 days

0

10

Scag 04063-08

Key, 1/4 x 1/4 x 2"

$1.49

$

In Stock, Qty 20+

0

11

Scag 43592

Spacer, Cutter Blade - Small

$4.49

$

In Stock, Qty 20+

0

12

Scag 04001-175

Bolt, 5/16-18 x 1-1/2" Hex Head Gr. 8

$0.99

$

Usually ships in 2-12 days

0

13

Scag 04001-154

Bolt, 5/16-18 x 4-3/4" Hex Head

$2.99

$

In Stock, Qty 20+

0

14

Scag 04019-03

Serr. Flange Nut, 5/16-18

$0.99

$

In Stock, Qty 20+

0

15

Scag 481706

Cutter Blade 16-1/2"

$20.99

$

In Stock, Qty 20+

0

15

Scag 481707

Cutter Blade 18"

$23.99

$

In Stock, Qty 20+

0

15A

Scag 481710

Cutter Blade 16-1/2 Hi-Lift

$40.99

$

Usually ships in 2-12 days

0

15A

Scag 481711

Cutter Blade 18 Hi-Lift

$40.99

$

In Stock, only 3 left!

0

16

Scag 04043-06

Flatwasher,5/8" (.688 x 1.75 x .134)

$1.99

$

In Stock, Qty 20+

0

17

Scag 04001-41

Hex Head Bolt, 5/8-11 x 9-1/2"

$12.99

$

In Stock, Qty 20+

0

18

Scag 461023

Caster Assembly

$417.99

$

Usually ships in 2-12 days

0

19

Scag 48098

Spindle Shield

$2.49

$

In Stock, only 3 left!

0

20

Scag 04017-16

Capscrew, 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 10

0

21

Scag 461844

Discharge Chute 48V

$66.99

$

In Stock, only 2 left!

0

21

Scag 461845

Discharge Chute 52V

$66.99

$

In Stock, only 1 left!

0

22

Scag 04021-10

Nut, 5/16-18 Elastic Elastic Stop

$0.99

$

In Stock, Qty 20+

0

23

Scag 04001-11

Bolt, 5/16-18 x 1-1/2" Hex Head

$0.99

$

In Stock, Qty 6

0

24

Scag 461866

Belt Cover
(Superseded to 462394)

Note: (Incl. decals)

$346.99

$

Usually ships in 2-12 days

0

24

Scag 461867

Belt Cover
(Superseded to 462395)

Note: (Incl. decals)

$485.99

$

Usually ships in 2-12 days

0

25

Scag 04043-04

Flat Washer, 3/8" Special

$0.99

$

In Stock, Qty 20+

0

26

Scag 04029-03

Wing Nut, 3/8-16 (Large)

$2.49

$

In Stock, Qty 20+

0

27

Scag 04110-03

U-Nut, 3/8-16

$2.49

$

In Stock, Qty 20+

0

28

Scag 48926

Tapered Hub

$30.99

$

In Stock, Qty 20+

0

29

Scag 04001-172

Bolt, 1/4-20 x 1" Hex Head Grade 8

$0.99

$

In Stock, Qty 20+

0

30

Scag 04020-09

Nut, 5/8-11 Hex

$0.99

$

In Stock, Qty 20+

0

31

Scag 482748

Pulley, Double
(Superseded to 48923)

$110.99

$

In Stock, only 1 left!

0

32

Scag 48087

Belt, RH Blade Drive

$43.99

$

In Stock, Qty 6

0

32

Scag 48285

Belt, RH Blade Drive

$40.99

$

In Stock, only 1 left!

0

33

Scag 48089

Belt, Blade Drive

$60.99

$

In Stock, only 4 left!

0

33

Scag 483518

Belt, Blade Drive

$52.99

$

In Stock, only 1 left!

0

34

Scag 04021-05

Nut, 3/8-16, Nut Centerlock

$0.99

$

In Stock, Qty 20+

0

35

Scag 04019-04

Nut, 3/8-16, Serrated Flange

$0.99

$

In Stock, Qty 20+

0

36

Scag 04021-09

Nut, 3/8-16 Elastic Stop

$0.99

$

In Stock, Qty 20+

0

37

Scag 04004-02

Bolt, 5/16-18 x 1" Hex Head

$1.99

$

In Stock, only 4 left!

0

38

Scag 04001-09

Bolt, 5/16-18 x 1" Hex Head

$0.99

$

In Stock, Qty 20+

0

39

Scag 04017-36

Cpscrw, 1/2-13 x 1" Ser.Flg. HH

$2.99

$

In Stock, only 2 left!

0

40

Scag 04112-05

Nut, 1/2-13 Spiralock

$2.99

$

Usually ships in 2-12 days

0

41

Scag 04021-04

Hex Nut, 5/16-18 Center Locknut

$0.99

$

In Stock, Qty 20+

0

42

Scag 44078

J-Hook, 48V

$6.99

$

In Stock, only 2 left!

0

42

Scag 43028

J-Hook, 52V

$4.99

$

In Stock, only 2 left!

0

43

Scag 48181

Idler Pulley, "V" Groove

$26.99

$

In Stock, Qty 11

0

44

Scag 04040-04

Flatwasher, 5/16"

$0.99

$

In Stock, Qty 20+

0

45

Scag 461091

Idler Arm Assy.

Note: (Incl. 62)

$108.99

$

In Stock, only 3 left!

0

46

Scag 483176

Pad, Deck Wear

$33.99

$

In Stock, Qty 20+

0

47

Scag 43028

J-Rod, Idler Pulley

$4.99

$

In Stock, only 2 left!

0

48

Scag 43077

Spacer, J-Rod

$4.99

$

In Stock, only 1 left!

0

49

Scag 04041-12

Washer, 3/8 x 1-1/2 x 16 ga.

$0.99

$

In Stock, Qty 9

0

50

Scag 04001-31

Bolt, 3/8-16 x 2-1/2" Hex Head

$0.99

$

In Stock, Qty 20+

0

51

Scag 481024

Seal, Cutter Spindle

$4.99

$

In Stock, Qty 20+

0

52

Scag 461841

Idler Arm Assy

Note: (Includes 62)

$66.99

$

Usually ships in 2-12 days

0

53

Scag 43277

Spacer, J-Rod

$6.49

$

In Stock, only 1 left!

0

54

Scag 48677

Reiief Fitting, Cutter Spindle

$

$

Not available

55

Scag 43312

Spacer, Outside, Cutter Spindle

$19.99

$

In Stock, only 1 left!

0

56

Scag 43297

Spindle Bushing

$9.99

$

In Stock, only 2 left!

0

57

Scag 481035

Nut, Cutter Spindle

$7.99

$

In Stock, only 3 left!

0

58

Scag 481625-01

Knob, w/stud

$2.99

$

In Stock, Qty 20+

0

59

Scag 04001-51

Bolt, 3/8-16 x 3-3/4" Hex Head

$1.49

$

In Stock, Qty 8

0

60

Scag 43681

Idler Pivot

$23.99

$

In Stock, only 1 left!

0

61

Scag 483215

Idler Pulley, Belt Clutch

$60.99

$

In Stock, Qty 20+

0

62

Scag 48224

Bearing

$12.99

$

In Stock, Qty 20+

0

63

Scag 04003-12

Bolt, Carriage 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

64

Scag 482295

Guide Roller

$9.99

$

In Stock, Qty 20+

0

65

Scag 45944

Roller Shaft

$21.99

$

In Stock, Qty 20+

0

66

Scag 481025

Seal, Cutter Spindle

$4.99

$

In Stock, Qty 20+

0

67

Scag 483378

Spring, Chute Return

$7.49

$

In Stock, only 4 left!

0

68

Scag 424839

Baffle Weldment 48V

$84.99

$

In Stock, only 1 left!

0

68

Scag 424840

Baffle Weldment 52V

$101.99

$

Usually ships in 2-12 days

0

69

Scag 04001-62

Bolt, 3/8-16 x 3-1/4" Hex Head

$1.49

$

In Stock, Qty 12

0

70

Scag 04003-23

Bolt, Carriage 3/8-16 x 1"

$1.49

$

In Stock, Qty 20+

0

71

Scag 423972

Heatshield
(Superseded to 424661)

$16.99

$

Usually ships in 2-12 days

0

72

Scag 04021-22

Nut, Hex Lock 5/16-18

$0.99

$

In Stock, Qty 20+

0

73

Scag 04030-03

Lock Washer 5/16"

$0.99

$

In Stock, Qty 20+

0

74

Scag 424367

Dust Shield

$2.49

$

In Stock, only 2 left!

0

75

Scag 04001-22

Bolt, 3/8-16 x 2-3/4" Hex Head

$1.49

$

In Stock, Qty 10

0
