SW48A-17KA - Scag 48" Walk-Behind Mower, 17hp Kawasaki (SN: 7350001 - 7359999) Engine Deck Parts Diagram

48" Walk-Behind Mower, 17hp Kawasaki

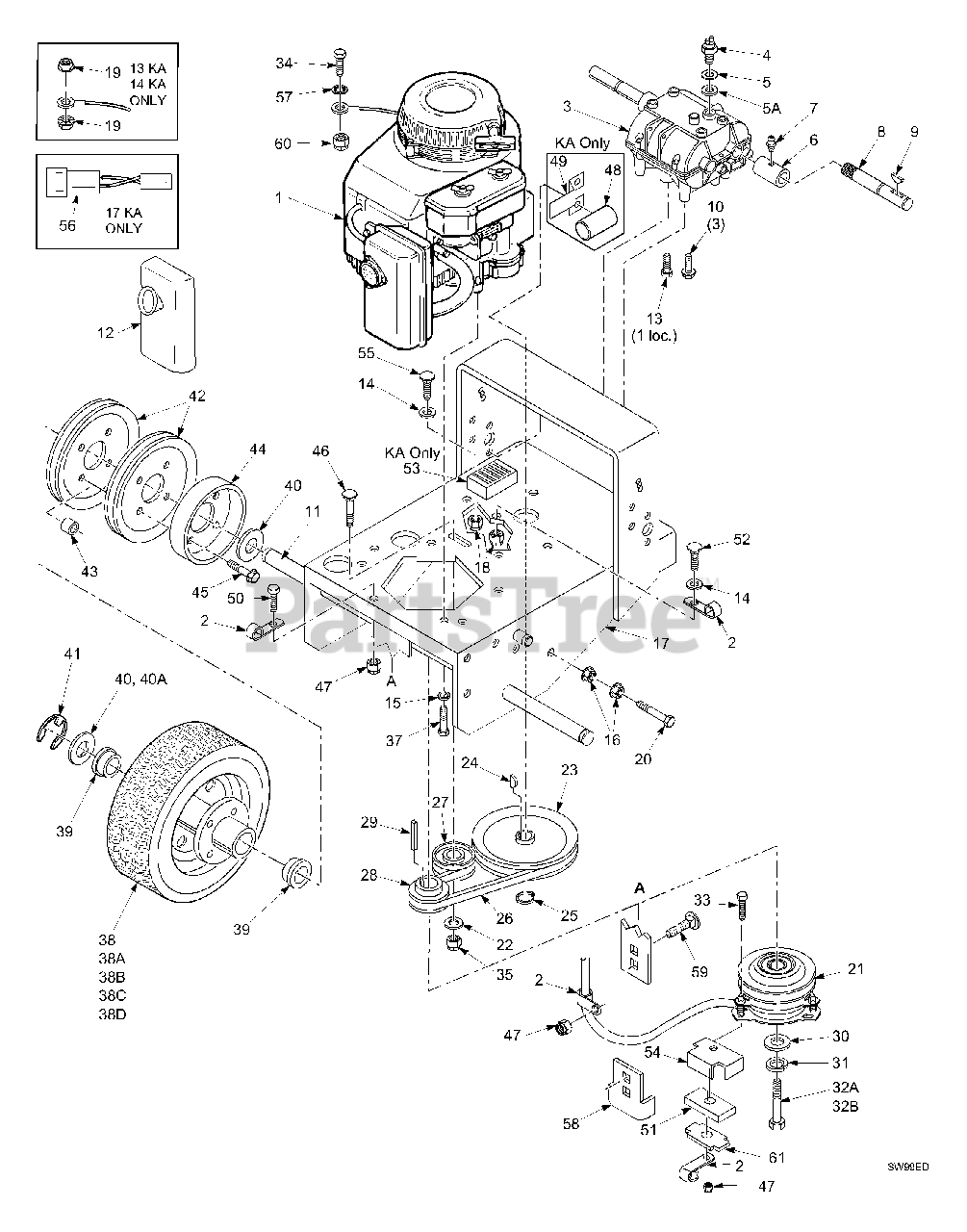

Engine Deck Parts Diagram

  • Title

1

Scag 481563

Engine, 17HP Kawasaki (FH500V)

$

$

Currently unavailable

2

Scag 48030-09

Cable Clamp

$1.49

$

In Stock, Qty 5

0

3

Scag 481580

Transmission, 5-speed

Note: (Peerless 700-070, 9 tooth spline)

$781.99

$

Usually ships in 2-12 days

0

4

Scag 48231

Neutral Safety Switch

$38.99

$

Usually ships in 2-12 days

0

5

Scag 48122-01

Fibre Washer, thin

$0.99

$

Usually ships in 2-12 days

0

5A

Scag 48122-02

Fibre Washer, thick

$0.99

$

Usually ships in 2-12 days

0

6

Scag 481581

Coupler, Jackshaft

$40.99

$

In Stock, only 2 left!

0

7

Scag 48114-05

Grease Fitting, straight 1/4-28

$1.49

$

In Stock, Qty 9

0

8

Scag 481583

Jackshaft

Note: (Fits SW 52, 61 & 72)

$49.99

$

In Stock, only 2 left!

0

9

Scag 04063-09

Key, Hi-Pro #9

$1.49

$

In Stock, Qty 9

0

10

Scag 04003-12

Bolt, 5/16-18 X 3/4" Carriage

$0.99

$

In Stock, Qty 20+

0

11

Scag 43100

Wheel Axle

Note: (SW 52, 61, 72)

$

$

Not available

11

Scag 43085

Wheel Axle

Note: (SW 36, 48)

$52.99

$

Usually ships in 2-12 days

0

12

Scag 49070-7002

17KA Muffler

Note: (Purchase from Kawasaki)

$

$

Currently unavailable

13

Scag 04001-08

Bolt, 5/16-18 X 3/4" Hex Head

$0.99

$

In Stock, Qty 20+

0

14

Scag 04040-14

Flat Washer 1/4" (.312 X .75 X .065)

$0.99

$

In Stock, only 4 left!

0

15

Scag 04030-03

Lock Wshr. 5/16"

$0.99

$

In Stock, Qty 20+

0

16

Scag 04019-04

Nut, 3/8-16 Serrated Flange

$0.99

$

In Stock, Qty 20+

0

17

Scag 46764

Engine Deck
(Superseded to 461741)

Note: (Fits SW32)

$438.99

$

Usually ships in 2-12 days

0

17

Scag 46766

Engine Deck
(Superseded to 461539)

Note: (Fits SW52, 61 & 72)

$

$

Not available

18

Scag 04021-08

Nut, 1/4-20 Elastic Stop

$0.99

$

In Stock, Qty 9

0

19

Scag 04019-03

Nut, 5/16-18 Serrated Flange

$0.99

$

In Stock, Qty 20+

0

20

Scag 04001-51

Bolt, 3/8-16 x 3-3/4" Hex Head

$1.49

$

In Stock, Qty 8

0

21

Scag 461397

Electric Clutch (Ogura)

$306.99

$

In Stock, only 1 left!

0

22

Scag 04041-07

Washer, 3/8" (.391 x .938 x .105)

$0.99

$

In Stock, Qty 20+

0

23

Scag 48197

Pulley, Transmission Input

$35.99

$

In Stock, only 1 left!

0

24

Scag 04063-07

Key, Woodruff #9

$0.99

$

In Stock, Qty 12

0

25

Scag 04050-09

Retaining Ring, 5/8" Ext, Basic

$0.99

$

In Stock, Qty 20+

0

26

Scag 48203

Belt, Transmission Drive

$27.99

$

In Stock, only 1 left!

0

27

Scag 481048

Idler Pulley, Transmission
(Superseded to 483208)

$33.99

$

In Stock, Qty 20+

0

28

Scag 481666

Pulley, Traction Drive

$51.99

$

Usually ships in 2-12 days

0

29

Scag 04063-19

Key, 1/4 x 1/4 x 3/4"

$0.99

$

In Stock, only 2 left!

0

30

Scag 04041-28

Flat Washer, 7/16" Special

$2.99

$

In Stock, Qty 12

0

31

Scag 04030-05

Lock Washer, 7/16"

$0.99

$

In Stock, Qty 5

0

32A

Scag 04102-04

Bolt, 7/16-20 x2-1/2" Hex Head

$2.49

$

In Stock, Qty 5

0

32B

Cpsrw, M10-1.5 x 55 Metric Hex Hd

Note: NOT USED ON THIS MODEL

$

$

Not available

33

Scag 04001-12

Bolt, 5/16-18 x 1-3/4" Hex Head

$0.99

$

In Stock, Qty 20+

0

34

Bolt, M8-1.25 x 1.0

Note: NOT USED ON THIS MODEL

$

$

Not available

35

Scag 04021-09

Nut, 3/8-16 Elastic Stop

$0.99

$

In Stock, Qty 20+

0

?36

Scag 04040-15

Flat Washer, 5/16"

$0.99

$

In Stock, Qty 20+

0

37

Bolt, M8-1.25 x M25 Metric Hex Hd

Note: NOT USED ON THIS MODEL

$

$

Not available

38

Scag 48192

Wheel Assembly

Note: (Incl. 38A-38B); (Fits SW36, 48, 52, 61, 72)

$342.99

$

Usually ships in 2-12 days

0

38

Wheel Assembly

Note: NOT USED ON THIS MODEL

$

$

Not available

38A

Scag 481860

Tire, 13 x 6.50-6, 2-ply

Note: (Fits SW36, 48, 52, 61 & 72)

$175.99

$

Usually ships in 2-12 days

0

38B

Scag 481859

Rim & Bearing Assembly

Note: (Incl. 39); (Fits SW36, 48, 52, 61 & 72)

$336.99

$

Usually ships in 2-12 days

0

38C

Tire, 13 x 5.00-6 2-ply

Note: NOT USED ON THIS MODEL

$

$

Not available

38D

Scag 481862

Rim Assembly

$314.99

$

Usually ships in 2-12 days

0

39

Wheel Brng. NWC (OD 1.984 - 1.980)

Note: NOT USED ON THIS MODEL

$

$

Not available

40

Scag 04042-05

Washer, 1-1/16 x 1-3/4 x 12 ga

$0.99

$

In Stock, Qty 18

0

40A

Scag 04041-14

Washer, 1-1/16 x 1-1/2 x 18 ga

$0.99

$

In Stock, Qty 15

0

41

Scag 04050-08

Retaining Ring, 1" Ext.- "E"

$0.99

$

In Stock, Qty 12

0

42

Scag 48200

Pulley, Wheel Drive

$33.99

$

In Stock, only 1 left!

0

43

Scag 43088

Spacer, Wheel Pulley

$12.99

$

Usually ships in 2-12 days

0

44

Scag 48209

Brake Drum

$19.99

$

Usually ships in 2-12 days

0

45

Scag 04017-19

Bolt, 5/16-18 x 1-1/2" Serrated flange

$1.49

$

Usually ships in 2-12 days

0

46

Scag 04003-03

Bolt, 3/8-16 x 2" Carriage

$1.49

$

In Stock, Qty 5

0

47

Scag 04021-10

Nut, 5/16-18 Elastic Stop

$0.99

$

In Stock, Qty 20+

0

48

Condenser

Note: NOT USED ON THIS MODEL

$

$

Not available

49

Bracket, Capacitor

Note: NOT USED ON THIS MODEL

$

$

Not available

50

Scag 04001-09

Bolt, 5/16-18 x 1" Hex Head

$0.99

$

In Stock, Qty 20+

0

51

Scag 481716

Rubber Pad, Clutch Stop

$11.99

$

Usually ships in 2-12 days

0

52

Scag 04003-02

Bolt, 1/4-20 x 3/4" Carriage

$0.99

$

In Stock, Qty 20+

0

53

Rectifier

Note: NOT USED ON THIS MODEL

$

$

Not available

54

Scag 422533

Backing Plate

$13.99

$

In Stock, only 1 left!

0

55

Bolt, 1/4-20 x 1-1/4"

Note: NOT USED ON THIS MODEL

$

$

Not available

56

Scag 481717

Wire Harness Adapter,

Note: 17KA

$12.99

$

Usually ships in 2-12 days

0

57

Scag 04031-09

Lock Washer Internal Tooth

$0.99

$

In Stock, Qty 8

0

58

Scag 421370

Anti Rotation Bracket

$22.99

$

Usually ships in 2-12 days

0

59

Scag 04003-04

Bolt, 5/16-18 x 1" Carriage

$0.99

$

In Stock, Qty 9

0

60

Scag 04021-08

Nut, 1/4-20 Elastic Stop

$0.99

$

In Stock, Qty 9

0

61

Scag 422534

Plate, Backing

$5.49

$

In Stock, only 1 left!

0
