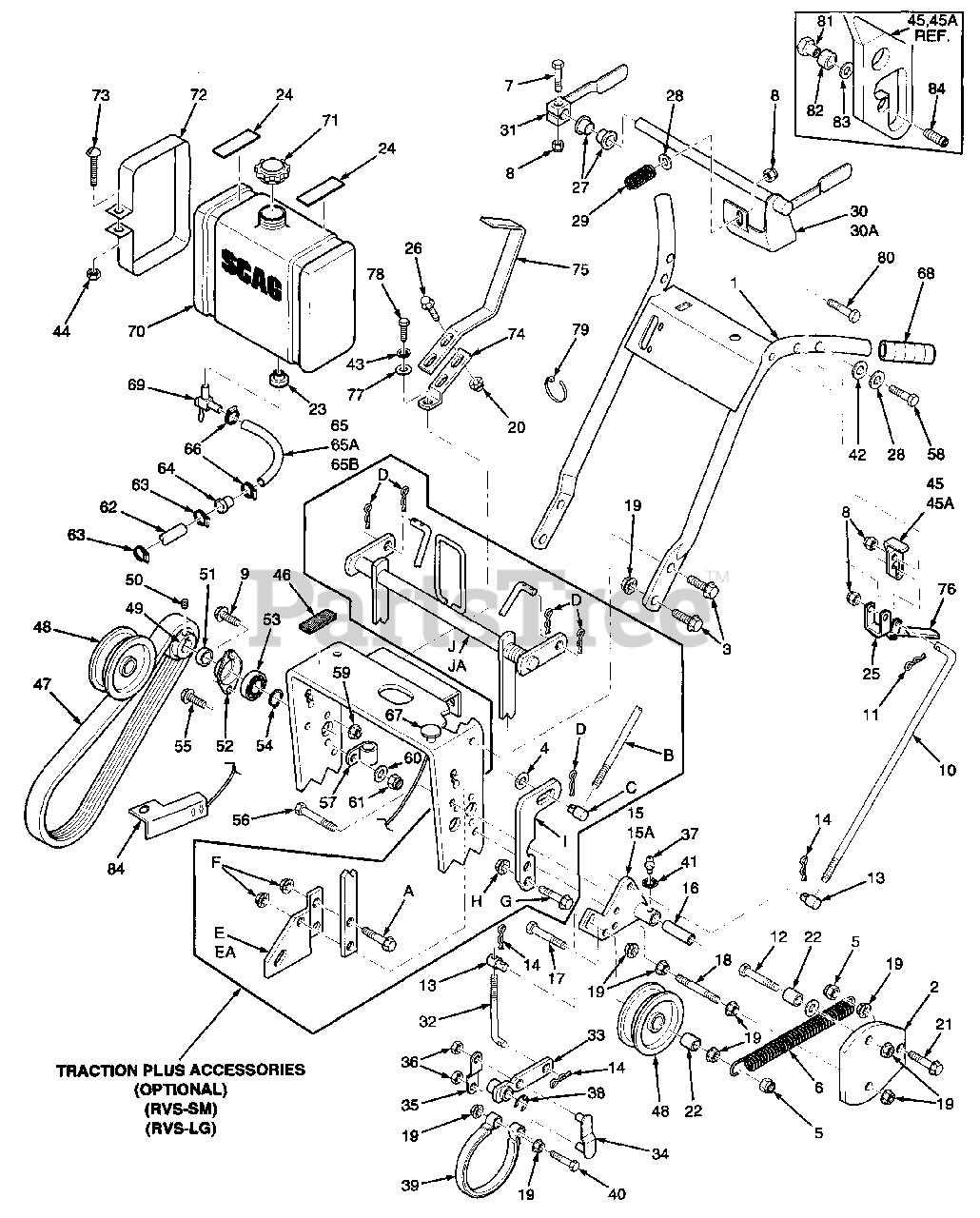

SW48-15KH - Scag 48" Walk-Behind Mower, 15hp Kohler (SN: 4010001 - 4019999) Handle Assembly Parts Diagram

48" Walk-Behind Mower, 15hp Kohler

Handle Assembly Parts Diagram

  • Title

1

Scag 461126

Handle Assembly (Fits SW 36,48)
(Superseded to 461978)

$410.99

$

Usually ships in 2-12 days

0

1

Scag 46856

Handle Assembly (Fits SW52,61,72)

$

$

Not available

?1C

Engine, 17HP Kawasaki (FH500V)

Note: (Not Used On This Model)

$

$

Not available

2

Scag 421360

Belt Guard

$24.99

$

Usually ships in 2-12 days

0

3

Scag 04017-27

Capscrw, 3/8-16 x 1" Ser. Flange

$1.49

$

In Stock, Qty 20+

0

4

Scag 04041-07

Washer, 3/8" (.391 x .938 x .105)

$0.99

$

In Stock, Qty 20+

0

5

Scag 04021-09

Nut, 3/8-16 Elastic Stop

$0.99

$

In Stock, Qty 20+

0

6

Scag 48755

Spring, Idler

$10.99

$

In Stock, only 2 left!

0

7

Scag 04001-10

Bolt, 5/16-18 x 1-1/4" Hex Head

$0.99

$

In Stock, Qty 14

0

8

Scag 04021-10

Nut, 5/16-18 Elastic Stop

$0.99

$

In Stock, Qty 20+

0

9

Scag 04017-05

Capscrew, 1/4-20 x 3/4" Hex Head

$0.99

$

In Stock, Qty 20+

0

10

Scag 44004

Control Rod, Steering

$

$

Not available

11

Scag 04062-02

Hair Pin, Small

$0.99

$

In Stock, Qty 20+

0

12

Scag 04001-23

Bolt, 3/8-16 x 4-1/2" Hex Head

$2.49

$

In Stock, Qty 7

0

13

Scag 43032

Swivel Joint

$6.49

$

In Stock, Qty 7

0

14

Scag 04062-01

Hair Pin, Large .094 Diameter

$0.99

$

In Stock, Qty 20+

0

15

Scag 45847

Idler Bracket, RH

$44.99

$

In Stock, only 1 left!

0

15A

Scag 45846

Idler Bracket, LH

$44.99

$

In Stock, only 2 left!

0

16

Scag 43092

Idler Sleeve

$6.49

$

Usually ships in 2-12 days

0

17

Scag 04001-62

Bolt, 3/8-16 x 3/4" Hex Head

$1.49

$

In Stock, Qty 12

0

18

Scag 04004-17

Support Belt Guard

$2.99

$

In Stock, Qty 13

0

19

Scag 04019-04

Nut, 3/8-16 Serrated Flange

$0.99

$

In Stock, Qty 20+

0

20

Scag 04019-03

Nut, 5/16-18 Serrated Flange

$0.99

$

In Stock, Qty 20+

0

21

Scag 04017-28

Cpscrw, 3/16-18 x 1-1/4" Ser. Flng.

$1.49

$

In Stock, Qty 7

0

22

Scag 43286

Spacer

$2.49

$

In Stock, only 2 left!

0

23

Scag 48309

Bushing
(Superseded to 482571)

$12.99

$

In Stock, Qty 20+

0

24

Scag 48292

Rubber Pad, (Upper)

$3.49

$

In Stock, only 2 left!

0

25

Scag 46089

Steering Lever
(Superseded to 483042)

$43.99

$

In Stock, only 1 left!

0

26

Scag 04017-17

Capscrew, 5/16-18 x 1" Ser. Flng.

$0.99

$

Usually ships in 2-12 days

0

27

Scag 48312

Bushing

$0.99

$

In Stock, Qty 10

0

28

Scag 04040-15

Washer, 5/16 (.375 x .875 x .083)

$0.99

$

In Stock, Qty 20+

0

29

Scag 48951

Spring, Operator Presence

$0.99

$

In Stock, only 1 left!

0

30

Scag 45573

Operator Presence Lever, LH (Small Frame)

$

$

Not available

30A

Scag 45571

Operator Presence Lever, LH (Large Frame)

$58.99

$

Usually ships in 2-12 days

0

31

Scag 45572

Operator Presence Lever, RH

$53.99

$

Usually ships in 2-12 days

0

32

Scag 44005

Brake Rod

$7.49

$

Usually ships in 2-12 days

0

33

Scag 45092

Brake Lever

$31.99

$

Usually ships in 2-12 days

0

34

Scag 45093

Brake Link

$21.99

$

Usually ships in 2-12 days

0

35

Scag 42254

Brake Link Plate

$13.99

$

Usually ships in 2-12 days

0

36

Scag 04024-01

Nut, 3/8 Push-on

$1.49

$

Usually ships in 2-12 days

0

37

Scag 48114-05

Greese Fitting, Straight 1/4-28

$1.49

$

In Stock, Qty 9

0

38

Scag 04050-01

Retaining Ring, 5/8 Ext. "E"

$0.99

$

In Stock, Qty 20+

0

39

Scag 48210

Brake Band

$33.99

$

In Stock, only 4 left!

0

40

Scag 04001-45

Bolt, 3/8-16 x 2" Hex Head

$0.99

$

In Stock, Qty 8

0

41

Scag 04031-08

1/4" Internal Tooth Lockwasher

$0.99

$

In Stock, Qty 10

0

42

Scag 04032-01

Curved Spring Washer

$0.99

$

In Stock, only 3 left!

0

43

Scag 04015-13

Socket Head Capscrew #8-32 x 1/2"

$0.99

$

In Stock, Qty 9

0

44

Scag 04020-02

Nut, 1/4-20 Hex

$0.99

$

In Stock, Qty 10

0

45

Scag 46942

Neutral Latch, RH
(Superseded to 461242)

$15.99

$

In Stock, only 1 left!

0

45A

Scag 46941

Neutral Latch, LH
(Superseded to 461241)

$13.99

$

In Stock, only 1 left!

0

46

Scag 48205

Rubber Pad (Lower)

$4.49

$

Usually ships in 2-12 days

0

47

Scag 48202A

Belt, Wheel Drive

$101.99

$

In Stock, Qty 11

0

48

Scag 48198

Idler Pulley, Wheel Drive
(Superseded to 483211)

$42.99

$

In Stock, only 1 left!

0

49

Scag 48199

Pulley, Jackshaft (Inc. 50)

$50.99

$

In Stock, only 2 left!

0

50

Scag 04012-04

Setscrew, Hex Socket Knurl Cup Pt. 5/16-18 (nylock)

$0.99

$

In Stock, Qty 14

0

51

Scag 43098

Spacer, Jackshaft Pulley

$3.49

$

In Stock, only 2 left!

0

52

Scag 48223

Flange, Jackshaft Bearing

$5.49

$

In Stock, only 2 left!

0

53

Scag 48224

Bearing, Jackshaft

$12.99

$

In Stock, Qty 20+

0

54

Scag 04050-09

Retaining Ring, 5/8 Ext. Basic

$0.99

$

In Stock, Qty 20+

0

55

Scag 04017-06

Capscrew, 1/4-20 x 1" Ser. Flange

$0.99

$

Usually ships in 2-12 days

0

56

UNKNOWN

$

$

Not available

57

Scag 48030-09

Clamp

$1.49

$

In Stock, Qty 5

0

58

Scag 04001-17

Bolt, 5/16-18 x 2" Hex Head

$0.99

$

In Stock, Qty 6

0

59

Scag 04019-02

Nut, 1/4-20 Serrated Flange

$0.99

$

In Stock, Qty 20+

0

60

Scag 04040-15

Flatwasher, 5/16 (.375 x .875 x .083)

$0.99

$

In Stock, Qty 20+

0

61

Scag 04021-02

Nut, 1/4-20 Elastic Stop

$0.99

$

In Stock, Qty 5

0

62

Fuel Hose (Kawasaki Only)

Note: (Not Used On This Model)

$

$

Not available

63

Fuel Hose Clamp (Kaw. Only)

Note: (Not Used On This Model)

$

$

Not available

64

Fuel Filter (Kawasaki Only)

Note: (Not Used On This Model)

$

$

Not available

65

Scag 48058

Fuel Hose, 1/4" ID, 10" (KH Only)
(Superseded to 483617)

$0.99

$

In Stock, Qty 20+

0

65A

Fuel Hose, 1/4" ID, 20" (KA & Briggs)

Note: (Not

$

$

Not available

65B

Fuel Hose, 1/4" ID, 23" (KH 18CVE)

Note: (Not Used On This Model)

$

$

Not available

66

Scag 48059-01

Clamp, Fuel Hose

$0.99

$

In Stock, Qty 7

0

67

Choke Control

Note: (Not Used On This Model)

$

$

Not available

68

Scag 48159

Grip, Handle

$3.49

$

In Stock, Qty 8

0

69

Scag 48308

Valve, Fuel Shut Off
(Superseded to 483747)

$29.99

$

In Stock, only 4 left!

0

70

Scag 46174

Fuel Tank Assy. (Incl. Bush. & Val.)
(Superseded to 46846)

$242.99

$

In Stock, only 1 left!

0

71

Scag 481603

Fuel Tank Cap
(Superseded to 483791)

$35.99

$

Usually ships in 2-12 days

0

72

Scag 421239

Strap, Fuel Tank

$24.99

$

In Stock, only 4 left!

0

73

Scag 04010-10

Screw, 1/4-20 x 2" Rnd Hd Slotted

$0.99

$

In Stock, Qty 12

0

74

Scag 422279

Shift Lever

$11.99

$

In Stock, only 1 left!

0

75

Scag 421241

Shift Lever Extention
(Superseded to 461163)

$52.99

$

In Stock, only 1 left!

0

76

Scag 48144

Grip, Steering Lever
(Superseded to 481477)

$4.49

$

In Stock, only 2 left!

0

77

Scag 04041-07

Washer, 3/8 (.391 x .938 x .105)

$0.99

$

In Stock, Qty 20+

0

78

Scag 04020-14

Nut, 3/8-24 UNF

$0.99

$

In Stock, only 3 left!

0

79

Scag 48028-05

Cable Tie

$

$

Not available

80

Scag 04001-53

Bolt, 5/16-18 x 2-1/2"

$0.99

$

In Stock, Qty 13

0

81

Scag 481411

Bushing, Bearing Retainer
(Superseded to 461242)

$15.99

$

In Stock, only 1 left!

0

82

Scag 481420

Bearing

$9.99

$

Usually ships in 2-12 days

0

83

Scag 04041-23

Washer, #8-.170 x .375 x .032

$

$

Currently unavailable

84

UNKNOWN

$

$

Not available

A

Scag 04017-27

Capscrew, 3/8-16 x 1" Ser. Flng

Note: (Traction Plus Accessories (Optional), RVS-SM 8 RVS-LG)

$1.49

$

In Stock, Qty 20+

0

B

Scag 44098

Rod, Traction Control

Note: (Traction Plus Accessories (Optional), RVS-SM 8 RVS-LG)

$24.99

$

Usually ships in 2-12 days

0

C

Scag 43032

Swivel Joint

Note: (Traction Plus Accessories (Optional), RVS-SM 8 RVS-LG)

$6.49

$

In Stock, Qty 7

0

D

Scag 04062-01

Hair Pin, Large .094 Dia.

Note: (Traction Plus Accessories (Optional), RVS-SM 8 RVS-LG)

$0.99

$

In Stock, Qty 20+

0

E

Scag 421372

Mounting Brkt. LH Traction Cont.

Note: (Traction Plus Accessories (Optional), RVS-SM 8 RVS-LG)

$

$

Not available

EA

Scag 421373

Mounting Brkt. RH Traction Cont.

Note: (Traction Plus Accessories (Optional), RVS-SM 8 RVS-LG)

$

$

Not available

F

Scag 04019-04

Nut, 3/8-16 Serrated Flange

Note: (Traction Plus Accessories (Optional), RVS-SM 8 RVS-LG)

$0.99

$

In Stock, Qty 20+

0

G

Scag 04017-16

Capscrew, 5/16-18 x 3/4" Ser. Flg.

Note: (Traction Plus Accessories (Optional), RVS-SM 8 RVS-LG)

$0.99

$

In Stock, Qty 10

0

H

Scag 04019-03

Nut, 5/16-18 Serrated Flange

Note: (Traction Plus Accessories (Optional), RVS-SM 8 RVS-LG)

$0.99

$

In Stock, Qty 20+

0

I

Scag 421428

Traction Lever, LH

Note: (Traction Plus Accessories (Optional), RVS-SM 8 RVS-LG)

$

$

Not available

?IA

Scag 421429

Traction Lever, RH

Note: (Traction Plus Accessories (Optional), RVS-SM 8 RVS-LG)

$

$

Not available

J

Scag 45554

Traction Lever Wldmnt. (Small Fm.)

Note: (Traction Plus Accessories (Optional), RVS-SM 8 RVS-LG)

$

$

Not available

JA

Scag 45555

Traction Lever Wldmnt. (Large Fm.)

Note: (Traction Plus Accessories (Optional), RVS-SM 8 RVS-LG)

$

$

Not available
